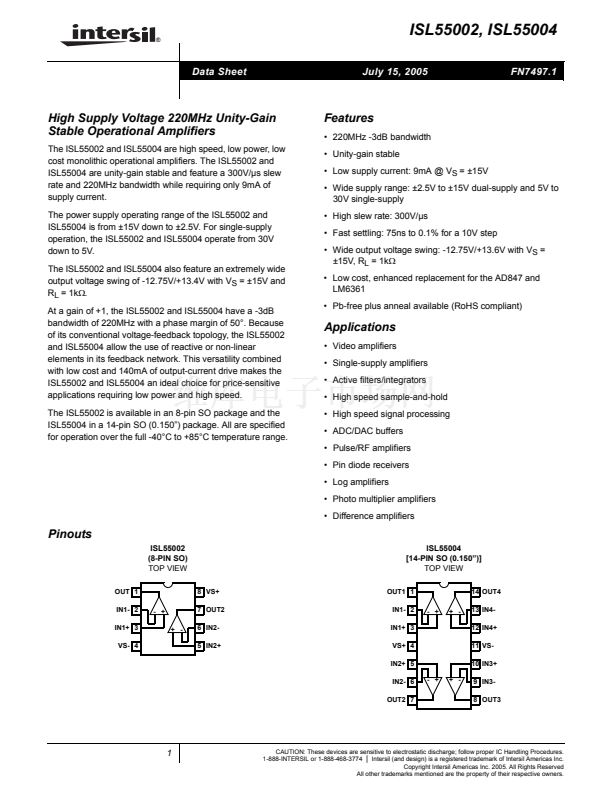

ISL55002, ISL55004
Data Sheet
July 15, 2005
FN7497.1
High Supply Voltage 220MHz Unity-Gain
Stable Operational Amplifiers
The ISL55002 and ISL55004 are high speed, low power, low
cost monolithic operational amplifiers. The ISL55002 and
ISL55004 are unity-gain stable and feature a 300V/碌s slew
rate and 220MHz bandwidth while requiring only 9mA of
supply current.
The power supply operating range of the ISL55002 and
ISL55004 is from 鹵15V down to 鹵2.5V. For single-supply
operation, the ISL55002 and ISL55004 operate from 30V
down to 5V.
The ISL55002 and ISL55004 also feature an extremely wide
output voltage swing of -12.75V/+13.4V with V
S
= 鹵15V and
R
L
= 1k鈩?
At a gain of +1, the ISL55002 and ISL55004 have a -3dB
bandwidth of 220MHz with a phase margin of 50擄. Because
of its conventional voltage-feedback topology, the ISL55002
and ISL55004 allow the use of reactive or non-linear
elements in its feedback network. This versatility combined
with low cost and 140mA of output-current drive makes the
ISL55002 and ISL55004 an ideal choice for price-sensitive
applications requiring low power and high speed.
The ISL55002 is available in an 8-pin SO package and the
ISL55004 in a 14-pin SO (0.150鈥? package. All are specified
for operation over the full -40擄C to +85擄C temperature range.
Features
鈥?220MHz -3dB bandwidth
鈥?Unity-gain stable
鈥?Low supply current: 9mA @ V
S
= 鹵15V
鈥?Wide supply range: 鹵2.5V to 鹵15V dual-supply and 5V to
30V single-supply
鈥?High slew rate: 300V/碌s
鈥?Fast settling: 75ns to 0.1% for a 10V step
鈥?Wide output voltage swing: -12.75V/+13.6V with V
S
=
鹵15V, R
L
= 1k鈩?/div>
鈥?Low cost, enhanced replacement for the AD847 and
LM6361
鈥?Pb-free plus anneal available (RoHS compliant)
Applications
鈥?Video amplifiers
鈥?Single-supply amplifiers

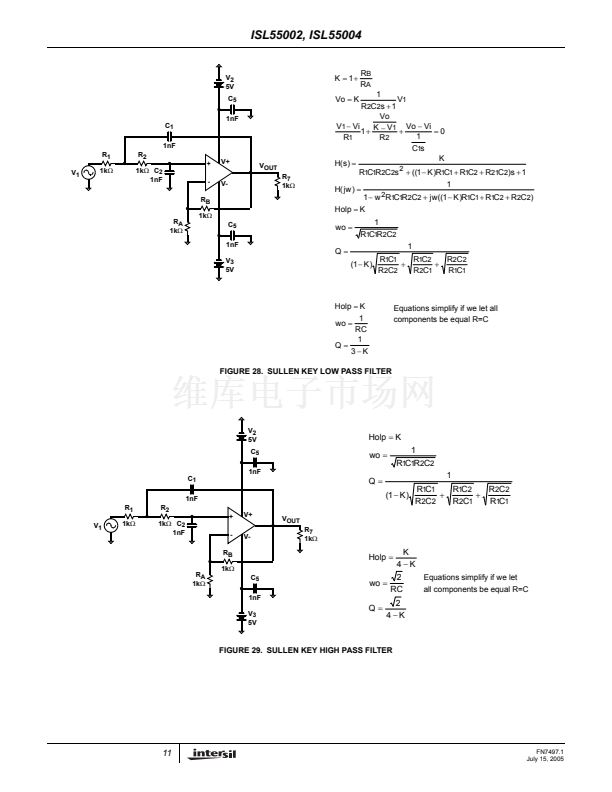

鈥?Active filters/integrators
鈥?High speed sample-and-hold
鈥?High speed signal processing
鈥?ADC/DAC buffers
鈥?Pulse/RF amplifiers
鈥?Pin diode receivers
鈥?Log amplifiers
鈥?Photo multiplier amplifiers
鈥?Difference amplifiers

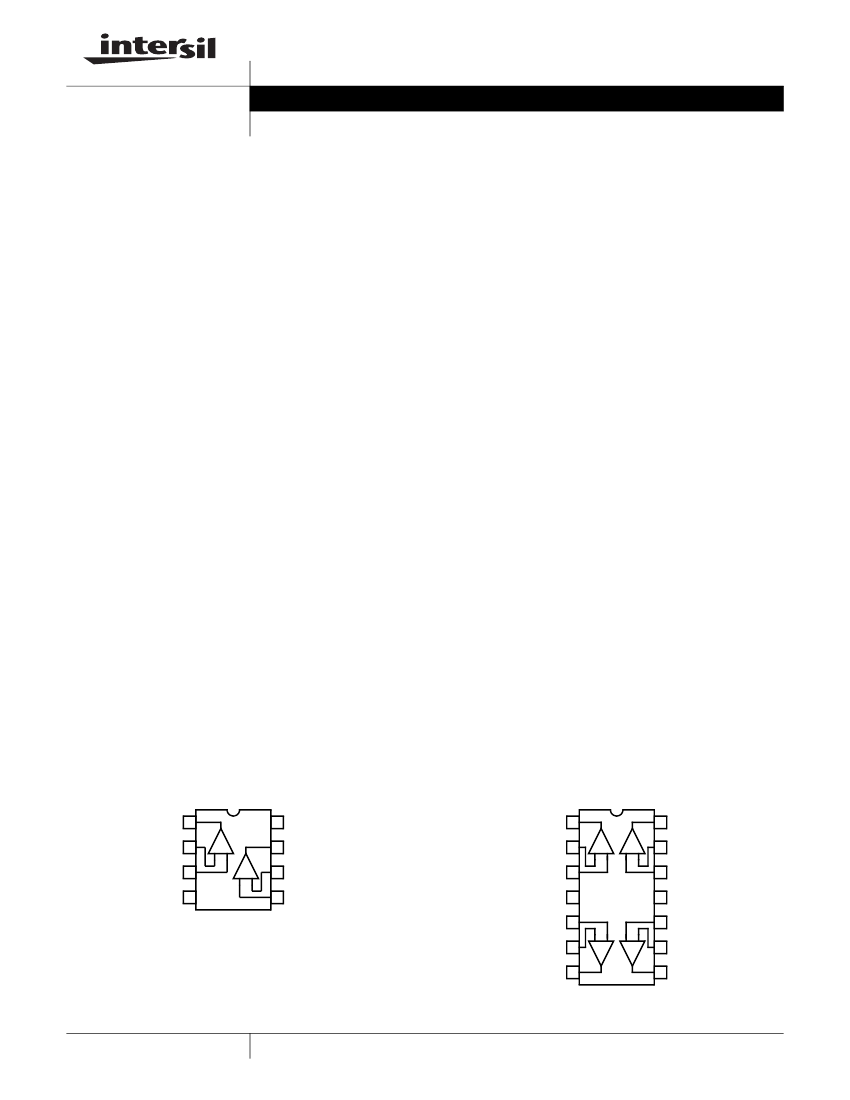

Pinouts
ISL55002
(8-PIN SO)
TOP VIEW
OUT 1
IN1- 2
IN1+ 3
VS- 4
- +
+ -
8 VS+
7 OUT2
6 IN2-
5 IN2+

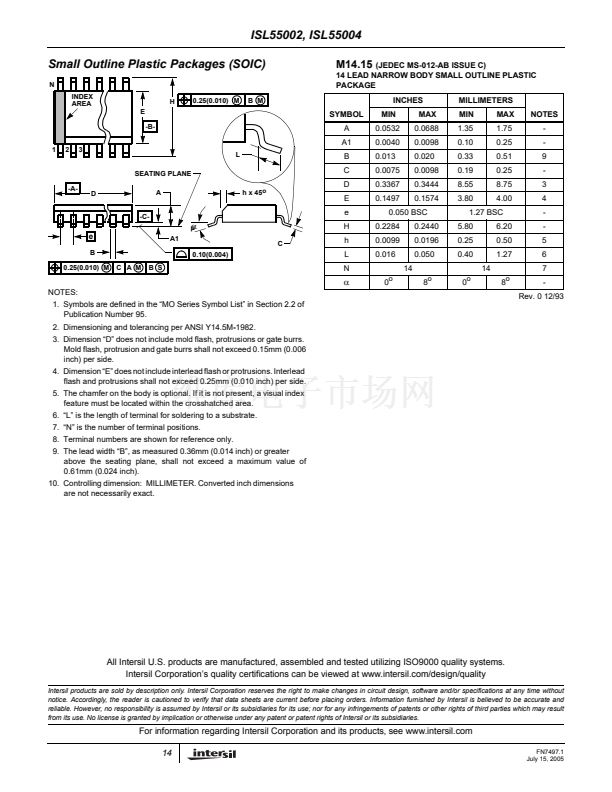

ISL55004
[14-PIN SO (0.150鈥?]
TOP VIEW
OUT1 1
IN1- 2
IN1+ 3
VS+ 4
IN2+ 5
IN2- 6
OUT2 7
- +
+ -
- +
+ -
14 OUT4
13 IN4-
12 IN4+
11 VS-
10 IN3+
9 IN3-
8 OUT3
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.

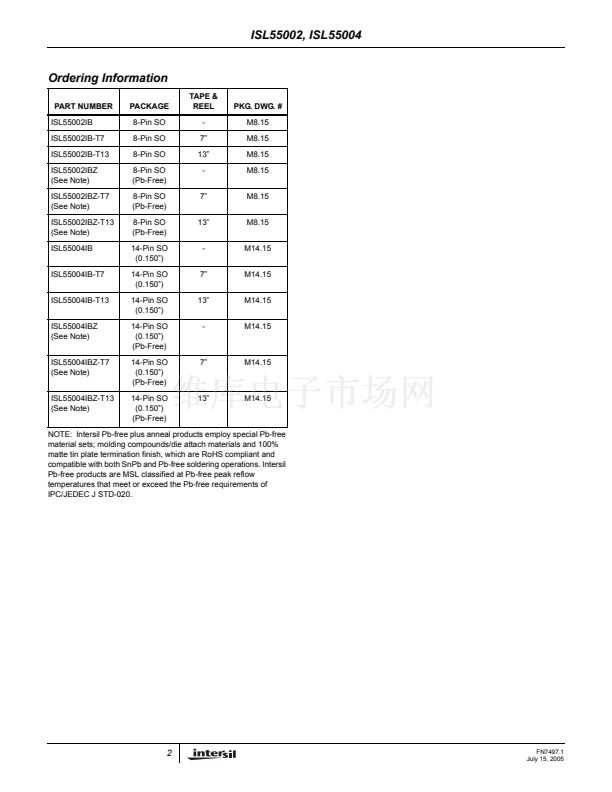

ISL55004IB 產品屬性

  • 55

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 電壓反饋

  • 4

  • -

  • 300 V/µs

  • 70MHz

  • 200MHz

  • 600nA

  • 1200µV

  • 8.5mA

  • 140mA

  • 4.5 V ~ 30 V，±2.25 V ~ 15 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 14-SOIC（0.154"，3.90mm 寬）

  • 14-SOIC

  • 管件
