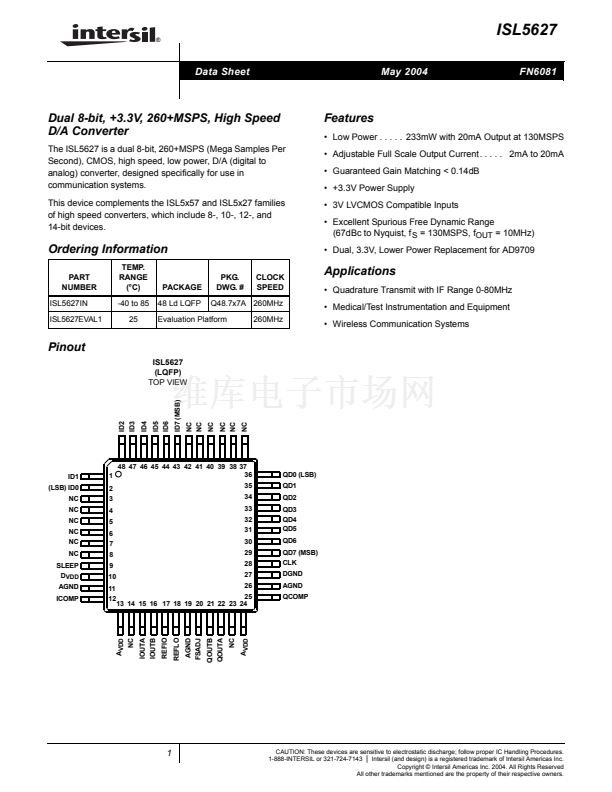

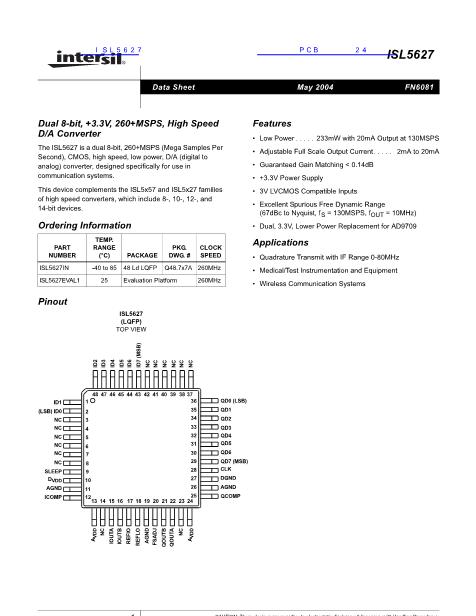

廬

ISL5627

Data Sheet

May 2004

FN6081

Dual 8-bit, +3.3V, 260+MSPS, High Speed

D/A Converter

The ISL5627 is a dual 8-bit, 260+MSPS (Mega Samples Per

Second), CMOS, high speed, low power, D/A (digital to

analog) converter, designed specifically for use in

communication systems.

This device complements the ISL5x57 and ISL5x27 families

of high speed converters, which include 8-, 10-, 12-, and

14-bit devices.

Features

鈥?Low Power . . . . . 233mW with 20mA Output at 130MSPS

鈥?Adjustable Full Scale Output Current . . . . . 2mA to 20mA

鈥?Guaranteed Gain Matching < 0.14dB

鈥?+3.3V Power Supply

鈥?3V LVCMOS Compatible Inputs

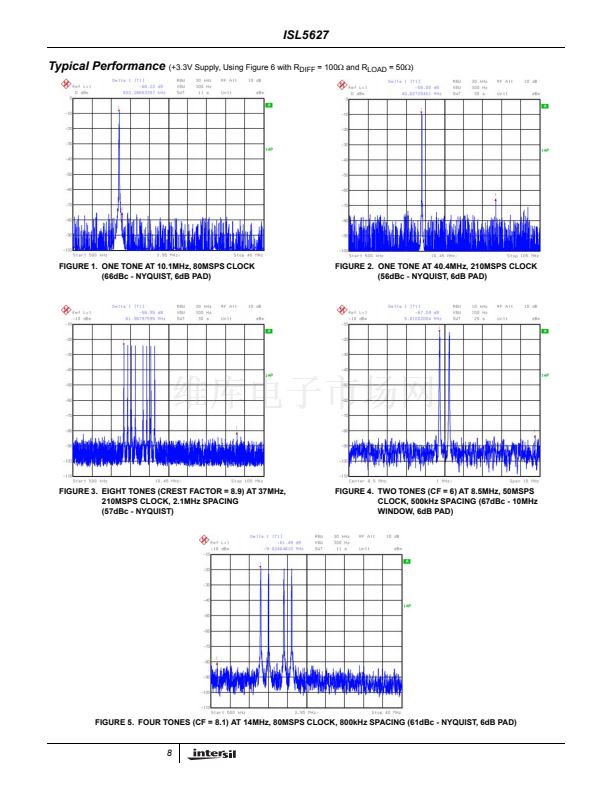

鈥?Excellent Spurious Free Dynamic Range

(67dBc to Nyquist, f

S

= 130MSPS, f

OUT

= 10MHz)

鈥?Dual, 3.3V, Lower Power Replacement for AD9709

Ordering Information

PART

NUMBER

ISL5627IN

ISL5627EVAL1

TEMP.

RANGE

(擄C)

-40 to 85

25

PACKAGE

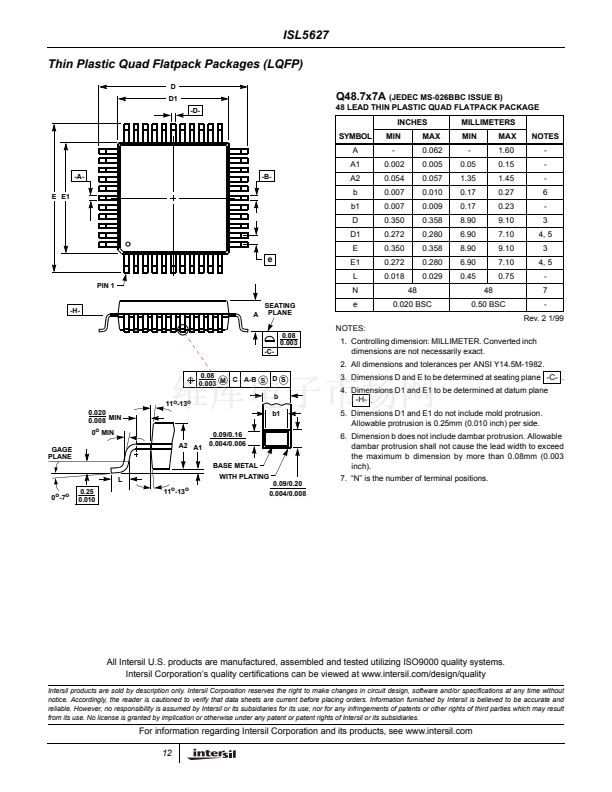

48 Ld LQFP

PKG.

DWG. #

CLOCK

SPEED

Applications

鈥?Quadrature Transmit with IF Range 0-80MHz

鈥?Medical/Test Instrumentation and Equipment

鈥?Wireless Communication Systems

Q48.7x7A 260MHz

260MHz

Evaluation Platform

Pinout

ISL5627

(LQFP)

TOP VIEW

ID7 (MSB)

ID3

ID2

ID4

ID5

ID6

NC

NC

NC

NC

NC

ID1

(LSB) ID0

NC

NC

NC

NC

NC

NC

SLEEP

D

VDD

AGND

ICOMP

1

2

3

4

5

6

7

8

9

10

11

12

48 47 46 45 44 43 42 41 40 39 38 37

36

35

34

33

32

31

30

29

28

27

26

25

13 14 15 16 17 18 19 20 21 22 23 24

NC

QD0 (LSB)

QD1

QD2

QD3

QD4

QD5

QD6

QD7 (MSB)

CLK

DGND

AGND

QCOMP

REFLO

AGND

FSADJ

IOUTA

IOUTB

QOUTB

QOUTA

REFIO

A

VDD

1

A

VDD

NC

NC

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

|

Intersil (and design) is a registered trademark of Intersil Americas Inc.

Copyright 漏 Intersil Americas Inc. 2004. All Rights Reserved

All other trademarks mentioned are the property of their respective owners.
