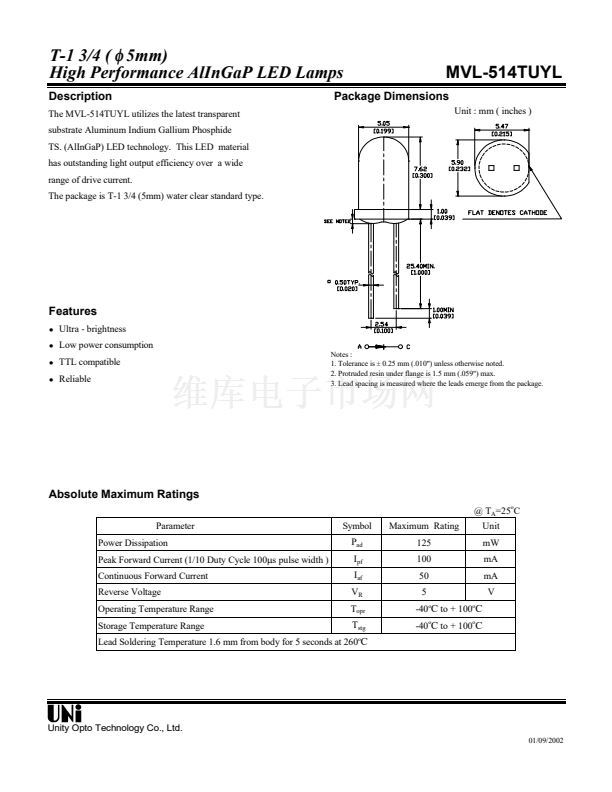

T-1 3/4 (
蠁
5mm)
High Performance AlInGaP LED Lamps
Description
The MVL-514TUYL utilizes the latest transparent
substrate Aluminum Indium Gallium Phosphide
TS. (AlInGaP) LED technology. This LED material
has outstanding light output efficiency over a wide
range of drive current.
The package is T-1 3/4 (5mm) water clear standard type.
MVL-514TUYL
Unit : mm ( inches )

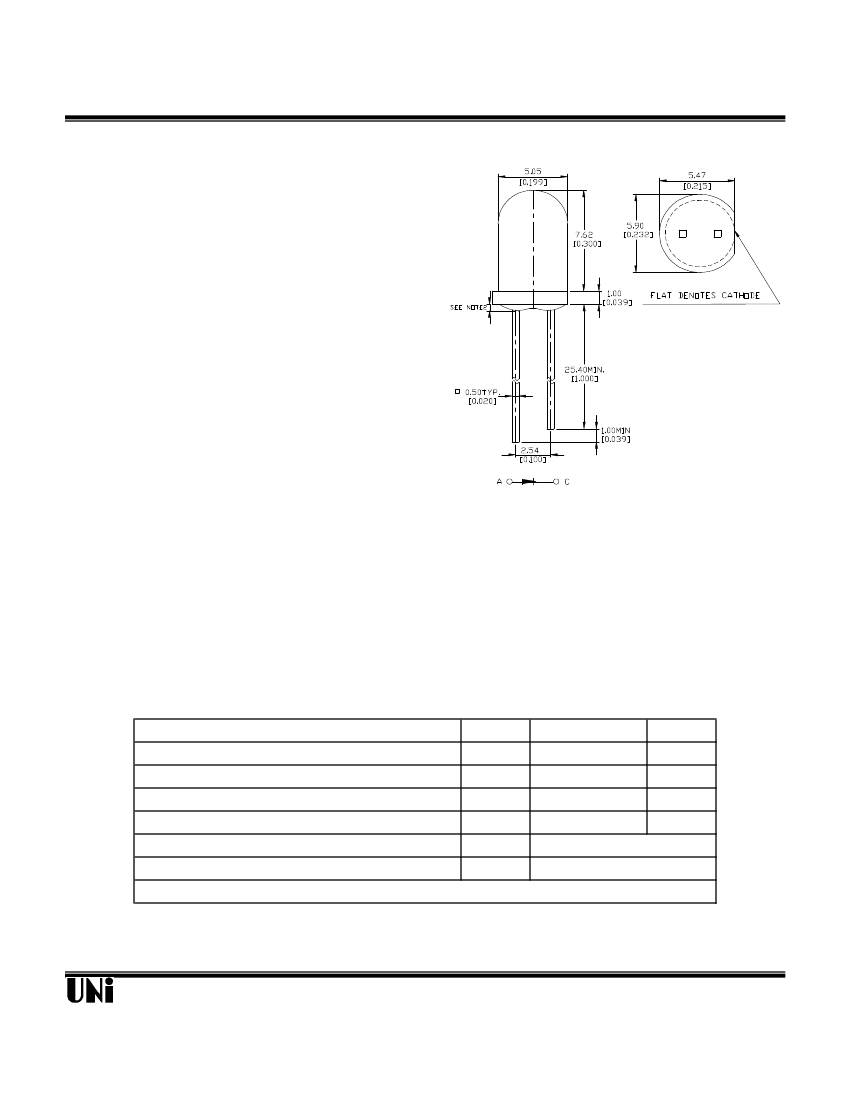

Package Dimensions
Features
l
l
l
l
Ultra - brightness
Low power consumption
TTL compatible
Reliable
Notes :
1. Tolerance is 鹵 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059") max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Ratings
@ T
A
=25
o
C
Parameter
Power Dissipation
Peak Forward Current (1/10 Duty Cycle 100碌s pulse width )
Continuous Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Symbol
P
ad
I
pf
I
af
V
R
T
opr
T
stg
Maximum Rating
125
100
50
5
-40
o
C
to + 100
o
C
-40
o
C
to + 100
o
C
Unit
mW
mA
mA
V
Lead Soldering Temperature 1.6 mm from body for 5 seconds at 260
o
C
