T-1 (
蠁
3mm)
DUAL COLOR INDICATOR LAMP
Description
The MVL-302B3A is a white diffused, wide viewing
angle, dual chips, utilizing Gallium Phosphide on
Gallium Phosphide green light emitting diode and
Gallium Arsenide Phosphide on Gallium Phosphide
orange light emitting diode.
The green and the orange operating independently
of each other with common anode.
MVL-302B3A

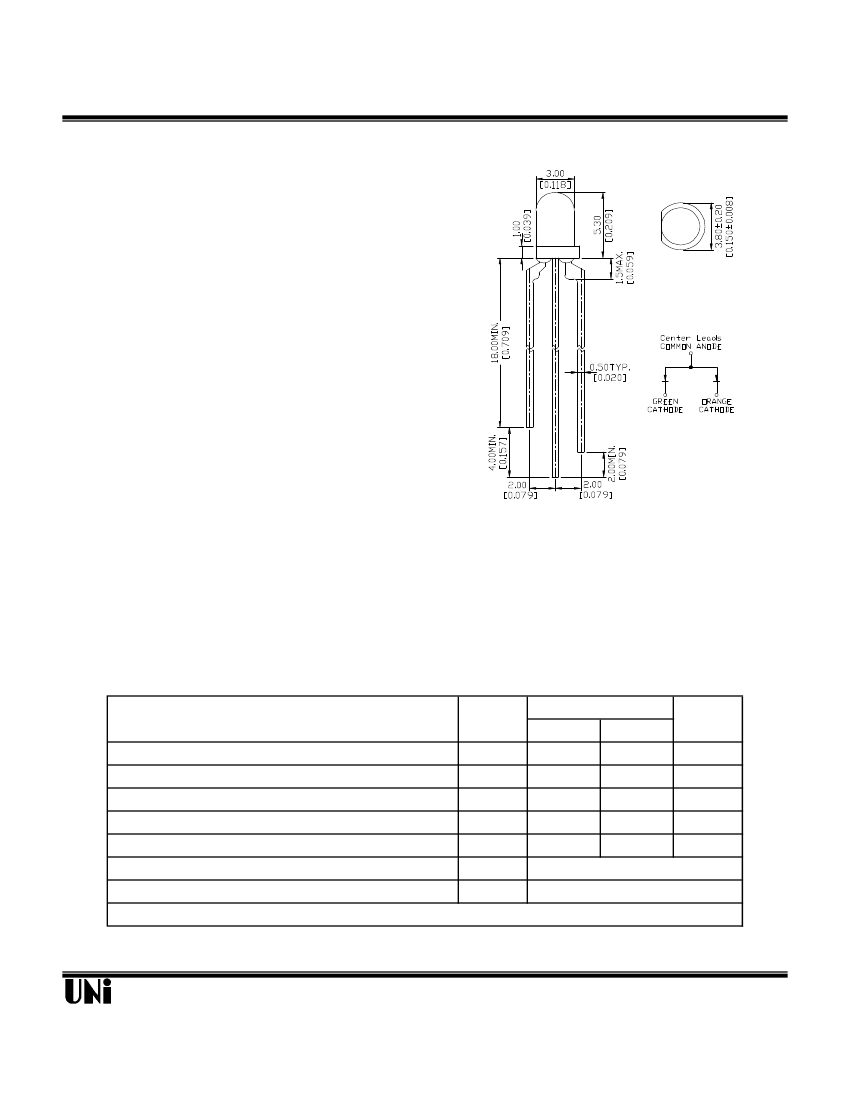

Package Dimensions
Unit: mm (inches)
Features
l
Green And orange Chips Are Matched For
Uniform Light Output.
l
l
Long Life-Solid State Reliability.
Low Power Consumption / I.C. Compatible
Notes :
1. Tolerance is 鹵 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 0.8 mm (.031") max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Ratings
@ T
A
=25 C
Parameter
Power Dissipation
Peak Forward Current(1/10 Duty Cycle 0.1ms pulse width)
Continuous Forward Current
Derating Linear From 25 C
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
o
o
o
Symbol
P
ad
I
pf
I
af
V
R
T
opr
T
stg
Maximum Rating
GREEN
100
120
30
0.4
5
o
o
Unit
mW
mA
mA
mA/ C
V
o
o
o
ORANGE
100
120
30
0.5
5
-55 C to +100 C
-55 C to +100 C
Lead Soldering Temperature (1.6 mm from body) for 3 seconds at 260 C
