V048K030T070 Datasheet

  • V048K030T070

  • VI Chip - VTM Voltage Transformation Module

  • 15頁

  • VICOR   VICOR

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PRELIMINARY
VTM
V鈥 Chip 鈥?VTM
Voltage Transformation Module
TM
V048K030T070
K indicates BGA configuration. For other
mounting options see Part Numbering below.
鈥?48 V to 3 V V鈥 Chip Converter
鈥?70 A (105 A for 1 ms)
鈥?High density 鈥?284 A/in
3
鈥?Small footprint 鈥?60 A/in
2
鈥?Low weight 鈥?0.5 oz (14 g)
鈥?Pick & Place / SMD
鈥?125擄C operation
鈥?1 碌s transient response
鈥?3.5 million hours MTBF
鈥?Typical efficiency 94%
鈥?No output filtering required
鈥?Surface mount BGA or J-Lead
packages
Vf = 26 - 55 V
V
OUT
= 1.63 - 3.43 V
I
OUT
= 70 A
K = 1/16
R
OUT
= 2.0 m鈩?max
漏
Actual size
Product Description

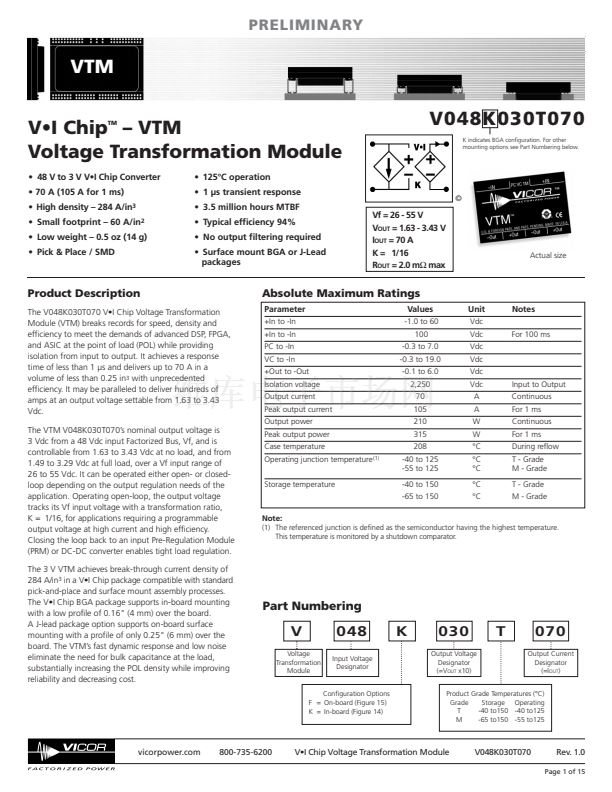

The V048K030T070 V鈥 Chip Voltage Transformation
Module (VTM) breaks records for speed, density and
efficiency to meet the demands of advanced DSP, FPGA,
and ASIC at the point of load (POL) while providing
isolation from input to output. It achieves a response
time of less than 1 碌s and delivers up to 70 A in a
volume of less than 0.25 in
3
with unprecedented
efficiency. It may be paralleled to deliver hundreds of
amps at an output voltage settable from 1.63 to 3.43
Vdc.
The VTM V048K030T070鈥檚 nominal output voltage is
3 Vdc from a 48 Vdc input Factorized Bus, Vf, and is
controllable from 1.63 to 3.43 Vdc at no load, and from
1.49 to 3.29 Vdc at full load, over a Vf input range of
26 to 55 Vdc. It can be operated either open- or closed-
loop depending on the output regulation needs of the
application. Operating open-loop, the output voltage
tracks its Vf input voltage with a transformation ratio,
K = 1/16, for applications requiring a programmable
output voltage at high current and high efficiency.
Closing the loop back to an input Pre-Regulation Module
(PRM) or DC-DC converter enables tight load regulation.
The 3 V VTM achieves break-through current density of
284 A/in
3
in a V鈥 Chip package compatible with standard
pick-and-place and surface mount assembly processes.
The V鈥 Chip BGA package supports in-board mounting
with a low profile of 0.16" (4 mm) over the board.
A J-lead package option supports on-board surface
mounting with a profile of only 0.25" (6 mm) over the
board. The VTM鈥檚 fast dynamic response and low noise
eliminate the need for bulk capacitance at the load,
substantially increasing the POL density while improving
reliability and decreasing cost.
Absolute Maximum Ratings
Parameter
+In to -In
+In to -In
PC to -In
VC to -In
+Out to -Out
Isolation voltage
Output current
Peak output current
Output power
Peak output power
Case temperature
Operating junction
temperature
(1)
Values
-1.0 to 60
100
-0.3 to 7.0
-0.3 to 19.0
-0.1 to 6.0
2,250
70
105
210
315
208
-40 to 125
-55 to 125
-40 to 150
-65 to 150
Unit
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
A
A
W
W
擄C
擄C
擄C
擄C
擄C
Notes
For 100 ms
Input to Output
Continuous
For 1 ms
Continuous
For 1 ms
During reflow
T - Grade
M - Grade
T - Grade
M - Grade
Storage temperature
Note:
(1) The referenced junction is defined as the semiconductor having the highest temperature.
This temperature is monitored by a shutdown comparator.
Part Numbering
V
Voltage
Transformation
Module
048
Input Voltage
Designator
K
030
Output Voltage
Designator
(=V
OUT
x10)
T
070
Output Current
Designator
(=I
OUT
)
Configuration Options
F = On-board (Figure 15)
K = In-board (Figure 14)
Product Grade Temperatures (擄C)
Grade
Storage Operating
T
-40 to150 -40 to125
M
-65 to150 -55 to125
vicorpower.com
800-735-6200
V鈥 Chip Voltage Transformation Module
V048K030T070
Rev. 1.0
Page 1 of 15
