TYN610 Datasheet

  • TYN610

  • SCR

  • 4頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

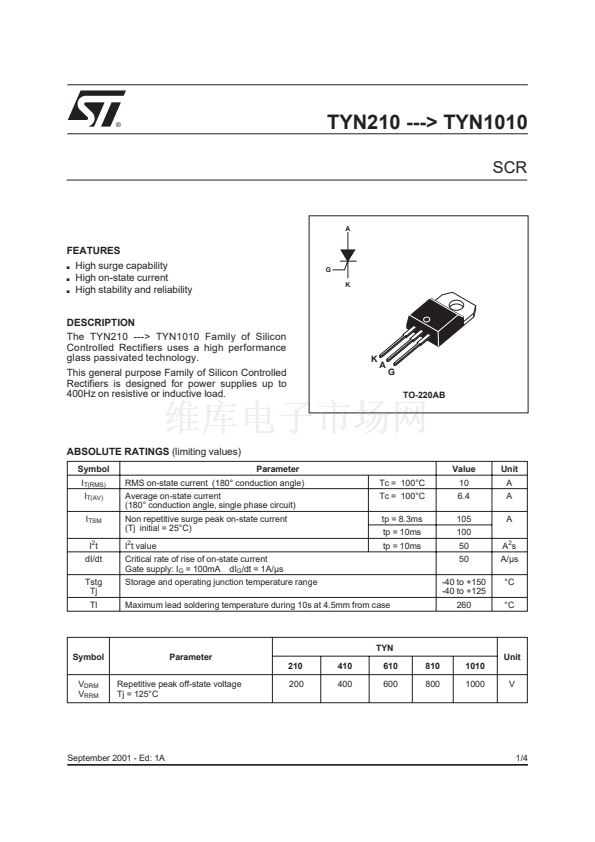

TYN210 ---> TYN1010
SCR
A
FEATURES
High surge capability
High on-state current
High stability and reliability
s
s
s
G
K
DESCRIPTION
The TYN210 ---> TYN1010 Family of Silicon
Controlled Rectifiers uses a high performance
glass passivated technology.
This general purpose Family of Silicon Controlled
Rectifiers is designed for power supplies up to
400Hz on resistive or inductive load.
K
A
G
TO-220AB
ABSOLUTE RATINGS
(limiting values)
Symbol
I
T(RMS)
I
T(AV)
I
TSM
I
2
t
dI/dt
Tstg
Tj
Tl
Parameter
RMS on-state current (180擄 conduction angle)
Average on-state current
(180擄 conduction angle, single phase circuit)
Non repetitive surge peak on-state current
(Tj initial = 25擄C)
I
2
t value
Critical rate of rise of on-state current
Gate supply: I
G
= 100mA dI
G
/dt = 1A/碌s
Storage and operating junction temperature range
Maximum lead soldering temperature during 10s at 4.5mm from case
Tc = 100擄C
Tc = 100擄C
tp = 8.3ms
tp = 10ms
tp = 10ms
Value
10
6.4
105
100
50
50
-40 to +150
-40 to +125
260
A
2
s
A/碌s
擄C
擄C
Unit
A
A
A
TYN
Symbol
V
DRM
V
RRM
Parameter
210
Repetitive peak off-state voltage
Tj = 125擄C
200
410
400
610
600
810
800
1010
1000
V
Unit
September 2001 - Ed: 1A
1/4
