TYN408RG Datasheet

  • TYN408RG

  • THYRISTOR 8A 400V

  • 74.17KB

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

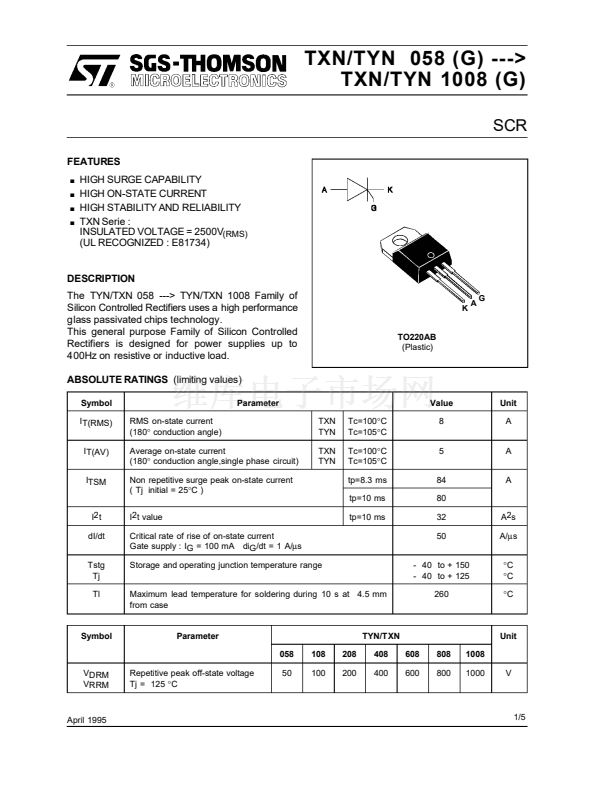

TXN/TYN 058 (G) --->
TXN/TYN 1008 (G)
SCR
.
.
.
.
FEATURES
HIGH SURGE CAPABILITY
HIGH ON-STATE CURRENT
HIGH STABILITY AND RELIABILITY
TXN Serie :
INSULATED VOLTAGE = 2500V
(RMS)
(UL RECOGNIZED : E81734)
DESCRIPTION
The TYN/TXN 058 ---> TYN/TXN 1008 Family of
Silicon Controlled Rectifiers uses a high performance
glass passivated chips technology.
This general purpose Family of Silicon Controlled
Rectifiers is designed for power supplies up to
400Hz on resistive or inductive load.
ABSOLUTE RATINGS
(limiting values)
Symbol
IT(RMS)
IT(AV)
ITSM
RMS on-state current
(180擄 conduction angle)
Average on-state current
(180擄 conduction angle,single phase circuit)
Non repetitive surge peak on-state current
( Tj initial = 25擄C )
I2 t value
Critical rate of rise of on-state current
Gate supply : IG = 100 mA diG/dt = 1 A/碌s
Storage and operating junction temperature range
Maximum lead temperature for soldering during 10 s at 4.5 mm
from case
Parameter
TXN
TYN
TXN
TYN
Tc=100擄C
Tc=105擄C
Tc=100擄C
Tc=105擄C
tp=8.3 ms
tp=10 ms
I2t
dI/dt
Tstg
Tj
Tl
tp=10 ms
Value
8
5
84
80
32
50
- 40 to + 150
- 40 to + 125
260
A2s
A/碌s
擄C
擄C
擄C
Unit
A
A
A
K
A
G
TO220AB
(Plastic)
Symbol
Parameter
058
108
100
208
200
TYN/TXN
408
400
608
600
808
800
1008
1000
Unit
VDRM
VRRM
Repetitive peak off-state voltage
Tj = 125
擄C
50
V
April 1995
1/5

TYN408RG 產品屬性

  • STMicroelectronics

  • SCR

  • 84 A

  • 0.2 V

  • 10 uA

  • 1.8 V

  • 1.5 V

  • 15 mA

  • 30 mA

  • Through Hole

  • TO-220

  • Tube

  • 50
