ST6210C Datasheet

  • ST6210C

  • 8-BIT MICROCONTROLLER ( MCU ) WITH OTP, ROM, FASTROM, EPROM,...

  • 998.35KB

  • STMicroelectronics   STMicroelectronics

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

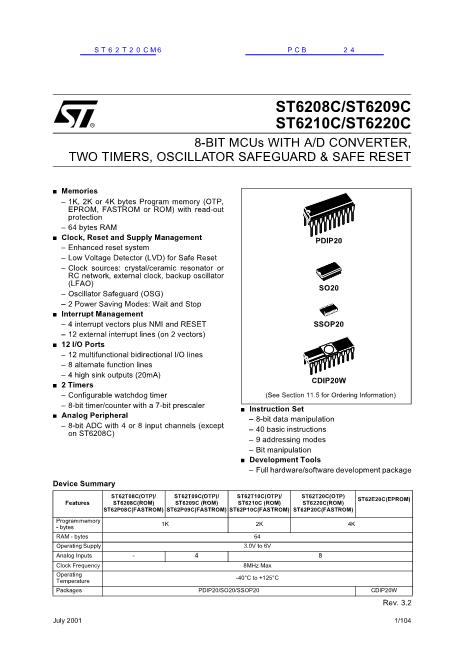

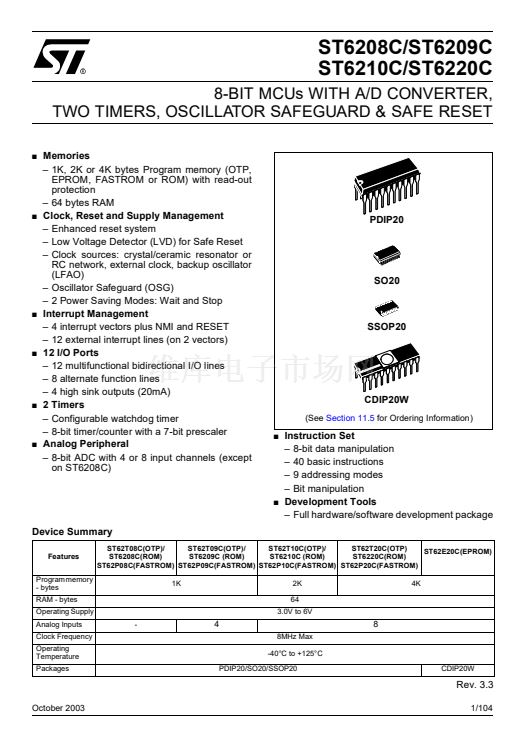

ST6208C/ST6209C
ST6210C/ST6220C
8-BIT MCUs WITH A/D CONVERTER,
TWO TIMERS, OSCILLATOR SAFEGUARD & SAFE RESET
s
s
s
s
s
s
Memories
鈥?1K, 2K or 4K bytes Program memory (OTP,
EPROM, FASTROM or ROM) with read-out
protection
鈥?64 bytes RAM

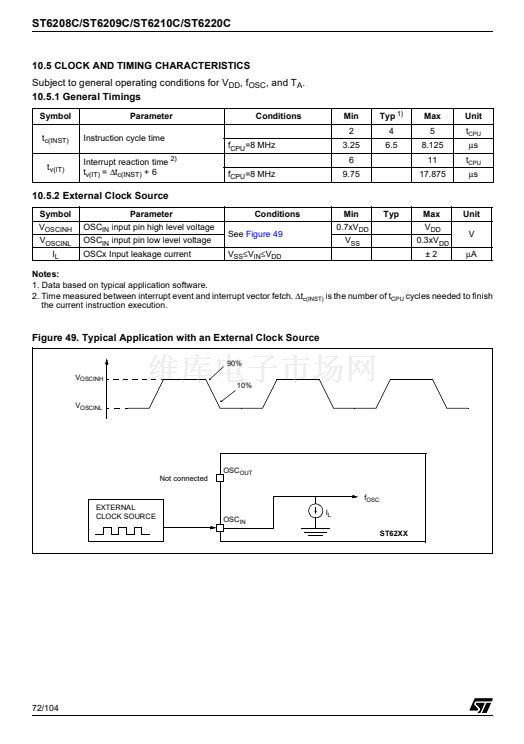

Clock, Reset and Supply Management

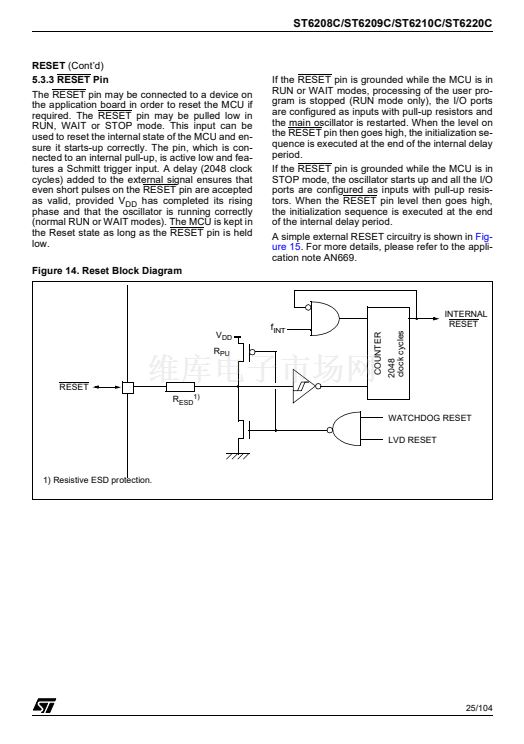

鈥?Enhanced reset system

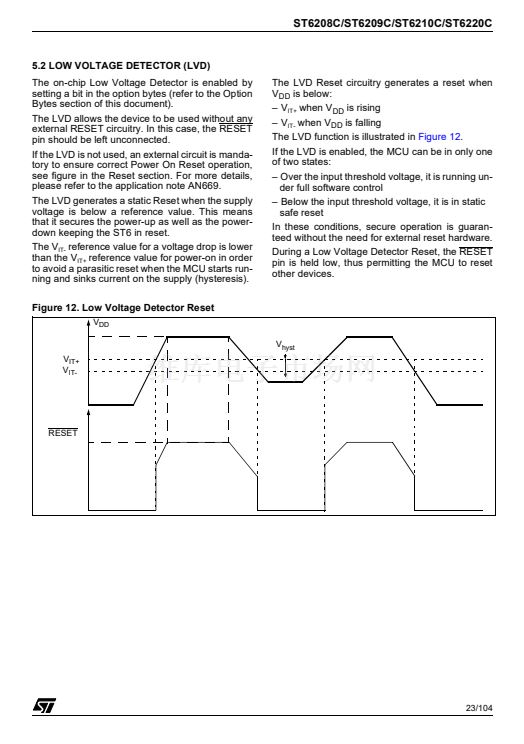

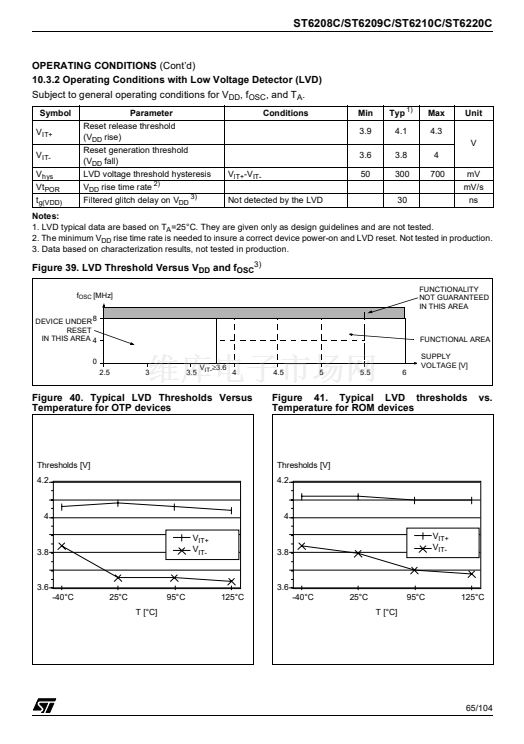

鈥?Low Voltage Detector (LVD) for Safe Reset

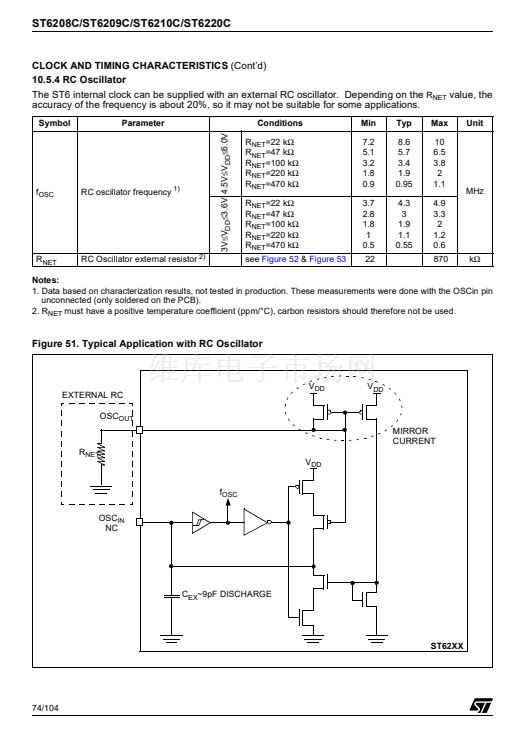

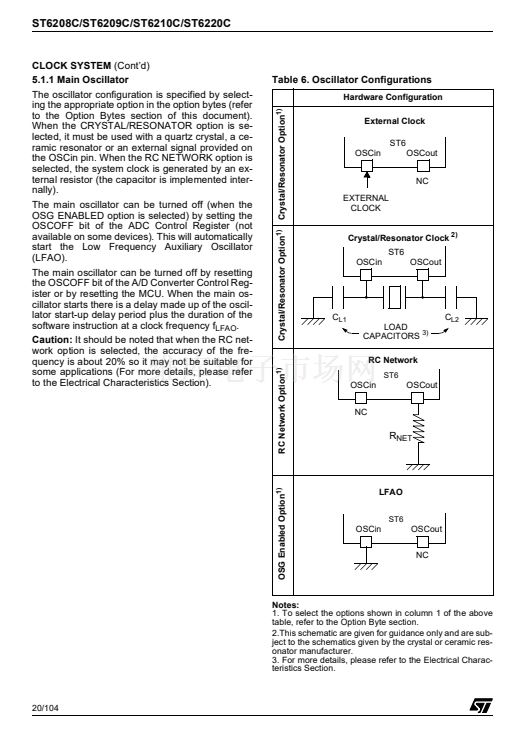

鈥?Clock sources: crystal/ceramic resonator or
RC network, external clock, backup oscillator
(LFAO)

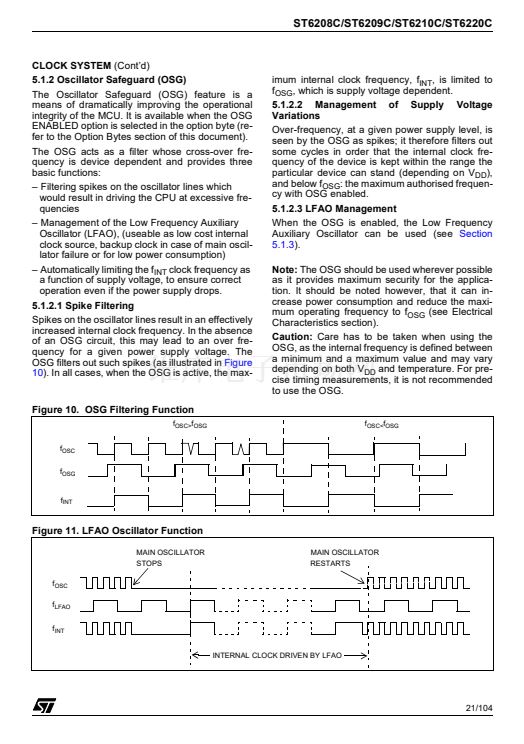

鈥?Oscillator Safeguard (OSG)

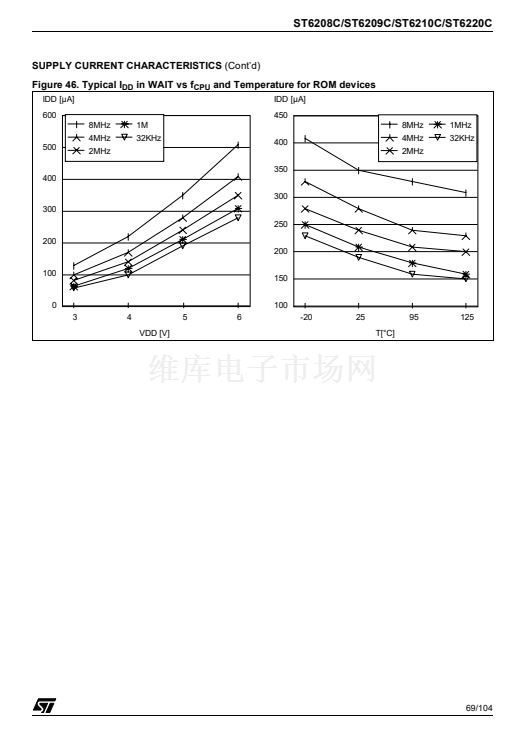

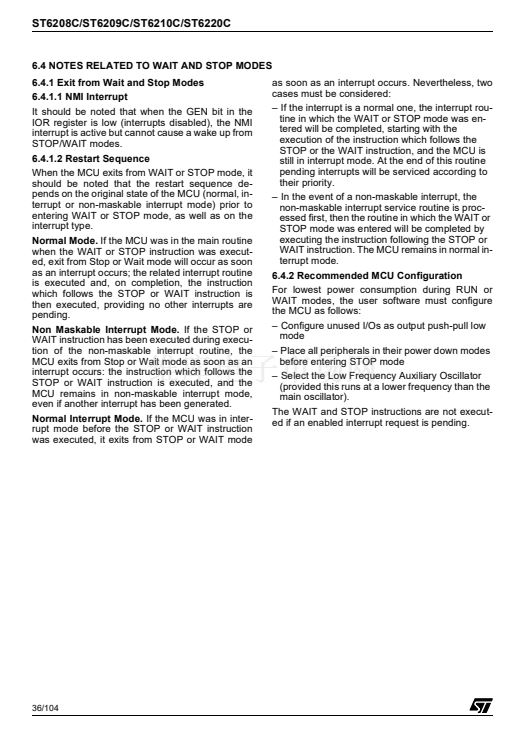

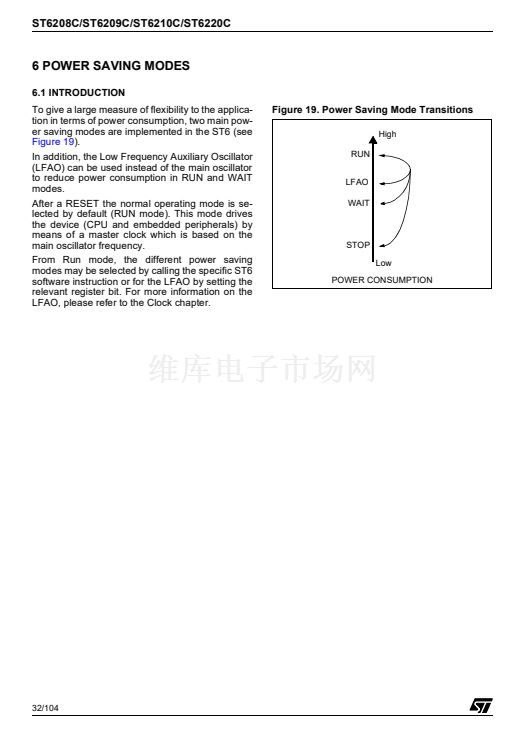

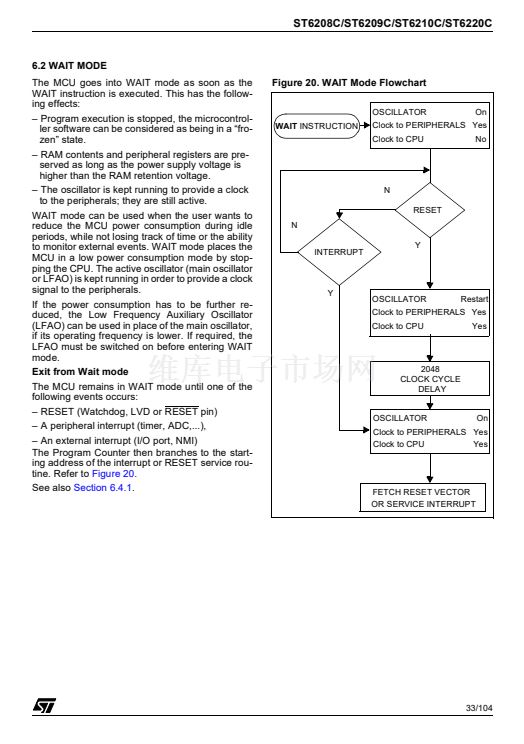

鈥?2 Power Saving Modes: Wait and Stop

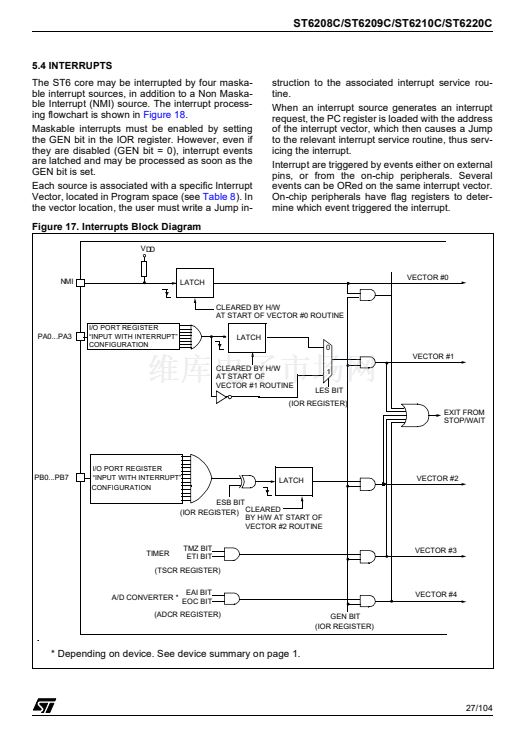

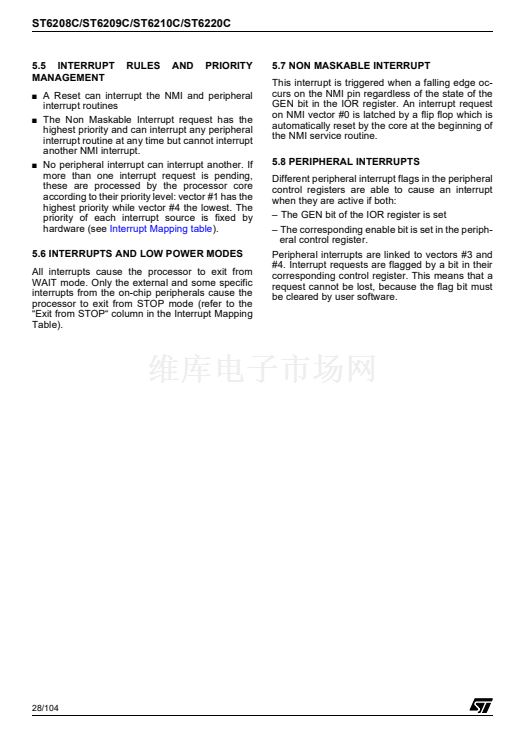

Interrupt Management
鈥?4 interrupt vectors plus NMI and RESET
鈥?12 external interrupt lines (on 2 vectors)

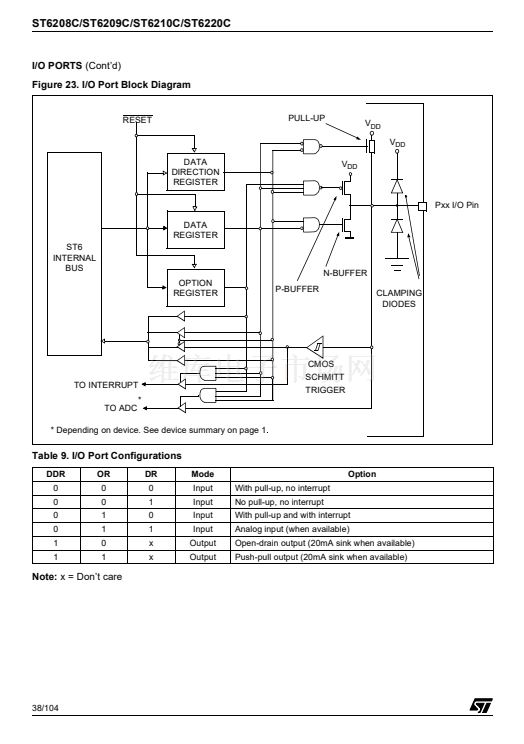

12 I/O Ports
鈥?12 multifunctional bidirectional I/O lines
鈥?8 alternate function lines
鈥?4 high sink outputs (20mA)
2 Timers

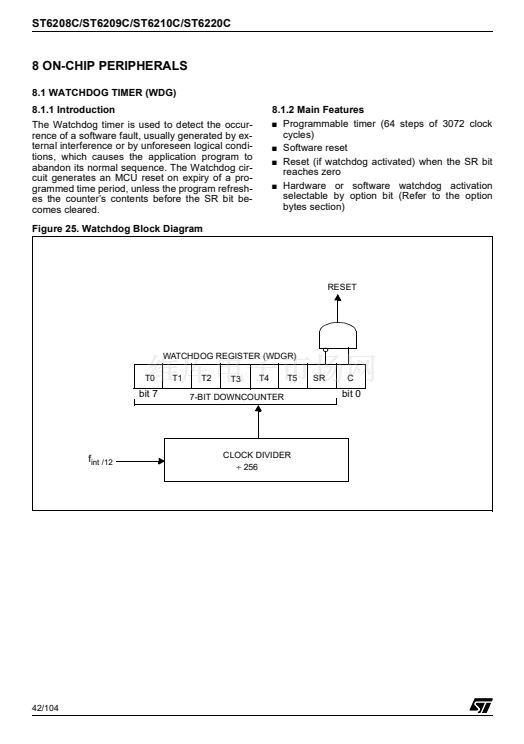

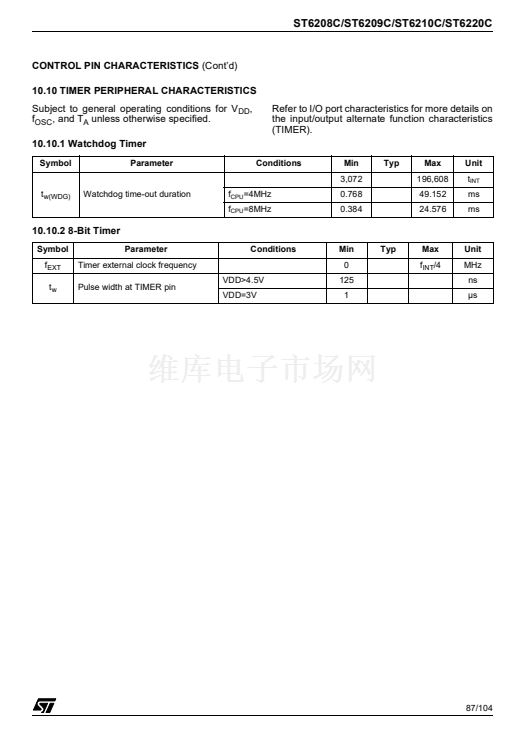

鈥?Configurable watchdog timer

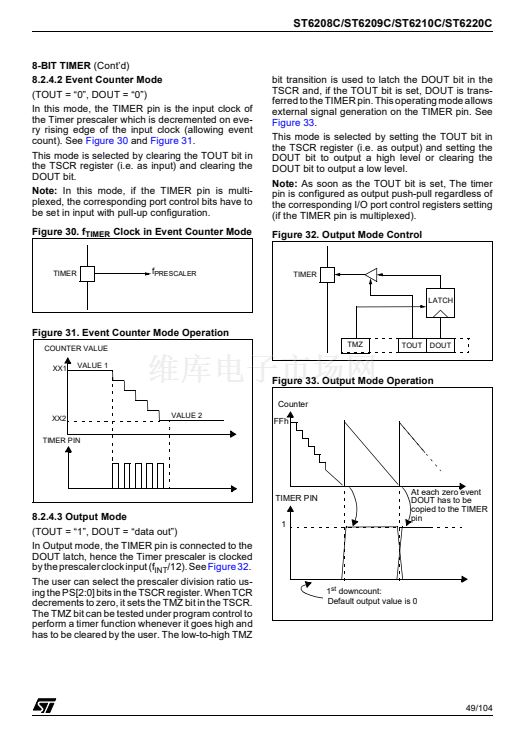

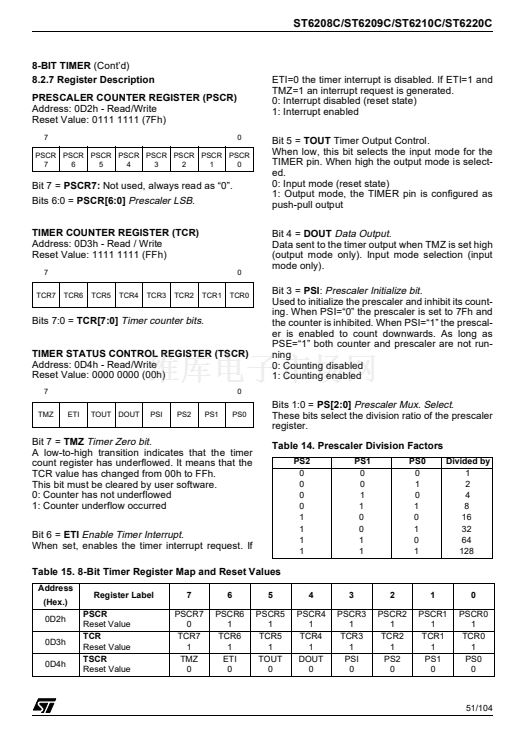

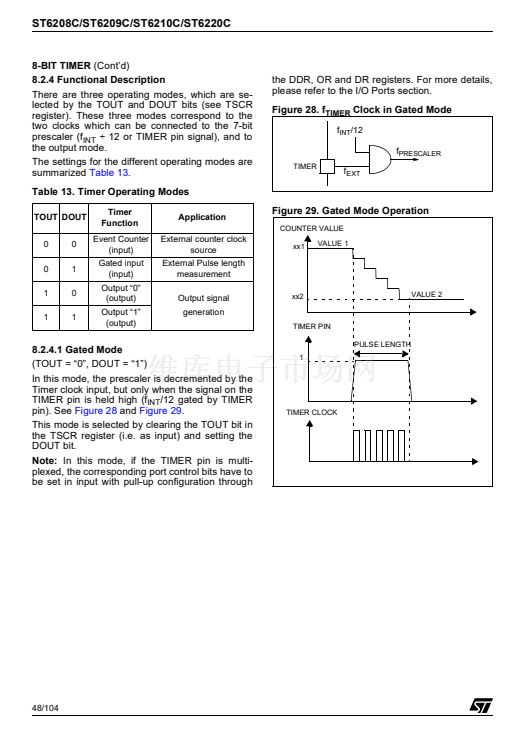

鈥?8-bit timer/counter with a 7-bit prescaler
Analog Peripheral

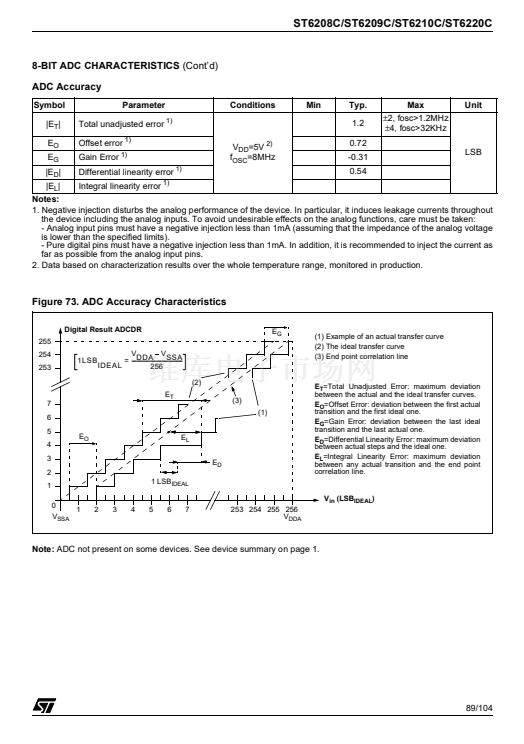

鈥?8-bit ADC with 4 or 8 input channels (except
on ST6208C)

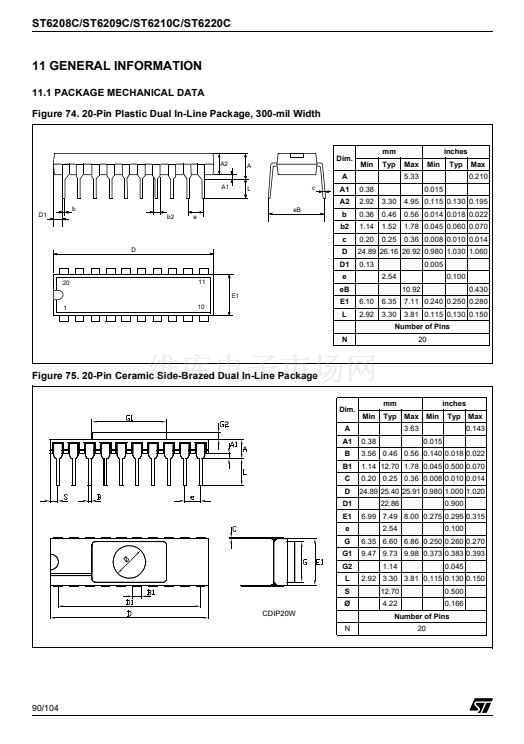

PDIP20
SO20
SSOP20
CDIP20W

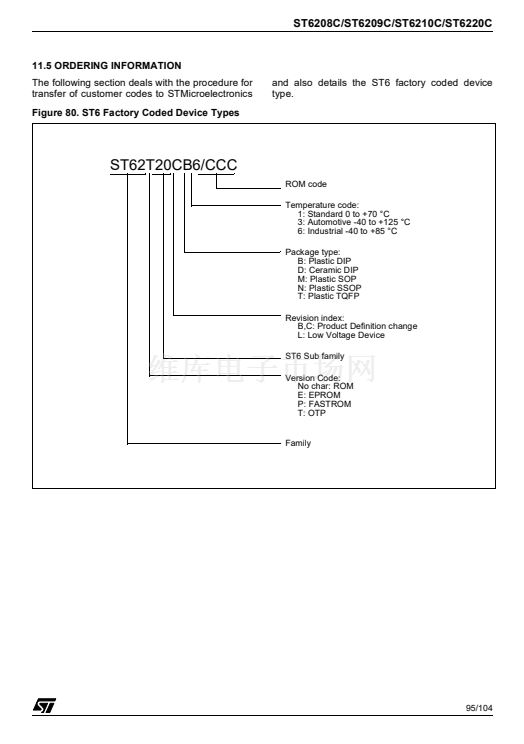

(See
Section 11.5
for Ordering Information)
s
s

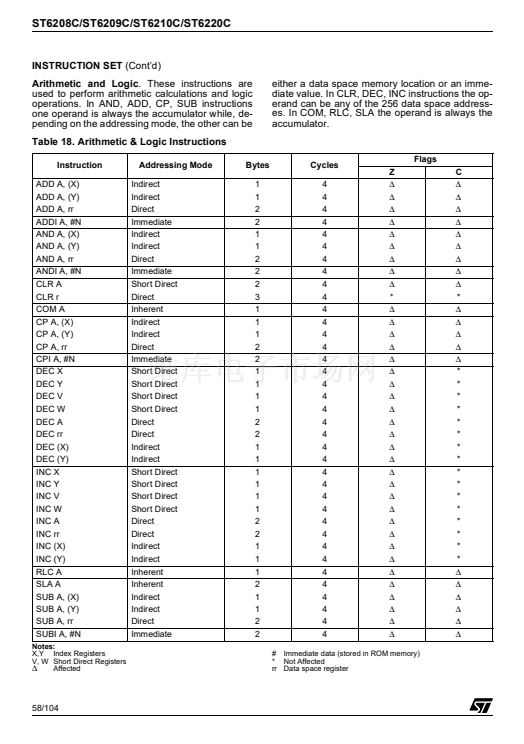

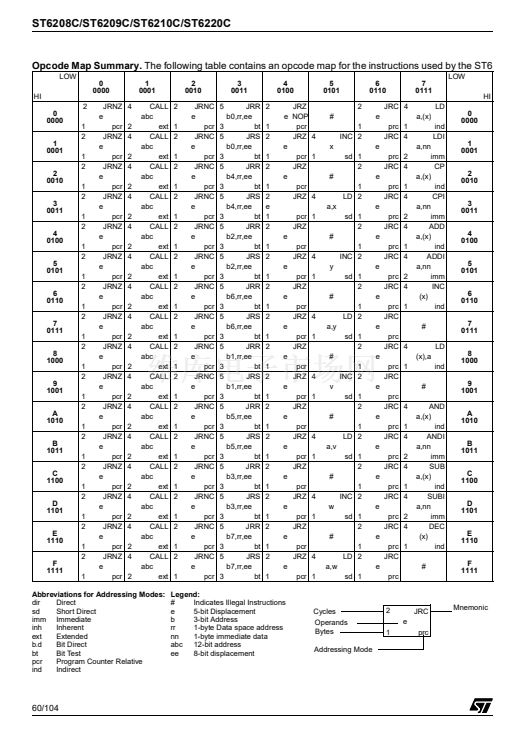

Instruction Set
鈥?8-bit data manipulation
鈥?40 basic instructions
鈥?9 addressing modes
鈥?Bit manipulation

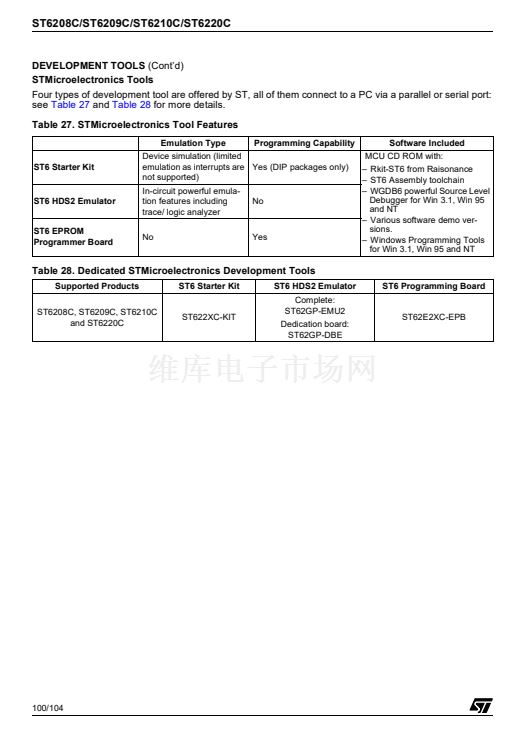

Development Tools
鈥?Full hardware/software development package
Device Summary
Features
Program memory
- bytes
RAM - bytes
Operating Supply
Analog Inputs
Clock Frequency
Operating
Temperature
Packages
-
ST62T08C(OTP)/
ST62T09C(OTP)/
ST62T10C(OTP)/
ST62T20C(OTP)
ST62E20C(EPROM)
ST6208C(ROM)
ST6209C (ROM)
ST6210C (ROM)
ST6220C(ROM)
ST62P08C(FASTROM) ST62P09C(FASTROM) ST62P10C(FASTROM) ST62P20C(FASTROM)
1K
2K
64
3.0V to 6V
4K
4
8MHz Max
-40擄C to +125擄C
PDIP20/SO20/SSOP20
8
CDIP20W
Rev. 3.3
October 2003
1/104
1
