SST12LP10 Datasheet

  • SST12LP10

  • 2.4 GHz High-Linearity Power Amplifier

  • 12頁

  • SST   SST

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

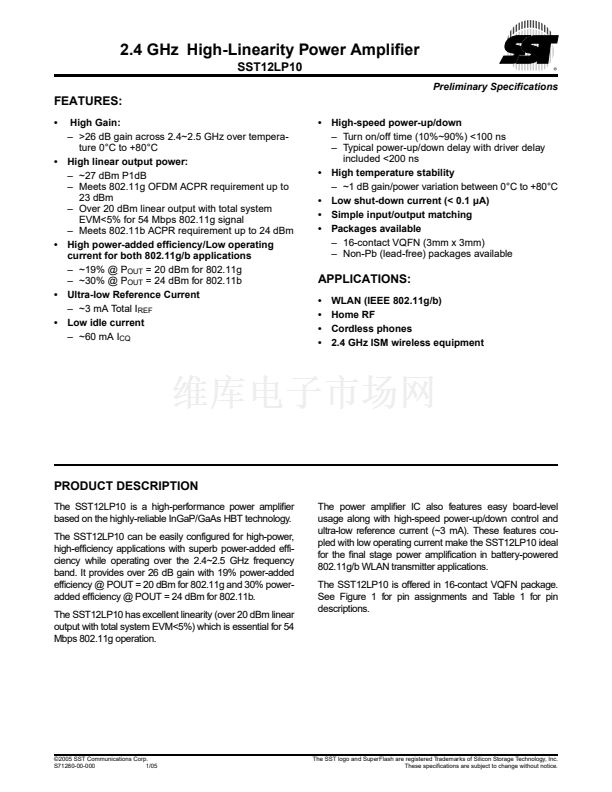

2.4 GHz High-Linearity Power Amplifier
SST12LP10
SST12LP102.4 GHz High-Linearity Power Amplifier
Preliminary Specifications
FEATURES:
鈥?/div>
High Gain:
鈥?>26 dB gain across 2.4~2.5 GHz over tempera-
ture 0擄C to +80擄C
High linear output power:
鈥?~27 dBm P1dB
鈥?Meets 802.11g OFDM ACPR requirement up to
23 dBm
鈥?Over 20 dBm linear output with total system
EVM<5% for 54 Mbps 802.11g signal
鈥?Meets 802.11b ACPR requirement up to 24 dBm
High power-added efficiency/Low operating
current for both 802.11g/b applications
鈥?~19% @ P
OUT
= 20 dBm for 802.11g
鈥?~30% @ P
OUT
= 24 dBm for 802.11b
Ultra-low Reference Current
鈥?~3 mA Total I
REF
Low idle current
鈥?~60 mA I
CQ
鈥?High-speed power-up/down
鈥?Turn on/off time (10%~90%) <100 ns
鈥?Typical power-up/down delay with driver delay
included <200 ns
鈥?High temperature stability
鈥?~1 dB gain/power variation between 0擄C to +80擄C
鈥?Low shut-down current (< 0.1 碌A)
鈥?Simple input/output matching
鈥?Packages available
鈥?16-contact VQFN (3mm x 3mm)
鈥?Non-Pb (lead-free) packages available
鈥?/div>
鈥?/div>
APPLICATIONS:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
WLAN (IEEE 802.11g/b)
Home RF
Cordless phones
2.4 GHz ISM wireless equipment
鈥?/div>
鈥?/div>
PRODUCT DESCRIPTION
The SST12LP10 is a high-performance power amplifier
based on the highly-reliable InGaP/GaAs HBT technology.
The SST12LP10 can be easily configured for high-power,
high-efficiency applications with superb power-added effi-
ciency while operating over the 2.4~2.5 GHz frequency
band. It provides over 26 dB gain with 19% power-added
efficiency @ POUT = 20 dBm for 802.11g and 30% power-
added efficiency @ POUT = 24 dBm for 802.11b.
The SST12LP10 has excellent linearity (over 20 dBm linear
output with total system EVM<5%) which is essential for 54
Mbps 802.11g operation.
The power amplifier IC also features easy board-level
usage along with high-speed power-up/down control and
ultra-low reference current (~3 mA). These features cou-
pled with low operating current make the SST12LP10 ideal
for the final stage power amplification in battery-powered
802.11g/b WLAN transmitter applications.
The SST12LP10 is offered in 16-contact VQFN package.
See Figure 1 for pin assignments and Table 1 for pin
descriptions.
漏2005 SST Communications Corp.
S71280-00-000
1/05
1
The SST logo and SuperFlash are registered Trademarks of Silicon Storage Technology, Inc.
These specifications are subject to change without notice.
