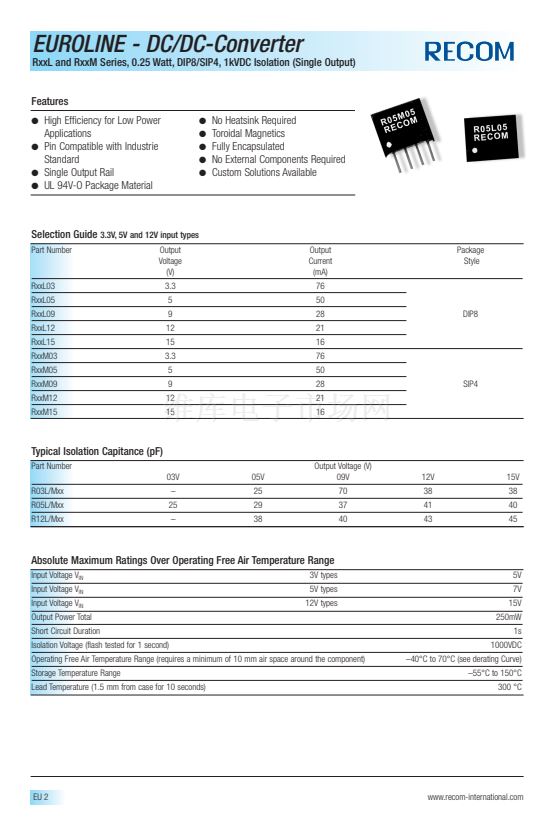

EUROLINE - DC/DC-Converter
RxxL and RxxM Series, 0.25 Watt, DIP8/SIP4, 1kVDC Isolation (Single Output)
Features
鈼?/div>
High Efficiency for Low Power
Applications
鈼?/div>
Pin Compatible with Industrie
Standard
鈼?/div>
Single Output Rail
鈼?/div>
UL 94V-O Package Material
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
No Heatsink Required
Toroidal Magnetics
Fully Encapsulated
No External Components Required
Custom Solutions Available
Selection Guide
3.3V, 5V and 12V input types
Part Number
Output
Voltage
(V)
3.3
5
9
12
15
3.3
5
9
12
15
Output
Current
(mA)
76
50
28
21
16
76
50
28
21
16
SIP4
DIP8
Package
Style
RxxL03
RxxL05
RxxL09
RxxL12
RxxL15
RxxM03
RxxM05
RxxM09
RxxM12
RxxM15
Typical Isolation Capitance (pF)
Part Number
03V
R03L/Mxx
R05L/Mxx
R12L/Mxx
鈥?/div>
25
鈥?/div>
05V
25
29
38
Output Voltage (V)
09V
70
37
40
12V
38
41
43
15V
38
40
45
Absolute Maximum Ratings Over Operating Free Air Temperature Range
Input Voltage V
IN
Input Voltage V
IN
Input Voltage V
IN
Output Power Total
Short Circuit Duration
Isolation Voltage (flash tested for 1 second)
Operating Free Air Temperature Range (requires a minimum of 10 mm air space around the component)
Storage Temperature Range
Lead Temperature (1.5 mm from case for 10 seconds)
3V types
5V types
12V types
5V
7V
15V
250mW
1s
1000VDC
鈥?0擄C to 70擄C (see derating Curve)
鈥?5擄C to 150擄C
300 擄C
EU 2
www.recom-international.com
