RURP3060
Data Sheet
January 2000
File Number
2776.4
30A, 600V Ultrafast Diode
The RURP3060 is an ultrafast diode (t
rr
< 55ns) with soft
recovery characteristics. It has a low forward voltage drop
and is of planar, silicon nitride passivated, ion-implanted,
epitaxial construction.
This device is intended for use as an energy steering/
clamping diode and recti鏗乪r in a variety of switching power
supplies and other power switching applications. Its low
stored charge and ultrafast recovery with soft recovery
characteristics minimize ringing and electrical noise in many
power switching circuits, thus reducing power loss in the
switching transistor.
Formerly developmental type TA09903.
Features
鈥?Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . < 55ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supply
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RURP3060
PACKAGE
TO-220AC
BRAND
RURP3060

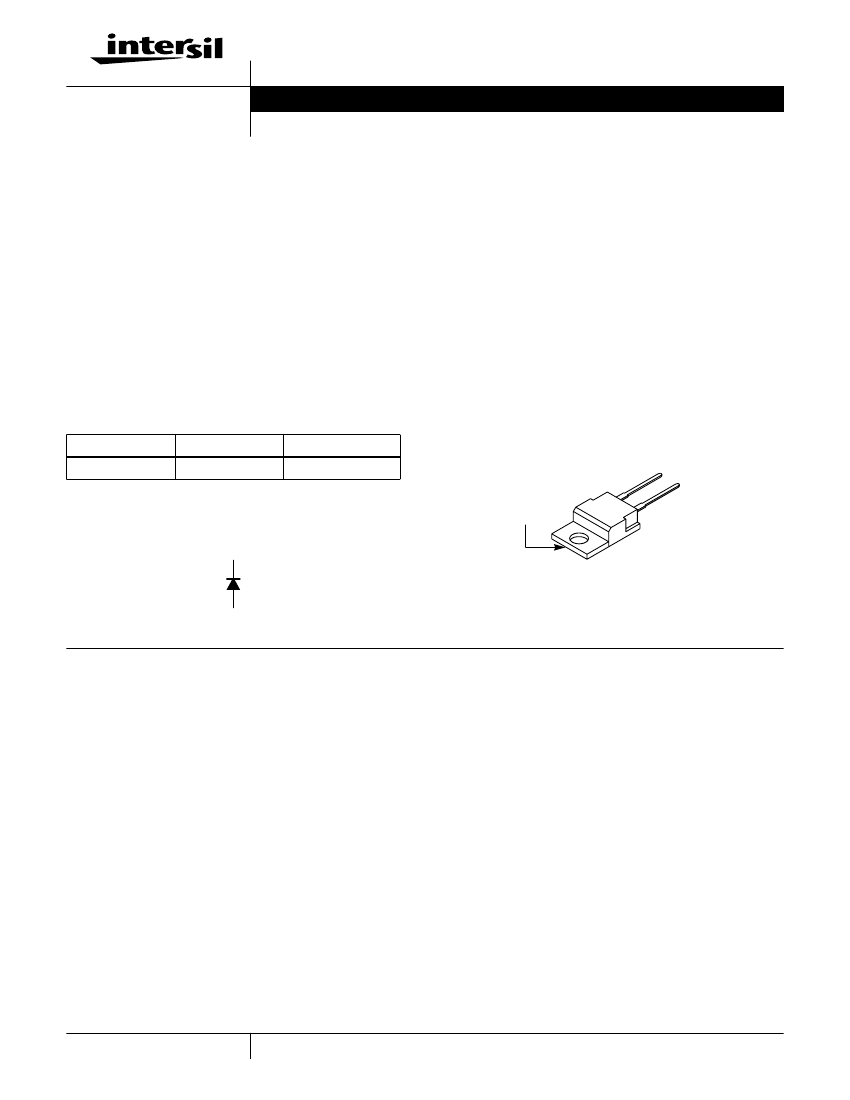

Packaging
JEDEC TO-220AC
ANODE
CATHODE
CATHODE
(FLANGE)
NOTE: When ordering, use the entire part number.
Symbol
K
A
Absolute Maximum Ratings
T
C
= 25
o
C, Unless Otherwise Speci鏗乪d
RURP3060
UNITS
V
V
V
A
A
A
W
mJ
o
C
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current (T
C
= 130
o
C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
(Halfwave 1 Phase 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D

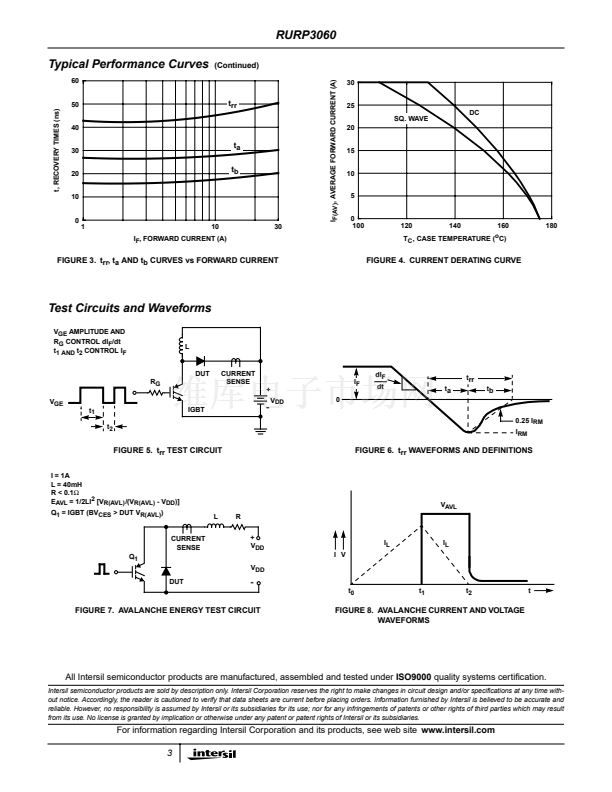

Avalanche Energy (See Figures 7 and 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
, T
J
600
600
600
30
70
325
125
20
-55 to 175

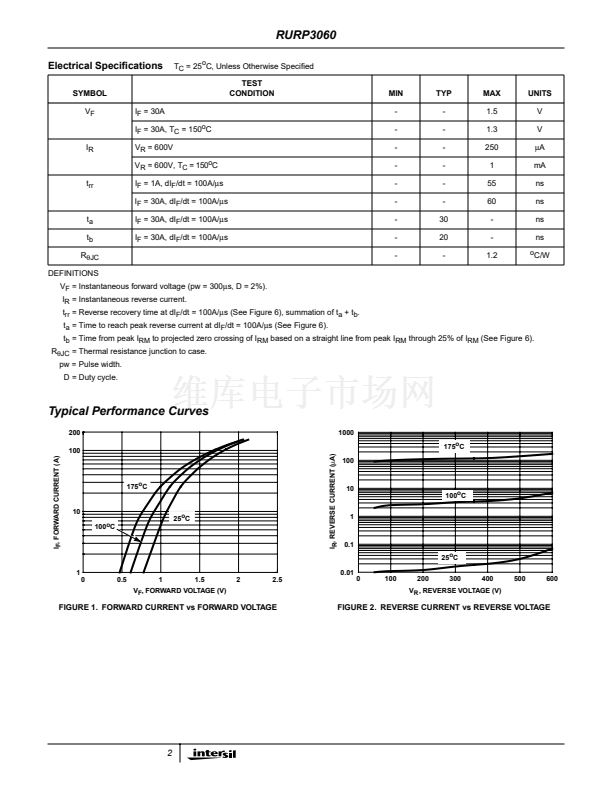

1
