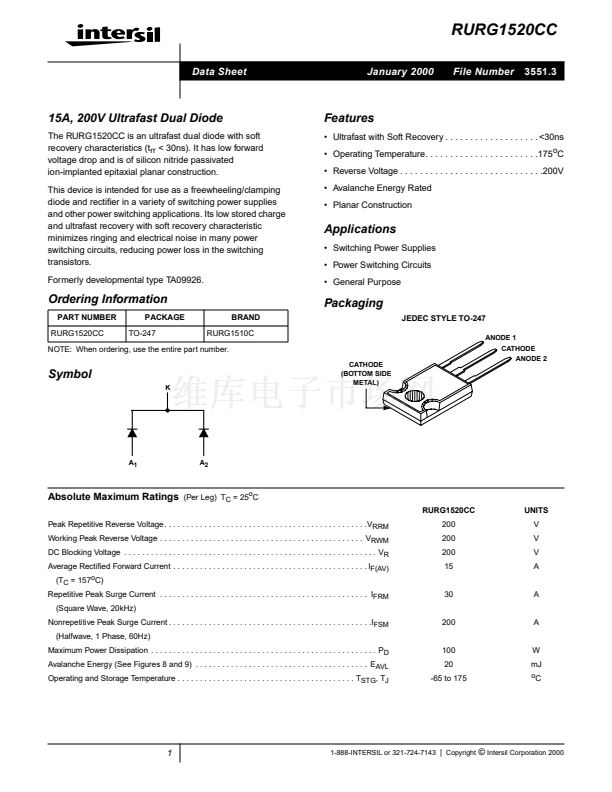

RURG1520CC
Data Sheet
January 2000
File Number
3551.3
15A, 200V Ultrafast Dual Diode
The RURG1520CC is an ultrafast dual diode with soft
recovery characteristics (t
rr
< 30ns). It has low forward
voltage drop and is of silicon nitride passivated
ion-implanted epitaxial planar construction.
This device is intended for use as a freewheeling/clamping
diode and recti鏗乪r in a variety of switching power supplies
and other power switching applications. Its low stored charge
and ultrafast recovery with soft recovery characteristic
minimizes ringing and electrical noise in many power
switching circuits, reducing power loss in the switching
transistors.
Formerly developmental type TA09926.
Features
鈥?Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . . <30ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RURG1520CC
PACKAGE
TO-247
BRAND
RURG1510C
Packaging
JEDEC STYLE TO-247
ANODE 1
CATHODE
ANODE 2
NOTE: When ordering, use the entire part number.
Symbol
K
CATHODE
(BOTTOM SIDE
METAL)
A
1
A
2
Absolute Maximum Ratings
(Per Leg) T
C
= 25
o
C
RURG1520CC
UNITS
V
V
V
A
200
200
200
15
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
(T
C
= 157
o
C)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
FSM
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
Avalanche Energy (See Figures 8 and 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
, T
J
30
A
200
A
100
20
-65 to 175
W
mJ
o

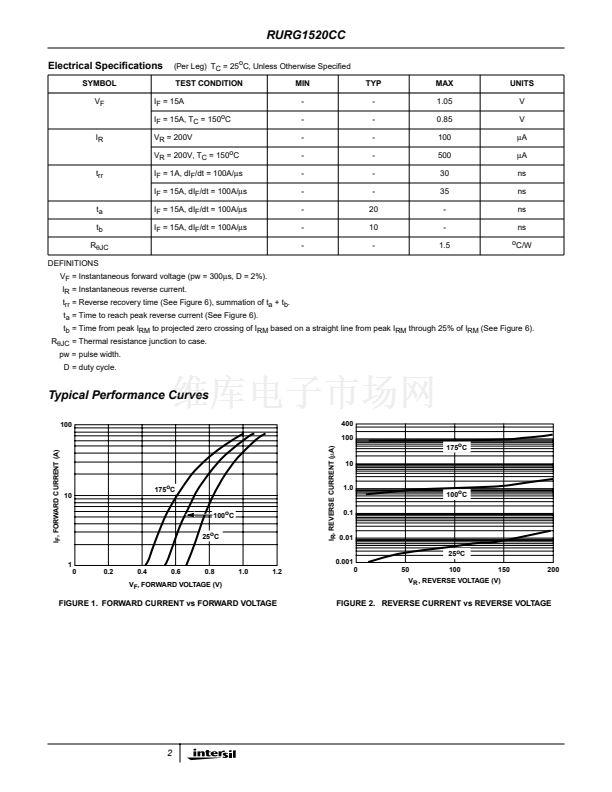

C
