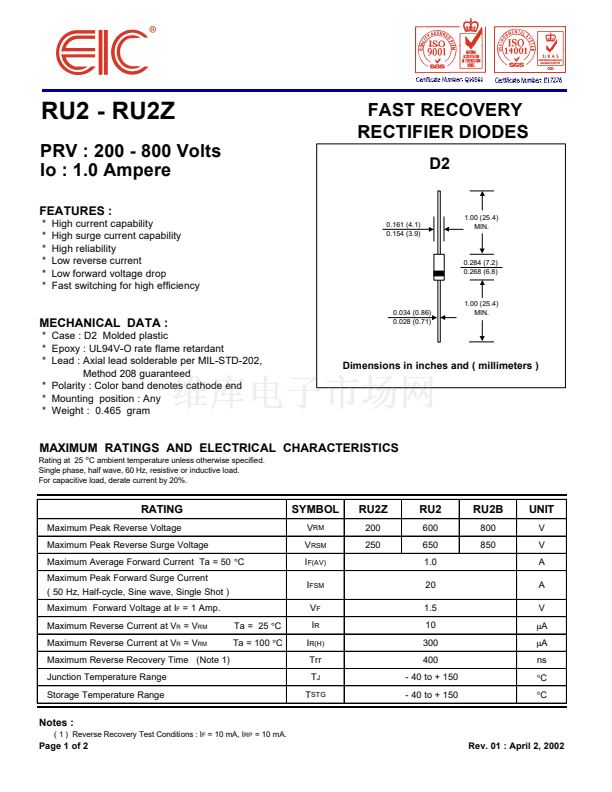

RU2 - RU2Z
PRV : 200 - 800 Volts
Io : 1.0 Ampere
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
FAST RECOVERY
RECTIFIER DIODES
D2
0.161 (4.1)
0.154 (3.9)
1.00 (25.4)
MIN.
0.284 (7.2)
0.268 (6.8)
MECHANICAL DATA :
* Case : D2 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.465 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
擄
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Peak Reverse Voltage
Maximum Peak Reverse Surge Voltage
Maximum Average Forward Current Ta = 50
擄C
Maximum Peak Forward Surge Current
( 50 Hz, Half-cycle, Sine wave, Single Shot )
Maximum Forward Voltage at I
F
= 1 Amp.
Maximum Reverse Current at V
R
= V
RM
Maximum Reverse Current at V
R
= V
RM
Maximum Reverse Recovery Time (Note 1)
Junction Temperature Range
Storage Temperature Range
Ta = 25
擄C
Ta = 100
擄C
SYMBOL
V
RM
V
RSM
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
Trr
T
J
T
STG
RU2Z
200
250
RU2
600
650
1.0
20
1.5
10
300
400
- 40 to + 150
- 40 to + 150
RU2B
800
850
UNIT
V
V
A
A
V
碌A(chǔ)
碌A(chǔ)
ns
擄C
擄C
Notes :
( 1 ) Reverse Recovery Test Conditions : I
F
= 10 mA, I
RP
= 10 mA.
Page 1 of 2
Rev. 01 : April 2, 2002
