Safety standards and approvals:
EN 60950 certified, rated for
250VAC (LVD test report)
UL-60950-1 / CSA C22.2 certified
5.2kVDC Isolation for 1 Minute
Internal SMD Construction
Wide Temperature Performance at
full 1 Watt Load, 鈥?0擄C to +85擄C
2 chamber-isolated-transformers used for
meeting extra-high-isolation
UL94V-0 Package Material
Efficiency to 80%

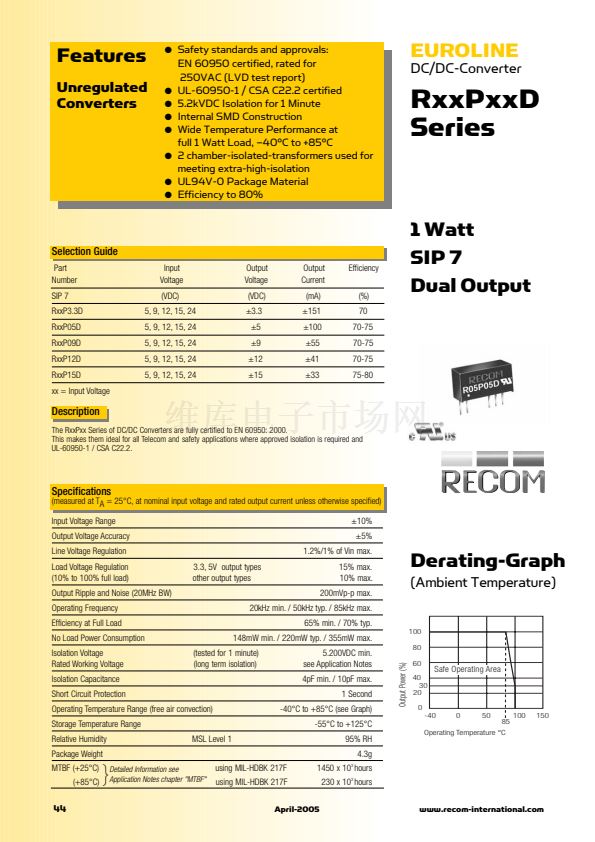

EUROLINE
DC/DC-Converter
RxxPxxD
Series
Selection Guide
Part
Number
SIP 7
RxxP3.3D
RxxP05D
RxxP09D
RxxP12D
RxxP15D
xx = Input Voltage
Input
Voltage
(VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output
Voltage
(VDC)
鹵3.3
鹵5
鹵9
鹵12
鹵15
Output
Current
(mA)
鹵151
鹵100
鹵55
鹵41
鹵33
Efficiency
(%)
70
70-75
70-75
70-75
75-80
1 Watt
SIP 7
Dual Output
Description
The RxxPxx Series of DC/DC Converters are fully certified to EN 60950: 2000.
This makes them ideal for all Telecom and safety applications where approved isolation is required and
UL-60950-1 / CSA C22.2.
Specifications
(measured at TA = 25擄C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz BW)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Short Circuit Protection
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
MTBF (+25擄C)
(+85擄C)
44
MSL Level 1
using MIL-HDBK 217F
using MIL-HDBK 217F
April-2005
(tested for 1 minute)
(long term isolation)
3.3, 5V output types
other output types
鹵10%
鹵5%
1.2%/1% of Vin max.
15% max.
10% max.
200mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
65% min. / 70% typ.
148mW min. / 220mW typ. / 355mW max.
Output Power (%)
100
80
60
40
30
20
0
Derating-Graph
(Ambient Temperature)
5.200VDC min.
see Application Notes
4pF min. / 10pF max.
1 Second
-40擄C to +85擄C (see Graph)
-55擄C to +125擄C
95% RH
4.3g
1450 x 10
3
hours
230 x 10
3
hours
Safe Operating Area
85
Operating Temperature 擄C
-40
0
50
100
150
}
Detailed Information see
Application Notes chapter "MTBF"
