R0605250L Datasheet

  • R0605250L

  • Si Reverse Hybrid , low current

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

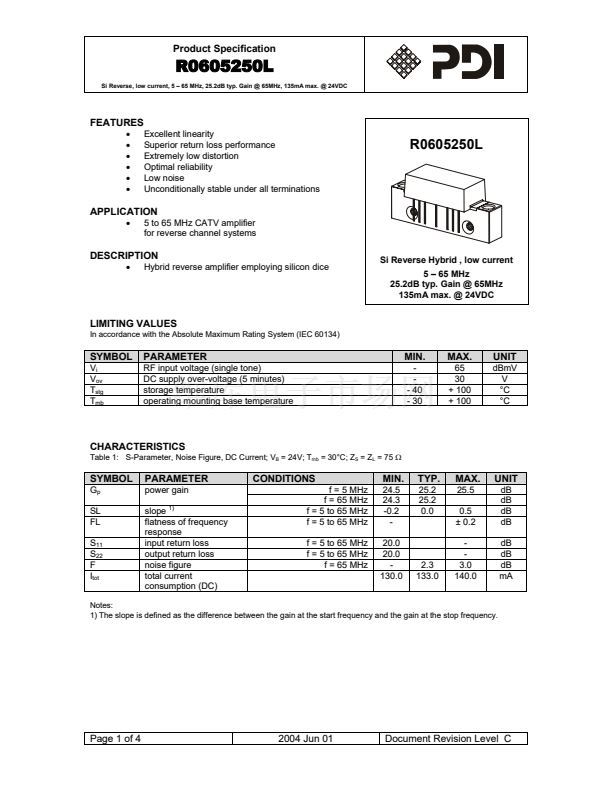

Product Specification
R0605250L
Si Reverse, low current, 5 鈥?65 MHz, 25.2dB typ. Gain @ 65MHz, 135mA max. @ 24VDC
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Excellent linearity
Superior return loss performance
Extremely low distortion
Optimal reliability
Low noise
Unconditionally stable under all terminations
R0605250L
APPLICATION
鈥?/div>
5 to 65 MHz CATV amplifier
for reverse channel systems
Si Reverse Hybrid , low current
5 鈥?65 MHz
25.2dB typ. Gain @ 65MHz
135mA max. @ 24VDC
DESCRIPTION
鈥?/div>
Hybrid reverse amplifier employing silicon dice
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134)
SYMBOL
V
i
V
ov
T
stg
T
mb
PARAMETER
RF input voltage (single tone)
DC supply over-voltage (5 minutes)
storage temperature
operating mounting base temperature
MIN.
-
-
- 40
- 30
MAX.
65
30
+ 100
+ 100
UNIT
dBmV
V
擄C
擄C
CHARACTERISTICS
Table 1: S-Parameter, Noise Figure, DC Current; V
B
= 24V; T
mb
= 30擄C; Z
S
= Z
L
= 75
鈩?/div>
SYMBOL
G
p
SL
FL
S
11
S
22
F
I
tot
PARAMETER
power gain
slope
1)
flatness of frequency
response
input return loss
output return loss
noise figure
total current
consumption (DC)
CONDITIONS
f = 5 MHz
f = 65 MHz
f = 5 to 65 MHz
f = 5 to 65 MHz
f = 5 to 65 MHz
f = 5 to 65 MHz
f = 65 MHz
MIN.
24.5
24.3
-0.2
-
20.0
20.0
-
130.0
TYP.
25.2
25.2
0.0
MAX.
25.5
0.5
鹵 0.2
-
-
3.0
140.0
UNIT
dB
dB
dB
dB
dB
dB
dB
mA
2.3
133.0
Notes:
1) The slope is defined as the difference between the gain at the start frequency and the gain at the stop frequency.
Page 1 of 4
2004 Jun 01
Document Revision Level C
