UL1950 E196683 Recognised

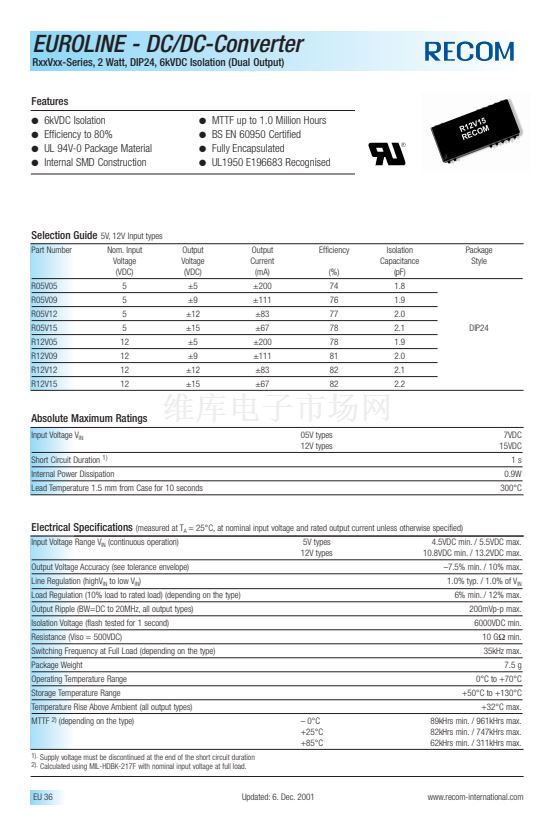

Selection Guide
5V, 12V Input types
Part Number
Nom. Input
Voltage
(VDC)
5
5
5
5
12
12
12
12
Output
Voltage
(VDC)
鹵5
鹵9
鹵12
鹵15
鹵5
鹵9
鹵12
鹵15
Output
Current
(mA)
鹵200
鹵111
鹵83
鹵67
鹵200
鹵111
鹵83
鹵67
Efficiency
(%)
74
76
77
78
78
81
82
82
Isolation
Capacitance
(pF)
1.8
1.9
2.0
2.1
1.9
2.0
2.1
2.2
DIP24
Package
Style
R05V05
R05V09
R05V12
R05V15
R12V05
R12V09
R12V12
R12V15
Absolute Maximum Ratings
Input Voltage V
IN
Short Circuit Duration
1)
Internal Power Dissipation
Lead Temperature 1.5 mm from Case for 10 seconds
05V types
12V types
7VDC
15VDC
1s
0.9W
300擄C
Electrical Specifications
(measured at T
A
= 25擄C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range V
IN
(continuous operation)
Output Voltage Accuracy (see tolerance envelope)
Line Regulation (highV
IN
to low V
IN
)
Load Regulation (10% load to rated load) (depending on the type)
Output Ripple (BW=DC to 20MHz, all output types)
Isolation Voltage (flash tested for 1 second)
Resistance (Viso = 500VDC)
Switching Frequency at Full Load (depending on the type)
Package Weight
Operating Temperature Range
Storage Temperature Range
Temperature Rise Above Ambient (all output types)
MTTF
2)
(depending on the type)
鈥?0擄C
+25擄C
+85擄C
5V types
12V types
4.5VDC min. / 5.5VDC max.
10.8VDC min. / 13.2VDC max.
鈥?.5% min. / 10% max.
1.0% typ. / 1.0% of V
IN
6% min. / 12% max.
200mVp-p max.
6000VDC min.
10 G鈩?min.
35kHz max.
7.5 g
0擄C to +70擄C
+50擄C to +130擄C
+32擄C max.
89kHrs min. / 961kHrs max.
82kHrs min. / 747kHrs max.
62kHrs min. / 311kHrs max.
1).
Supply voltage must be discontinued at the end of the short circuit duration
2).
Calculated using MIL-HDBK-217F with nominal input voltage at full load.
EU 36
Updated: 6. Dec. 2001
