QTLP670C-23 Datasheet

  • QTLP670C-23

  • SURFACE MOUNT LED LAMP STANDARD BRIGHT PLCC-4

  • 161.57KB

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SURFACE MOUNT LED LAMP
STANDARD BRIGHT PLCC-4
QTLP670C-23
HER/Yellow
QTLP670C-34
Yellow/Green
PACKAGE DIMENSIONS
0.134 (3.4)
0.118 (3.0)
脴0.094 (2.4)
QTLP670C-24
HER/Green
QTLP670C-74
AlGaAs Red/Green
3
2
0.067 (1.7 )
0.052 (1.3)
4
1
0.091 (2.3)
0.083 (2.1)
0.118 (3.0)
0.102 (2.6)
TOP
0.035 (0.9)
0.028 (0.7)
0.024 (0.6)
0.083 (2.1)
0.067 (1.7)
0.041 (1.0)
0.007 (0.18)
0.005 (0.12)
SIDE
0.148 (3.7)
0.130 (3.3)
0.043 (1.1)
0.020 (0.5)
BOTTOM
3
2
Green/ Yellow (-23)
HER / AlGaAs Red / Yellow (-34)
4
1
POLARITY
APPLICATIONS
鈥?Automotive interior lighting
鈥?Status indication for consumer electronics and office
equipment
NOTE:
Dimensions for all drawings are in inches (mm).
DESCRIPTION
These dual color surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic placement
equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration conform
to EIA-535 BAAC standard specification for case size 3528 tantalum capacitor. These LEDs are ideal for backlighting and optical
coupling into light pipes.
FEATURES
鈥?Wide viewing angle of 120擄
鈥?Water clear optics
鈥?Moisture-proof packaging

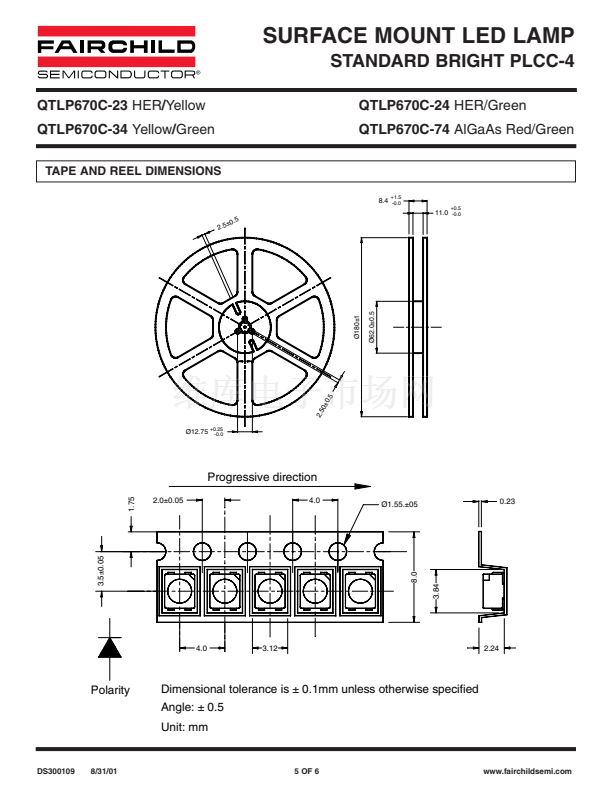

鈥?Available in 0.315鈥?(8mm) width tape on 7鈥?(178mm) diameter reel; 2,000 units per reel
錚?/div>
2001 Fairchild Semiconductor Corporation
DS300109
8/31/01
1 OF 6
www.fairchildsemi.com
