SURFACE MOUNT LED LAMP

COMPACT RIGHT ANGLE

Low V

F

Blue

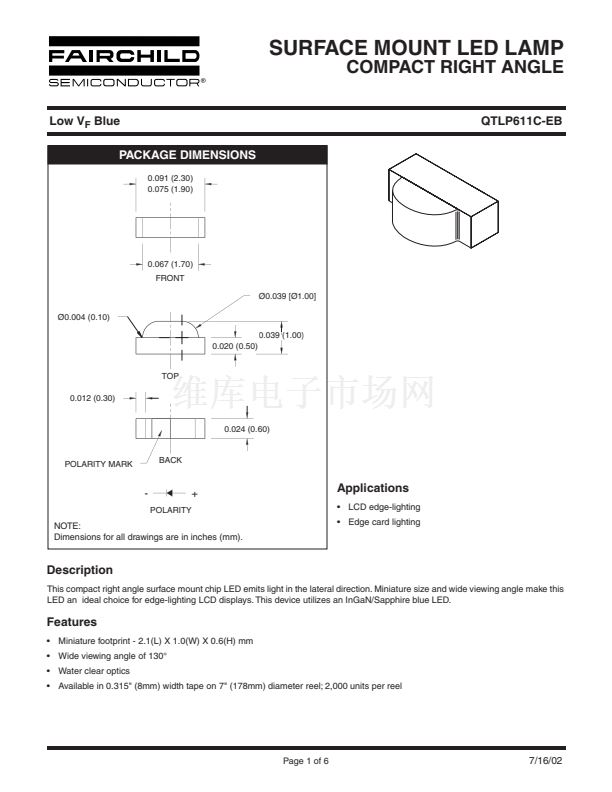

PACKAGE DIMENSIONS

0.091 (2.30)

0.075 (1.90)

QTLP611C-EB

0.067 (1.70)

FRONT

脴0.039 [脴1.00]

脴0.004 (0.10)

0.039 (1.00)

0.020 (0.50)

TOP

0.012 (0.30)

0.024 (0.60)

POLARITY MARK

BACK

-

+

POLARITY

Applications

鈥?LCD edge-lighting

鈥?Edge card lighting

NOTE:

Dimensions for all drawings are in inches (mm).

Description

This compact right angle surface mount chip LED emits light in the lateral direction. Miniature size and wide viewing angle make this

LED an ideal choice for edge-lighting LCD displays. This device utilizes an InGaN/Sapphire blue LED.

Features

鈥?Miniature footprint - 2.1(L) X 1.0(W) X 0.6(H) mm

鈥?Wide viewing angle of 130擄

鈥?Water clear optics

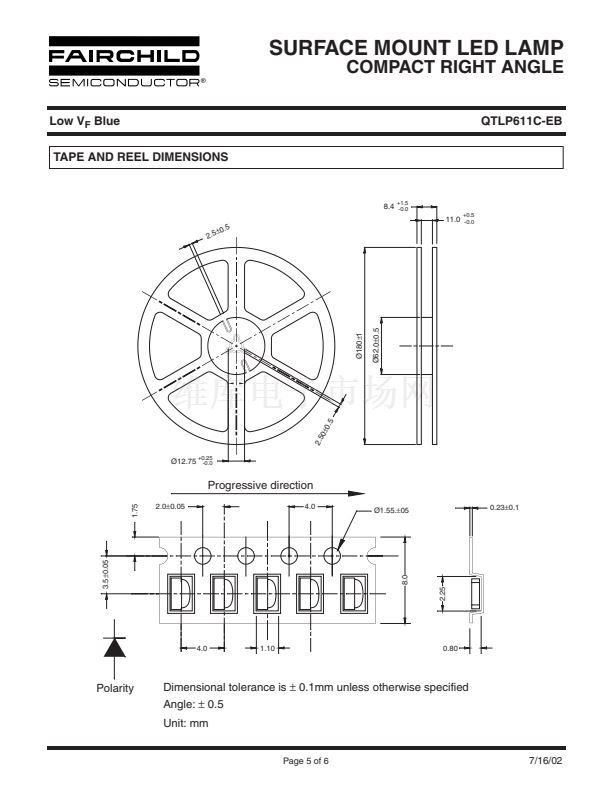

鈥?Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel
