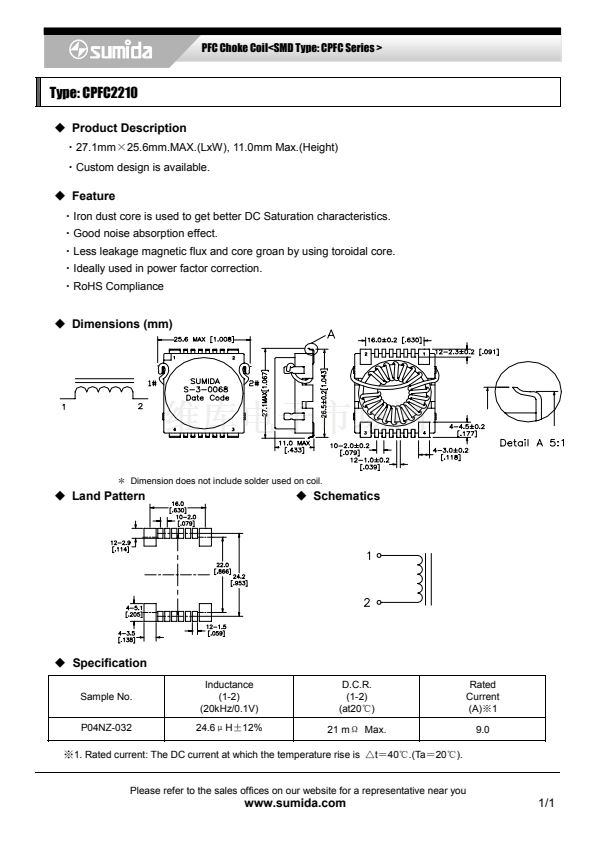

PFC Choke Coil<SMD Type: CPFC Series >
Type: CPFC2210
鈼?/div>
Product Description
銉?7.1mm脳25.6mm.MAX.(LxW),
11.0mm Max.(Height)
銉籆ustom
design is available.
鈼?/div>
Feature
銉籌ron
dust core is used to get better DC Saturation characteristics.
銉籊ood
noise absorption effect.
銉籐ess
leakage magnetic flux and core groan by using toroidal core.
銉籌deally
used in power factor correction.
銉籖oHS
Compliance
鈼?/div>
Dimensions (mm)
錛?/div>
Dimension does not include solder used on coil.
鈼?/div>
Land Pattern
鈼?/div>
Schematics
鈼?/div>
Specification
Sample No.
P04NZ-032
Inductance
(1-2)
(20kHz/0.1V)
24.6渭H鹵12%
D.C.R.
(1-2)
(at20鈩?
21 m惟 Max.
Rated
Current
(A)鈥?
9.0
鈥?.
Rated current: The DC current at which the temperature rise is
鈻硉錛?0鈩?(Ta錛?0鈩?.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/1
