MC10H162FN Datasheet

  • MC10H162FN

  • ON Semiconductor [Binary to 1−8 Decoder (High)]

  • 163.98KB

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

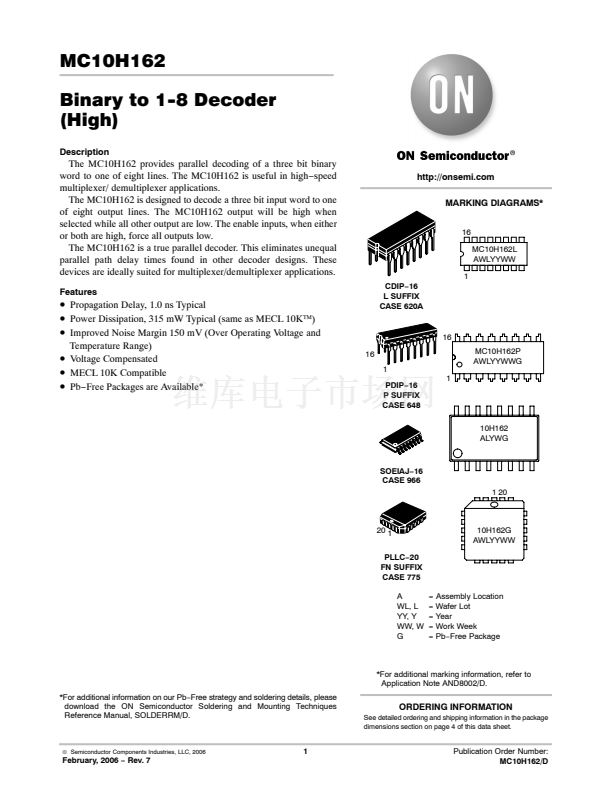

MC10H162
Binary to 1鈭? Decoder
(High)
Description
The MC10H162 provides parallel decoding of a three bit binary
word to one of eight lines. The MC10H162 is useful in high鈭抯peed
multiplexer/ demultiplexer applications.
The MC10H162 is designed to decode a three bit input word to one
of eight output lines. The MC10H162 output will be high when
selected while all other output are low. The enable inputs, when either
or both are high, force all outputs low.
The MC10H162 is a true parallel decoder. This eliminates unequal
parallel path delay times found in other decoder designs. These
devices are ideally suited for multiplexer/demultiplexer applications.
Features
http://onsemi.com
MARKING DIAGRAMS*
16
MC10H162L
AWLYYWW
CDIP鈭?6
L SUFFIX
CASE 620A
1
鈥?/div>
Propagation Delay, 1.0 ns Typical
鈥?/div>
Power Dissipation, 315 mW Typical (same as MECL 10K鈩?
鈥?/div>
Improved Noise Margin 150 mV (Over Operating Voltage and
Temperature Range)
鈥?/div>
Voltage Compensated
鈥?/div>
MECL 10K Compatible
鈥?/div>
Pb鈭扚ree Packages are Available*
16
16
MC10H162P
AWLYYWWG
1
1
PDIP鈭?6
P SUFFIX
CASE 648
10H162
ALYWG
SOEIAJ鈭?6
CASE 966
1 20
20 1
PLLC鈭?0
FN SUFFIX
CASE 775
A
WL, L
YY, Y
WW, W
G
10H162G
AWLYYWW
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb鈭扚ree Package
*For additional marking information, refer to
Application Note AND8002/D.
*For additional information on our Pb鈭扚ree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package

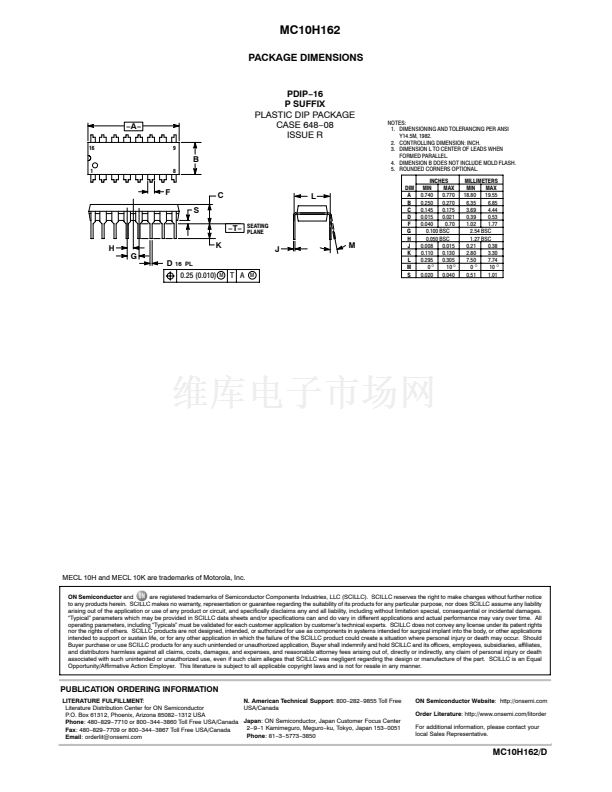

dimensions section on page 4 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2006
February, 2006
鈭?/div>
Rev. 7
1
Publication Order Number:
MC10H162/D

MC10H162FN PDF文件相關型號

MC10H162FNG,MC10H162FNR2,MC10H162FNR2G,MC10H162M,MC10H162MEL,MC10H162P

MC10H162FN 產品屬性

  • 46

  • 集成電路 (IC)

  • 邏輯 - 信號開關，多路復用器，解碼器

  • 10H

  • 解碼器

  • 1 x 3:8

  • 1

  • -

  • 雙電源

  • 4.94 V ~ 5.46 V

  • 0°C ~ 75°C

  • 表面貼裝

  • 20-LCC（J 形引線）

  • 20-PLCC（9x9）

  • 管件
