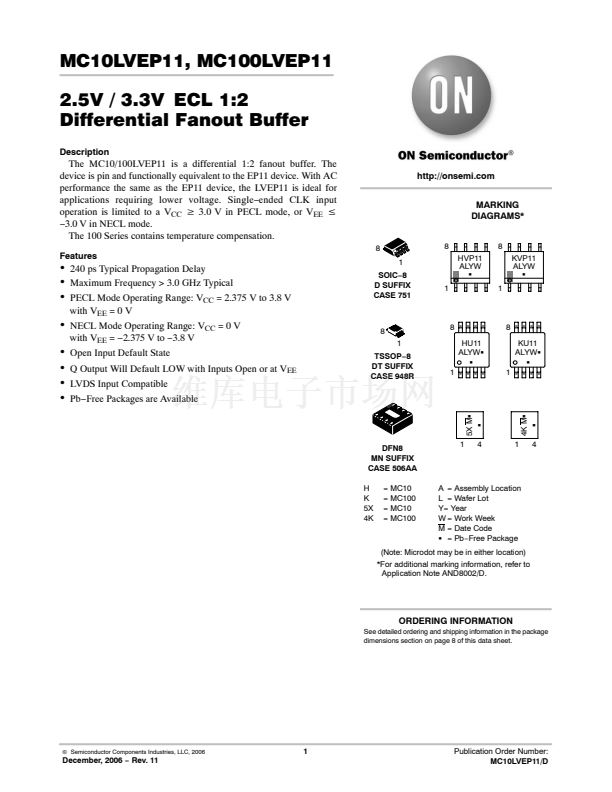

MC10LVEP11, MC100LVEP11
2.5V / 3.3V ECL 1:2
Differential Fanout Buffer
Description
The MC10/100LVEP11 is a differential 1:2 fanout buffer. The
device is pin and functionally equivalent to the EP11 device. With AC
performance the same as the EP11 device, the LVEP11 is ideal for
applications requiring lower voltage. Single鈭抏nded CLK input
operation is limited to a V
CC
w
3.0 V in PECL mode, or V
EE
v
鈭?.0
V in NECL mode.
The 100 Series contains temperature compensation.
Features
8
1
SOIC鈭?
D SUFFIX
CASE 751
http://onsemi.com
MARKING
DIAGRAMS*
8
HVP11
ALYW
G
1
1
8
KVP11
ALYW
G
鈥?/div>
240 ps Typical Propagation Delay
鈥?/div>
Maximum Frequency > 3.0 GHz Typical
鈥?/div>
PECL Mode Operating Range: V
CC
= 2.375 V to 3.8 V
with V
EE
= 0 V
鈥?/div>
NECL Mode Operating Range: V
CC
= 0 V
with V
EE
=
鈭?.375
V to
鈭?.8
V
鈥?/div>
Open Input Default State
8
1
TSSOP鈭?
DT SUFFIX
CASE 948R
8
HU11
ALYWG
G
8
KU11
ALYWG
G
鈥?/div>
Q Output Will Default LOW with Inputs Open or at V
EE
鈥?/div>
LVDS Input Compatible
鈥?/div>
Pb鈭扚ree Packages are Available
1
1
5X MG
G
DFN8
MN SUFFIX
CASE 506AA
H
K
5X
4K
= MC10
= MC100
= MC10
= MC100
1
4
1
A = Assembly Location
L = Wafer Lot
Y= Year
W = Work Week
M = Date Code
G
= Pb鈭扚ree Package
(Note: Microdot may be in either location)
*For additional marking information, refer to
Application Note AND8002/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 8 of this data sheet.
漏
Semiconductor Components Industries, LLC, 2006
December, 2006
鈭?/div>
Rev. 11
1
Publication Order Number:
MC10LVEP11/D
4K MG
G
4

MC100LVEP11DR2G PDF文件相關型號

MC100LVEP11DTR2G,MC10LVEP11_06,MC10LVEP11DTG,MC10LVEP11MNR4

MC100LVEP11DR2G 產品屬性

  • 2,500

  • 集成電路 (IC)

  • 時鐘/計時 - 時鐘緩沖器，驅動器

  • 100LVEP

  • 扇出緩沖器（分配）

  • 1

  • 1:2

  • 是/是

  • CML，LVDS，PECL

  • ECL，PECL

  • 3GHz

  • 2.375 V ~ 3.8 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm 寬）

  • 8-SOICN

  • 帶卷 (TR)

  • MC100LVEP11DR2G-NDMC100LVEP11DR2GOSTR
