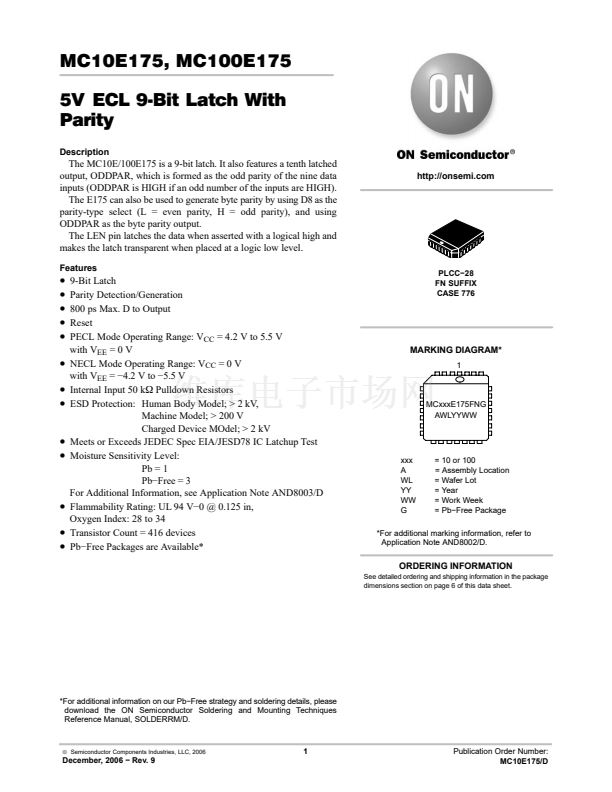

MC10E175, MC100E175
5V ECL 9-Bit Latch With
Parity
Description

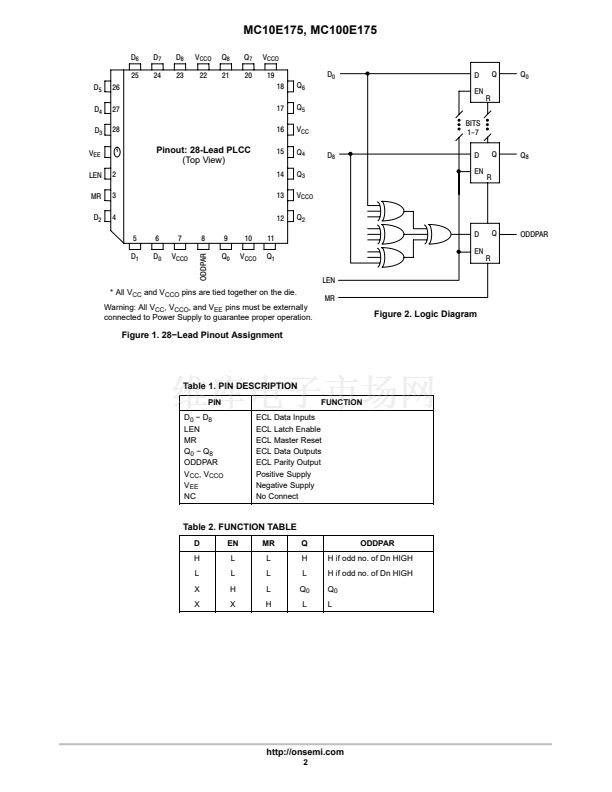

The MC10E/100E175 is a 9-bit latch. It also features a tenth latched
output, ODDPAR, which is formed as the odd parity of the nine data
inputs (ODDPAR is HIGH if an odd number of the inputs are HIGH).
The E175 can also be used to generate byte parity by using D8 as the
parity-type select (L = even parity, H = odd parity), and using
ODDPAR as the byte parity output.
The LEN pin latches the data when asserted with a logical high and
makes the latch transparent when placed at a logic low level.
Features
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
9-Bit Latch
Parity Detection/Generation

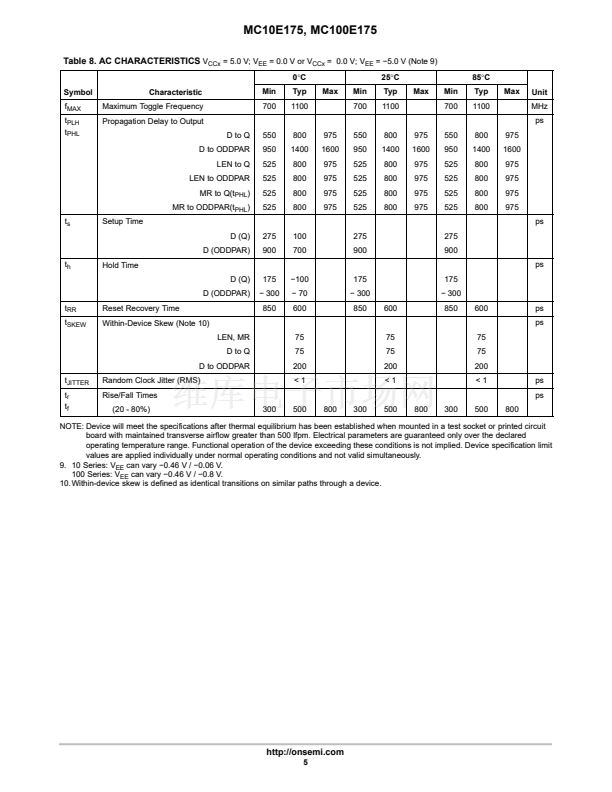

800 ps Max. D to Output
Reset

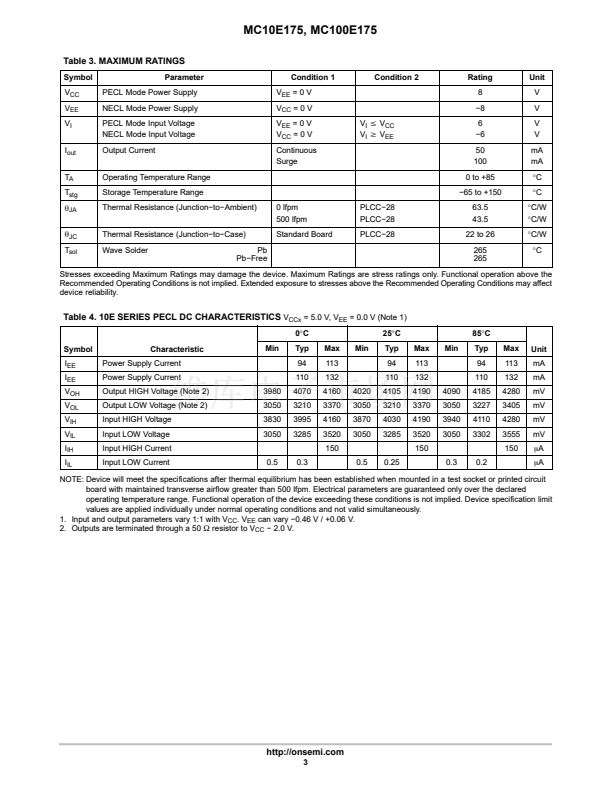

PECL Mode Operating Range: V
CC
= 4.2 V to 5.5 V
with V
EE
= 0 V

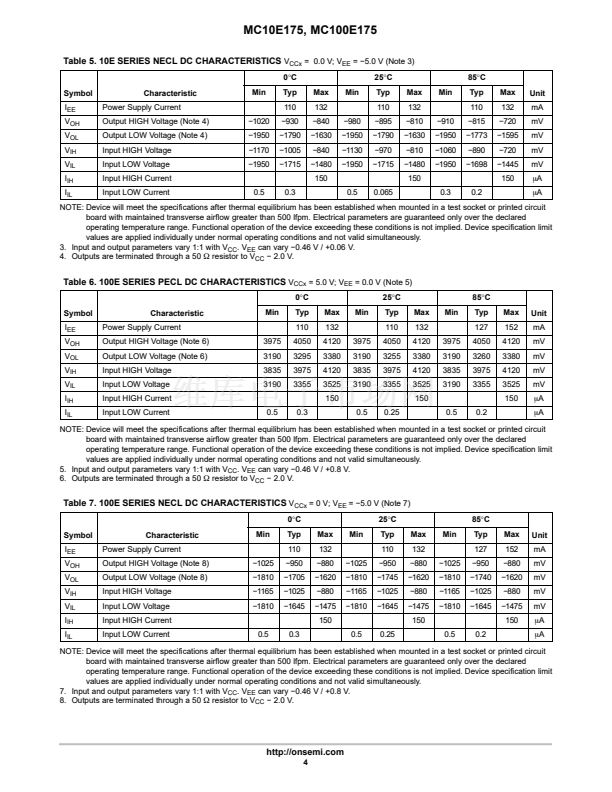

NECL Mode Operating Range: V
CC
= 0 V
with V
EE
= 鈭?.2 V to 鈭?.5 V
Internal Input 50 kW Pulldown Resistors
ESD Protection: Human Body Model; > 2 kV,
Machine Model; > 200 V
Charged Device MOdel; > 2 kV
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level:
Pb = 1
Pb鈭扚ree = 3
For Additional Information, see Application Note AND8003/D
Flammability Rating: UL 94 V鈭? @ 0.125 in,
Oxygen Index: 28 to 34
Transistor Count = 416 devices
Pb鈭扚ree Packages are Available*

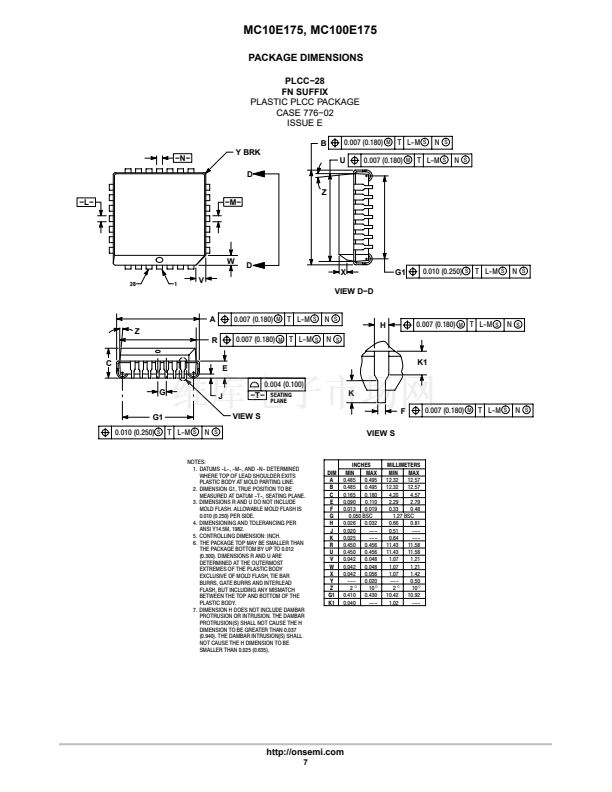

PLCC鈭?8
FN SUFFIX
CASE 776
MARKING DIAGRAM*
1
MCxxxE175FNG
AWLYYWW
xxx
A
WL
YY
WW
G
= 10 or 100
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb鈭扚ree Package
*For additional marking information, refer to
Application Note AND8002/D.

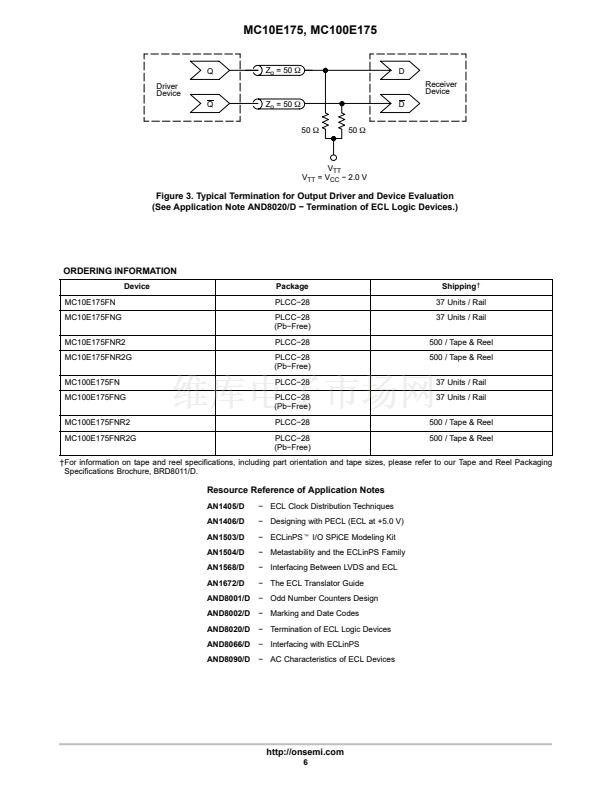

ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
*For additional information on our Pb鈭扚ree strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
漏
Semiconductor Components Industries, LLC, 2006
1
December, 2006 鈭?Rev. 9
Publication Order Number:
MC10E175/D
