MC100E160FN Datasheet

  • MC100E160FN

  • ON Semiconductor [5V ECL 12-Bit Parity Generator/Checker]

  • ONSEMI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

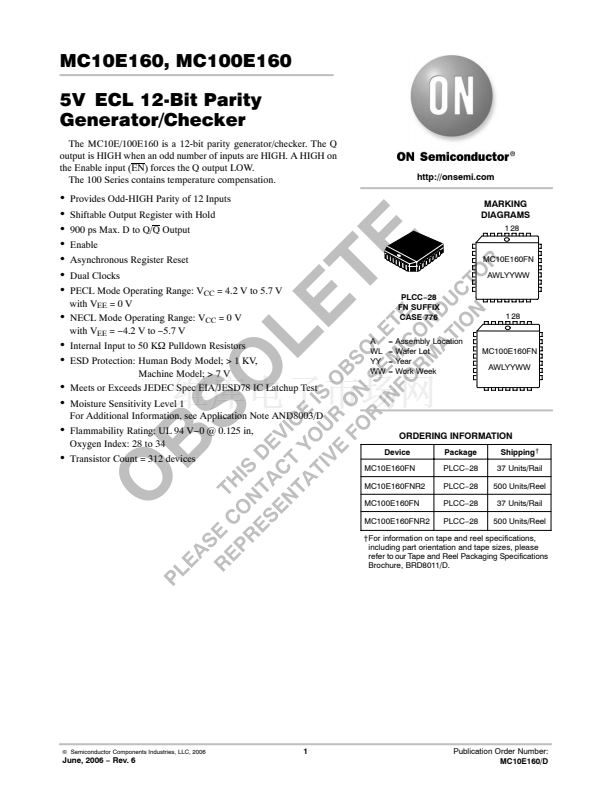

MC10E160, MC100E160
5V ECL 12-Bit Parity
Generator/Checker
The MC10E/100E160 is a 12-bit parity generator/checker. The Q
output is HIGH when an odd number of inputs are HIGH. A HIGH on
the Enable input (EN) forces the Q output LOW.
The 100 Series contains temperature compensation.
http://onsemi.com
MARKING
DIAGRAMS
1 28
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Provides Odd-HIGH Parity of 12 Inputs
Shiftable Output Register with Hold
900 ps Max. D to Q/Q Output
Enable
Asynchronous Register Reset
Dual Clocks
PLCC鈭?8
FN SUFFIX
CASE 776
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
MC10E160FN
AWLYYWW
PECL Mode Operating Range: V
CC
= 4.2 V to 5.7 V
with V
EE
= 0 V
鈥?/div>
NECL Mode Operating Range: V
CC
= 0 V
with V
EE
=
鈭?.2
V to
鈭?.7
V
鈥?/div>
Internal Input to 50 KW Pulldown Resistors
1 28
鈥?/div>
ESD Protection: Human Body Model; > 1 KV,
鈥?/div>
Moisture Sensitivity Level 1
MC100E160FN
AWLYYWW
Machine Model; > 7 V
鈥?/div>
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
For Additional Information, see Application Note AND8003/D
鈥?/div>
Flammability Rating: UL 94 V鈭? @ 0.125 in,
Oxygen Index: 28 to 34
鈥?/div>
Transistor Count = 312 devices
ORDERING INFORMATION
Device
MC10E160FN
MC10E160FNR2
MC100E160FN
MC100E160FNR2
Package
PLCC鈭?8
PLCC鈭?8
PLCC鈭?8
PLCC鈭?8
Shipping
鈥?/div>
37 Units/Rail
500 Units/Reel
37 Units/Rail
500 Units/Reel
鈥燜or information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
漏
Semiconductor Components Industries, LLC, 2006
June, 2006
鈭?/div>
Rev. 6
1
Publication Order Number:
MC10E160/D
