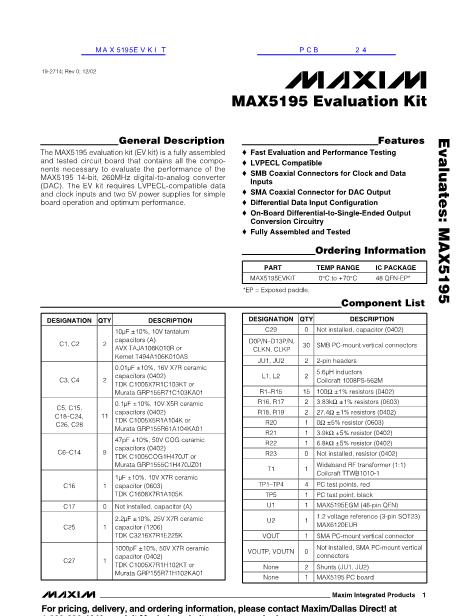

19-2714; Rev 0; 12/02
MAX5195 Evaluation Kit
General Description
The MAX5195 evaluation kit (EV kit) is a fully assembled
and tested circuit board that contains all the compo-
nents necessary to evaluate the performance of the
MAX5195 14-bit, 260MHz digital-to-analog converter
(DAC). The EV kit requires LVPECL-compatible data
and clock inputs and two 5V power supplies for simple
board operation and optimum performance.
Features
o
Fast Evaluation and Performance Testing
o
LVPECL Compatible
o
SMB Coaxial Connectors for Clock and Data
Inputs
o
SMA Coaxial Connector for DAC Output
o
Differential Data Input Configuration
o
On-Board Differential-to-Single-Ended Output
Conversion Circuitry
o
Fully Assembled and Tested
Evaluates: MAX5195
Ordering Information
PART
MAX5195EVKIT
TEMP RANGE
0擄C to +70擄C
IC PACKAGE
48 QFN-EP*
*EP
= Exposed paddle.
Component List
DESIGNATION QTY
DESCRIPTION
10碌F 鹵10%, 10V tantalum
capacitors (A)
AVX TAJA106K010R or
Kemet T494A106K010AS
0.01碌F 鹵10%, 16V X7R ceramic
capacitors (0402)
TDK C1005X7R1C103KT or
Murata GRP155R71C103KA01
0.1碌F 鹵10%, 10V X5R ceramic
capacitors (0402)
TDK C1005X5R1A104K or
Murata GRP155R61A104KA01
47pF 鹵10%, 50V COG ceramic
capacitors (0402)
TDK C1005COG1H470JT or
Murata GRP1555C1H470JZ01
1碌F 鹵10%, 10V X7R ceramic
capacitor (0603)
TDK C1608X7R1A105K
Not installed, capacitor (A)
2.2碌F 鹵10%, 25V X7R ceramic
capacitor (1206)
TDK C3216X7R1E225K
1000pF 鹵10%, 50V X7R ceramic
capacitor (0402)
TDK C1005X7R1H102KT or
Murata GRP155R71H102KA01
DESIGNATION QTY
C29
D0P/N鈥揇13P/N,
CLKN, CLKP
JU1, JU2
L1, L2
R1鈥揜15
R16, R17
R18, R19
R20
R21
R22
R23
T1
TP1鈥揟P4
TP5
U1
U2
VOUT
VOUTP, VOUTN
None
None
0
30
2
2
15
2
2
1
1
1
0
1
4
1
1
1
1
0
2
1
DESCRIPTION
Not installed, capacitor (0402)
SMB PC-mount vertical connectors
2-pin headers
5.6碌H inductors
Coilcraft 1008PS-562M
100鈩?鹵1% resistors (0402)
3.83k鈩?鹵1% resistors (0603)
27.4鈩?鹵1% resistors (0402)
0鈩?鹵5% resistor (0603)
3.9k鈩?鹵5% resistor (0402)
6.8k鈩?鹵5% resistor (0402)
Not installed, resistor (0402)
Wideband RF transformer (1:1)
Coilcraft TTWB1010-1
PC test points, red
PC test point, black
MAX5195EGM (48-pin QFN)
1.2 voltage reference (3-pin SOT23)
MAX6120EUR
SMA PC-mount vertical connector
Not installed, SMA PC-mount vertical
connectors
Shunts (JU1, JU2)
MAX5195 PC board
C1, C2
2
C3, C4
2
C5, C15,
C18鈥揅24,
C26, C28
11
C6鈥揅14
9
C16
C17
C25
1
0
1
C27
1
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
