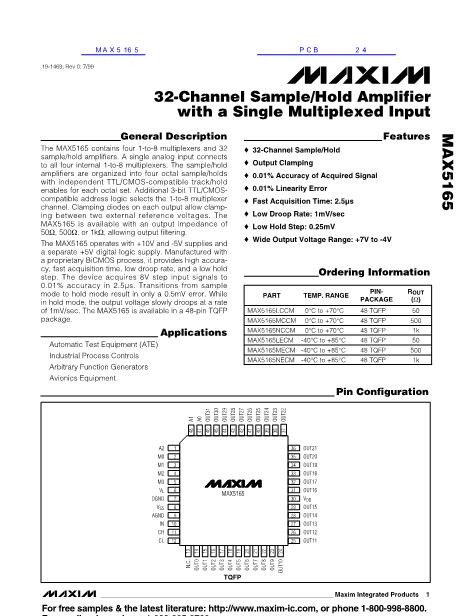

19-1469; Rev 0; 7/99
32-Channel Sample/Hold Amplifier
with a Single Multiplexed Input
General Description
The MAX5165 contains four 1-to-8 multiplexers and 32
sample/hold amplifiers. A single analog input connects
to all four internal 1-to-8 multiplexers. The sample/hold
amplifiers are organized into four octal sample/holds
with independent TTL/CMOS-compatible track/hold
enables for each octal set. Additional 3-bit TTL/CMOS-
compatible address logic selects the 1-to-8 multiplexer
channel. Clamping diodes on each output allow clamp-
ing between two external reference voltages. The
MAX5165 is available with an output impedance of
50鈩? 500鈩? or 1k鈩? allowing output filtering.
The MAX5165 operates with +10V and -5V supplies and
a separate +5V digital logic supply. Manufactured with
a proprietary BiCMOS process, it provides high accura-
cy, fast acquisition time, low droop rate, and a low hold
step. The device acquires 8V step input signals to
0.01% accuracy in 2.5碌s. Transitions from sample
mode to hold mode result in only a 0.5mV error. While
in hold mode, the output voltage slowly droops at a rate
of 1mV/sec. The MAX5165 is available in a 48-pin TQFP
package.
o
32-Channel Sample/Hold
o
Output Clamping
o
0.01% Accuracy of Acquired Signal
o
0.01% Linearity Error
o
Fast Acquisition Time: 2.5碌s
o
Low Droop Rate: 1mV/sec
o
Low Hold Step: 0.25mV
o
Wide Output Voltage Range: +7V to -4V
Features
MAX5165
Ordering Information
PART
MAX5165LCCM
TEMP. RANGE
0擄C to +70擄C
PIN-
PACKAGE
48 TQFP
48 TQFP
48 TQFP
48 TQFP
48 TQFP
48 TQFP
R
OUT
(鈩?
50
500
1k
50
500
1k
Applications
Automatic Test Equipment (ATE)
Industrial Process Controls
Arbitrary Function Generators
Avionics Equipment
MAX5165MCCM 0擄C to +70擄C
MAX5165NCCM 0擄C to +70擄C
MAX5165LECM -40擄C to +85擄C
MAX5165MECM -40擄C to +85擄C
MAX5165NECM -40擄C to +85擄C
Pin Configuration
A1
A0
OUT31
OUT30
OUT29
OUT28
OUT27
OUT26
OUT25
44
43
42
41
40
48
47
46
45
39
38
37
OUT24
OUT23
OUT22
A2
M0
M1
M2
M3
V
L
DGND
V
SS
AGND
IN
CH
CL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
36
35
34
33
32
31
30
29
28
27
26
25
OUT21
OUT20
OUT19
OUT18
OUT17
OUT16
V
DD
OUT15
OUT14
OUT13
OUT12
OUT11
MAX5165
TQFP
________________________________________________________________
Maxim Integrated Products
1
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
OUT10
N.C.
OUT0
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
