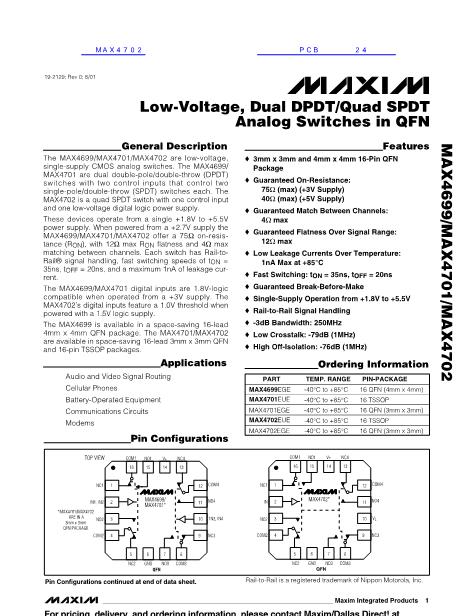

19-2129; Rev 0; 8/01
Low-Voltage, Dual DPDT/Quad SPDT
Analog Switches in QFN
General Description
The MAX4699/MAX4701/MAX4702 are low-voltage,
single-supply CMOS analog switches. The MAX4699/
MAX4701 are dual double-pole/double-throw (DPDT)
switches with two control inputs that control two
single-pole/double-throw (SPDT) switches each. The
MAX4702 is a quad SPDT switch with one control input
and one low-voltage digital logic power supply.
These devices operate from a single +1.8V to +5.5V
power supply. When powered from a +2.7V supply the
MAX4699/MAX4701/MAX4702 offer a 75鈩?on-resis-
tance (R
ON
), with 12鈩?max R
ON
flatness and 4鈩?max
matching between channels. Each switch has Rail-to-
Rail廬 signal handling, fast switching speeds of t
ON
=
35ns, t
OFF
= 20ns, and a maximum 1nA of leakage cur-
rent.
The MAX4699/MAX4701 digital inputs are 1.8V-logic
compatible when operated from a +3V supply. The
MAX4702鈥檚 digital inputs feature a 1.0V threshold when
powered with a 1.5V logic supply.
The MAX4699 is available in a space-saving 16-lead
4mm x 4mm QFN package. The MAX4701/MAX4702
are available in space-saving 16-lead 3mm x 3mm QFN
and 16-pin TSSOP packages.
Features
o
3mm x 3mm and 4mm x 4mm 16-Pin QFN
Package
o
Guaranteed On-Resistance:
75鈩?(max) (+3V Supply)
40鈩?(max) (+5V Supply)
o
Guaranteed Match Between Channels:
4鈩?max
o
Guaranteed Flatness Over Signal Range:
12鈩?max
o
Low Leakage Currents Over Temperature:
1nA Max at +85擄C
o
Fast Switching: t
ON
= 35ns, t
OFF
= 20ns
o
Guaranteed Break-Before-Make
o
Single-Supply Operation from +1.8V to +5.5V
o
Rail-to-Rail Signal Handling
o
-3dB Bandwidth: 250MHz
o
Low Crosstalk: -79dB (1MHz)
o
High Off-Isolation: -76dB (1MHz)
MAX4699/MAX4701/MAX4702
Applications
Audio and Video Signal Routing
Cellular Phones
Battery-Operated Equipment
Communications Circuits
Modems
PART
MAX4699EGE
MAX4701EUE
MAX4701EGE
MAX4702EUE
MAX4702EGE
Ordering Information
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
16 QFN (4mm x 4mm)
16 TSSOP
16 QFN (3mm x 3mm)
16 TSSOP
16 QFN (3mm x 3mm)
Pin Configurations
TOP VIEW
COM1
16
NO1
15
V+
14
NC4
13
COM1
16
NO1
15
V+
14
NC4
13
NC1
1
12
COM4
NC1
1
12
COM4
IN1, IN2
*MAX4701/MAX4702
ARE IN A
NO2
3mm x 3mm
QFN PACKAGE
COM2
2
MAX4699/
MAX4701*
11
NO4
IN
2
MAX4702*
11
NO4
3
10
1N3, IN4
NO2
COM2
3
10
V
L
4
9
NC3
4
9
NC3
5
NC2
6
GND
QFN
7
NO3
8
COM3
5
NC2
6
GND
7
NO3
QFN
8
COM3
Pin Configurations continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Inc.
1
________________________________________________________________
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
