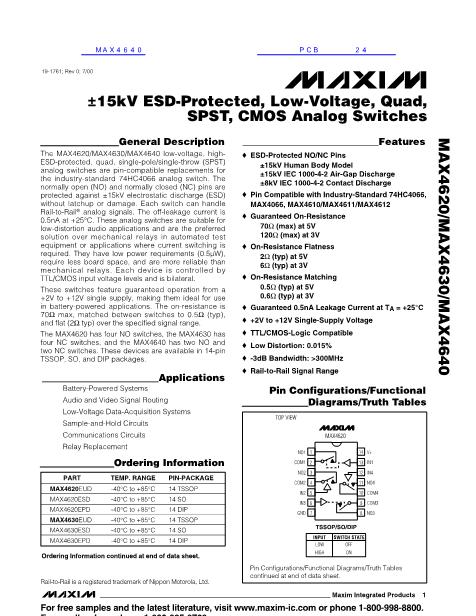

19-1761; Rev 0; 7/00
鹵15kV ESD-Protected, Low-Voltage, Quad,
SPST, CMOS Analog Switches
MAX4620/MAX4630/MAX4640
General Description
The MAX4620/MAX4630/MAX4640 low-voltage, high-
ESD-protected, quad, single-pole/single-throw (SPST)
analog switches are pin-compatible replacements for
the industry-standard 74HC4066 analog switch. The
normally open (NO) and normally closed (NC) pins are
protected against 鹵15kV electrostatic discharge (ESD)
without latchup or damage. Each switch can handle
Rail-to-Rail
廬
analog signals. The off-leakage current is
0.5nA at +25擄C. These analog switches are suitable for
low-distortion audio applications and are the preferred
solution over mechanical relays in automated test
equipment or applications where current switching is
required. They have low power requirements (0.5碌W),
require less board space, and are more reliable than
mechanical relays. Each device is controlled by
TTL/CMOS input voltage levels and is bilateral.
These switches feature guaranteed operation from a
+2V to +12V single supply, making them ideal for use
in battery-powered applications. The on-resistance is
70鈩?max, matched between switches to 0.5鈩?(typ),
and flat (2鈩?typ) over the specified signal range.
The MAX4620 has four NO switches, the MAX4630 has
four NC switches, and the MAX4640 has two NO and
two NC switches. These devices are available in 14-pin
TSSOP, SO, and DIP packages.
____________________________Features
o
ESD-Protected NO/NC Pins
鹵15kV Human Body Model
鹵15kV IEC 1000-4-2 Air-Gap Discharge
鹵8kV IEC 1000-4-2 Contact Discharge
o
Pin Compatible with Industry-Standard 74HC4066,
MAX4066, MAX4610/MAX4611/MAX4612
o
Guaranteed On-Resistance
70鈩?(max) at 5V
120鈩?(max) at 3V
o
On-Resistance Flatness
2鈩?(typ) at 5V
6鈩?(typ) at 3V
o
On-Resistance Matching
0.5鈩?(typ) at 5V
0.6鈩?(typ) at 3V
o
Guaranteed 0.5nA Leakage Current at T
A
= +25擄C
o
+2V to +12V Single-Supply Voltage
o
TTL/CMOS-Logic Compatible
o
Low Distortion: 0.015%
o
-3dB Bandwidth: >300MHz
o
Rail-to-Rail Signal Range
________________________Applications
Battery-Powered Systems
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Sample-and-Hold Circuits
Communications Circuits
Relay Replacement
Pin Configurations/Functional
Diagrams/Truth Tables
TOP VIEW
MAX4620
NO1 1
COM1 2
NO2 3
14 V+
13 IN1
12 IN4
11 NO4
10 COM4
9 COM3
8 NO3
Ordering Information
PART
MAX4620EUD
MAX4620ESD
MAX4620EPD
MAX4630EUD
MAX4630ESD
MAX4630EPD
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
14 TSSOP
14 SO
14 DIP
14 TSSOP
14 SO
14 DIP
COM2 4
IN2 5
IN3 6
GND 7
TSSOP/SO/DIP
INPUT
LOW
HIGH
SWITCH STATE
OFF
ON
Ordering Information continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
Pin Configurations/Functional Diagrams/Truth Tables
continued at end of data sheet.
1
________________________________________________________________
Maxim Integrated Products
For free samples and the latest literature, visit www.maxim-ic.com or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
