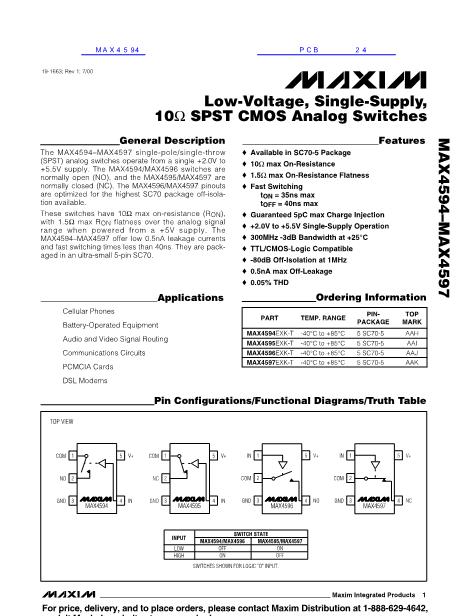

19-1663; Rev 1; 7/00
Low-Voltage, Single-Supply,
10鈩?SPST CMOS Analog Switches
General Description
The MAX4594鈥揗AX4597 single-pole/single-throw
(SPST) analog switches operate from a single +2.0V to
+5.5V supply. The MAX4594/MAX4596 switches are
normally open (NO), and the MAX4595/MAX4597 are
normally closed (NC). The MAX4596/MAX4597 pinouts
are optimized for the highest SC70 package off-isola-
tion available.
These switches have 10鈩?max on-resistance (R
ON
),
with 1.5鈩?max R
ON
flatness over the analog signal
range when powered from a +5V supply. The
MAX4594鈥揗AX4597 offer low 0.5nA leakage currents
and fast switching times less than 40ns. They are pack-
aged in an ultra-small 5-pin SC70.
____________________________Features
o
Available in SC70-5 Package
o
10鈩?max On-Resistance
o
1.5鈩?max On-Resistance Flatness
o
Fast Switching
t
ON
= 35ns max
t
OFF
= 40ns max
o
Guaranteed 5pC max Charge Injection
o
+2.0V to +5.5V Single-Supply Operation
o
300MHz -3dB Bandwidth at +25擄C
o
TTL/CMOS-Logic Compatible
o
-80dB Off-Isolation at 1MHz
o
0.5nA max Off-Leakage
o
0.05% THD
MAX4594鈥揗AX4597
________________________Applications
Cellular Phones
PART
Ordering Information
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-
PACKAGE
5 SC70-5
5 SC70-5
5 SC70-5
5 SC70-5
TOP
MARK
AAH
AAI
AAJ
AAK
Battery-Operated Equipment
Audio and Video Signal Routing
Communications Circuits
PCMCIA Cards
DSL Modems
MAX4594EXK-T
MAX4595EXK-T
MAX4596EXK-T
MAX4597EXK-T
Pin Configurations/Functional Diagrams/Truth Table
TOP VIEW
COM
1
5
V+
COM
1
5
V+
IN
1
5
V+
IN
1
5
V+
NO
2
NC
2
COM
2
COM
2
GND
3
MAX4594
4
IN
GND
3
MAX4595
4
IN
GND
3
MAX4596
4
NO
GND
3
MAX4597
4
NC
INPUT
LOW
HIGH
SWITCH STATE
MAX4595/MAX4597
MAX4594/MAX4596
ON
OFF
OFF
ON
SWITCHES SHOWN FOR LOGIC "O" INPUT.
________________________________________________________________
Maxim Integrated Products
1
For price, delivery, and to place orders, please contact Maxim Distribution at 1-888-629-4642,
or visit Maxim鈥檚 website at www.maxim-ic.com.
