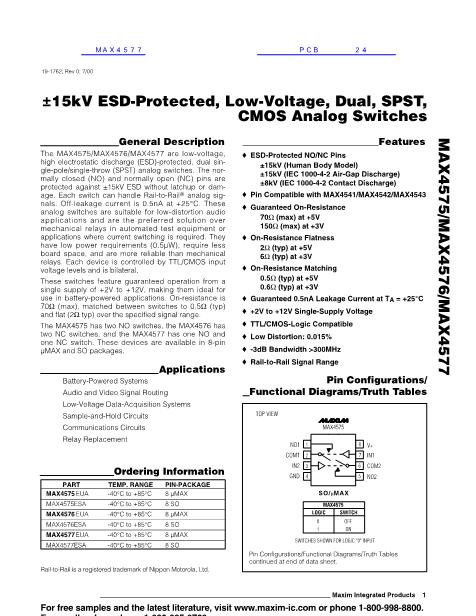

19-1762; Rev 0; 7/00
鹵15kV ESD-Protected, Low-Voltage, Dual, SPST,
CMOS Analog Switches
MAX4575/MAX4576/MAX4577
General Description
The MAX4575/MAX4576/MAX4577 are low-voltage,
high electrostatic discharge (ESD)-protected, dual sin-
gle-pole/single-throw (SPST) analog switches. The nor-
mally closed (NO) and normally open (NC) pins are
protected against 鹵15kV ESD without latchup or dam-
age. Each switch can handle Rail-to-Rail
廬
analog sig-
nals. Off-leakage current is 0.5nA at +25擄C. These
analog switches are suitable for low-distortion audio
applications and are the preferred solution over
mechanical relays in automated test equipment or
applications where current switching is required. They
have low power requirements (0.5碌W), require less
board space, and are more reliable than mechanical
relays. Each device is controlled by TTL/CMOS input
voltage levels and is bilateral.
These switches feature guaranteed operation from a
single supply of +2V to +12V, making them ideal for
use in battery-powered applications. On-resistance is
70鈩?(max), matched between switches to 0.5鈩?(typ)
and flat (2鈩?typ) over the specified signal range.
The MAX4575 has two NO switches, the MAX4576 has
two NC switches, and the MAX4577 has one NO and
one NC switch. These devices are available in 8-pin
碌MAX and SO packages.
____________________________Features
o
ESD-Protected NO/NC Pins
鹵15kV (Human Body Model)
鹵15kV (IEC 1000-4-2 Air-Gap Discharge)
鹵8kV (IEC 1000-4-2 Contact Discharge)
o
Pin Compatible with MAX4541/MAX4542/MAX4543
o
Guaranteed On-Resistance
70鈩?(max) at +5V
150鈩?(max) at +3V
o
On-Resistance Flatness
2鈩?(typ) at +5V
6鈩?(typ) at +3V
o
On-Resistance Matching
0.5鈩?(typ) at +5V
0.6鈩?(typ) at +3V
o
Guaranteed 0.5nA Leakage Current at T
A
= +25擄C
o
+2V to +12V Single-Supply Voltage
o
TTL/CMOS-Logic Compatible
o
Low Distortion: 0.015%
o
-3dB Bandwidth >300MHz
o
Rail-to-Rail Signal Range
Applications
Battery-Powered Systems
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Sample-and-Hold Circuits
Communications Circuits
Relay Replacement
Pin Configurations/
Functional Diagrams/Truth Tables
TOP VIEW
MAX4575
NO1
1
COM1
2
IN2
3
GND
4
SO/
碌
MAX
MAX4575
LOGIC
SWITCH
0
1
OFF
ON
8
7
6
5
V+
IN1
COM2
NO2
Ordering Information
PART
MAX4575
EUA
MAX4575ESA
MAX4576
EUA
MAX4576ESA
MAX4577
EUA
MAX4577ESA
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
8 碌MAX
8 SO
8 碌MAX
8 SO
8 碌MAX
8 SO
SWITCHES SHOWN FOR LOGIC "0" INPUT
Pin Configurations/Functional Diagrams/Truth Tables
continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
________________________________________________________________
Maxim Integrated Products
1
For free samples and the latest literature, visit www.maxim-ic.com or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
