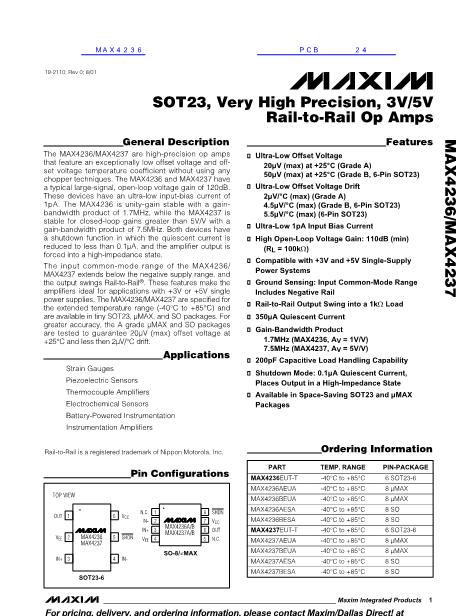

19-2110; Rev 0; 8/01
SOT23, Very High Precision, 3V/5V
Rail-to-Rail Op Amps
General Description
The MAX4236/MAX4237 are high-precision op amps
that feature an exceptionally low offset voltage and off-
set voltage temperature coefficient without using any
chopper techniques. The MAX4236 and MAX4237 have
a typical large-signal, open-loop voltage gain of 120dB.
These devices have an ultra-low input-bias current of
1pA. The MAX4236 is unity-gain stable with a gain-
bandwidth product of 1.7MHz, while the MAX4237 is
stable for closed-loop gains greater than 5V/V with a
gain-bandwidth product of 7.5MHz. Both devices have
a shutdown function in which the quiescent current is
reduced to less than 0.1碌A(chǔ), and the amplifier output is
forced into a high-impedance state.
The input common-mode range of the MAX4236/
MAX4237 extends below the negative supply range, and
the output swings Rail-to-Rail
廬
. These features make the
amplifiers ideal for applications with +3V or +5V single
power supplies. The MAX4236/MAX4237 are specified for
the extended temperature range (-40擄C to +85擄C) and
are available in tiny SOT23, 碌MAX, and SO packages. For
greater accuracy, the A grade 碌MAX and SO packages
are tested to guarantee 20碌V (max) offset voltage at
+25擄C and less then 2碌V/擄C drift.
Features
o
Ultra-Low Offset Voltage
20碌V (max) at +25擄C (Grade A)
50碌V (max) at +25擄C (Grade B, 6-Pin SOT23)
o
Ultra-Low Offset Voltage Drift
2碌V/擄C (max) (Grade A)
4.5碌V/擄C (max) (Grade B, 6-Pin SOT23)
5.5碌V/擄C (max) (6-Pin SOT23)
o
Ultra-Low 1pA Input Bias Current
o
High Open-Loop Voltage Gain: 110dB (min)
(R
L
= 100k鈩?
o
Compatible with +3V and +5V Single-Supply
Power Systems
o
Ground Sensing: Input Common-Mode Range
Includes Negative Rail
o
Rail-to-Rail Output Swing into a 1k鈩?Load
o
350碌A(chǔ) Quiescent Current
o
Gain-Bandwidth Product
1.7MHz (MAX4236, A
V
= 1V/V)
7.5MHz (MAX4237, A
V
= 5V/V)
o
200pF Capacitive Load Handling Capability
o
Shutdown Mode: 0.1碌A(chǔ) Quiescent Current,
Places Output in a High-Impedance State
o
Available in Space-Saving SOT23 and 碌MAX
Packages
MAX4236/MAX4237
Applications
Strain Gauges
Piezoelectric Sensors
Thermocouple Amplifiers
Electrochemical Sensors
Battery-Powered Instrumentation
Instrumentation Amplifiers
Rail-to-Rail is a registered trademark of Nippon Motorola, Inc.
Ordering Information
PART
MAX4236EUT-T
MAX4236AEUA
MAX4236BEUA
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
6 SOT23-6
8 碌MAX
8 碌MAX
8 SO
8 SO
6 SOT23-6
8 碌MAX
8 碌MAX
8 SO
8 SO
Pin Configurations
TOP VIEW
OUT 1
6
V
CC
N.C.
IN-
IN+
V
EE
2
V
EE
1
2
3
4
8
7
SHDN
V
CC
OUT
N.C.
MAX4236AESA
MAX4236BESA
MAX4237EUT-T
MAX4237AEUA
MAX4237BEUA
MAX4237AESA
MAX4237BESA
MAX4236
MAX4237
5
SHDN
MAX4236A/B
MAX4237A/B
SO-8/碌MAX
6
5
IN+ 3
4
IN-
SOT23-6
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
