MAX4091 Datasheet

  • MAX4091

  • "Single, Micropower, Single-Supply, Rail-to-Rail I/O Op Amp ...

  • Maxim   Maxim

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

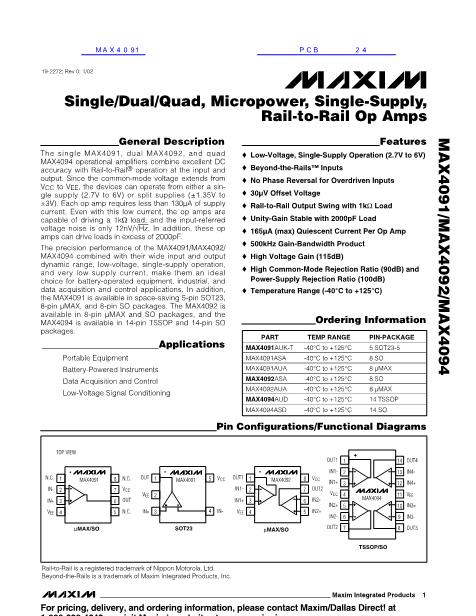

19-2272; Rev 0; 1/02
Single/Dual/Quad, Micropower, Single-Supply,
Rail-to-Rail Op Amps
General Description
The single MAX4091, dual MAX4092, and quad
MAX4094 operational amplifiers combine excellent DC
accuracy with Rail-to-Rail
廬
operation at the input and
output. Since the common-mode voltage extends from
V
CC
to V
EE
, the devices can operate from either a sin-
gle supply (2.7V to 6V) or split supplies (鹵1.35V to
鹵3V). Each op amp requires less than 130碌A(chǔ) of supply
current. Even with this low current, the op amps are
capable of driving a 1k鈩?load, and the input-referred
voltage noise is only 12nV/鈭欻z. In addition, these op
amps can drive loads in excess of 2000pF.
The precision performance of the MAX4091/MAX4092/
MAX4094 combined with their wide input and output
dynamic range, low-voltage, single-supply operation,
and very low supply current, make them an ideal
choice for battery-operated equipment, industrial, and
data acquisition and control applications. In addition,
the MAX4091 is available in space-saving 5-pin SOT23,
8-pin 碌MAX, and 8-pin SO packages. The MAX4092 is
available in 8-pin 碌MAX and SO packages, and the
MAX4094 is available in 14-pin TSSOP and 14-pin SO
packages.
o
Beyond-the-Rails鈩?Inputs
o
No Phase Reversal for Overdriven Inputs
o
30碌V Offset Voltage
o
Rail-to-Rail Output Swing with 1k鈩?Load
o
Unity-Gain Stable with 2000pF Load
o
165碌A(chǔ) (max) Quiescent Current Per Op Amp
o
500kHz Gain-Bandwidth Product
o
High Voltage Gain (115dB)
o
High Common-Mode Rejection Ratio (90dB) and
Power-Supply Rejection Ratio (100dB)
o
Temperature Range (-40擄C to +125擄C)
Features
o
Low-Voltage, Single-Supply Operation (2.7V to 6V)
MAX4091/MAX4092/MAX4094
Ordering Information
PART
MAX4091AUK-T
MAX4091ASA
MAX4091AUA
MAX4092ASA
MAX4092AUA
MAX4094AUD
MAX4094ASD
TEMP RANGE
-40擄C to +125擄C
-40擄C to +125擄C
-40擄C to +125擄C
-40擄C to +125擄C
-40擄C to +125擄C
-40擄C to +125擄C
-40擄C to +125擄C
PIN-PACKAGE
5 SOT23-5
8 SO
8 碌MAX
8 SO
8 碌MAX
14 TSSOP
14 SO
________________________Applications
Portable Equipment
Battery-Powered Instruments
Data Acquisition and Control
Low-Voltage Signal Conditioning
Pin Configurations/Functional Diagrams
TOP VIEW
OUT1 1
N.C. 1
IN- 2
IN+ 3
V
EE
4
碌MAX/SO
MAX4091
8
7
6
5
N.C.
V
CC
OUT
N.C.
OUT 1
V
EE
2
IN+ 3
SOT23
4
IN-
5
V
CC
OUT1 1
IN1- 2
IN1+ 3
V
EE
4
碌MAX/SO
IN1- 2
MAX4092
8
7
6
5
V
CC
OUT2
IN2-
IN2+
IN2- 6
OUT2 7
9
8
IN3-
OUT3
IN1+ 3
V
CC
4
IN2+ 5
MAX4094
14 OUT4
13 IN4-
12 IN4+
11 V
EE
10 IN3+
MAX4091
TSSOP/SO
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
Beyond-the-Rails is a trademark of Maxim Integrated Products, Inc.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
