19-0270; Rev 0; 8/94

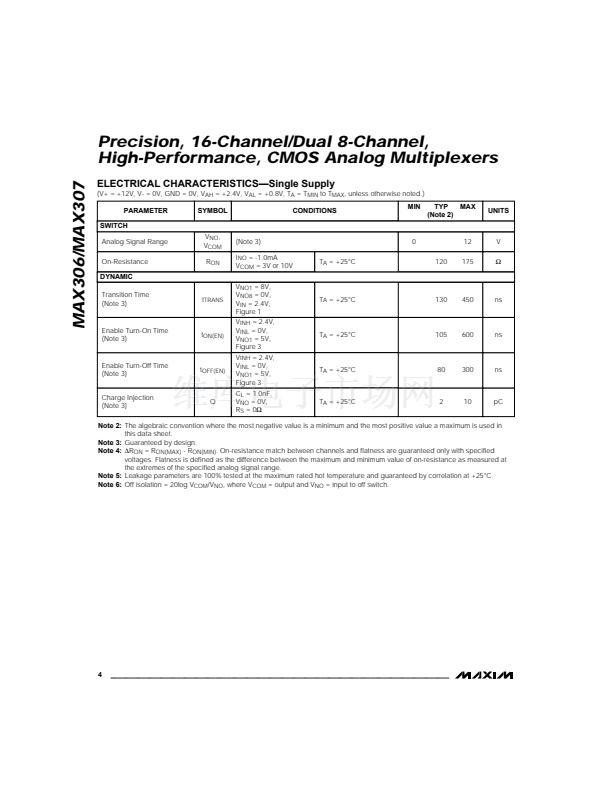

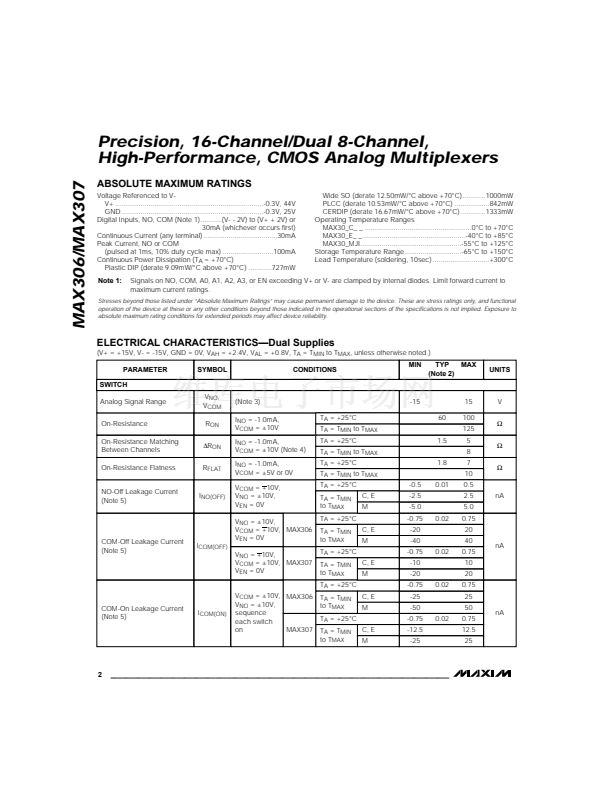

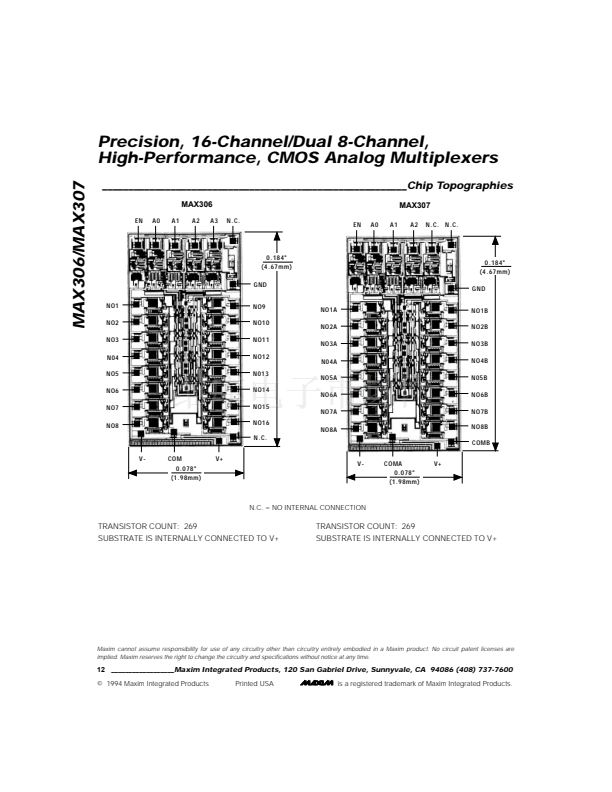

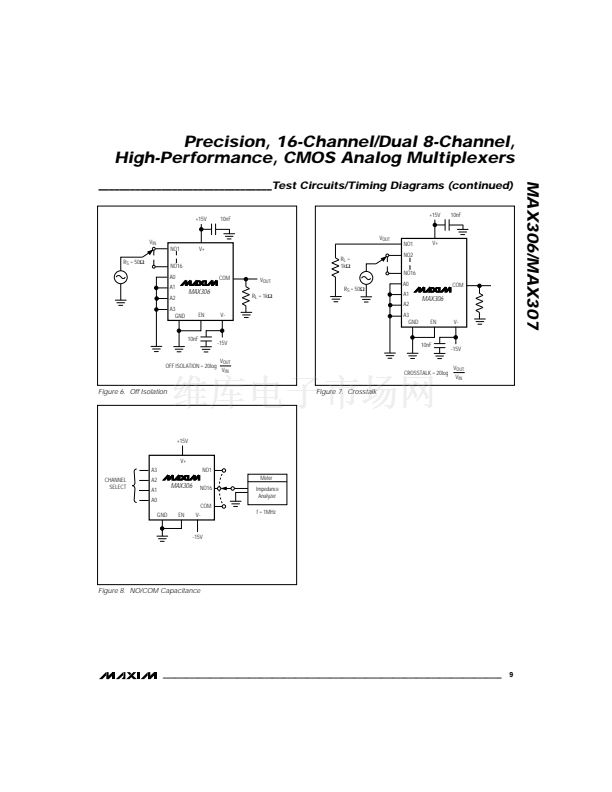

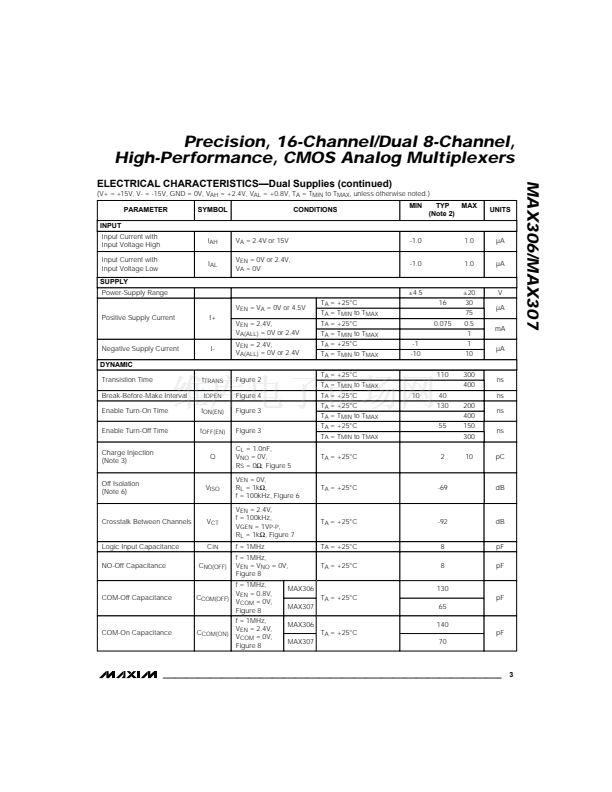

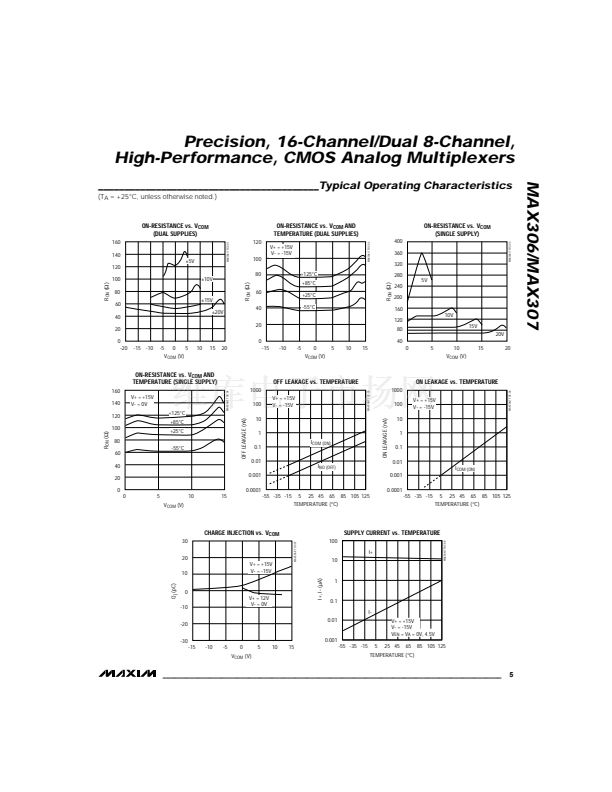

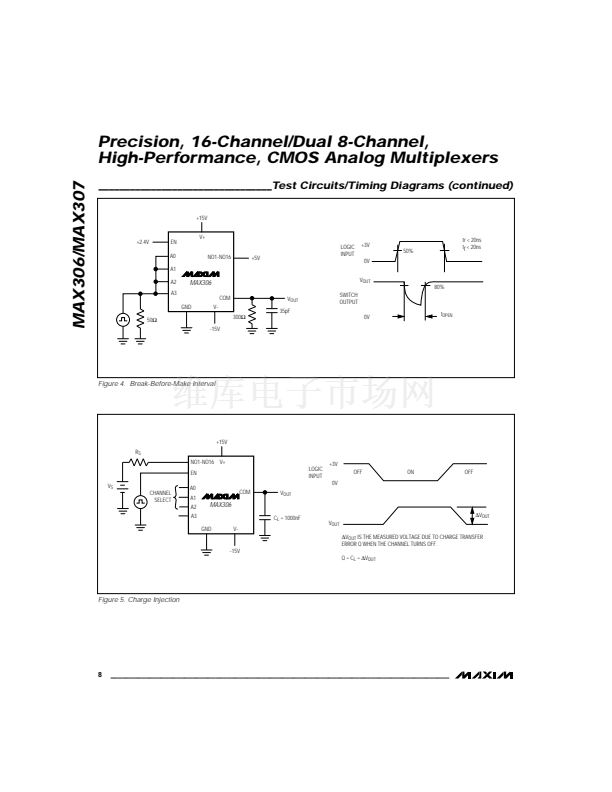

Precision, 16-Channel/Dual 8-Channel,
High-Performance, CMOS Analog Multiplexers
_______________General Description
The MAX306/MAX307 precision, monolithic, CMOS
analog multiplexers (muxes) offer low on-resistance
(less than 100鈩?, which is matched to within 5鈩?/div>
between channels and remains flat over the specified
analog signal range (7鈩?max). They also offer low leak-
age over temperature (I
NO(OFF)
less than 2.5nA at
+85擄C) and fast switching speeds (t
TRANS
less than
250ns). The MAX306 is a single-ended 1-of-16 device,
and the MAX307 is a differential 2-of-8 device.
The MAX306/MAX307 are fabricated with Maxim鈥檚
improved 44V silicon-gate process. Design improve-
ments yield extremely low charge injection (less than
10pC) and guarantee electrostatic discharge (ESD)
protection greater than 2000V.
These muxes operate with a single +4.5V to +30V sup-
ply, or bipolar 鹵4.5V to 鹵20V supplies, while retaining
TTL/CMOS-logic input compatibility and fast switching.
CMOS inputs provide reduced input loading. These
improved parts are plug-in upgrades for the industry-
standard DG406, DG407, DG506A, and DG507A.
____________________________Features
o
Guaranteed On-Resistance Match Between
Channels, <5鈩?Max
o
Low On-Resistance, <100鈩?Max
o
Guaranteed Flat On-Resistance over Specified
Signal Range, 7鈩?Max
o
Guaranteed Charge Injection, <10pC
o
I
NO(OFF)
Leakage <2.5nA at +85擄C
o
I
COM(OFF)
Leakage <20nA at +85擄C
o
ESD Protection >2000V
o
Plug-In Upgrade for Industry-Standard
DG406/DG407/DG506A/DG507A
o
Single-Supply Operation (+4.5V to +30V)
Bipolar-Supply Operation (鹵4.5V to 鹵20V)
o
Low Power Consumption, <1.25mW
o
Rail-to-Rail Signal Handling
o
TTL/CMOS-Logic Compatible
MAX306/MAX307
______________Ordering Information
PART
MAX306CPI
MAX306CWI
MAX306C/D
MAX306EPI
MAX306EWI
MAX306EQI
MAX306MJI
TEMP. RANGE
0擄C to +70擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-55擄C to +125擄C
PIN-PACKAGE
28 Plastic DIP
28 Wide SO
Dice*
28 Plastic DIP
28 Wide SO
28 PLCC
28 CERDIP
________________________Applications
Sample-and-Hold Circuits
Test Equipment
Heads-Up Displays
Guidance and Control Systems
Military Radios
Communications Systems
Battery-Operated Systems
PBX, PABX
Audio Signal Routing
Ordering Information continued at end of data sheet.
* Contact factory for dice specifications.
_____________________Pin Configurations/Functional Diagrams/Truth Tables
NO16
COM
N.C.
N.C.
NO8
V+
TOP VIEW
4
3
2
1
28 27 26
V-
V+
NO1
NO2
NO3
NO4
NO5
NO6
NO7
NO8
NO9
NO10
NO11
NO12
NO13
NO14
NO15
NO16
V-
GND
NO15
NO14
NO13
NO12
NO11
NO10
NO9
5
6
7
8
9
10
11
12 13 14 15
A3
A2
GND
N.C.
16 17
A1
A0
18
EN
25
24
23
NO7
NO6
NO5
NO4
N03
N02
N01
COM
MAX306
22
21
20
19
CMOS DECODERS/DRIVERS
PLCC
N.C. = NO INTERNAL CONNECTION
Continued at end of data sheet.
A0
A1
A2
A3
EN
MAX306 16-CHANNEL SINGLE-ENDED MULTIPLEXER
________________________________________________________________
Maxim Integrated Products
1
Call toll free 1-800-998-8800 for free samples or literature.
