19-2109; Rev 0; 7/01

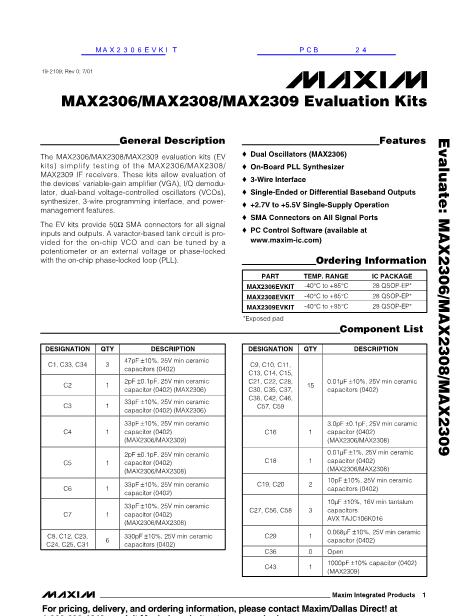

MAX2306/MAX2308/MAX2309 Evaluation Kits
General Description
The MAX2306/MAX2308/MAX2309 evaluation kits (EV
kits) simplify testing of the MAX2306/MAX2308/
MAX2309 IF receivers. These kits allow evaluation of
the devices鈥?variable-gain amplifier (VGA), I/Q demodu-
lator, dual-band voltage-controlled oscillators (VCOs),
synthesizer, 3-wire programming interface, and power-
management features.
The EV kits provide 50鈩?SMA connectors for all signal
inputs and outputs. A varactor-based tank circuit is pro-
vided for the on-chip VCO and can be tuned by a
potentiometer or an external voltage or phase-locked
with the on-chip phase-locked loop (PLL).
o
Dual Oscillators (MAX2306)
o
On-Board PLL Synthesizer
o
3-Wire Interface
o
Single-Ended or Differential Baseband Outputs
o
+2.7V to +5.5V Single-Supply Operation
o
SMA Connectors on All Signal Ports
o
PC Control Software (available at
www.maxim-ic.com)
Features
Evaluate: MAX2306/MAX2308/MAX2309
Ordering Information
PART
MAX2306EVKIT
MAX2308EVKIT
MAX2309EVKIT
TEMP. RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
IC PACKAGE
28 QSOP-EP*
28 QSOP-EP*
28 QSOP-EP*
*Exposed
pad
Component List
DESIGNATION
C1, C33, C34
C2
C3
QTY
3
1
1
DESCRIPTION
47pF
鹵10%,
25V min ceramic
capacitors (0402)
2pF
鹵0.1pF,
25V min ceramic
capacitor (0402) (MAX2306)
33pF
鹵10%,
25V min ceramic
capacitor (0402) (MAX2306)
33pF
鹵10%,
25V min ceramic
capacitor (0402)
(MAX2306/MAX2309)
2pF
鹵0.1pF,
25V min ceramic
capacitor (0402)
(MAX2306/MAX2308)
33pF
鹵10%,
25V min ceramic
capacitor (0402)
33pF
鹵10%,
25V min ceramic
capacitor (0402)
(MAX2306/MAX2308)
330pF
鹵10%,
25V min ceramic
capacitors (0402)
DESIGNATION
C9, C10, C11,
C13, C14, C15,
C21, C22, C28,
C30, C35, C37,
C38, C42, C46,
C57, C59
QTY
DESCRIPTION
15
0.01碌F
鹵10%,
25V min ceramic
capacitors (0402)
C4
1
C16
1
3.0pF
鹵0.1pF,
25V min ceramic
capacitor (0402)
(MAX2306/MAX2308)
0.01碌F
鹵1%,
25V min ceramic
capacitor (0402)
(MAX2306/MAX2308)
10pF
鹵10%,
25V min ceramic
capacitors (0402)
10碌F
鹵10%,
16V min tantalum
capacitors
AVX TAJC106K016
0.068碌F
鹵10%,
25V min ceramic
capacitor (0402)
Open
1000pF
鹵10%
capacitor (0402)
(MAX2309)
C5
1
C18
1
C6
1
C19, C20
2
C7
C8, C12, C23,
C24, C25, C31
1
C27, C56, C58
3
6
C29
C36
C43
1
0
1
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
