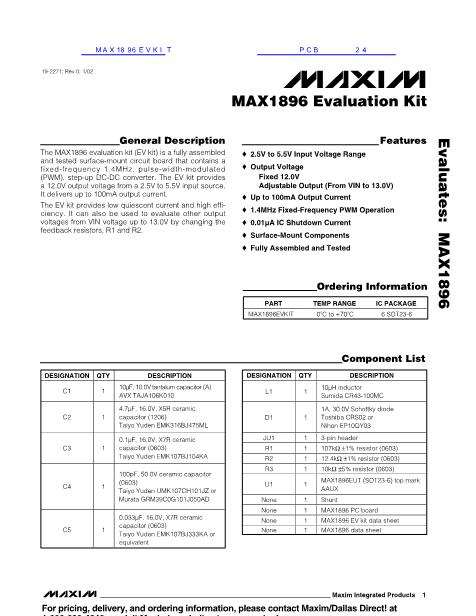

19-2271; Rev 0; 1/02
MAX1896 Evaluation Kit
General Description
The MAX1896 evaluation kit (EV kit) is a fully assembled
and tested surface-mount circuit board that contains a
fixed-frequency 1.4MHz, pulse-width-modulated
(PWM), step-up DC-DC converter. The EV kit provides
a 12.0V output voltage from a 2.5V to 5.5V input source.
It delivers up to 100mA output current.
The EV kit provides low quiescent current and high effi-
ciency. It can also be used to evaluate other output
voltages from VIN voltage up to 13.0V by changing the
feedback resistors, R1 and R2.
o
2.5V to 5.5V Input Voltage Range
o
Output Voltage
Fixed 12.0V
Adjustable Output (From VIN to 13.0V)
o
Up to 100mA Output Current
o
1.4MHz Fixed-Frequency PWM Operation
o
0.01碌A(chǔ) IC Shutdown Current
o
Surface-Mount Components
o
Fully Assembled and Tested
Features
Evaluates: MAX1896
Ordering Information
PART
MAX1896EVKIT
TEMP RANGE
0 C to +70 C
o
o
IC PACKAGE
6 SOT23-6
Component List
DESIGNATION
C1
QTY
1
DESCRIPTION
10碌F, 10.0V tantalum capacitor (A)
AVX TAJA106K010
4.7碌F, 16.0V, X5R ceramic
capacitor (1206)
Taiyo Yuden EMK316BJ475ML
0.1碌F, 16.0V, X7R ceramic
capacitor (0603)
Taiyo Yuden EMK107BJ104KA
100pF, 50.0V ceramic capacitor
(0603)
Taiyo Yuden UMK107CH101JZ or
Murata GRM39C0G101J050AD
0.033碌F, 16.0V, X7R ceramic
capacitor (0603)
Taiyo Yuden EMK107BJ333KA or
equivalent
DESIGNATION
L1
QTY
1
DESCRIPTION
10碌H inductor
Sumida CR43-100MC
1A, 30.0V Schottky diode
Toshiba CRS02 or
Nihon EP10QY03
3-pin header
107k鈩?/div>
鹵1%
resistor (0603)
12.4k鈩?/div>
鹵1%
resistor (0603)
10k鈩?/div>
鹵5%
resistor (0603)
MAX1896EUT (SOT23-6) top mark
AAUX
Shunt
MAX1896 PC board
MAX1896 EV kit data sheet
MAX1896 data sheet
C2
1
D1
JU1
R1
R2
R3
U1
None
None
None
None
1
1
1
1
1
1
1
1
1
1
C3
1
C4
1
C5
1
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
