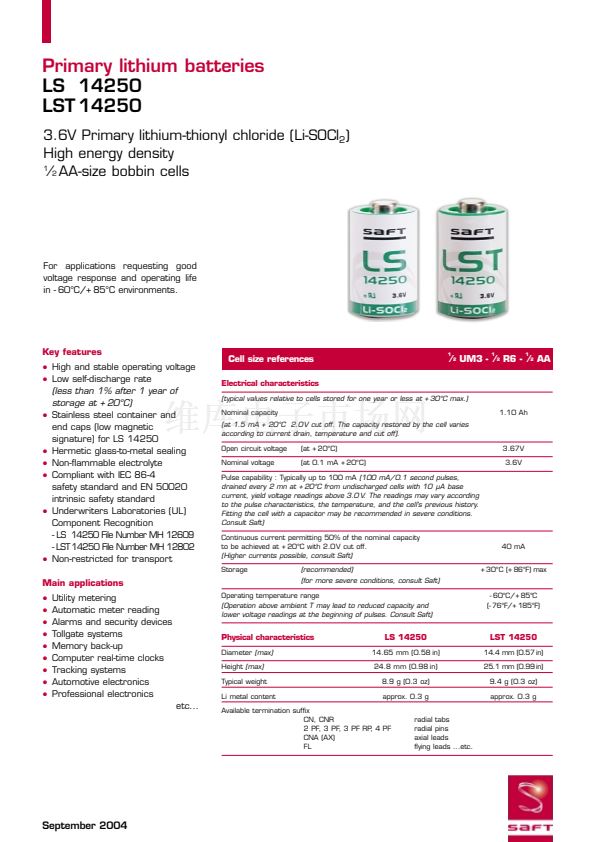

Pulse capability : Typically up to 100 mA
(100 mA/0.1 second pulses,
drained every 2 mn at + 20擄C from undischarged cells with 10 碌A(chǔ) base
current, yield voltage readings above 3.0 V. The readings may vary according
to the pulse characteristics, the temperature, and the cell's previous history.
Fitting the cell with a capacitor may be recommended in severe conditions.
Consult Saft)
Continuous current permitting 50% of the nominal capacity
to be achieved at + 20擄C with 2.0 V cut off.
(Higher currents possible, consult Saft)
Storage
(recommended)
(for more severe conditions, consult Saft)
40 mA
+ 30擄C (+ 86擄F) max
鈥?/div>
Main applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Utility metering
Automatic meter reading
Alarms and security devices
Tollgate systems
Memory back-up
Computer real-time clocks
Tracking systems
Automotive electronics
Professional electronics
etc...
Operating temperature range
(Operation above ambient T may lead to reduced capacity and
lower voltage readings at the beginning of pulses. Consult Saft)
- 60擄C/+ 85擄C
(- 76擄F/+ 185擄F)

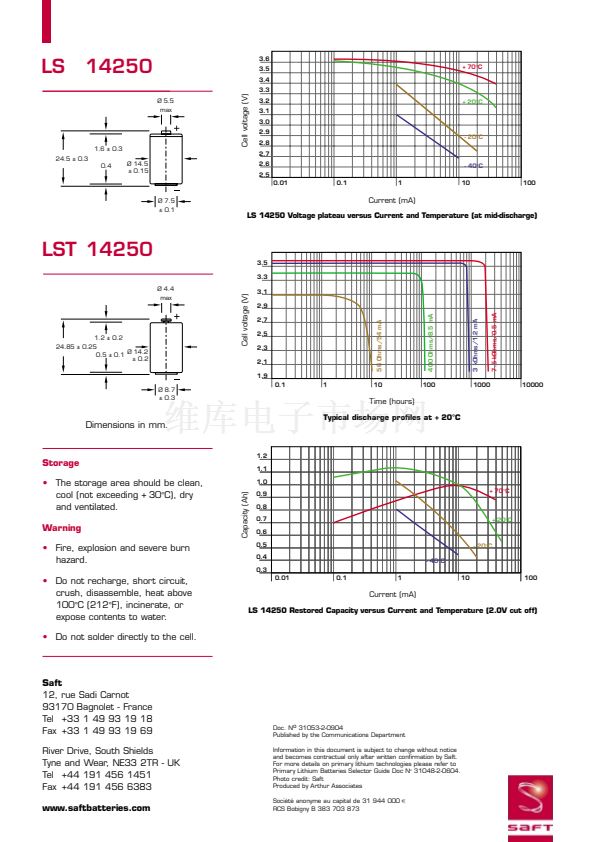

Physical characteristics
Diameter
(max)
Height
(max)
Typical weight
Li metal content
LS 14250
14.65 mm (0.58 in)
24.8 mm (0.98 in)
8.9 g (0.3 oz)
approx. 0.3 g
radial tabs
radial pins
axial leads
flying leads ...etc.
LST 14250
14.4 mm (0.57 in)
25.1 mm (0.99 in)
9.4 g (0.3 oz)
approx. 0.3 g
Available termination suffix
CN, CNR
2 PF, 3 PF, 3 PF RP 4 PF
,
CNA (AX)
FL
September 2004
