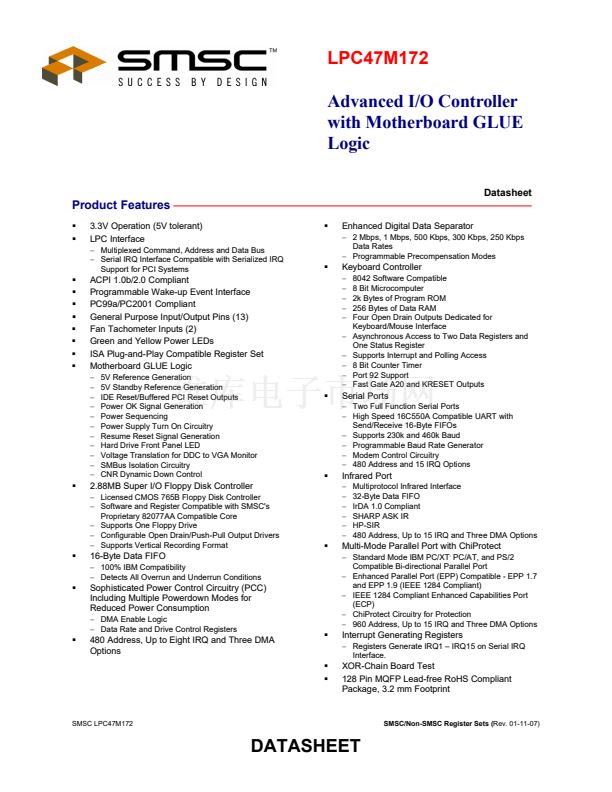

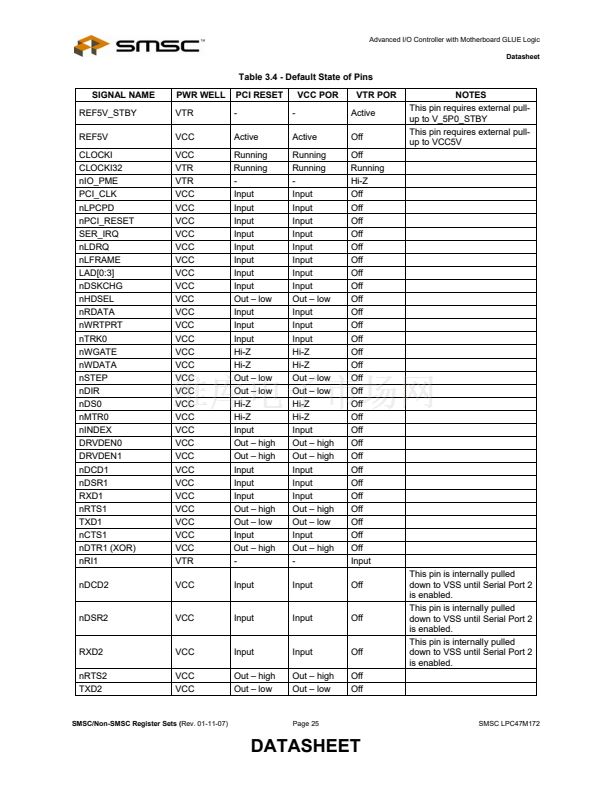

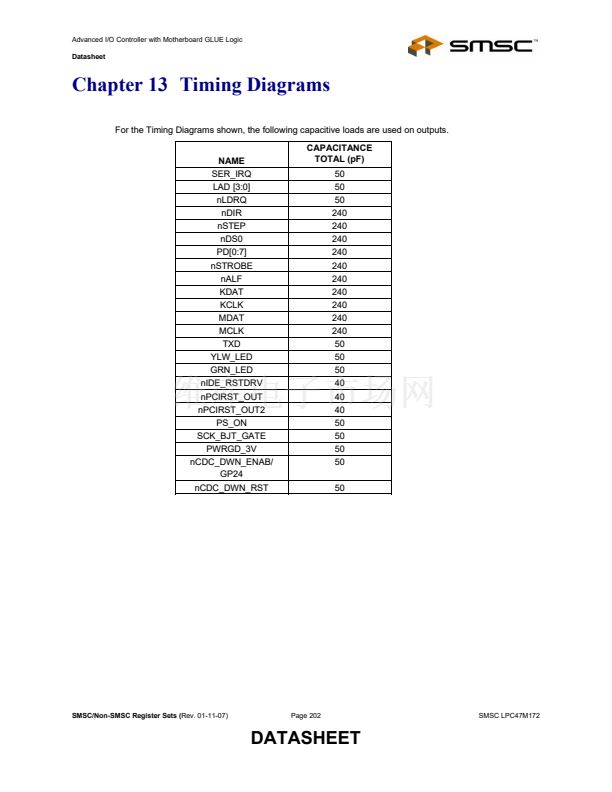

LPC47M172

Advanced I/O Controller

with Motherboard GLUE

Logic

Datasheet

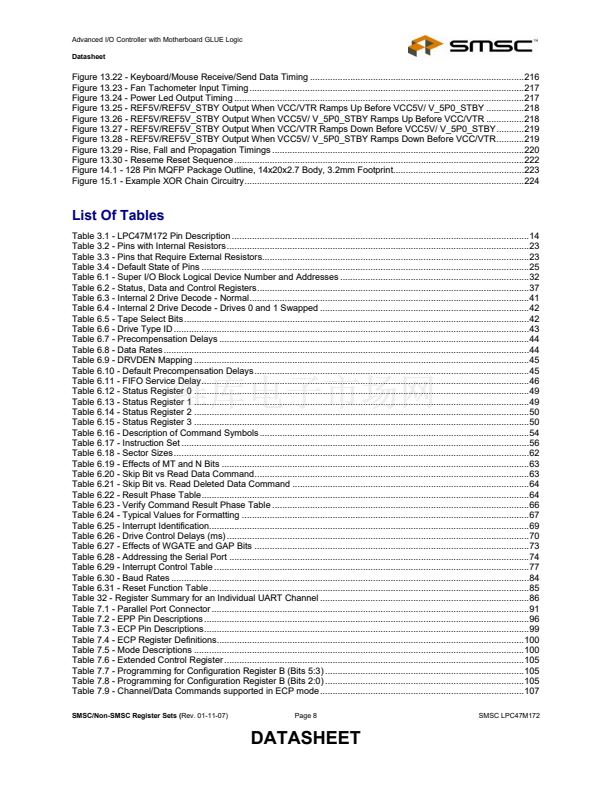

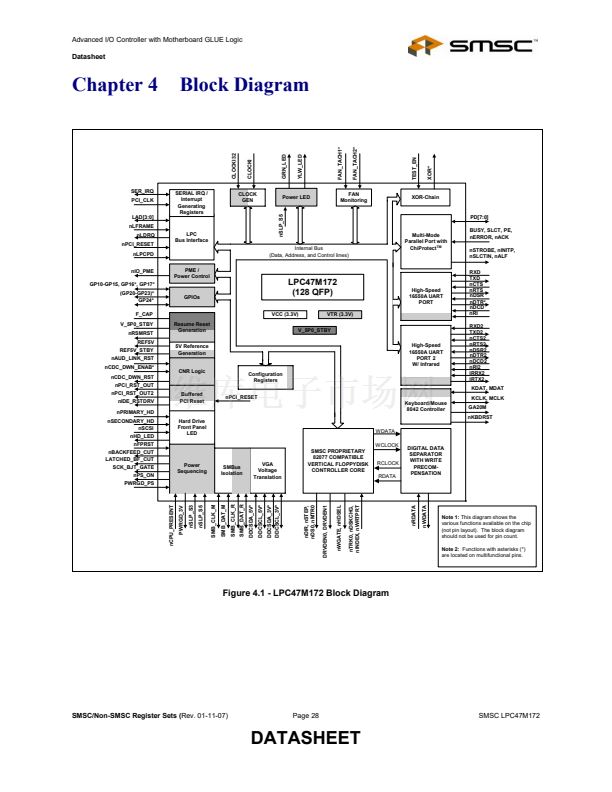

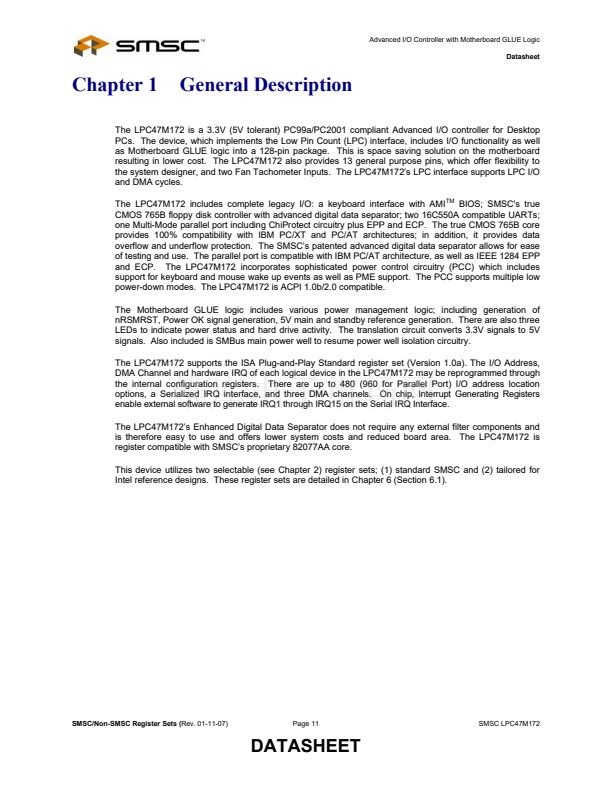

Product Features

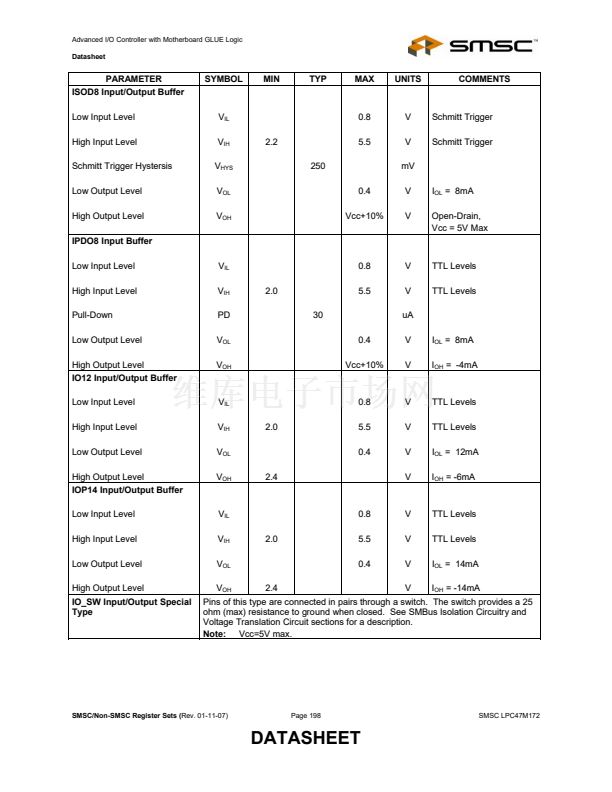

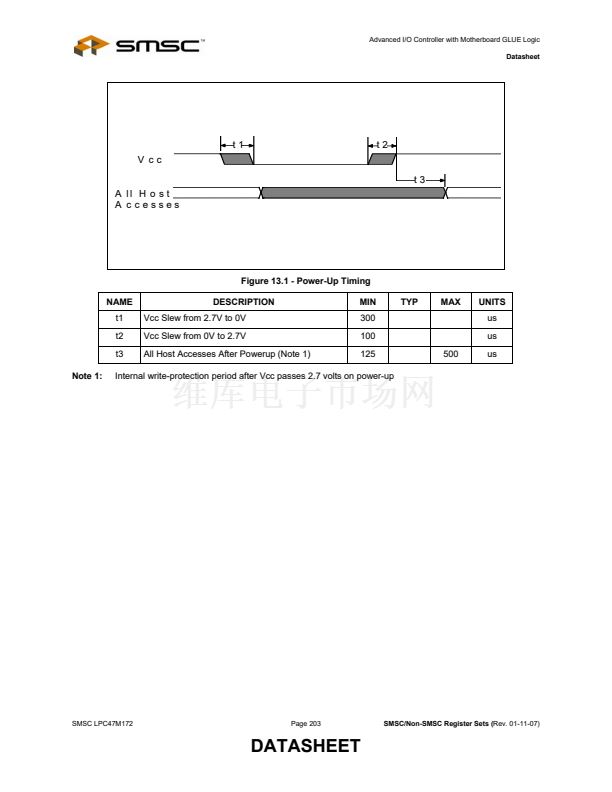

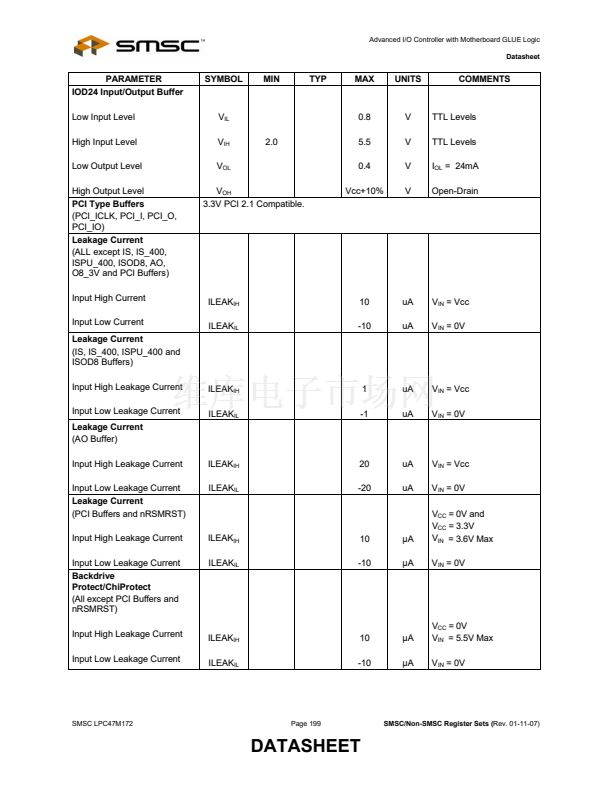

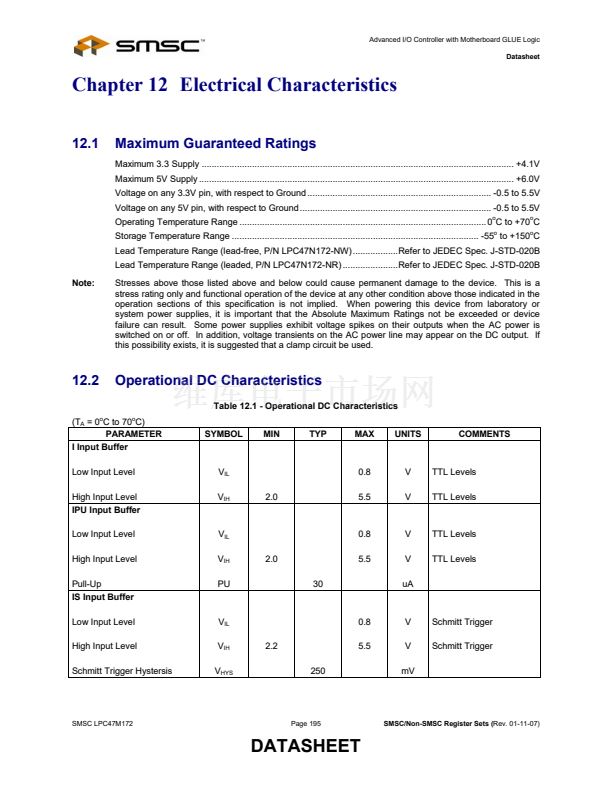

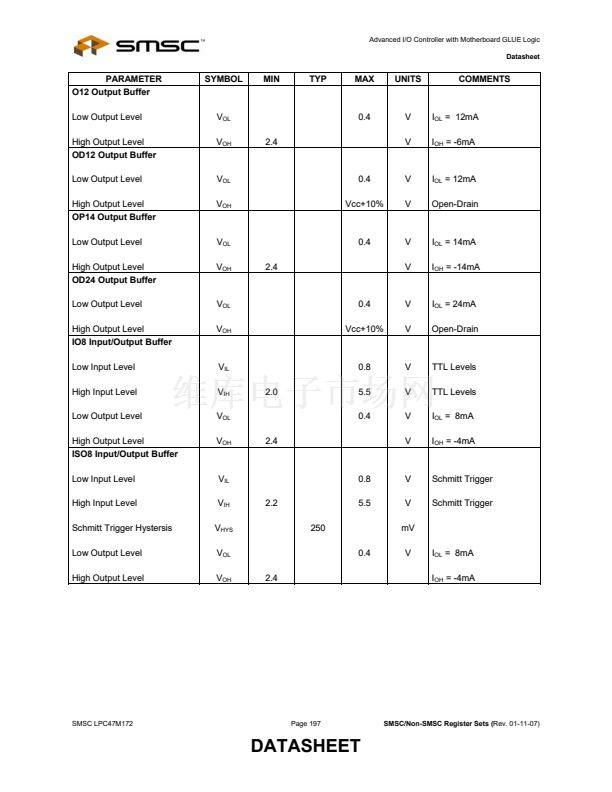

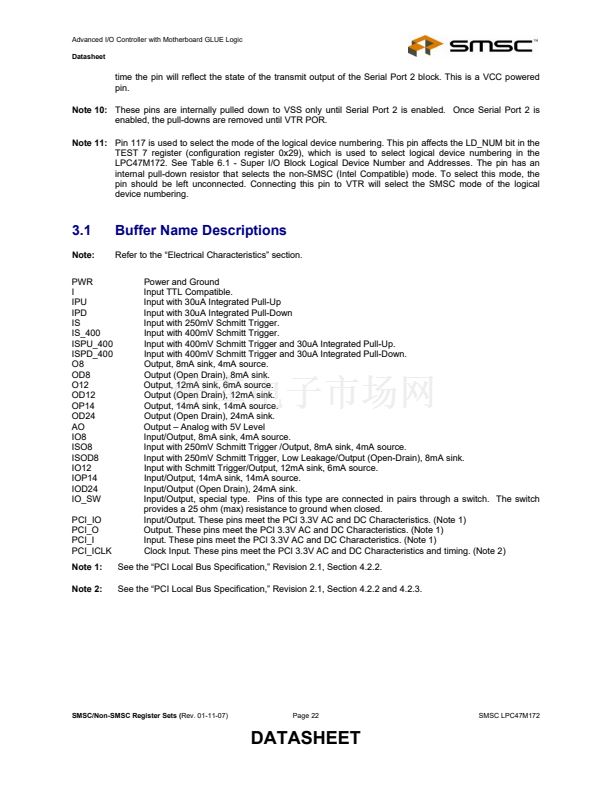

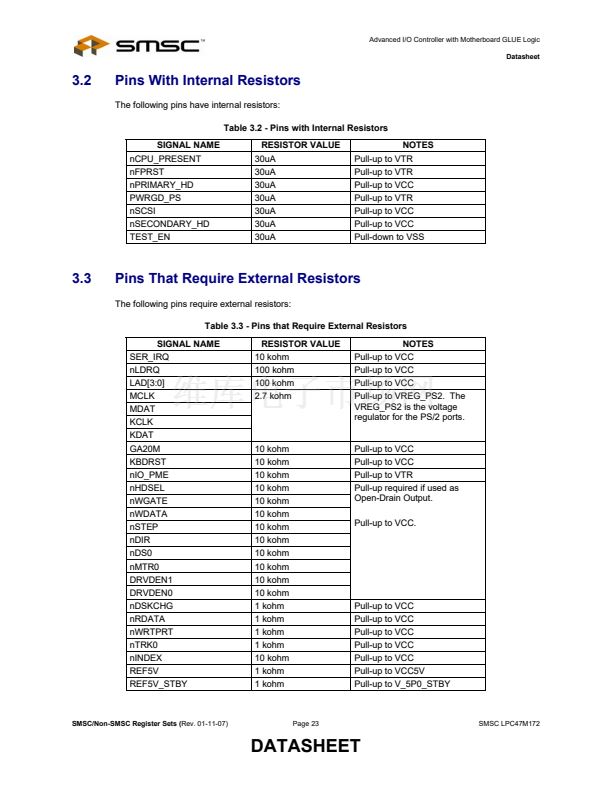

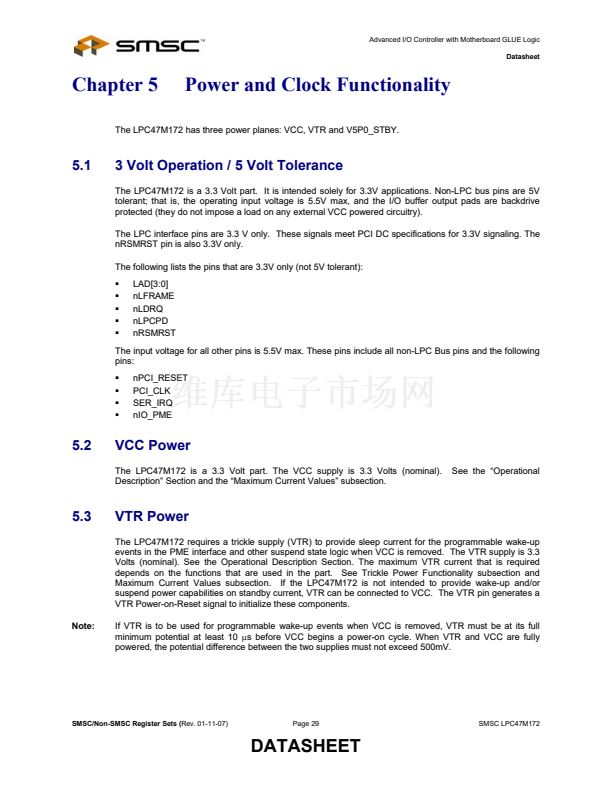

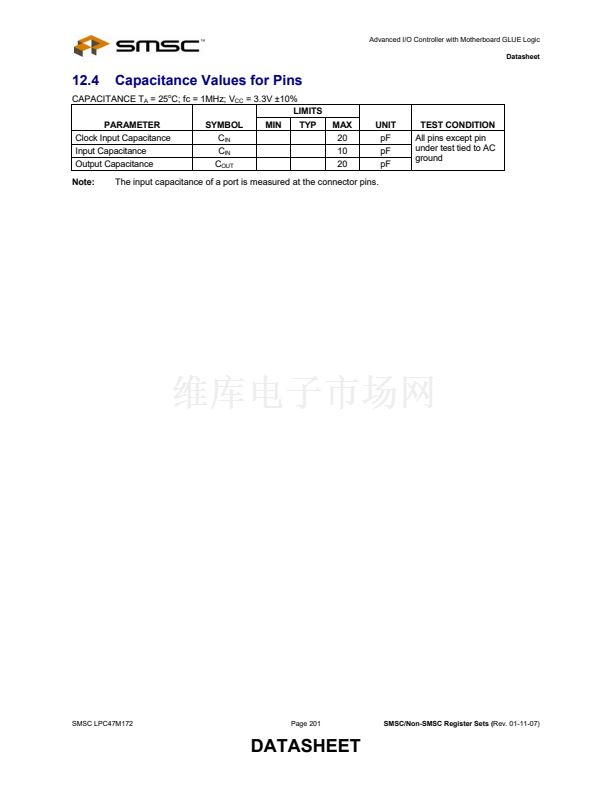

3.3V Operation (5V tolerant)

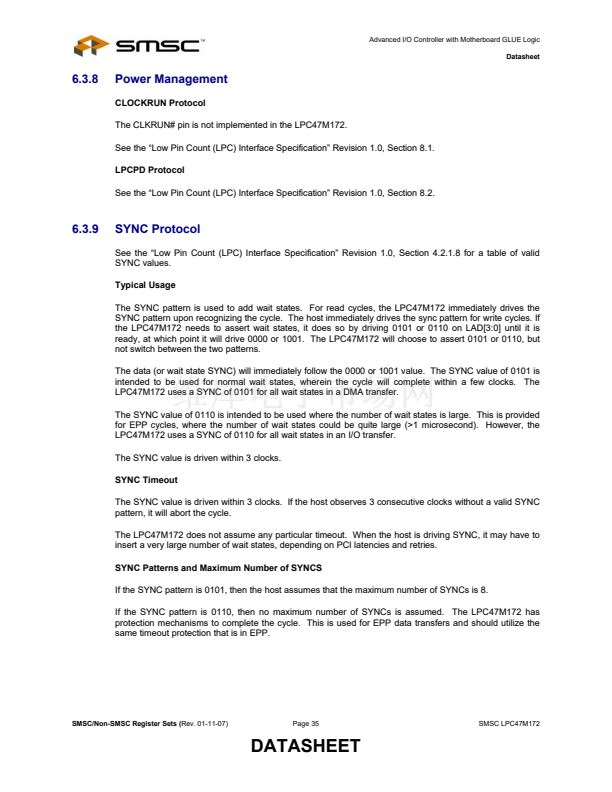

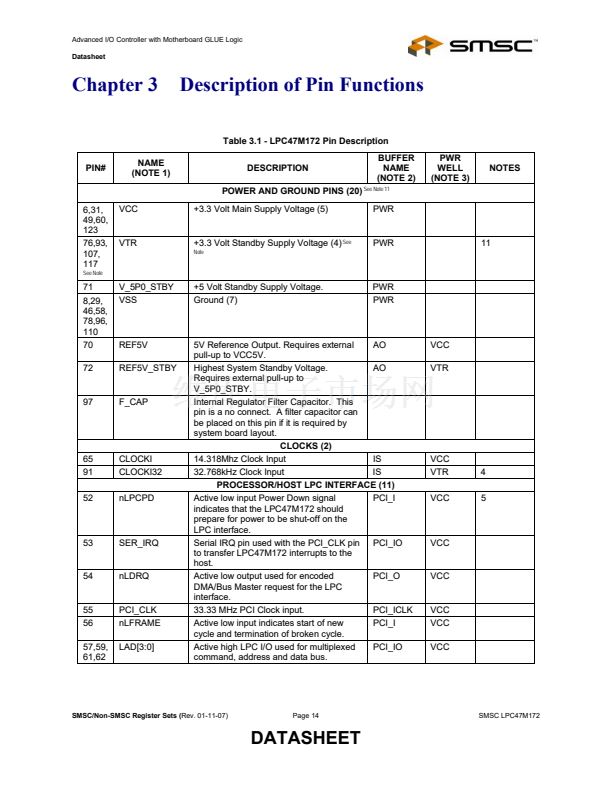

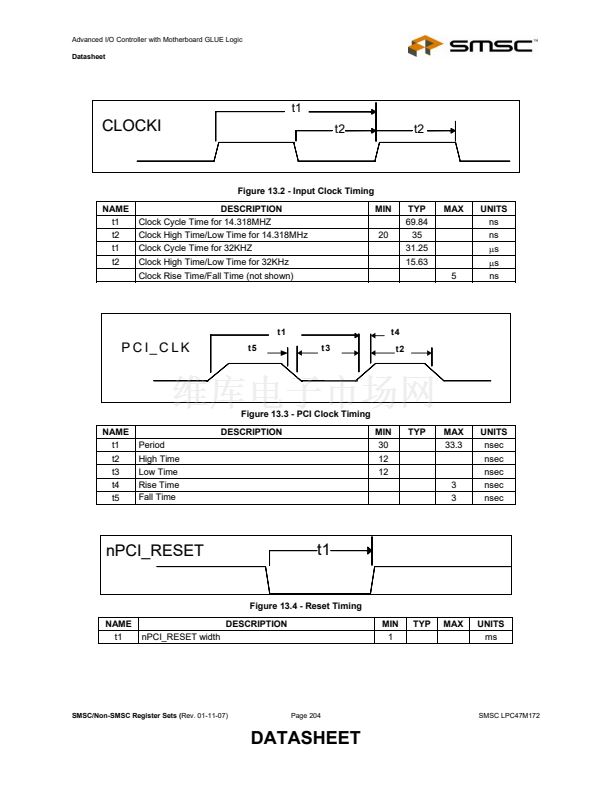

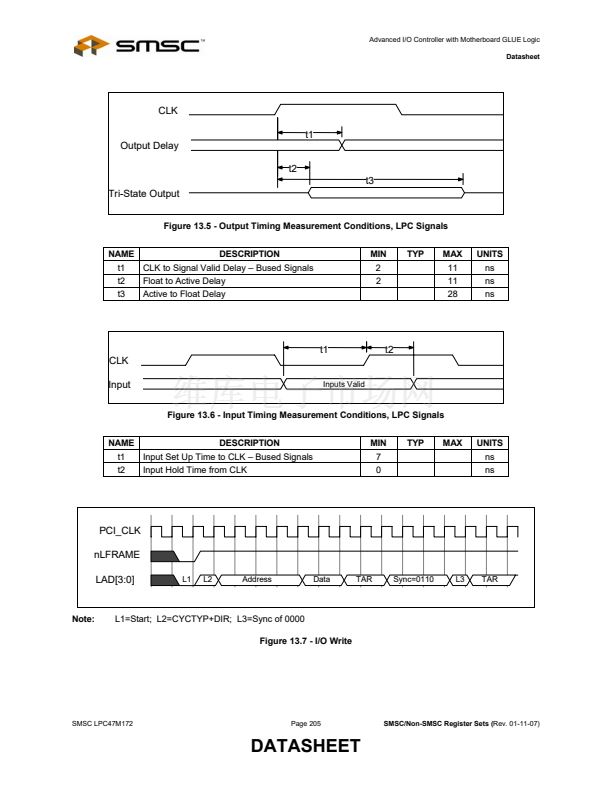

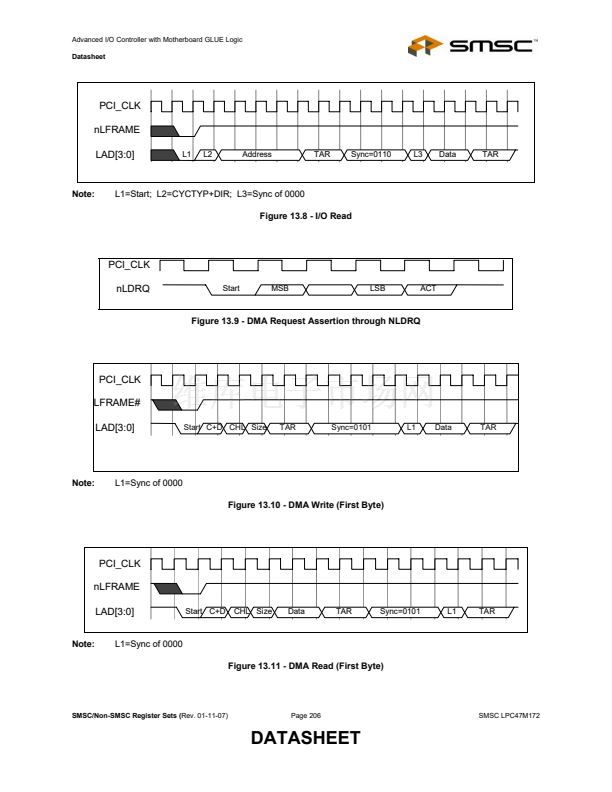

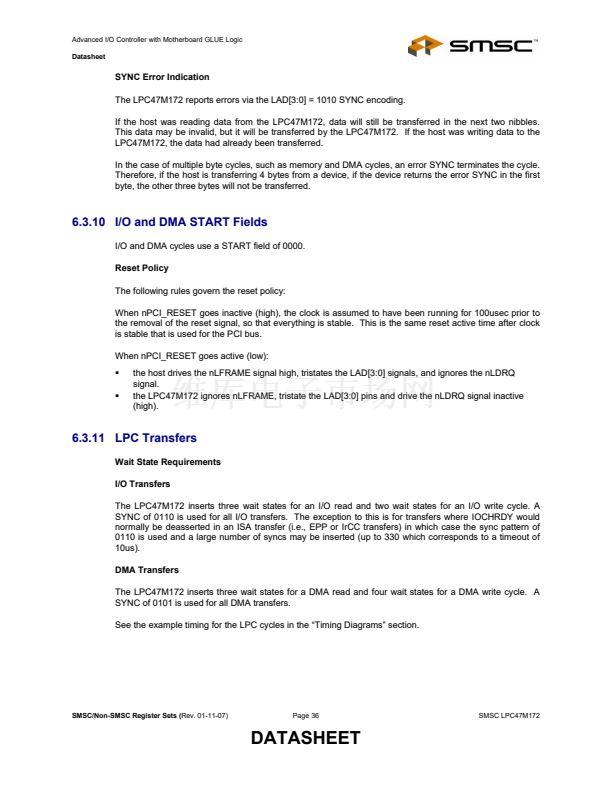

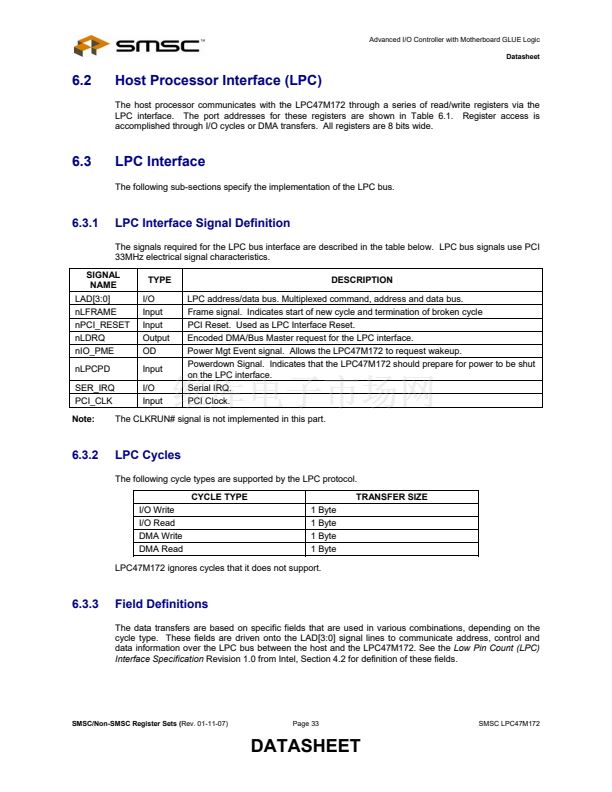

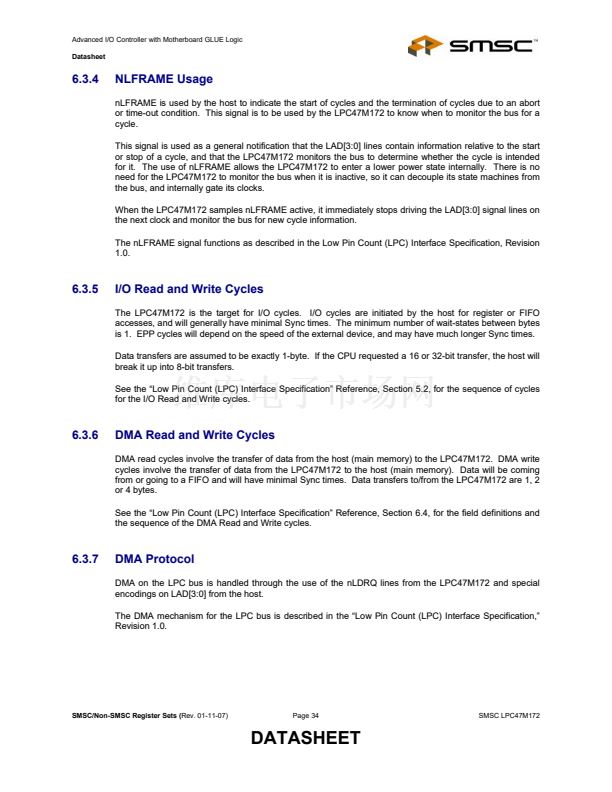

LPC Interface

鈭?/div>

Multiplexed Command, Address and Data Bus

鈭?/div>

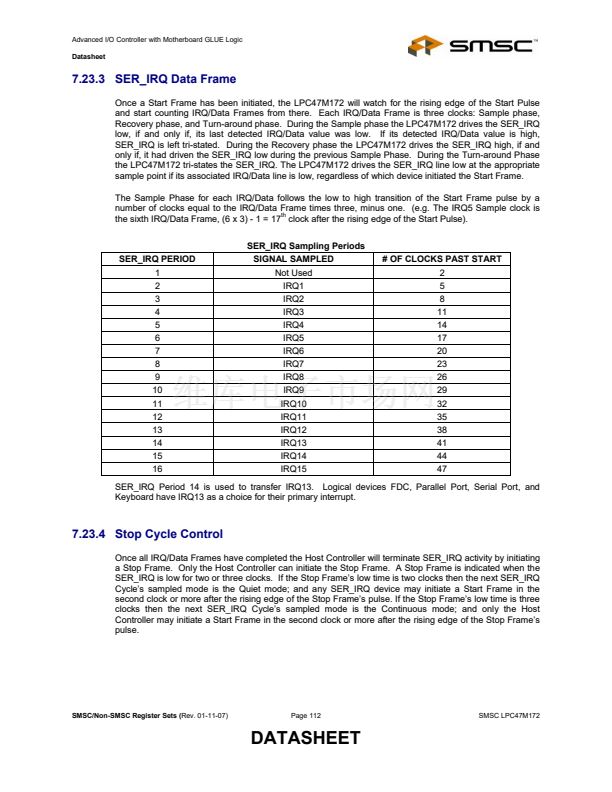

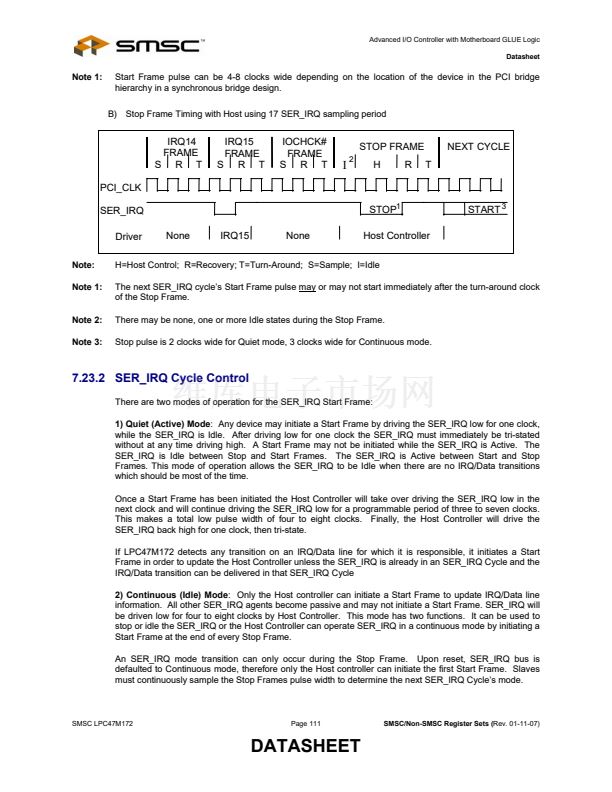

Serial IRQ Interface Compatible with Serialized IRQ

Support for PCI Systems

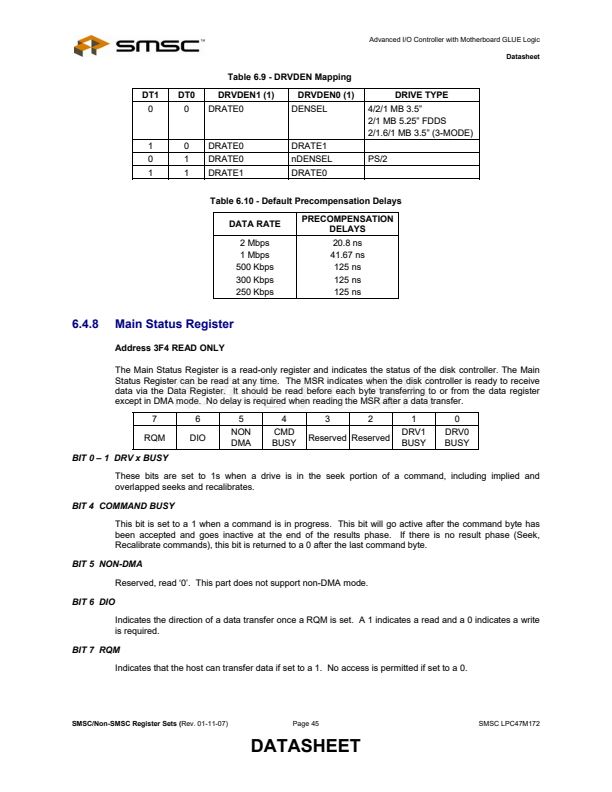

Enhanced Digital Data Separator

鈭?/div>

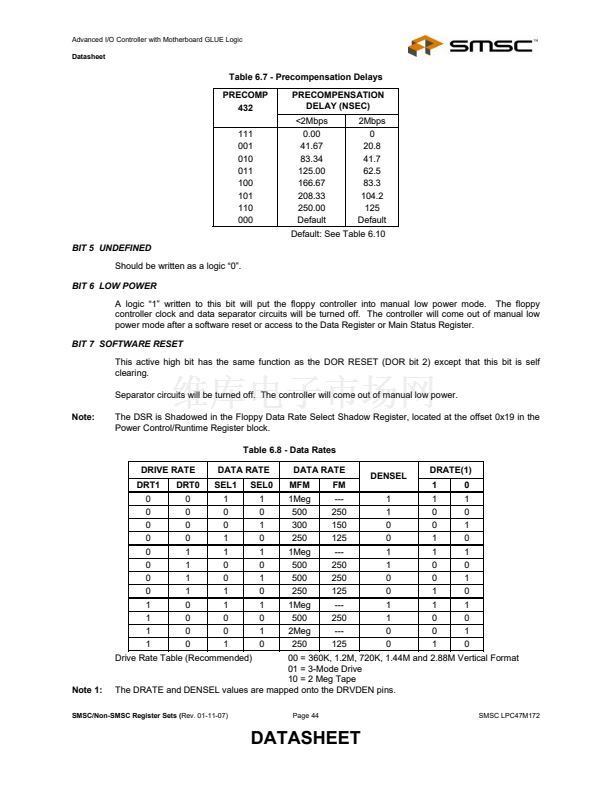

2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps, 250 Kbps

Data Rates

鈭?/div>

Programmable Precompensation Modes

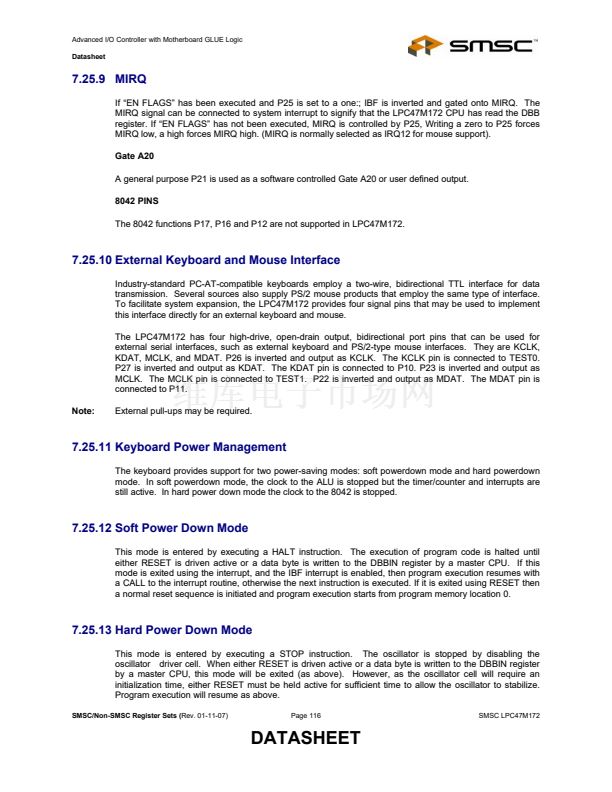

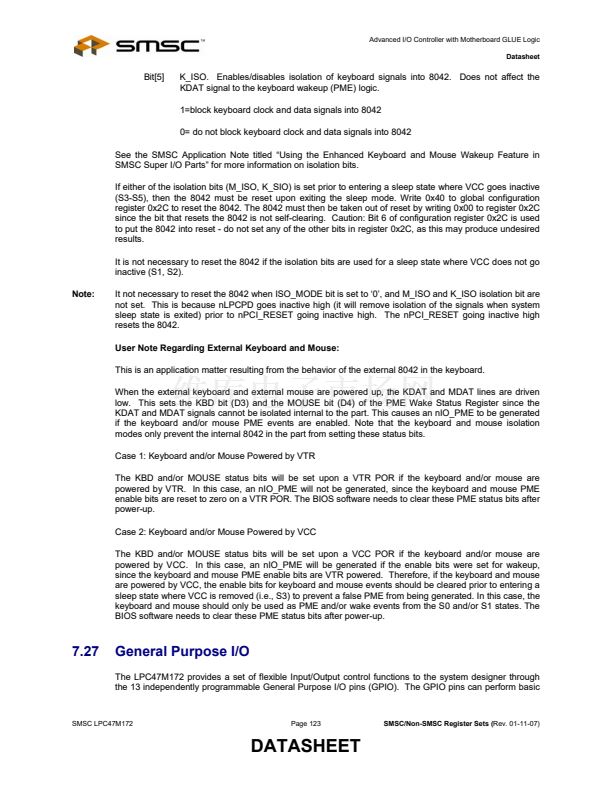

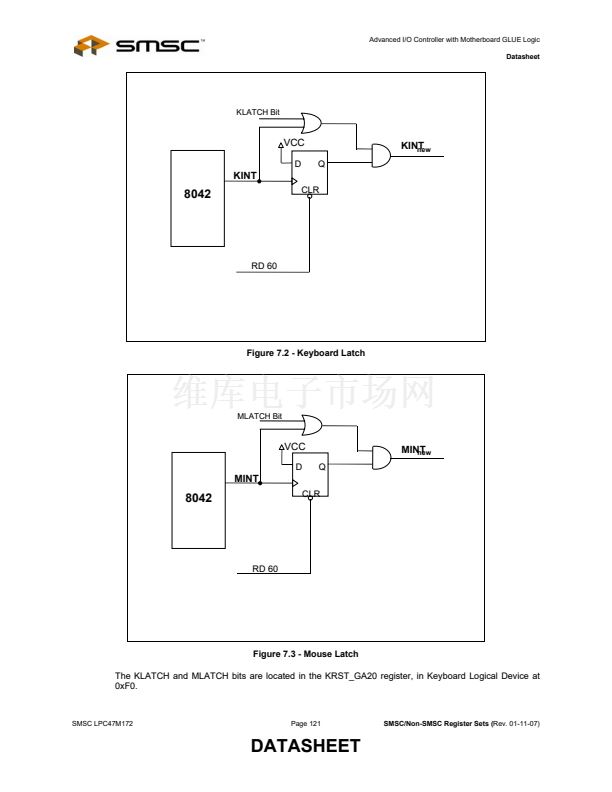

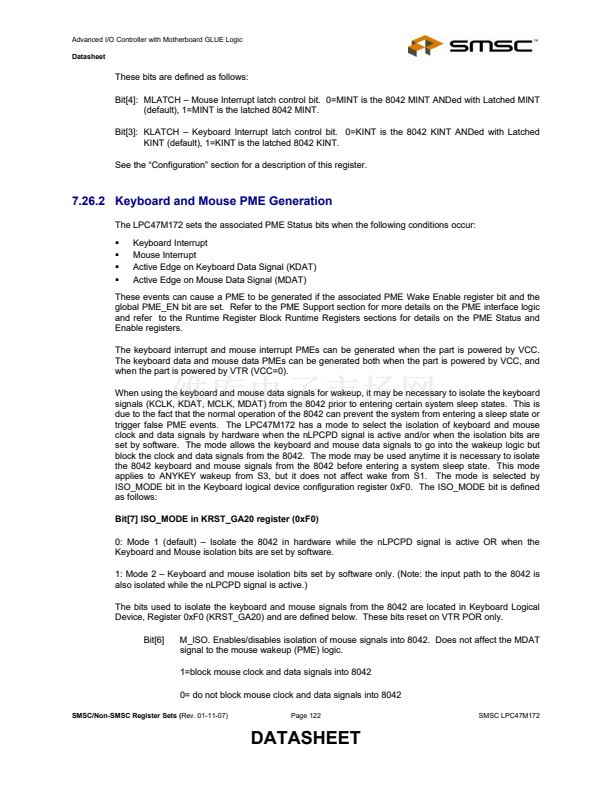

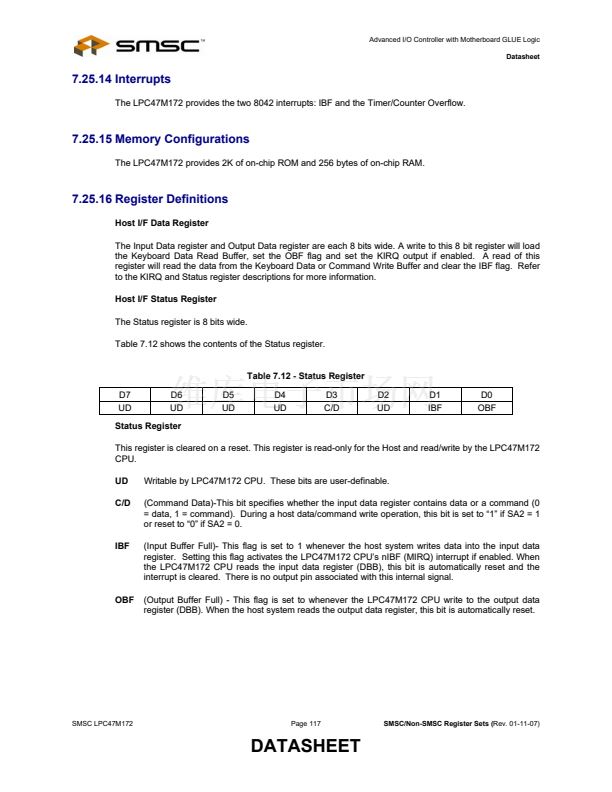

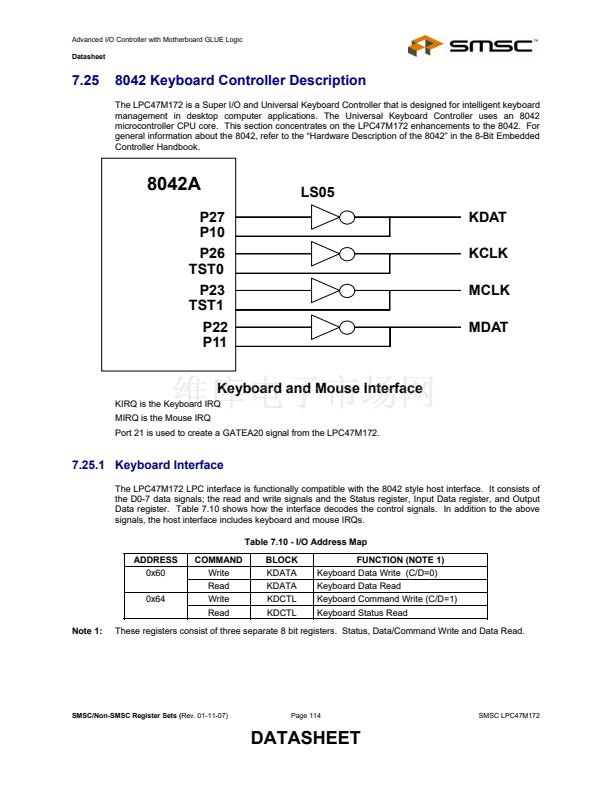

Keyboard Controller

鈭?/div>

8042 Software Compatible

8 Bit Microcomputer

2k Bytes of Program ROM

256 Bytes of Data RAM

Four Open Drain Outputs Dedicated for

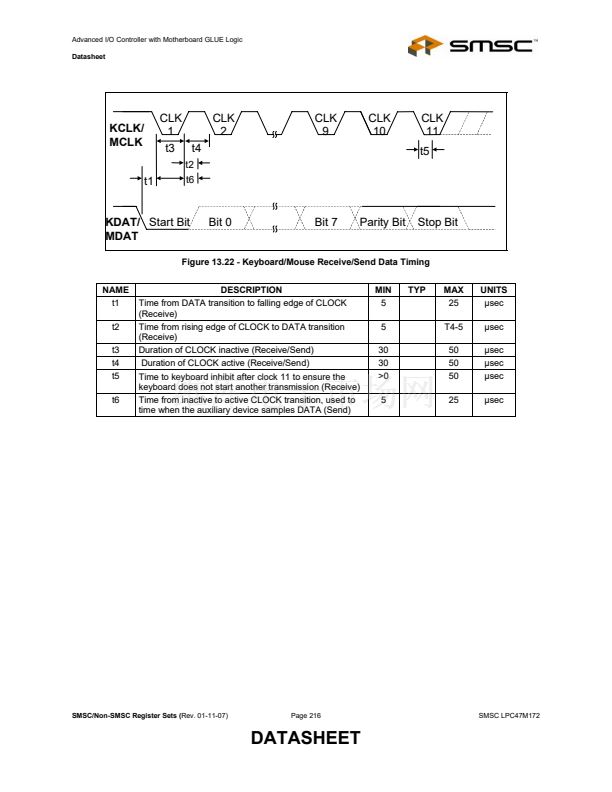

Keyboard/Mouse Interface

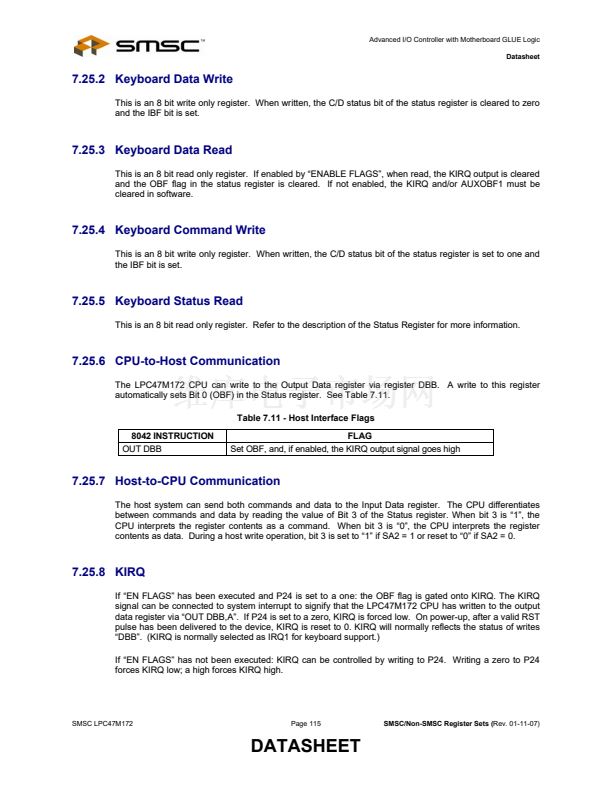

Asynchronous Access to Two Data Registers and

One Status Register

Supports Interrupt and Polling Access

8 Bit Counter Timer

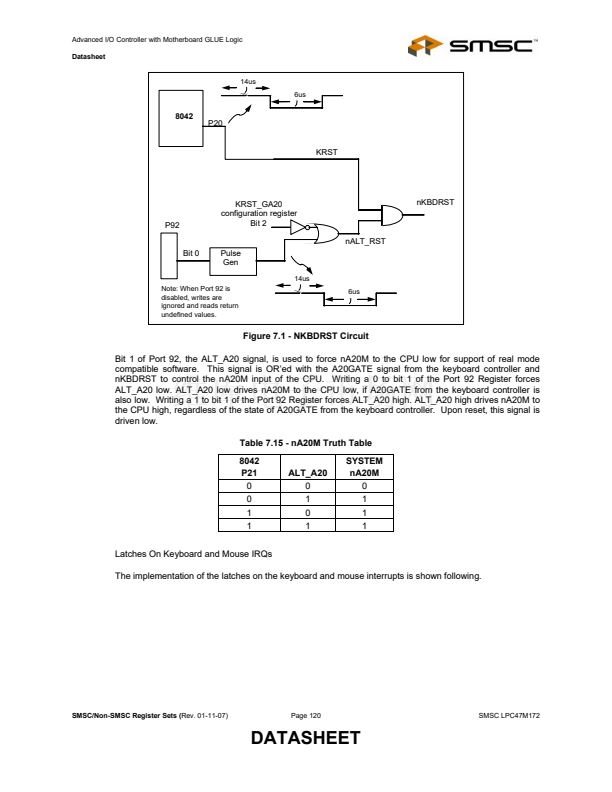

Port 92 Support

Fast Gate A20 and KRESET Outputs

ACPI 1.0b/2.0 Compliant

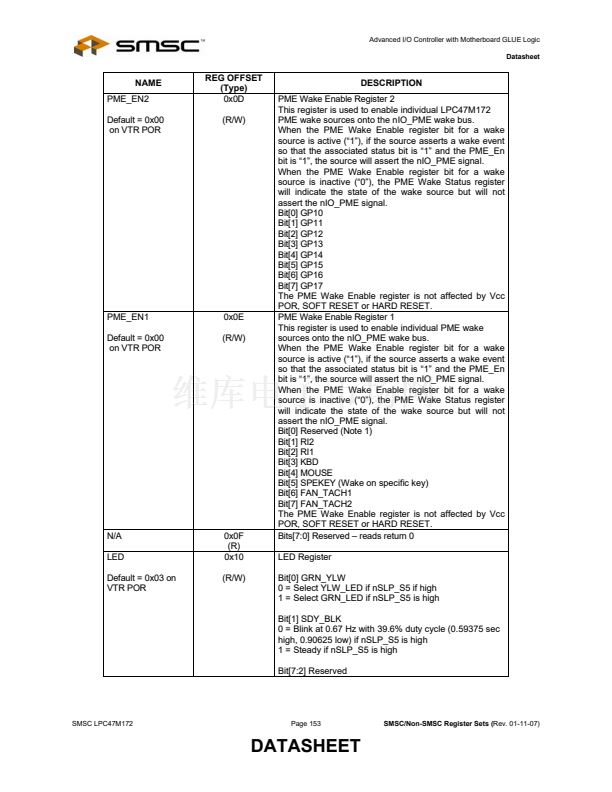

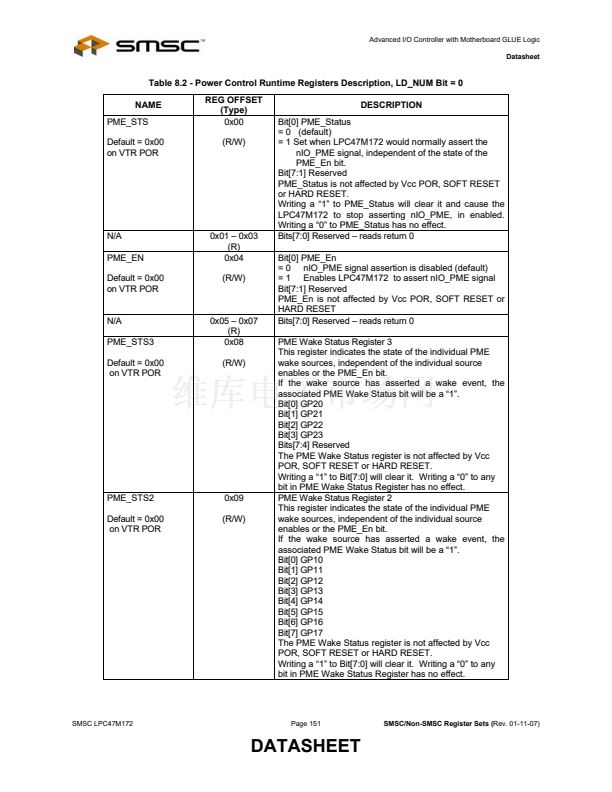

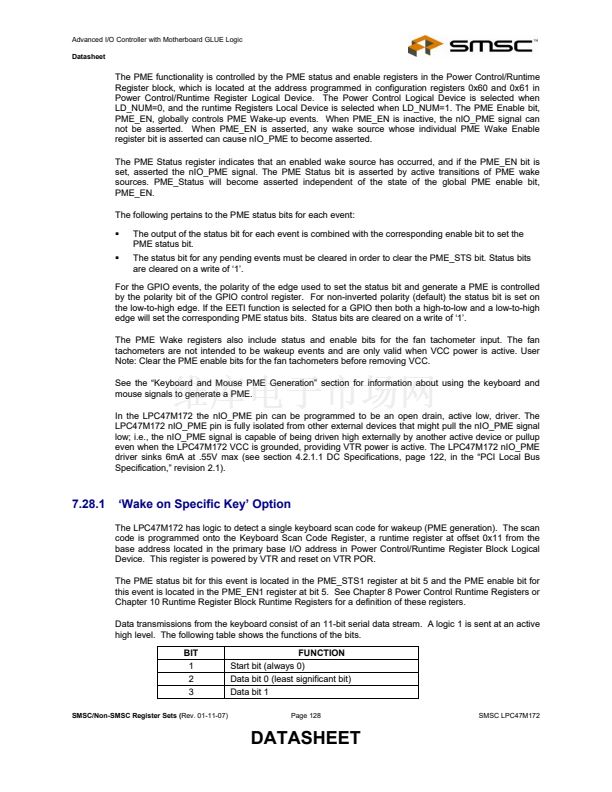

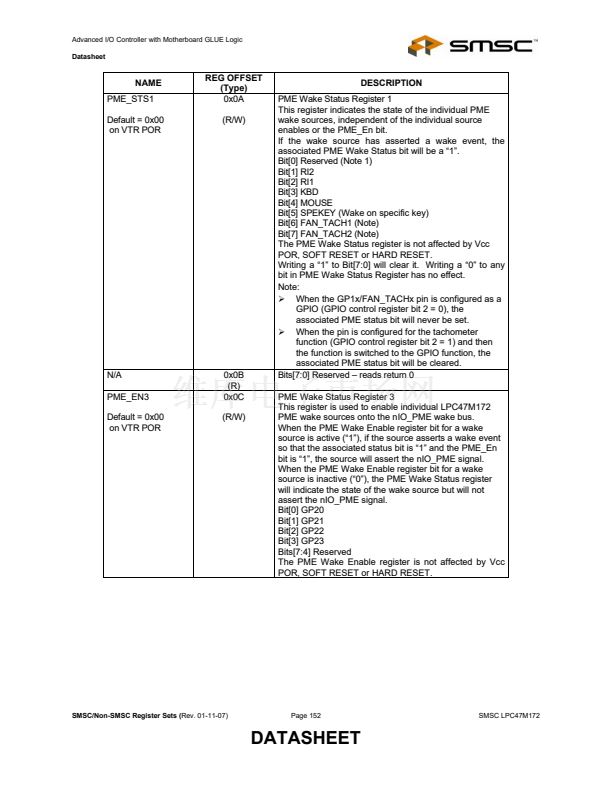

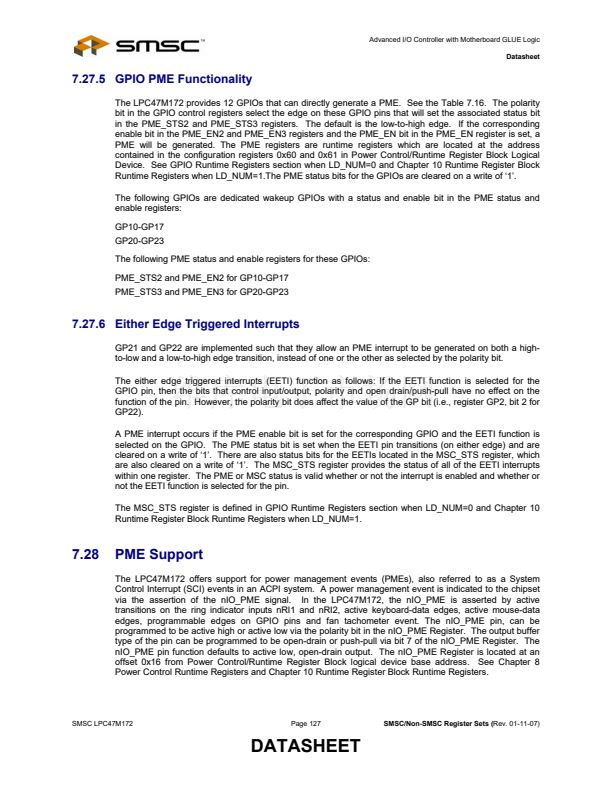

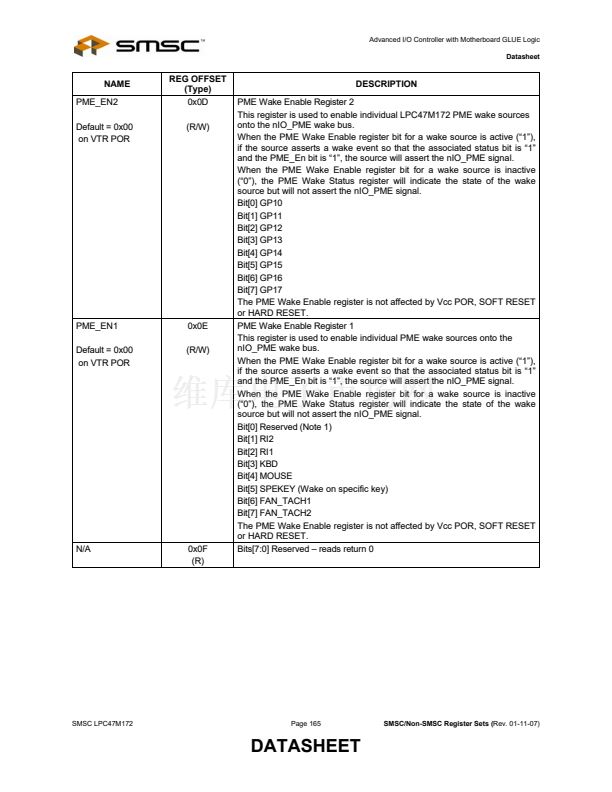

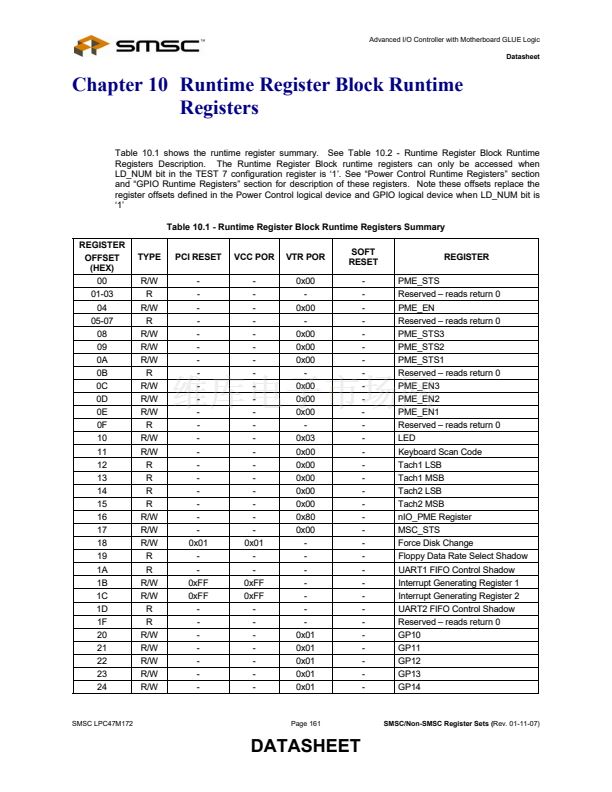

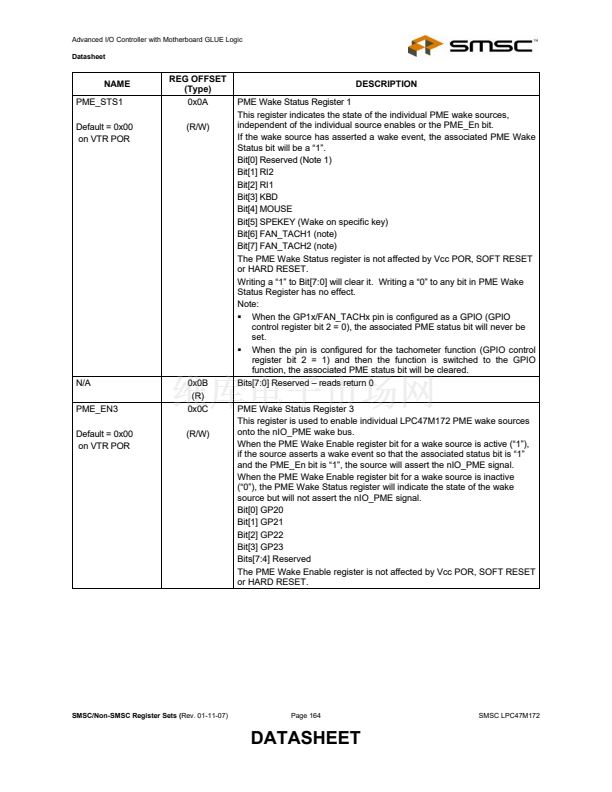

Programmable Wake-up Event Interface

PC99a/PC2001 Compliant

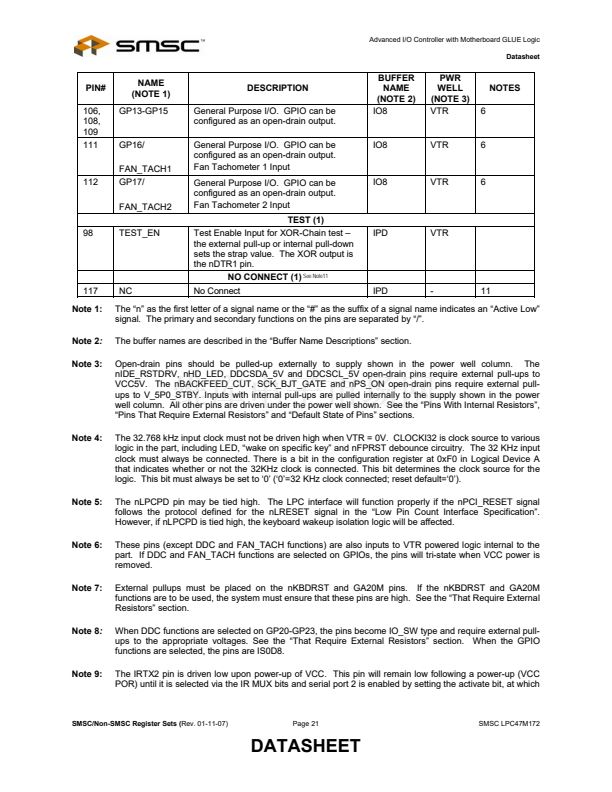

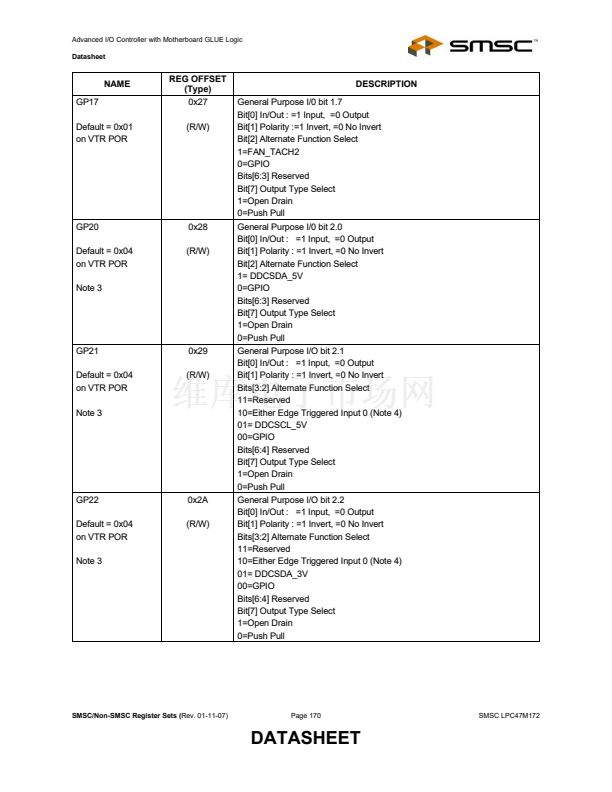

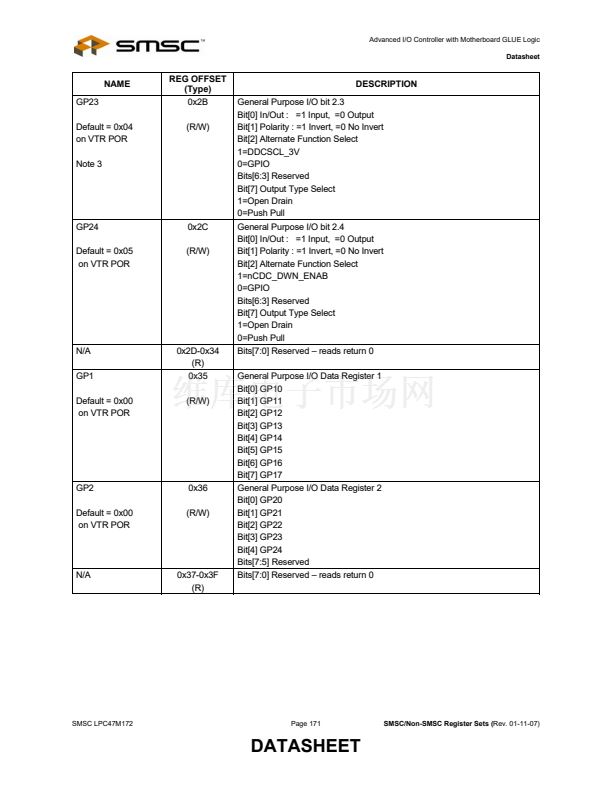

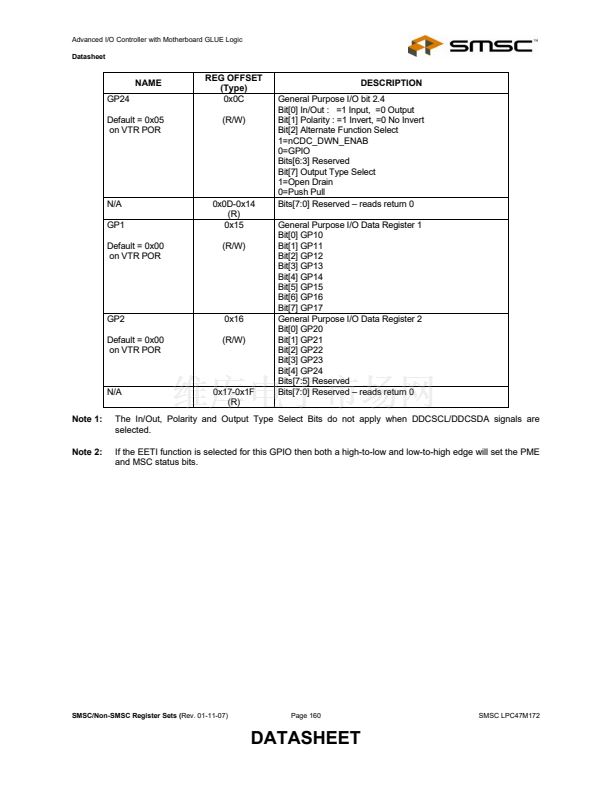

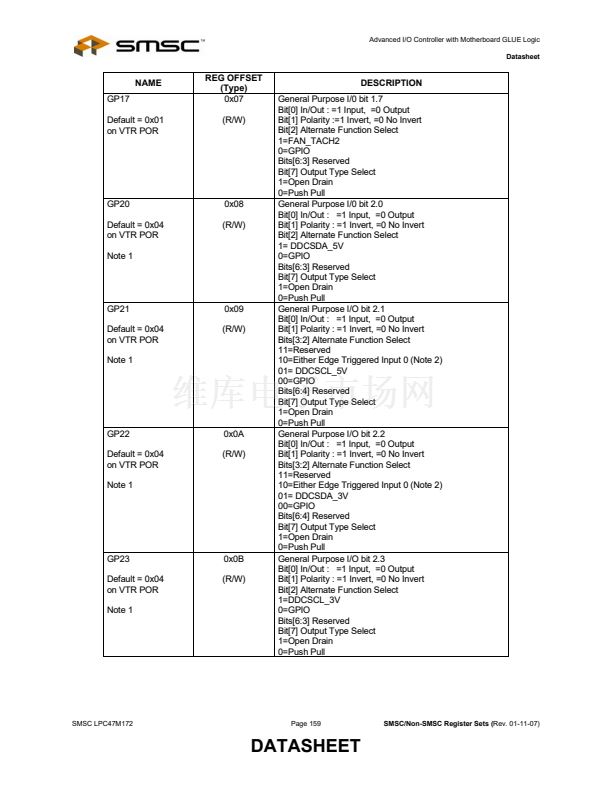

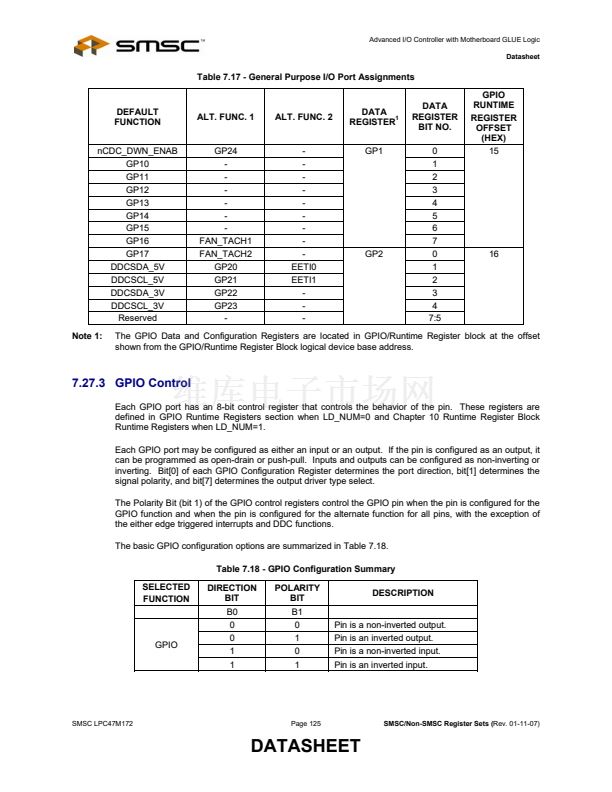

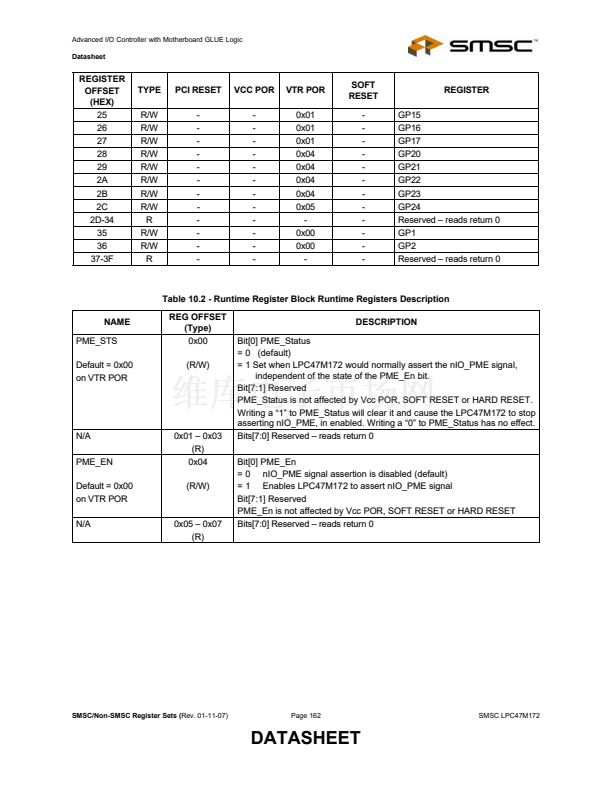

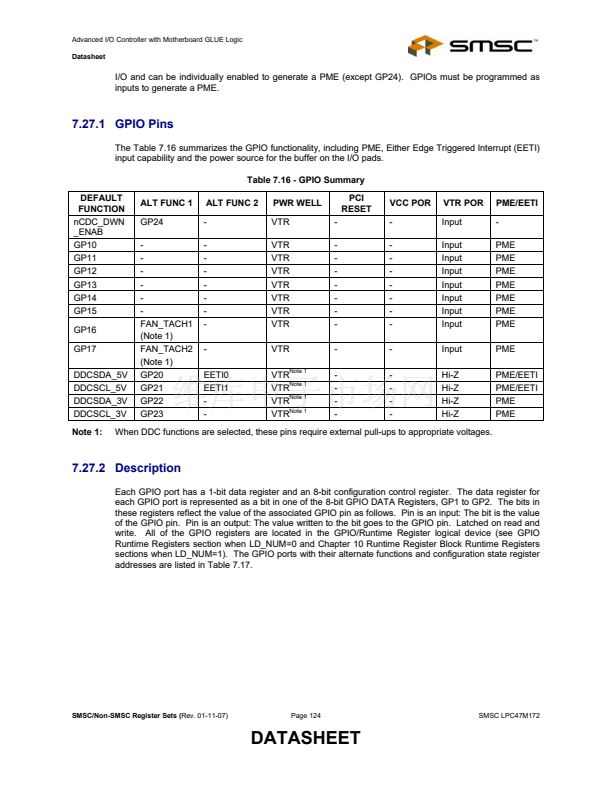

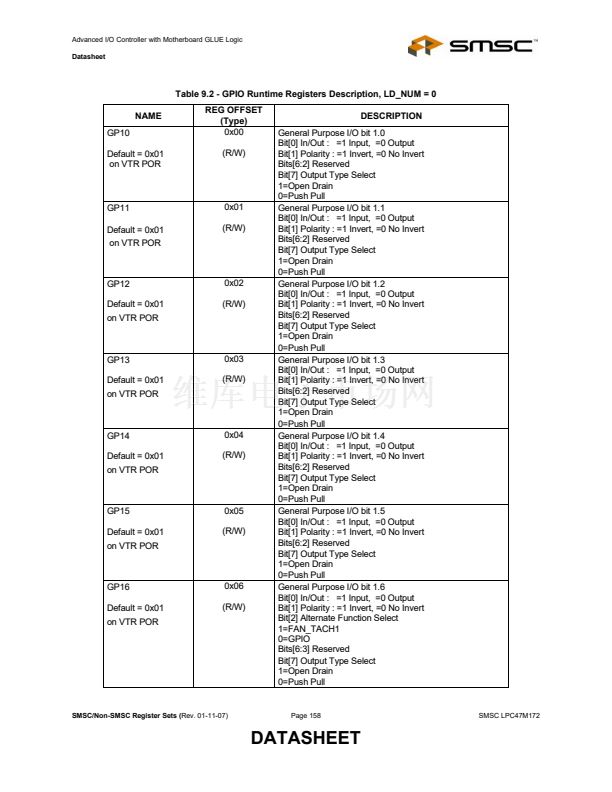

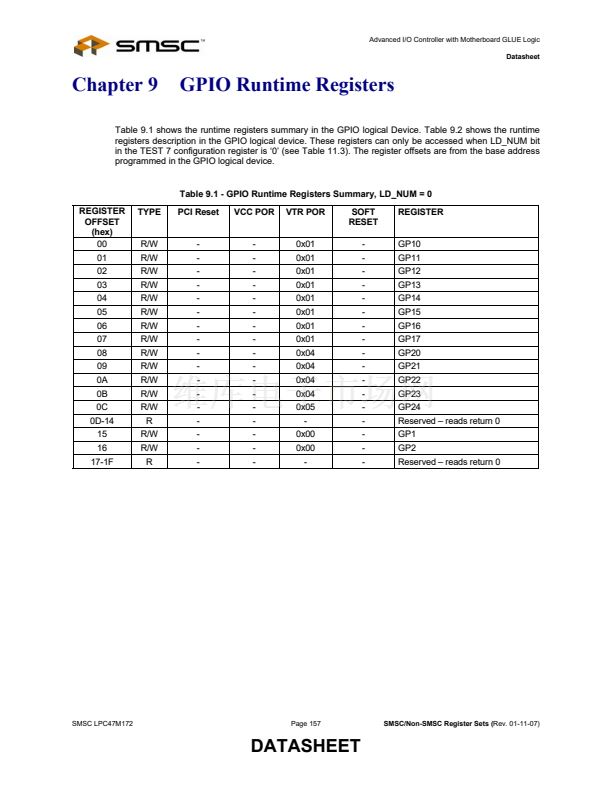

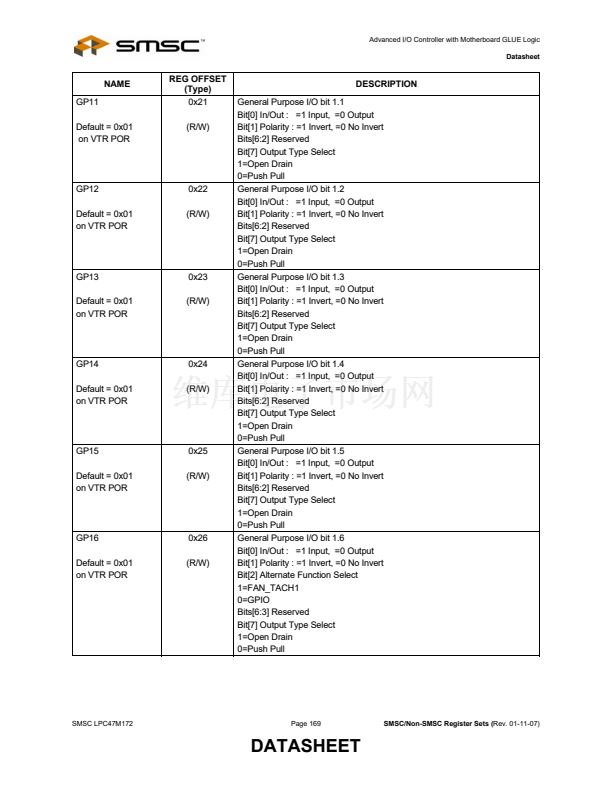

General Purpose Input/Output Pins (13)

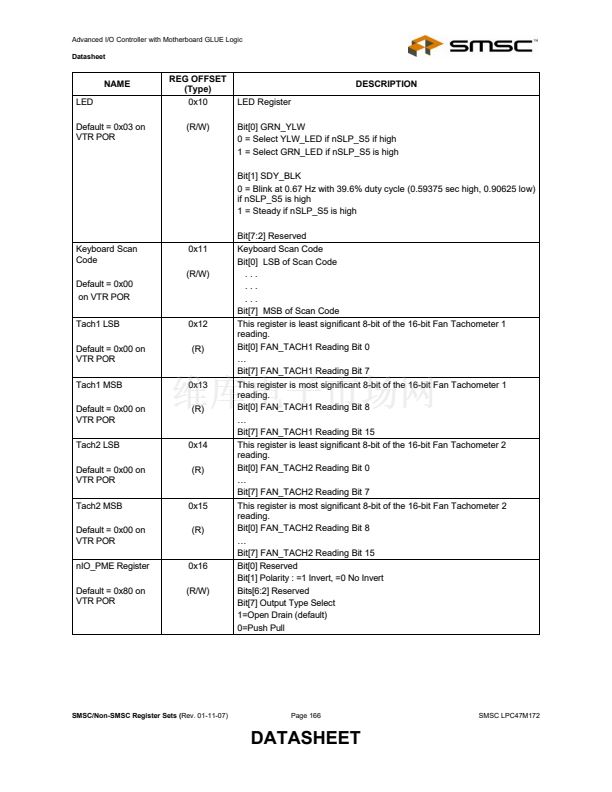

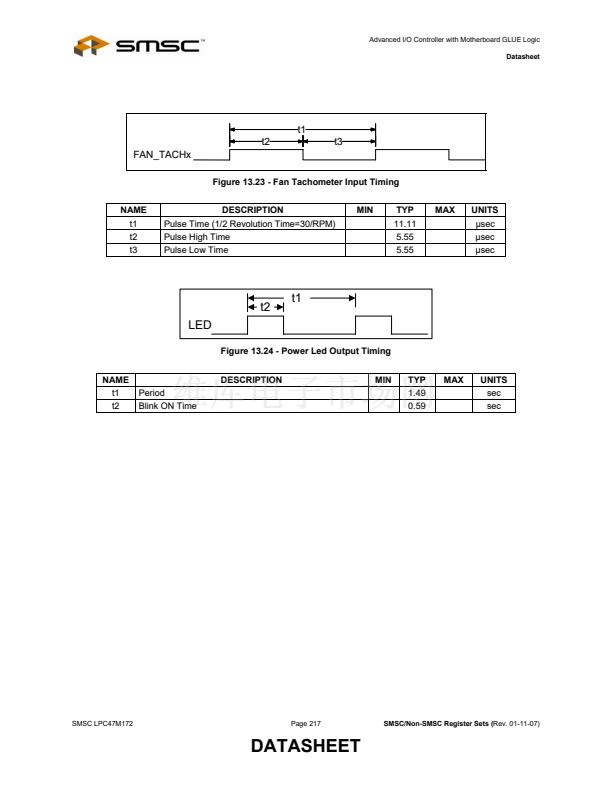

Fan Tachometer Inputs (2)

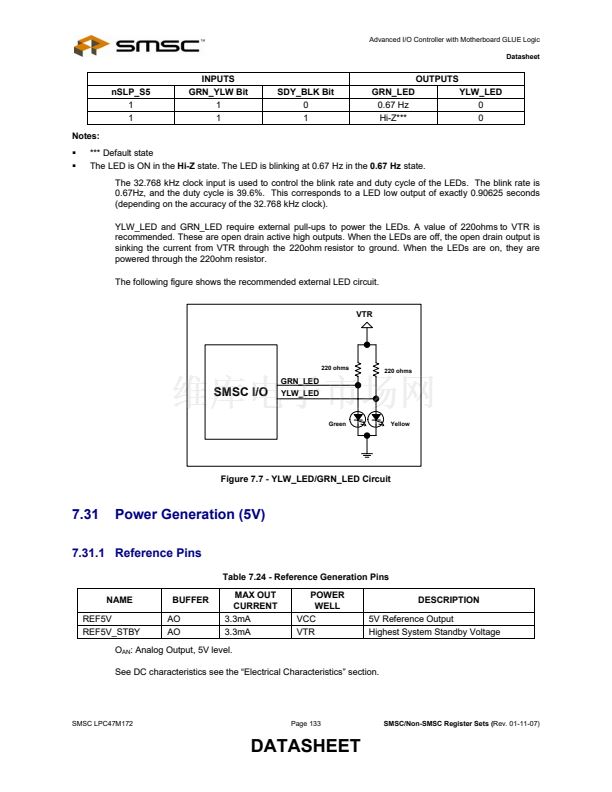

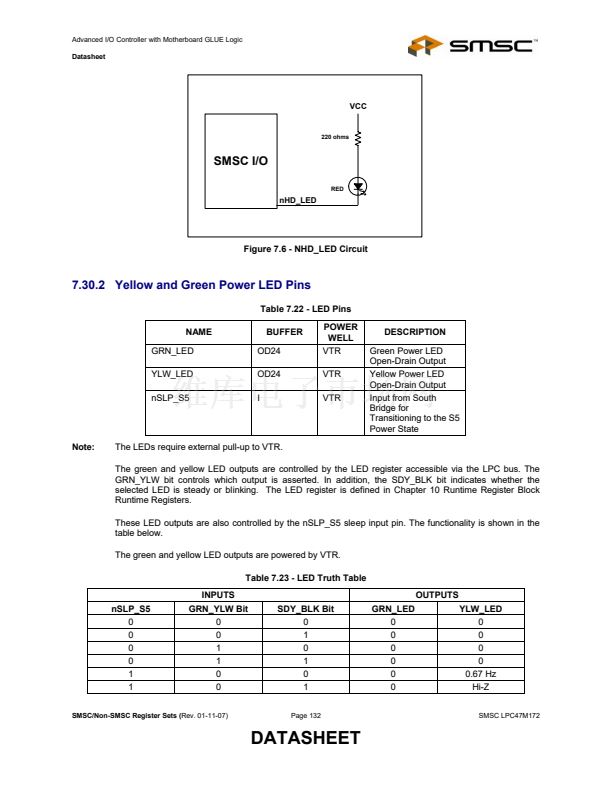

Green and Yellow Power LEDs

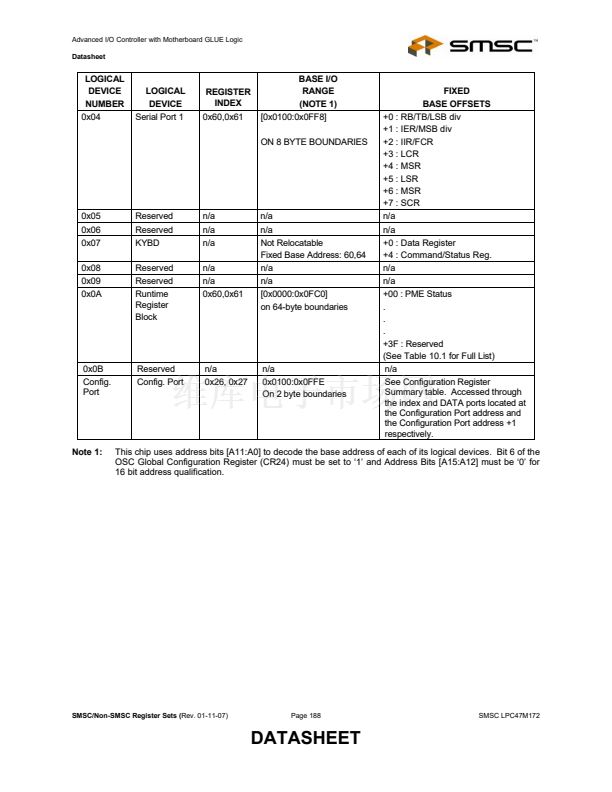

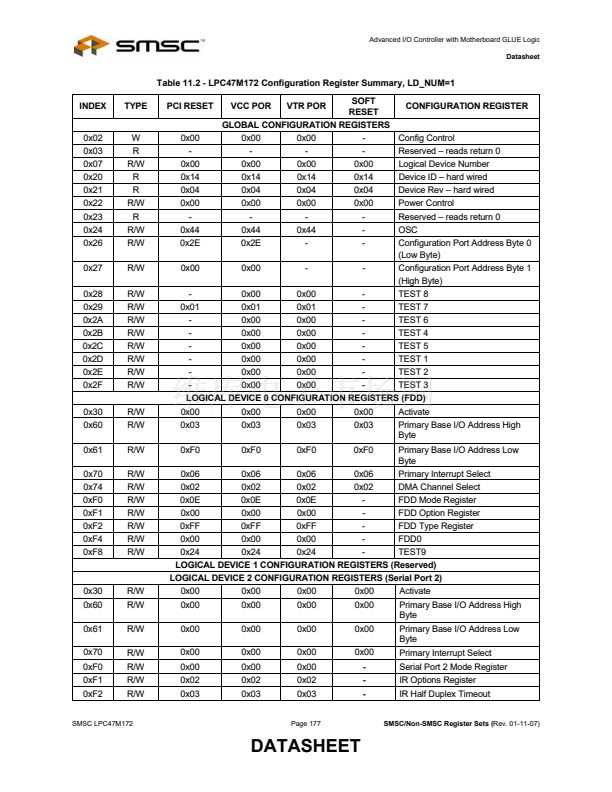

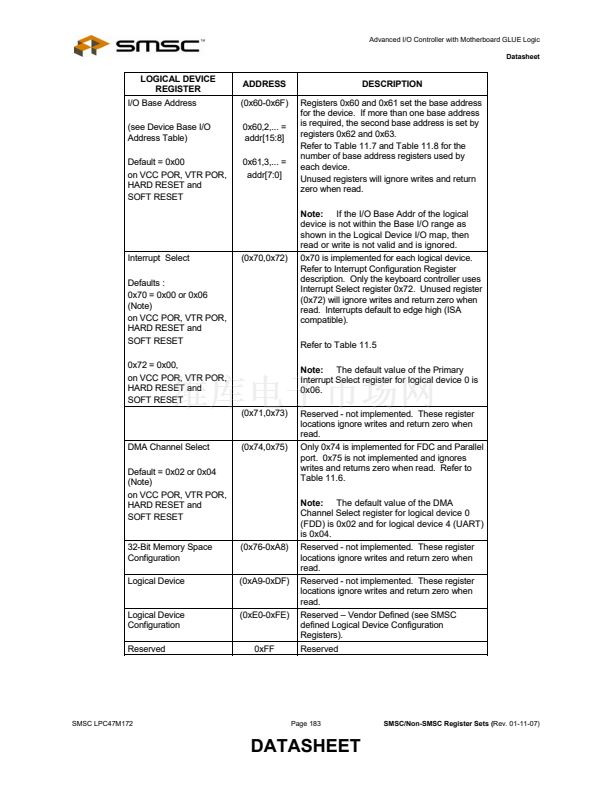

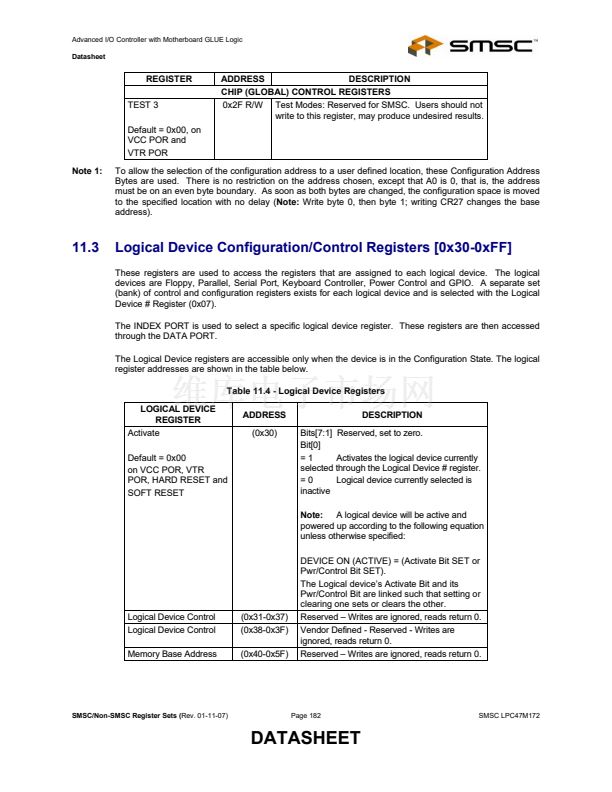

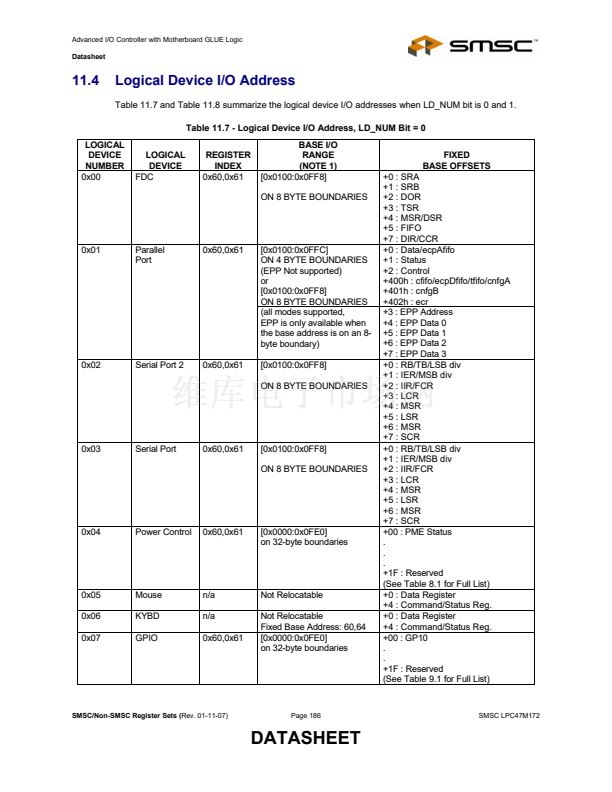

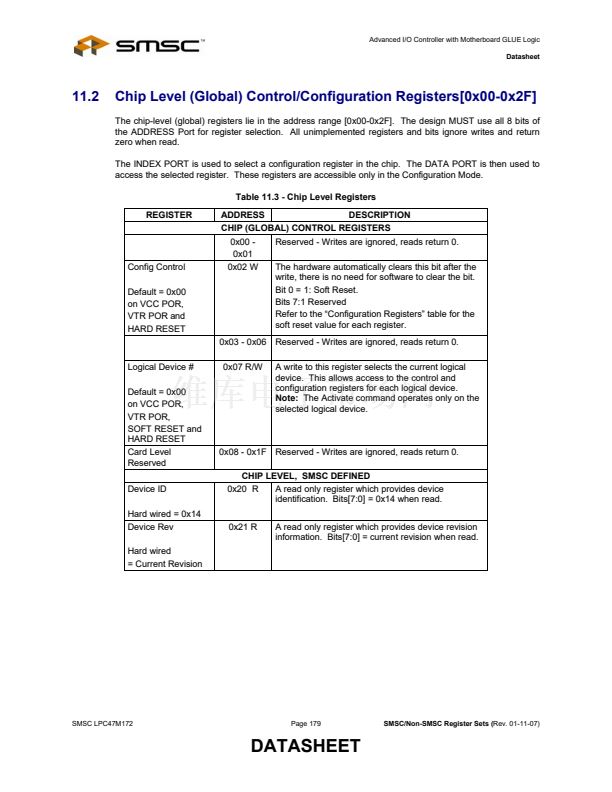

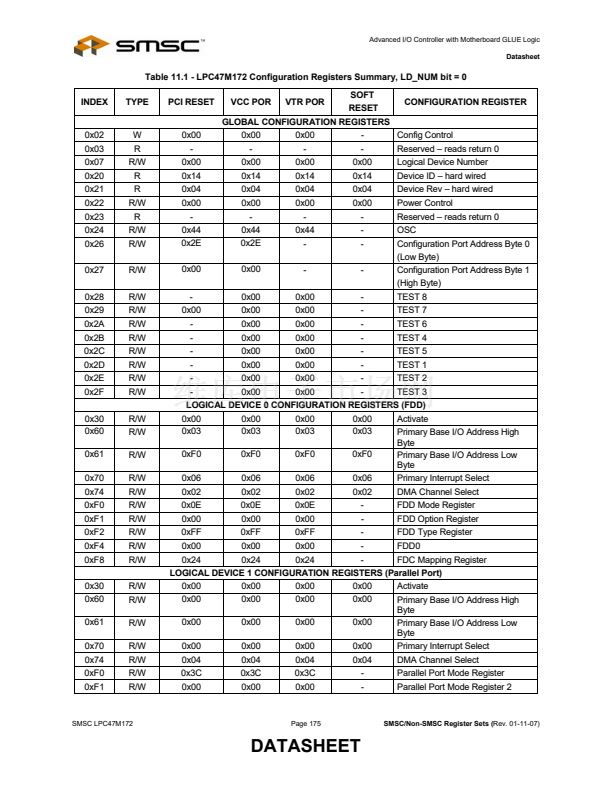

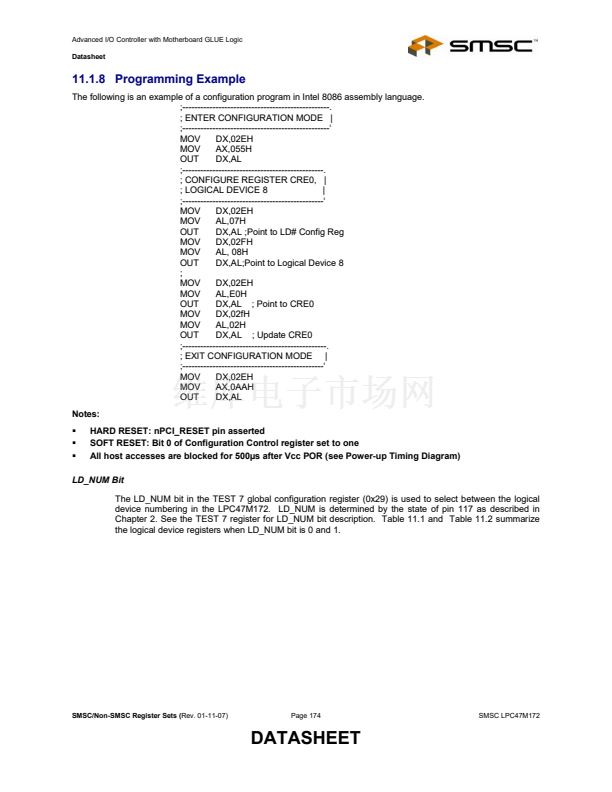

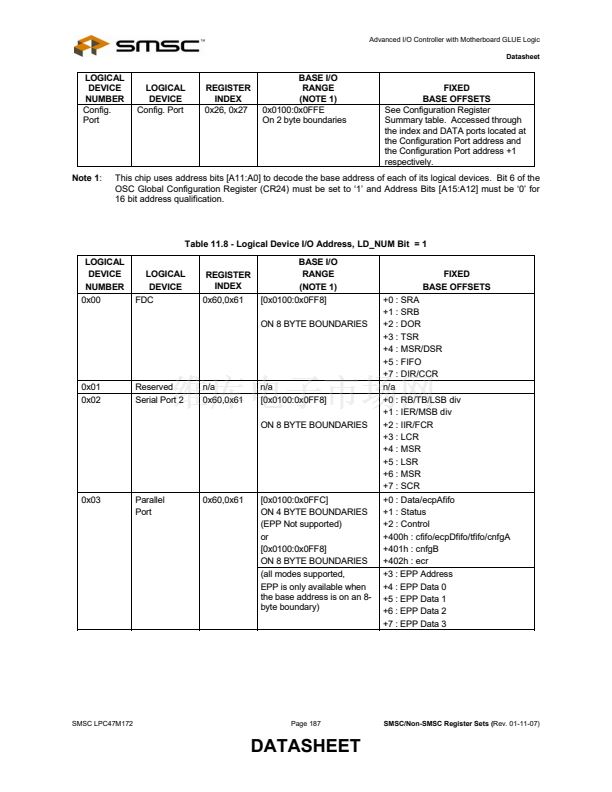

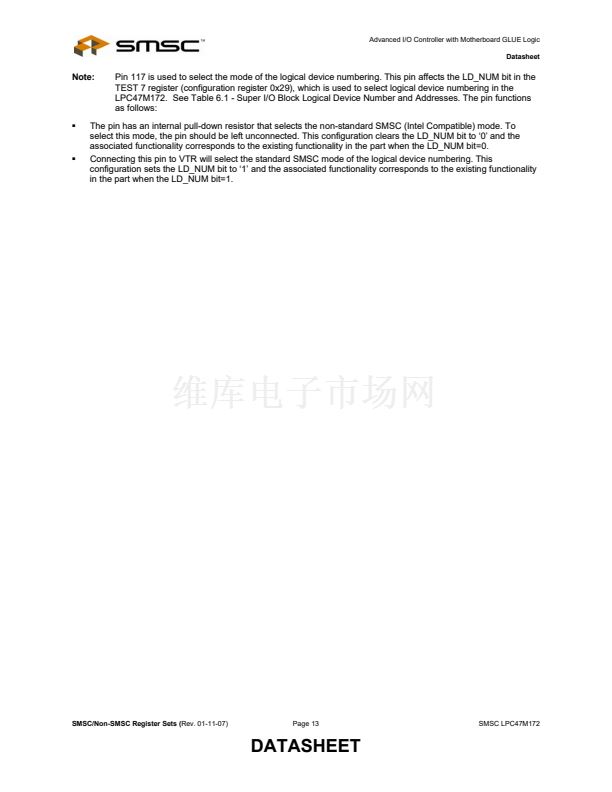

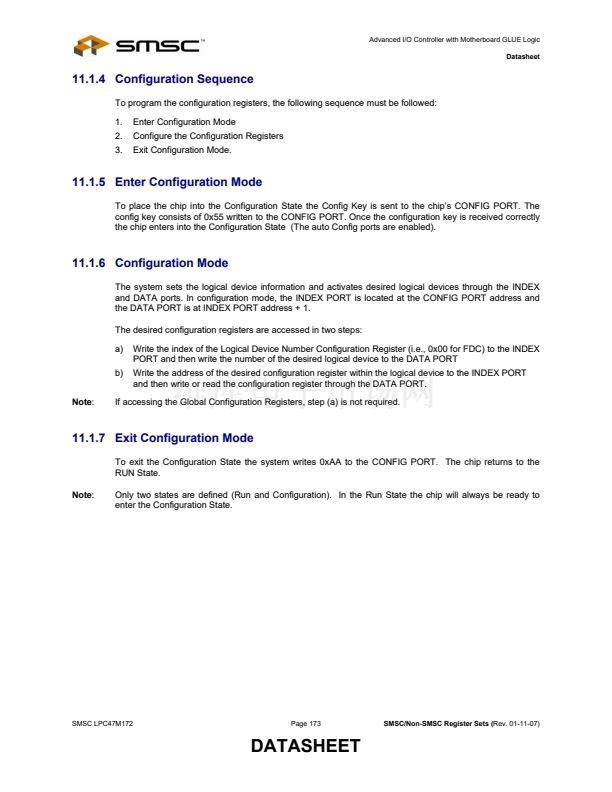

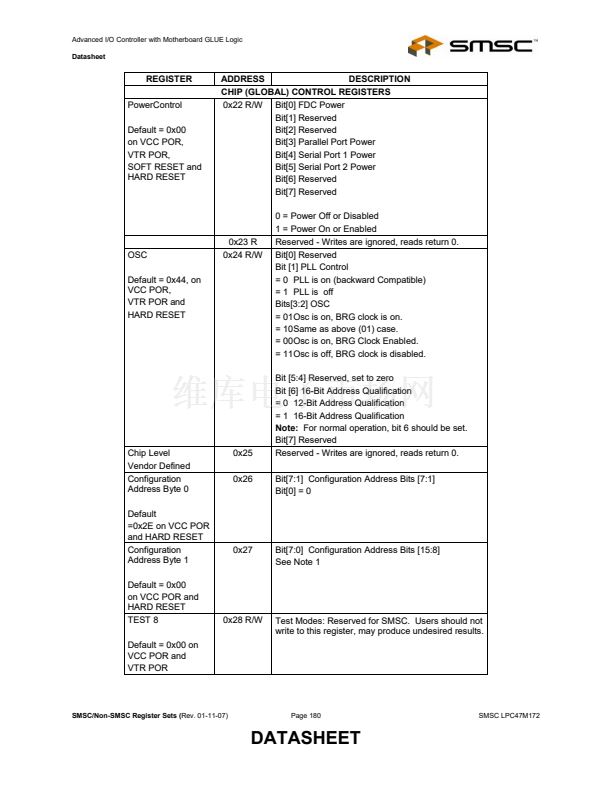

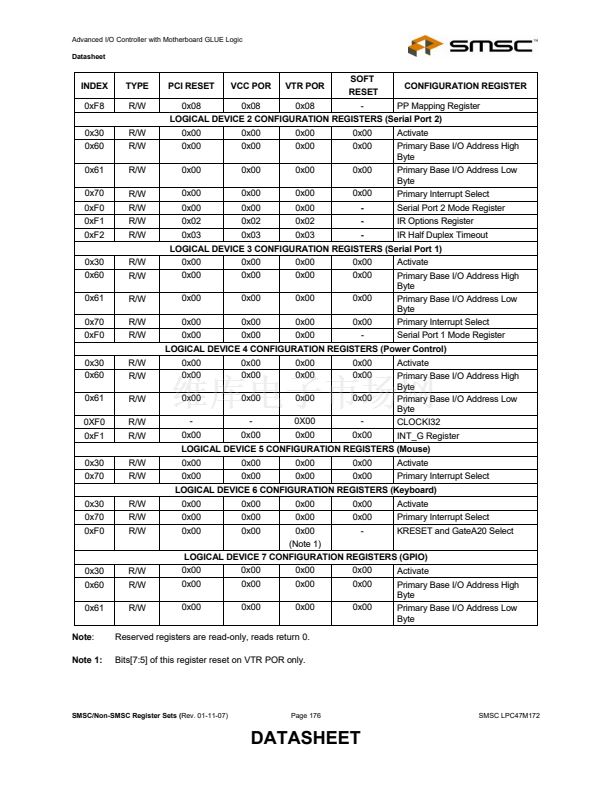

ISA Plug-and-Play Compatible Register Set

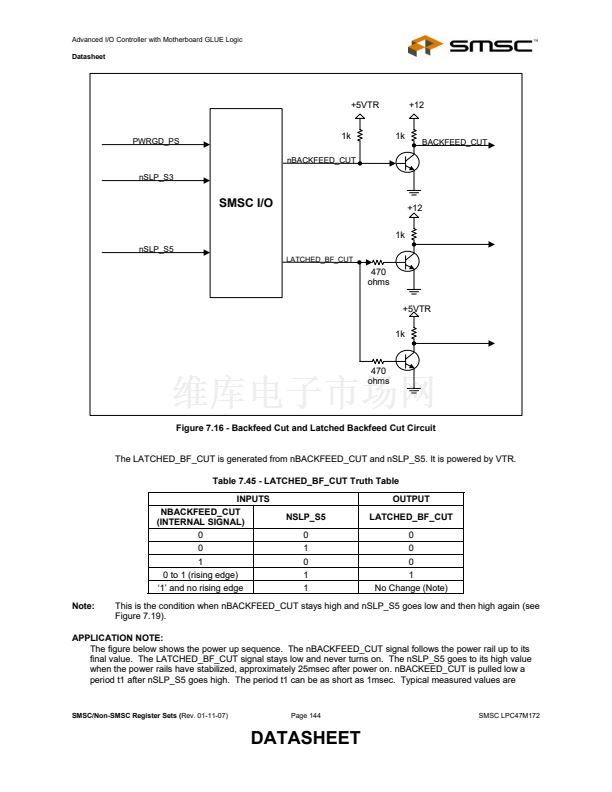

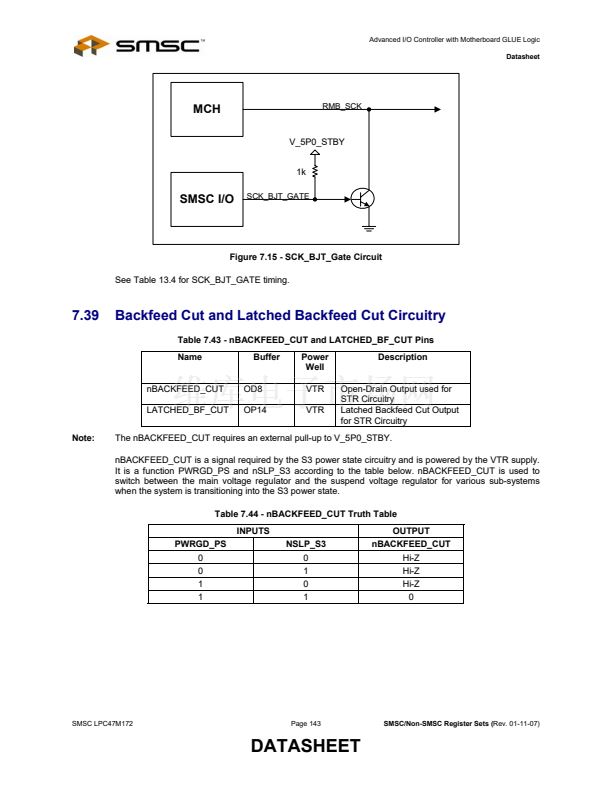

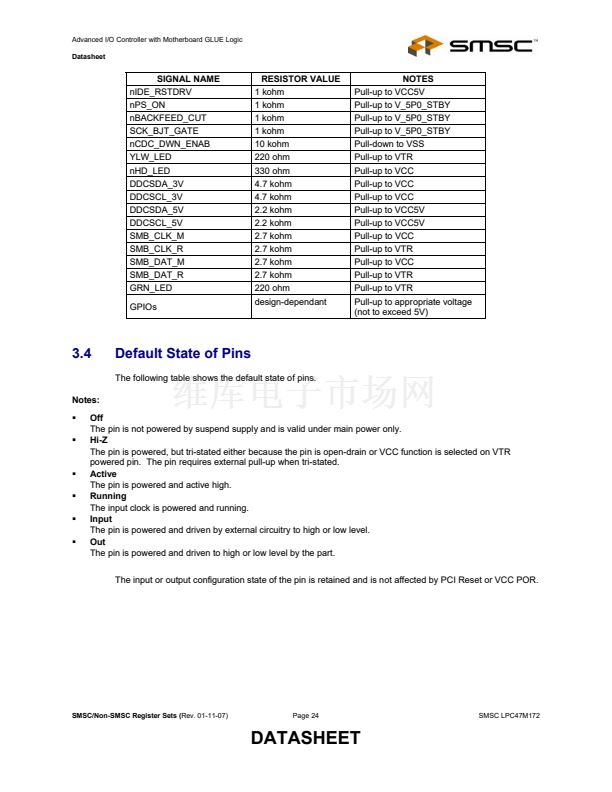

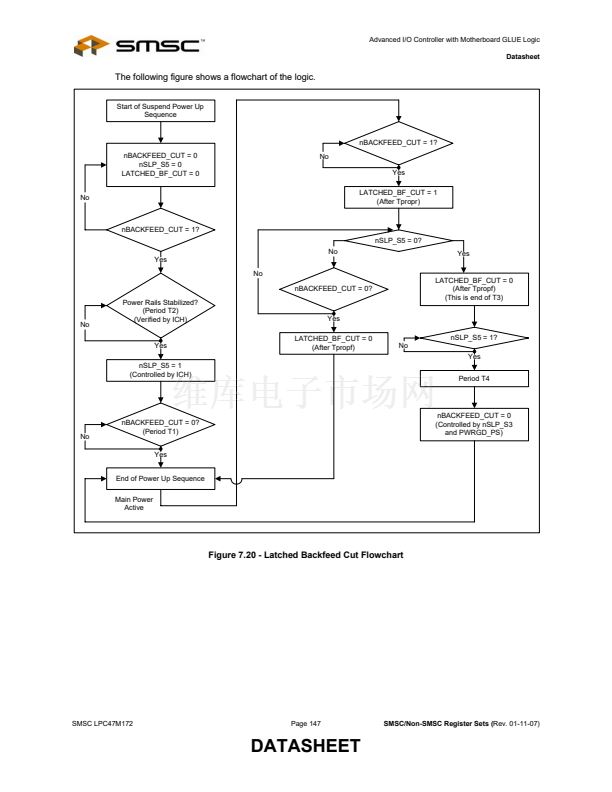

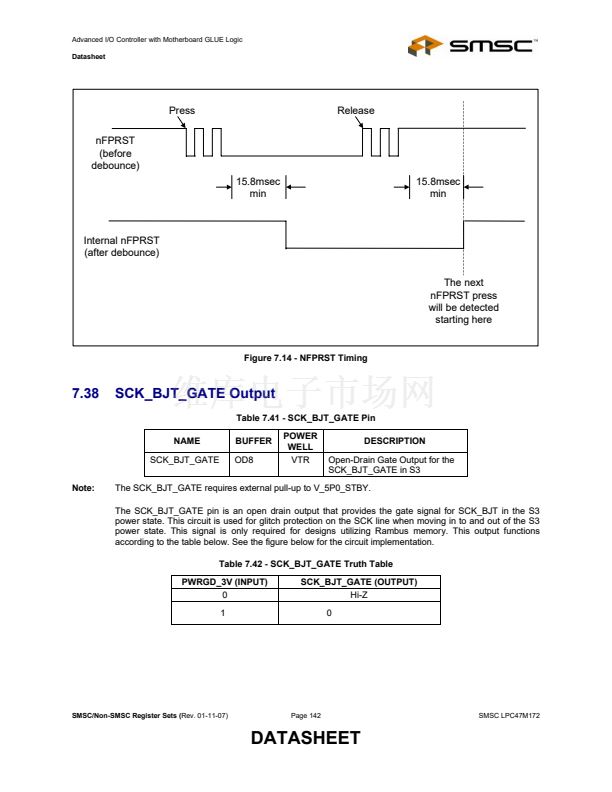

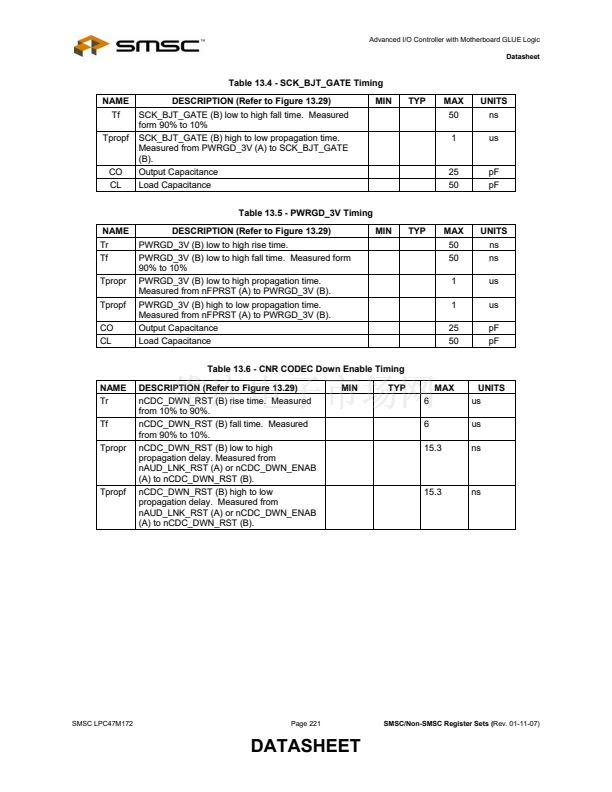

Motherboard GLUE Logic

鈭?/div>

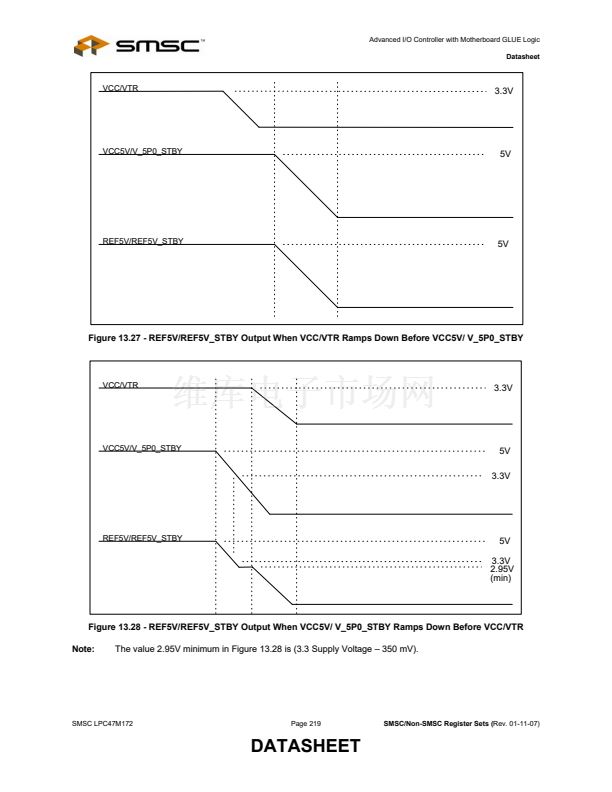

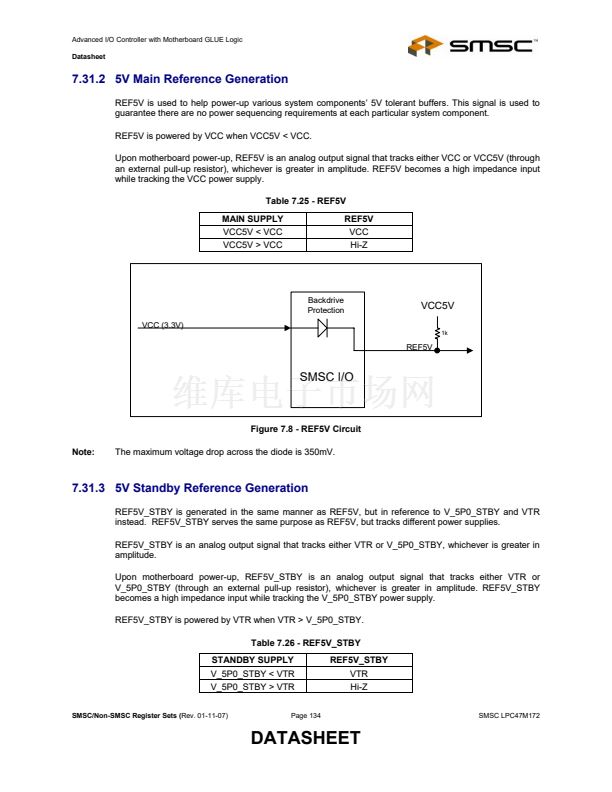

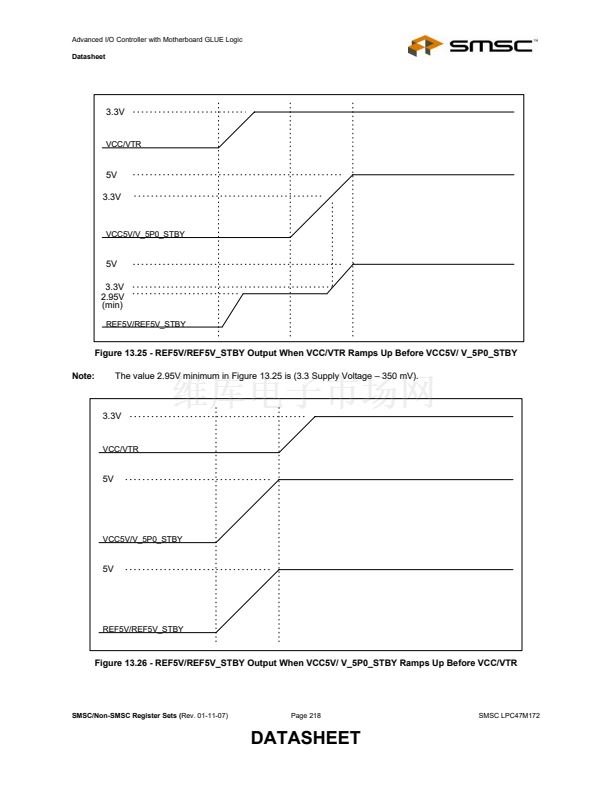

5V Reference Generation

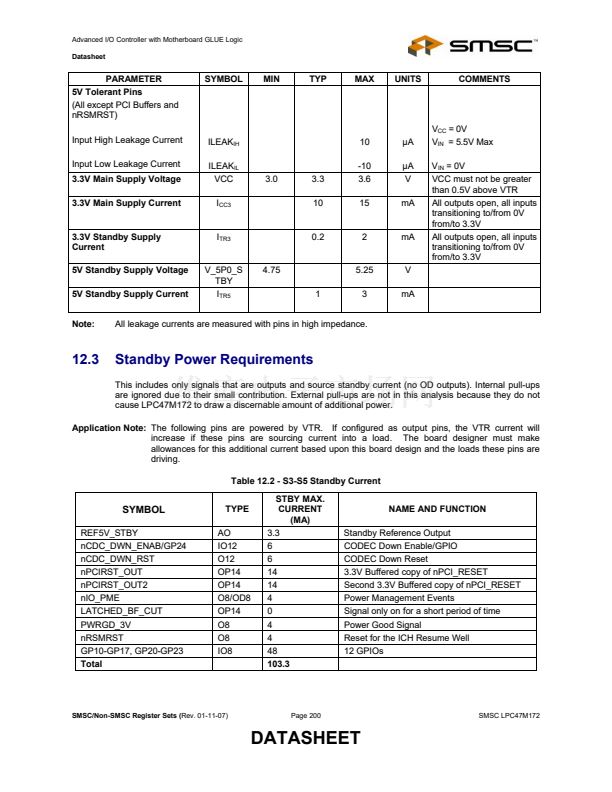

5V Standby Reference Generation

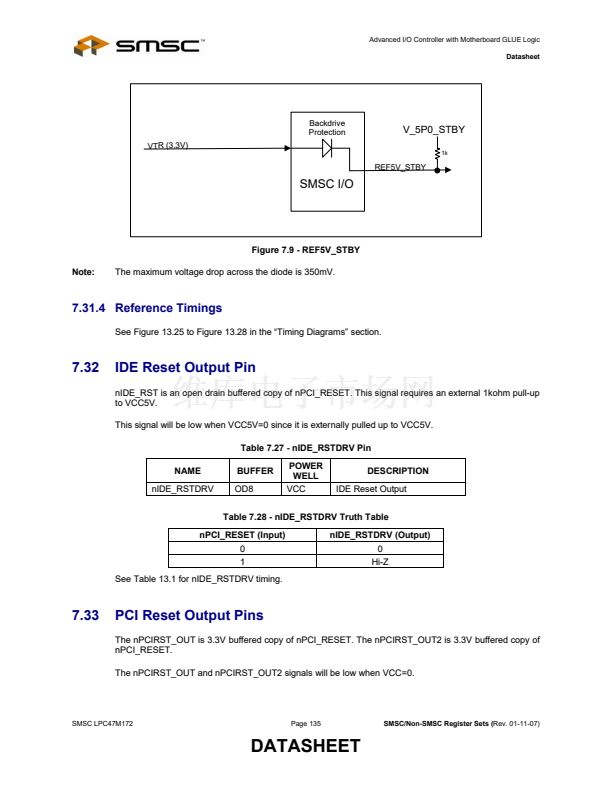

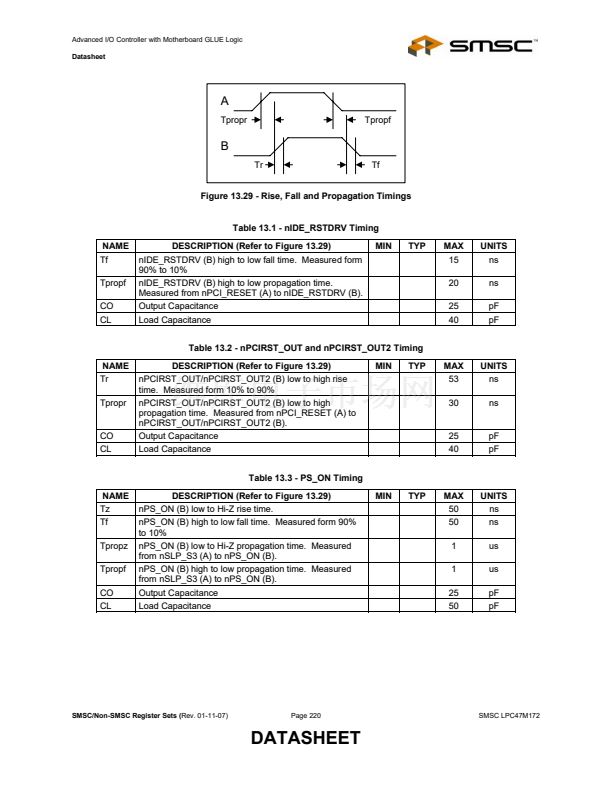

IDE Reset/Buffered PCI Reset Outputs

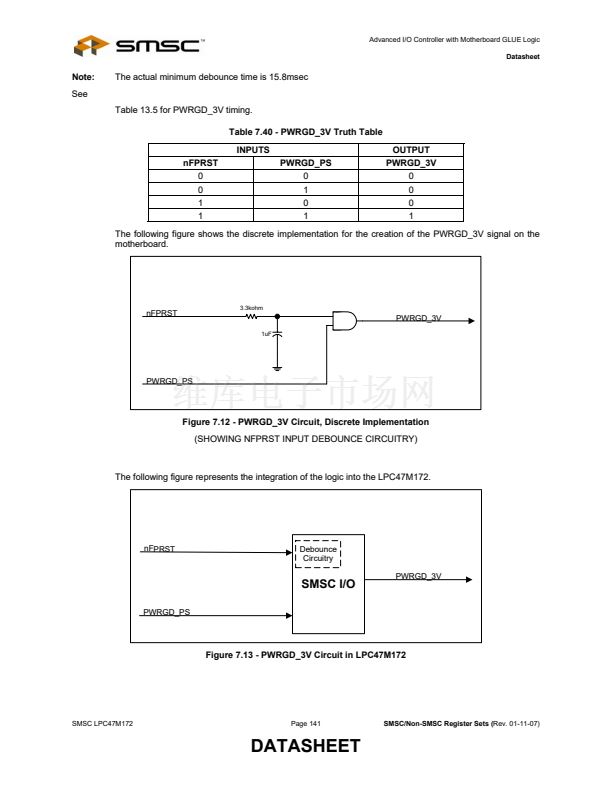

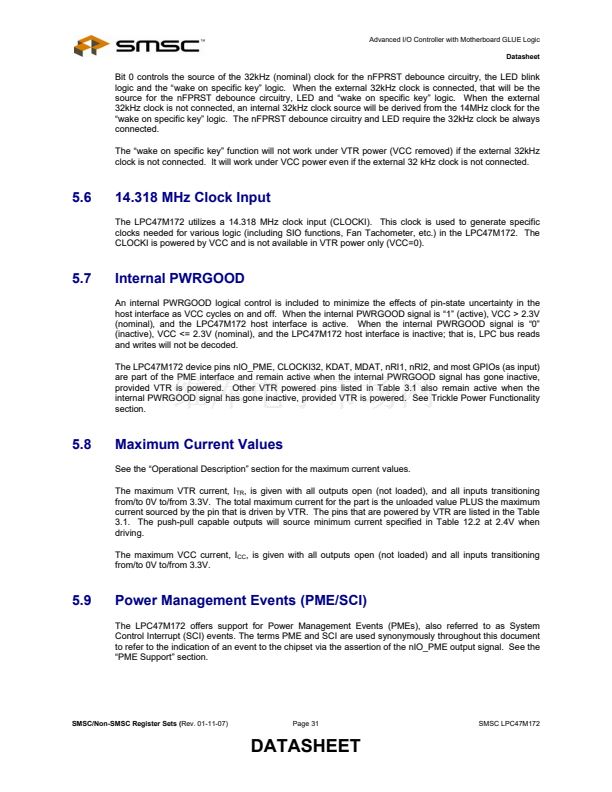

Power OK Signal Generation

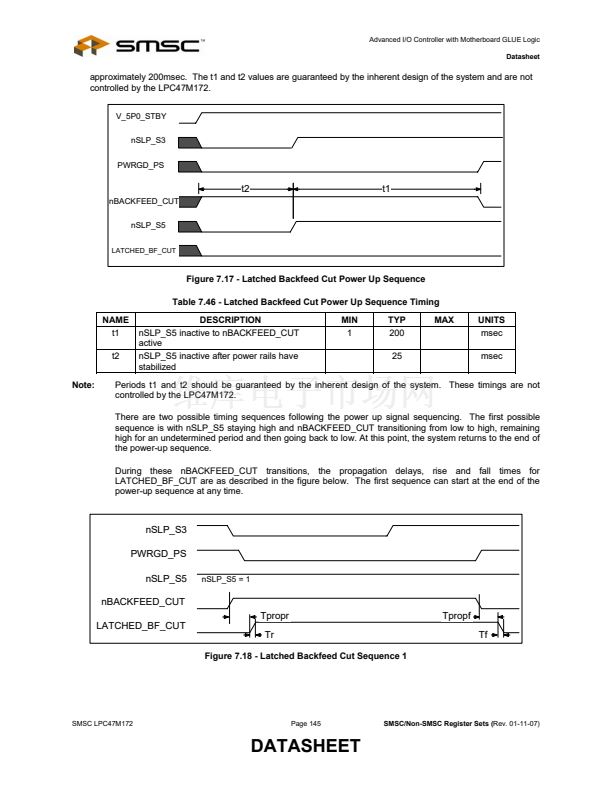

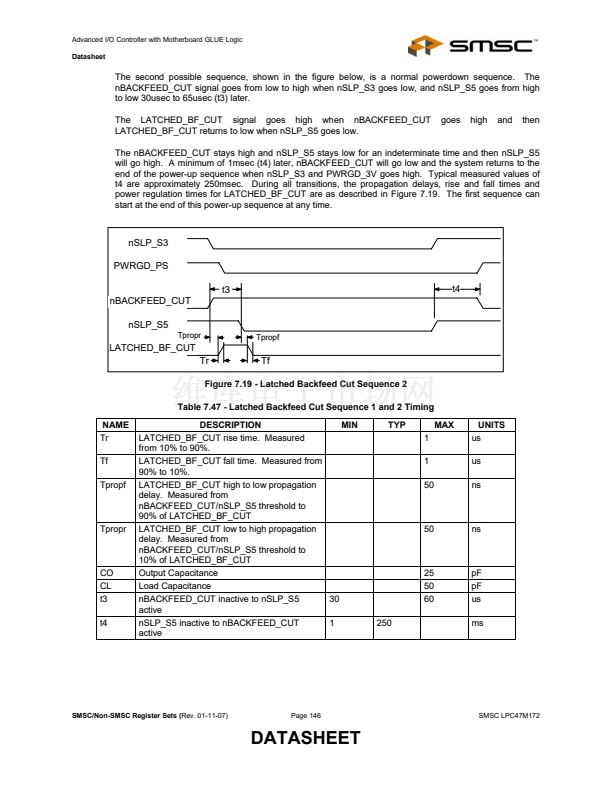

Power Sequencing

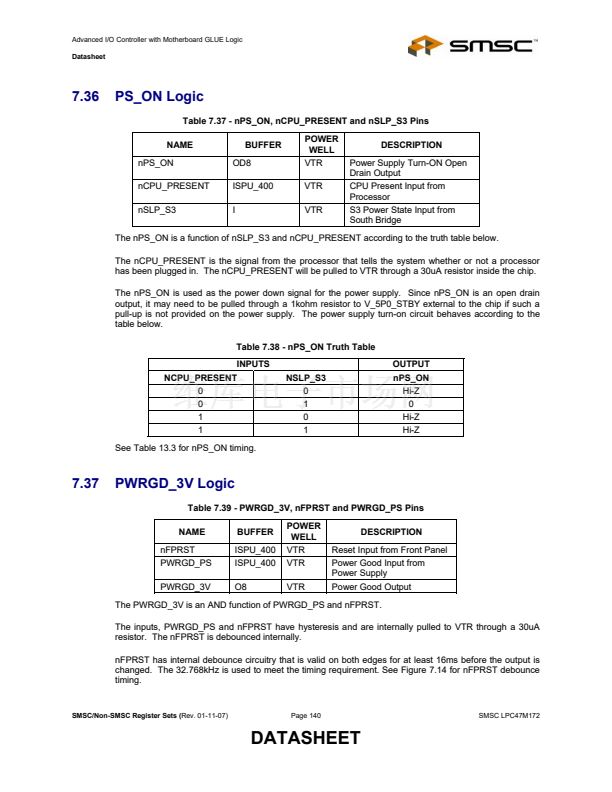

Power Supply Turn On Circuitry

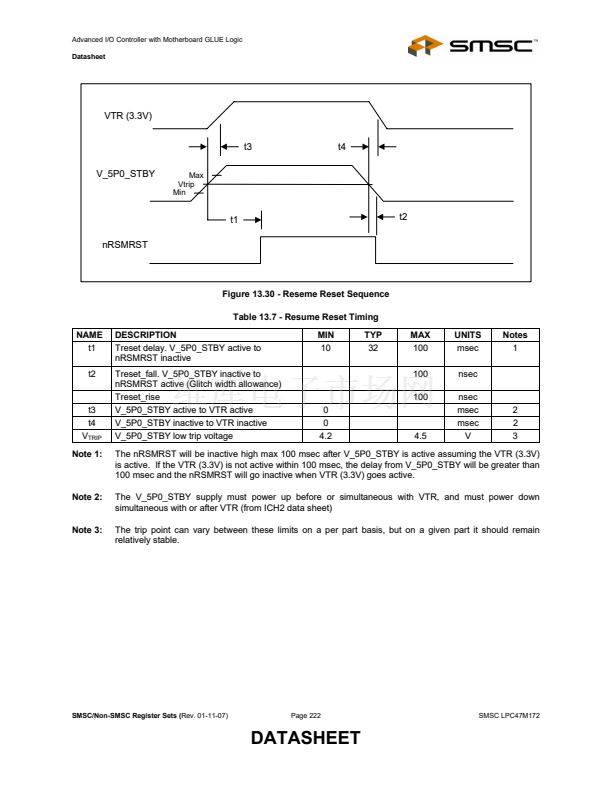

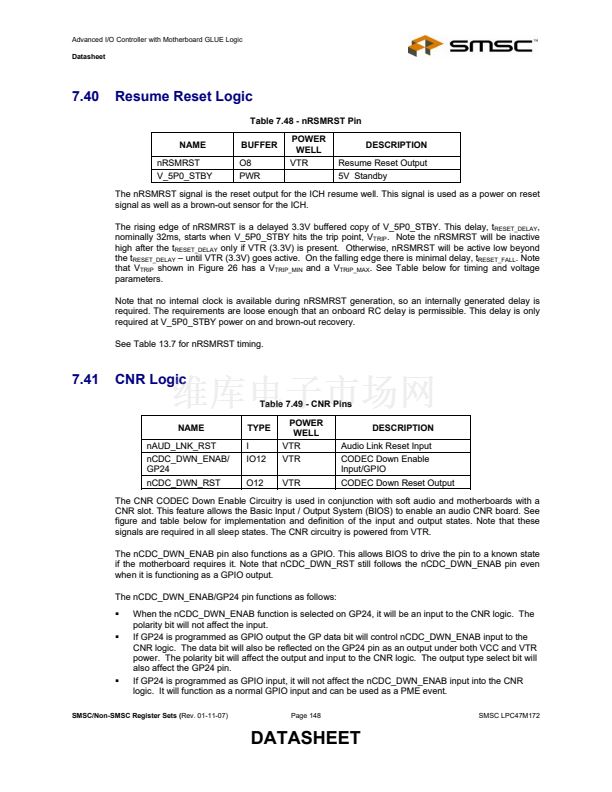

Resume Reset Signal Generation

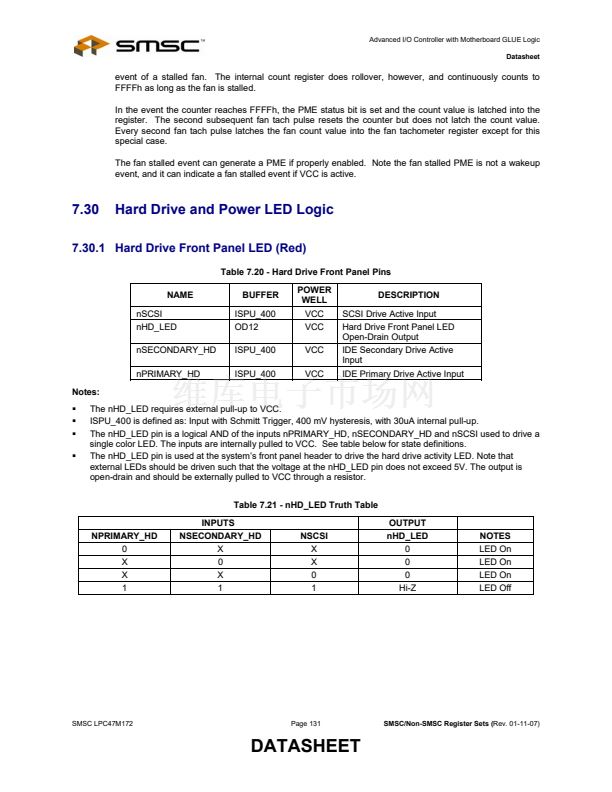

Hard Drive Front Panel LED

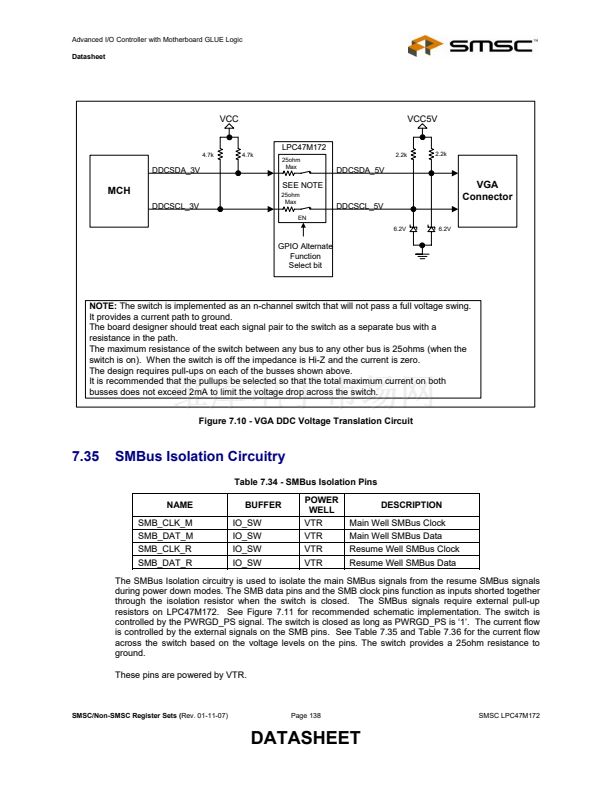

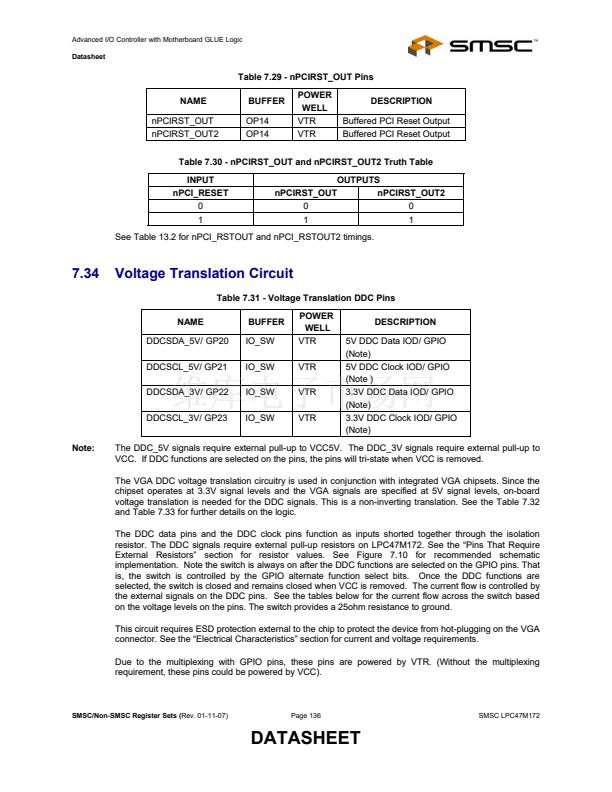

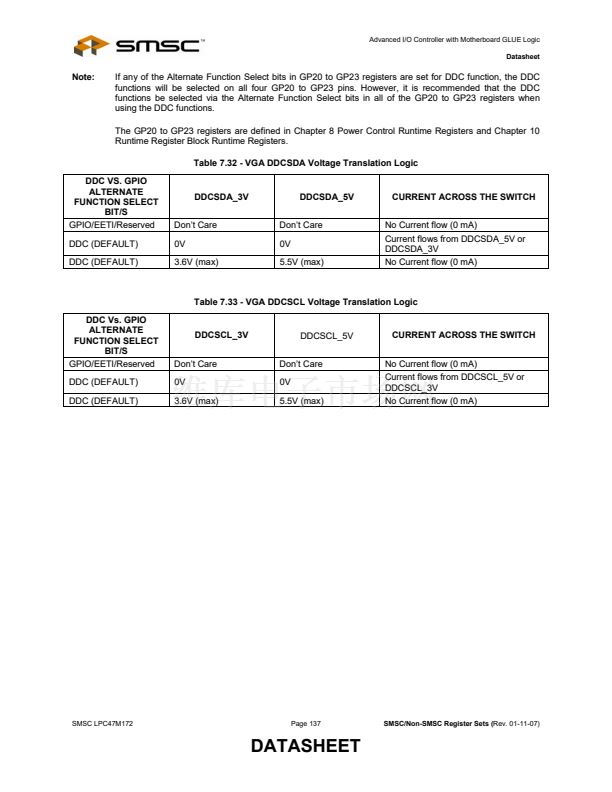

Voltage Translation for DDC to VGA Monitor

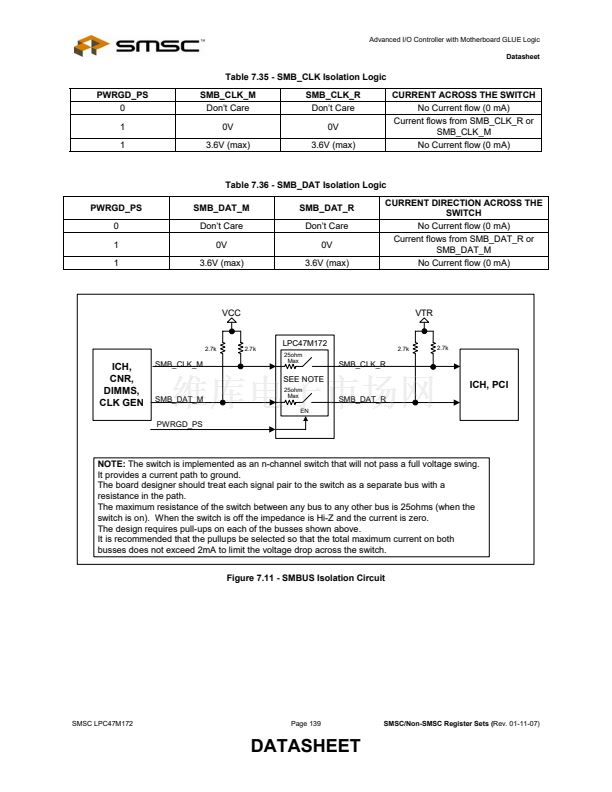

SMBus Isolation Circuitry

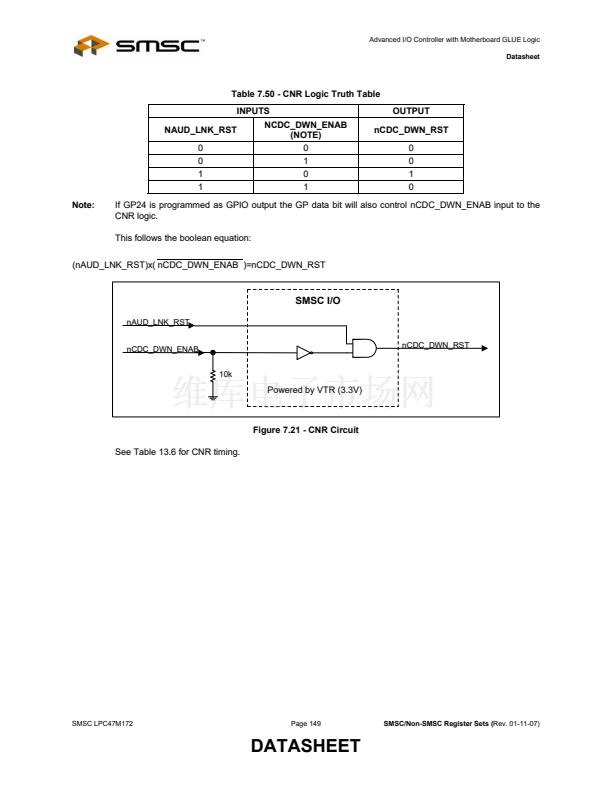

CNR Dynamic Down Control

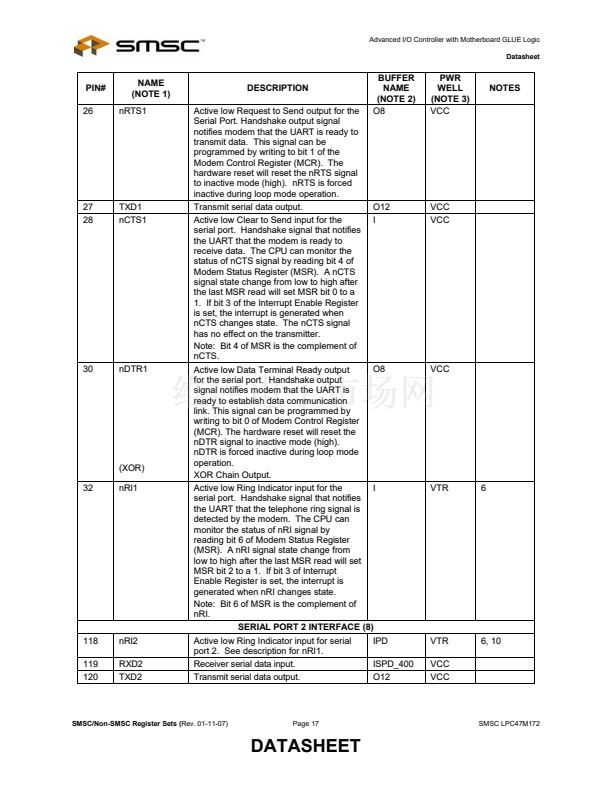

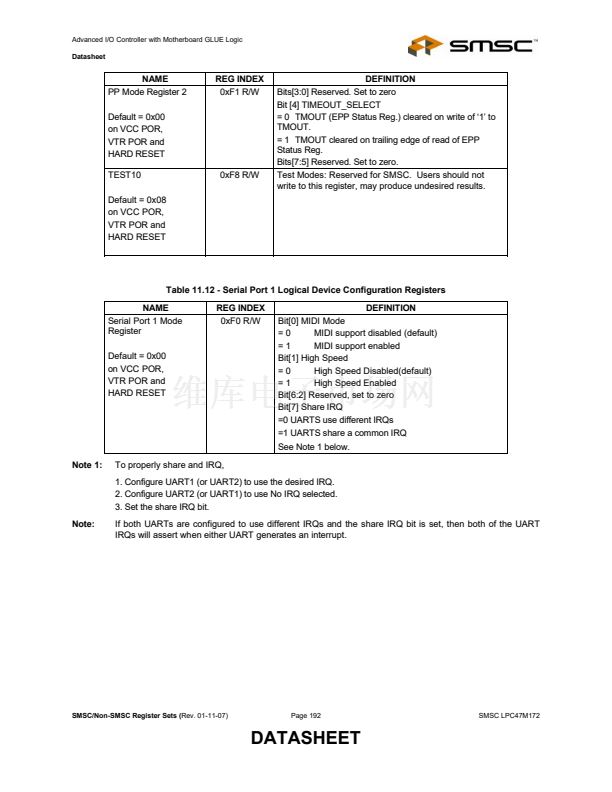

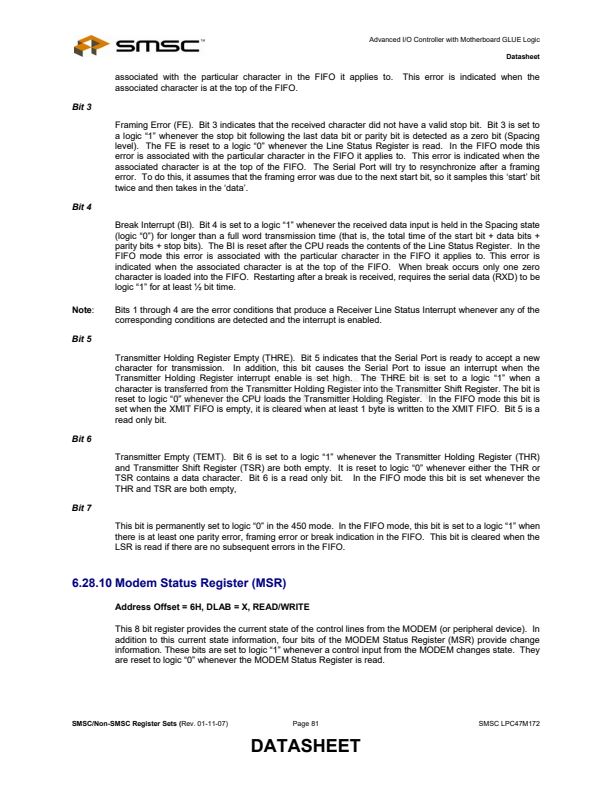

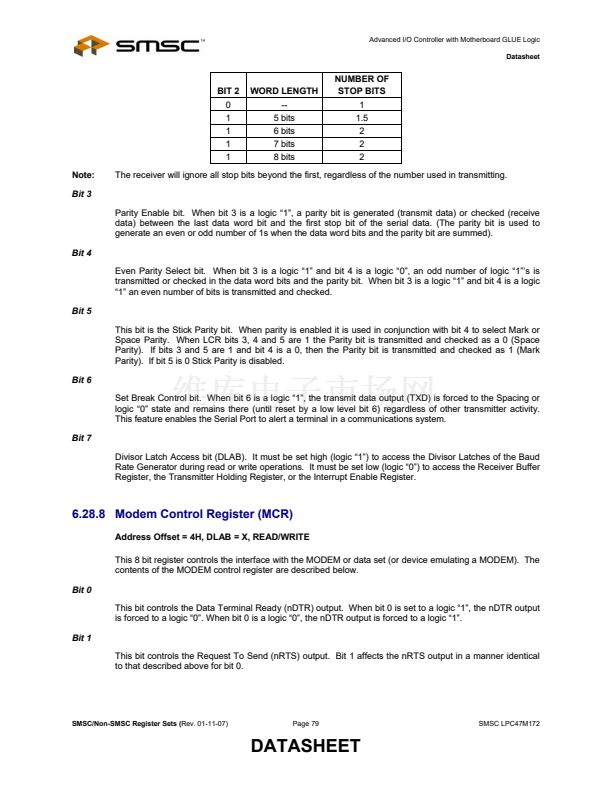

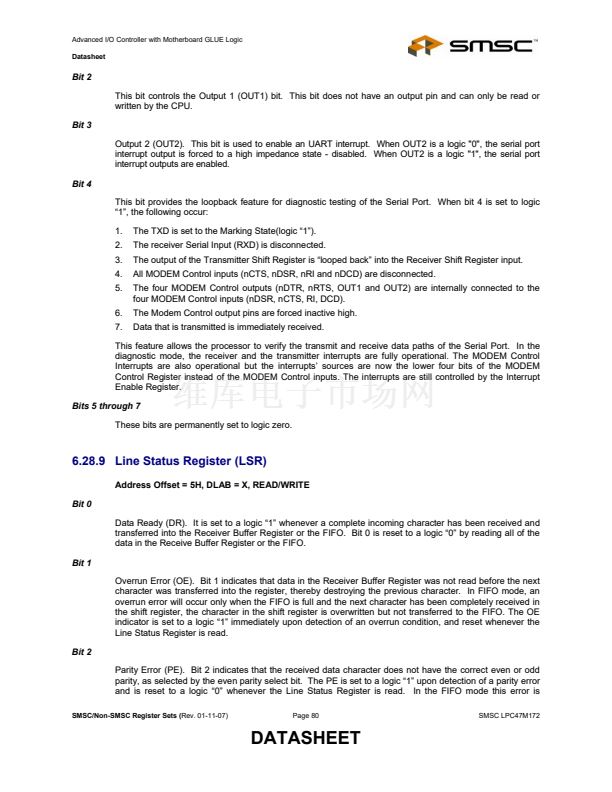

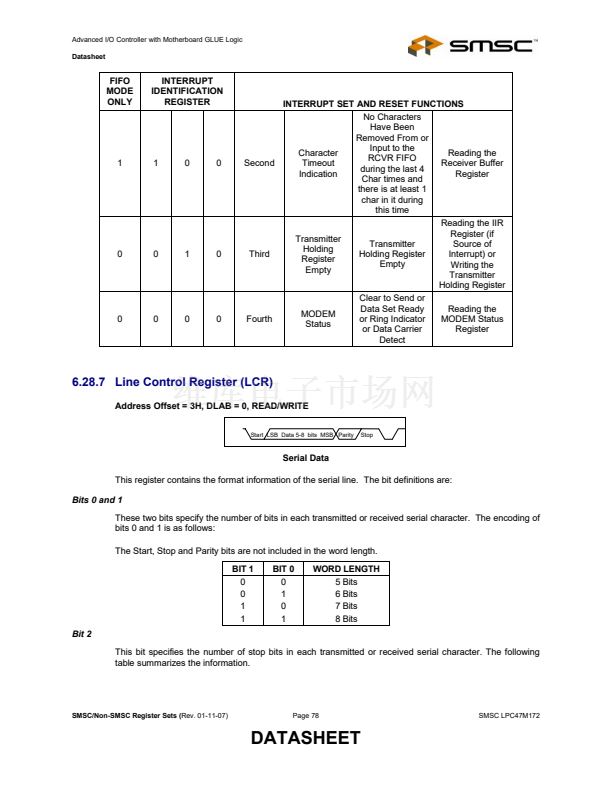

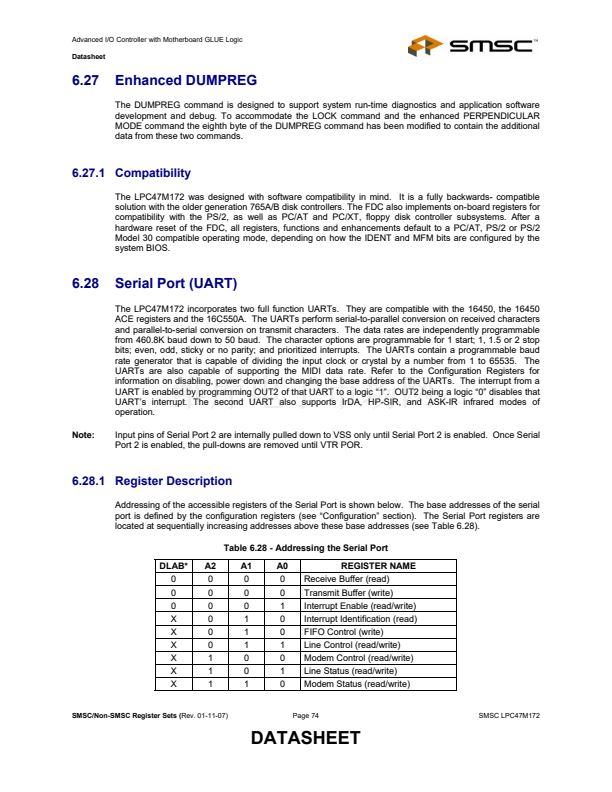

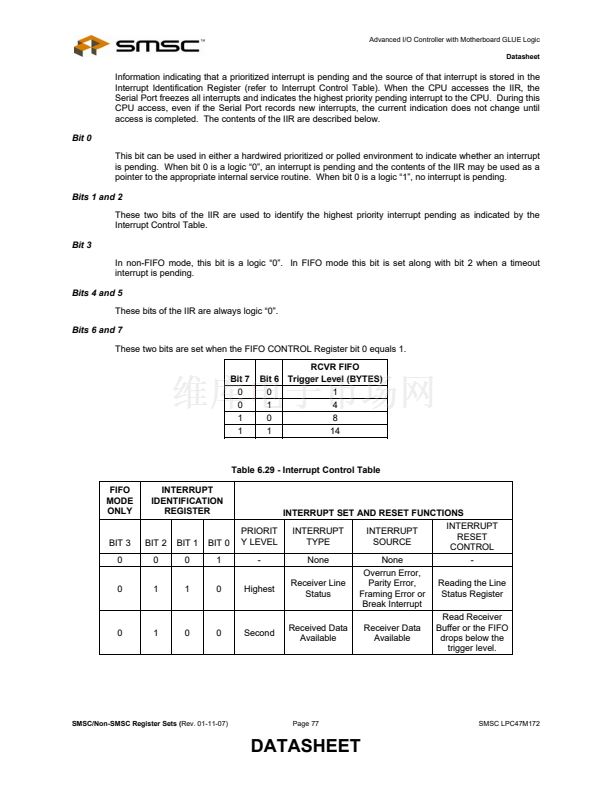

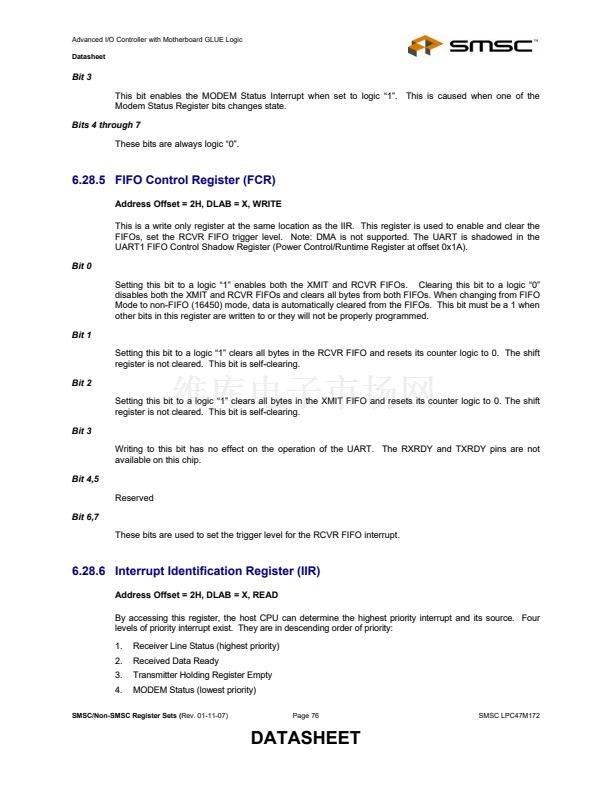

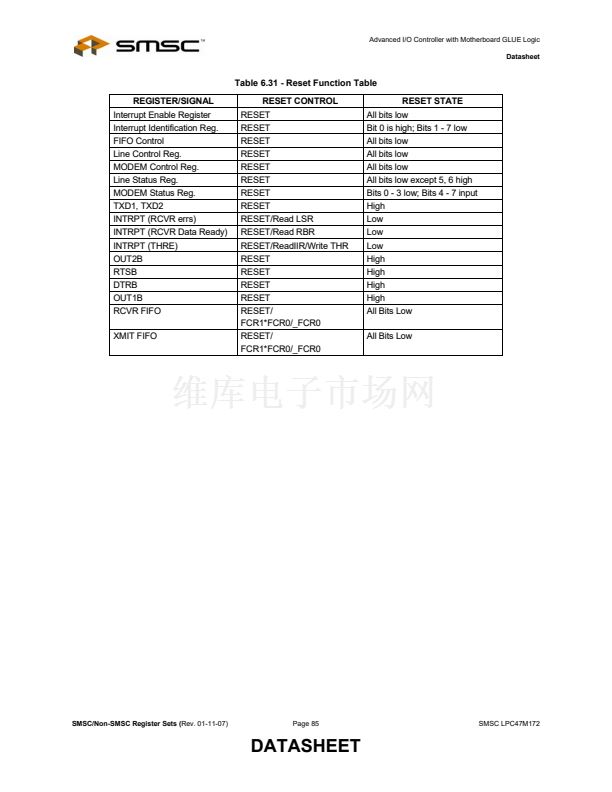

Serial Ports

鈭?/div>

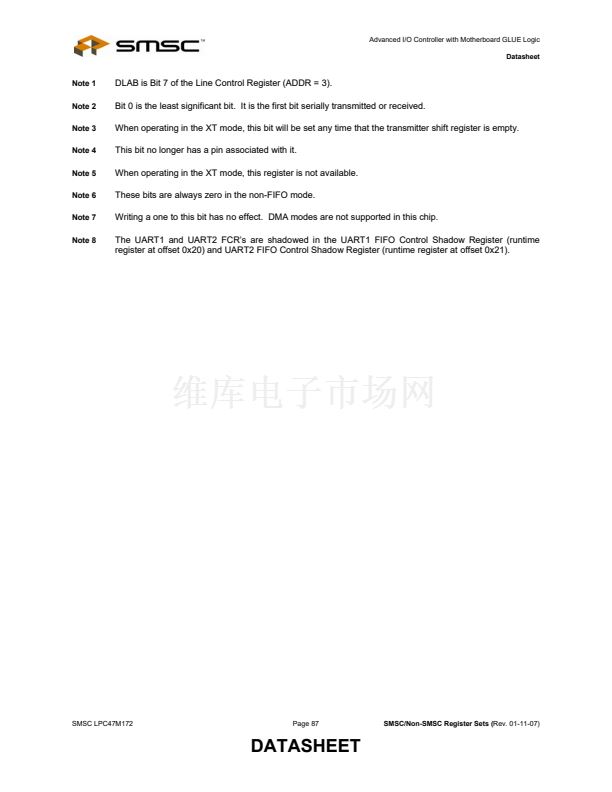

Two Full Function Serial Ports

鈭?/div>

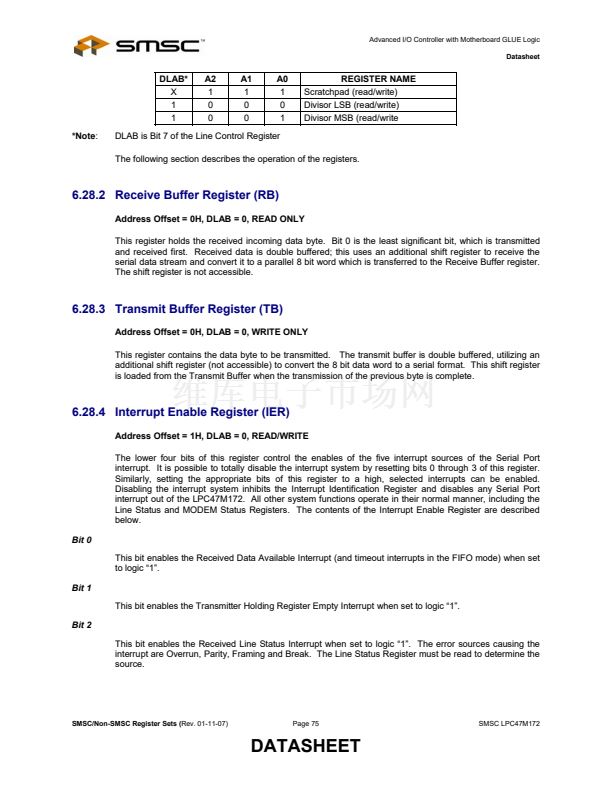

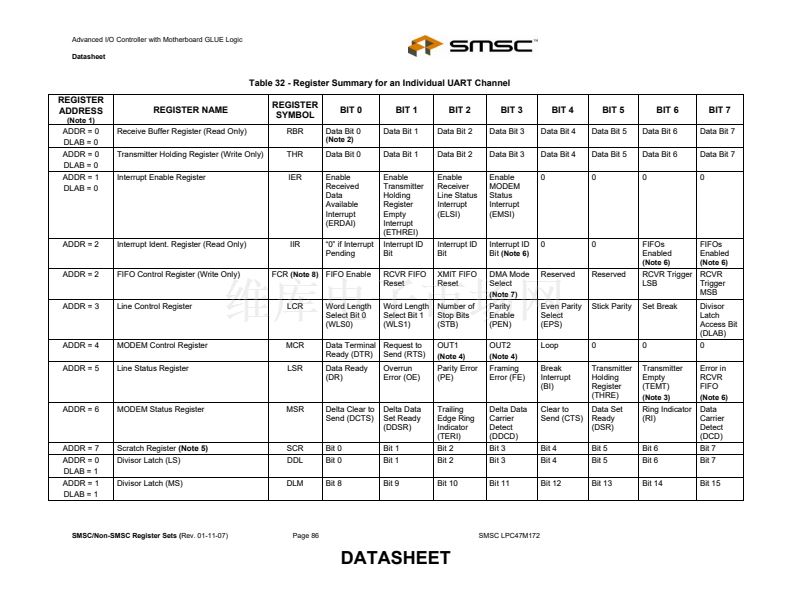

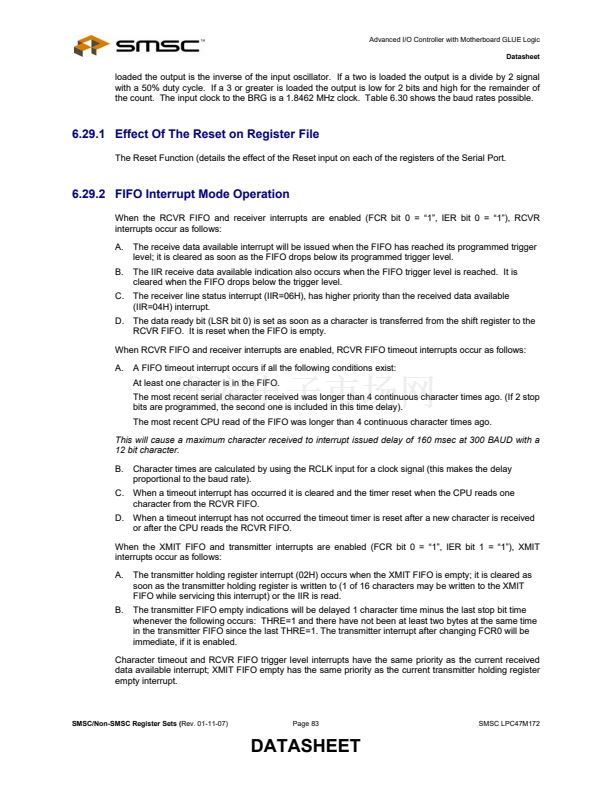

High Speed 16C550A Compatible UART with

Send/Receive 16-Byte FIFOs

鈭?/div>

Supports 230k and 460k Baud

鈭?/div>

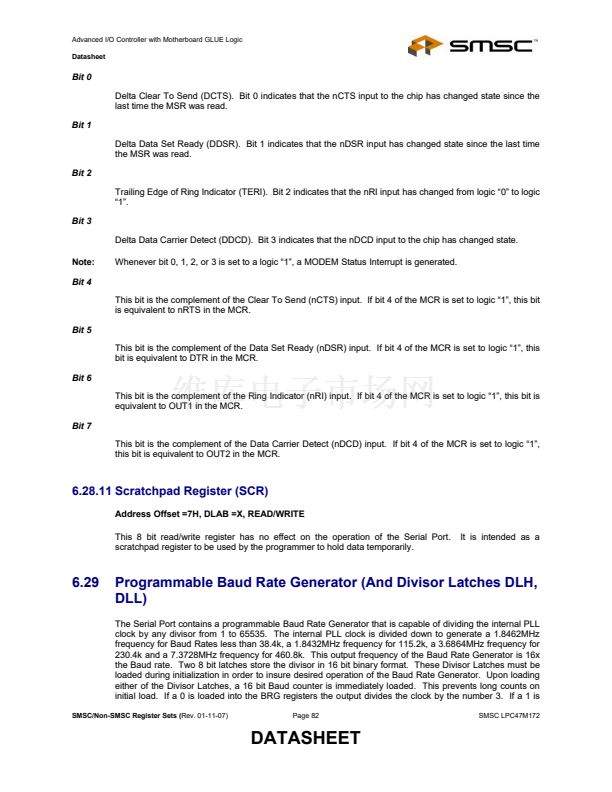

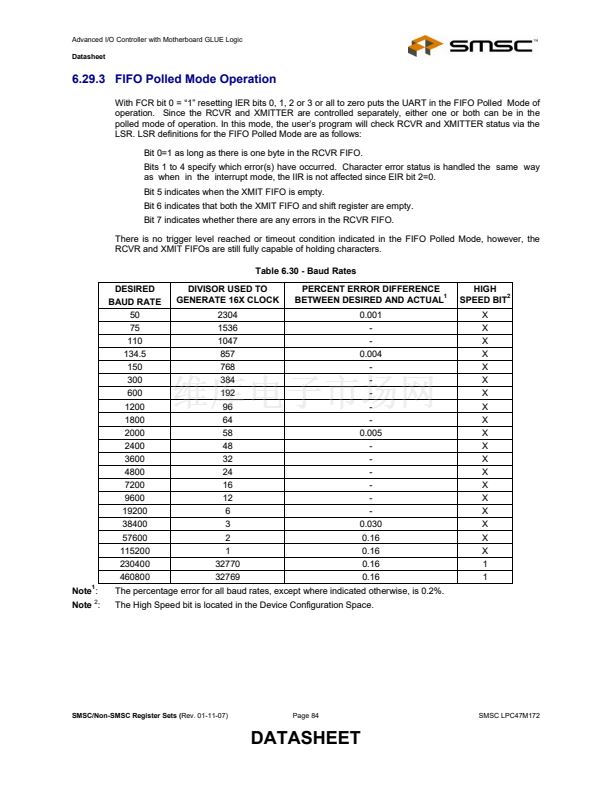

Programmable Baud Rate Generator

鈭?/div>

Modem Control Circuitry

鈭?/div>

480 Address and 15 IRQ Options

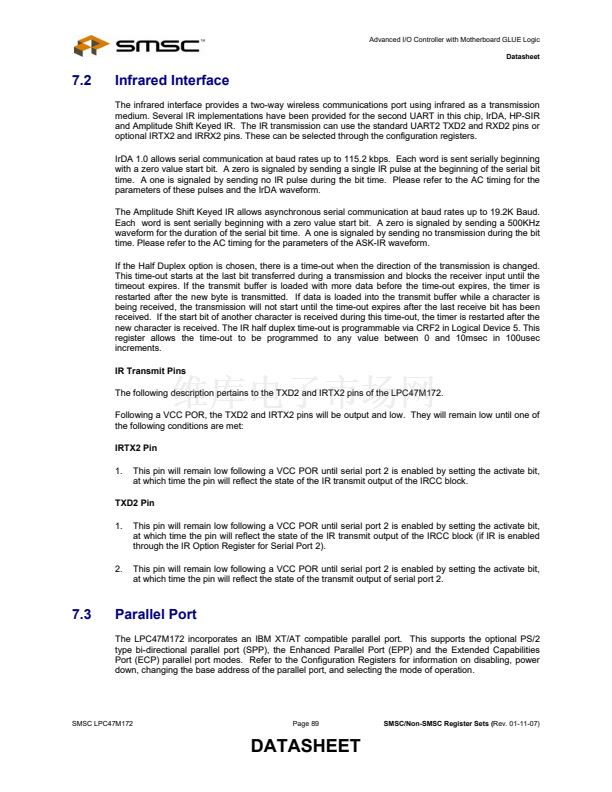

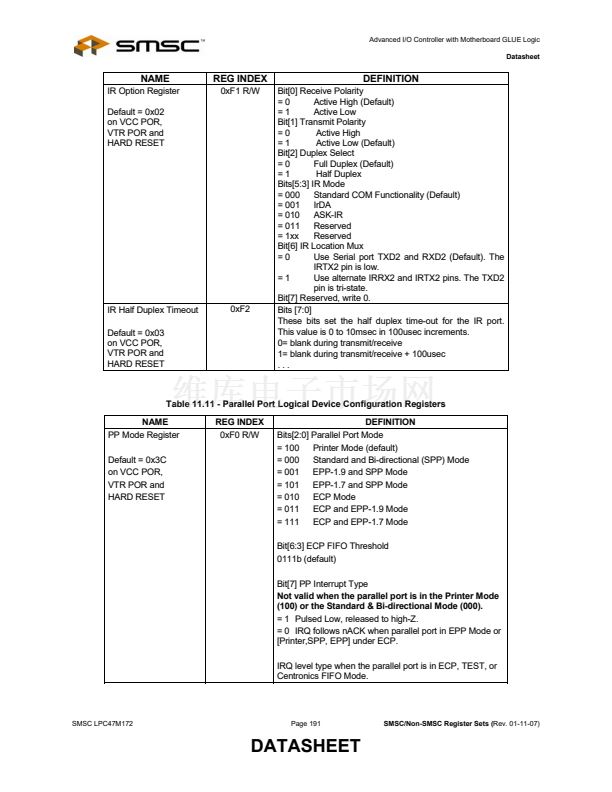

Infrared Port

鈭?/div>

Multiprotocol Infrared Interface

32-Byte Data FIFO

IrDA 1.0 Compliant

SHARP ASK IR

HP-SIR

480 Address, Up to 15 IRQ and Three DMA Options

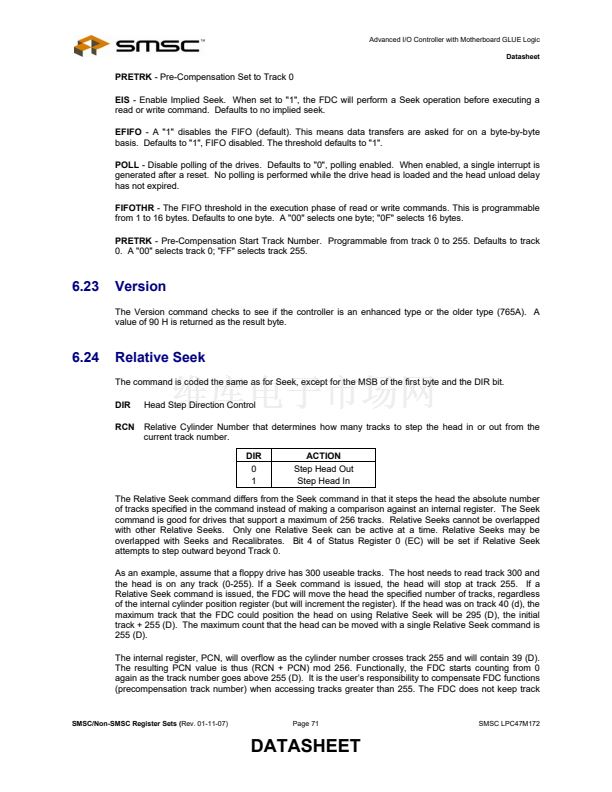

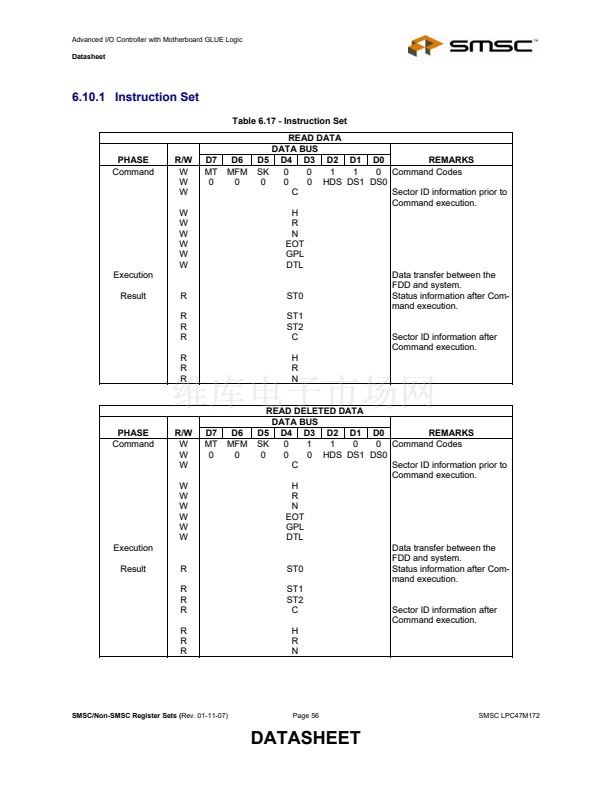

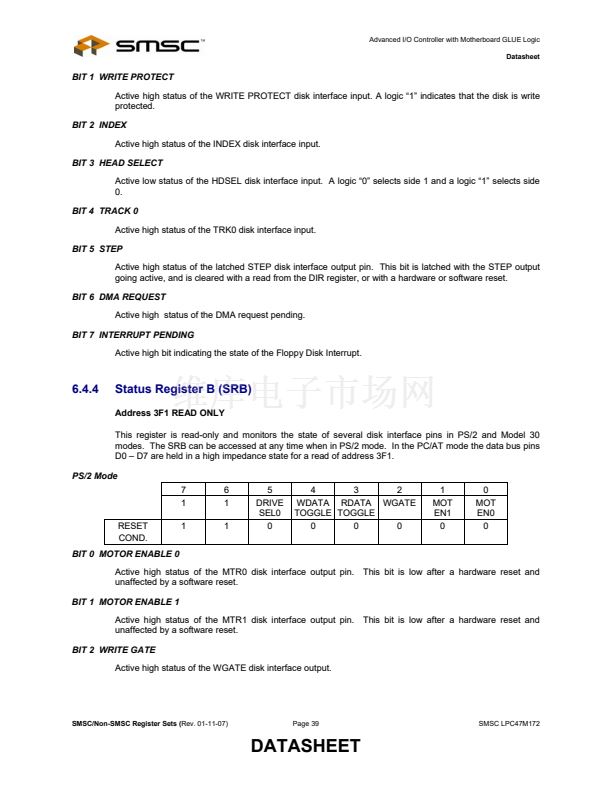

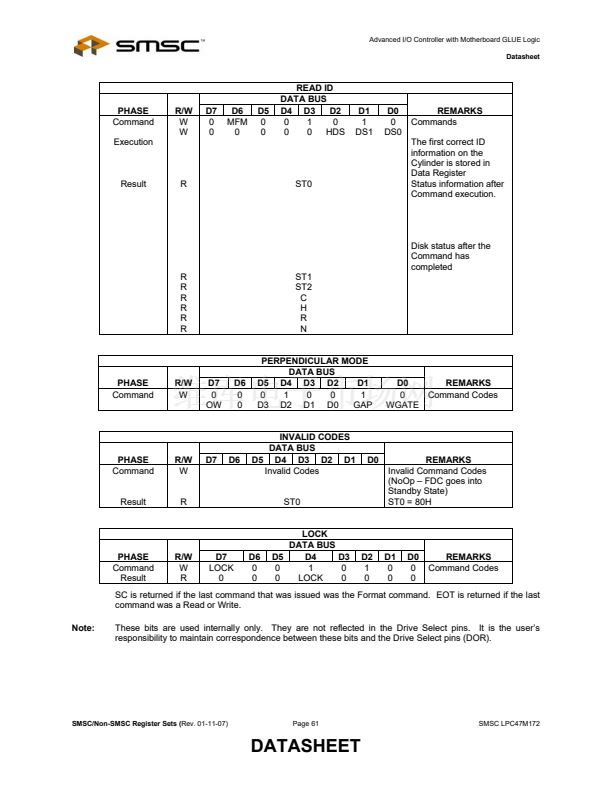

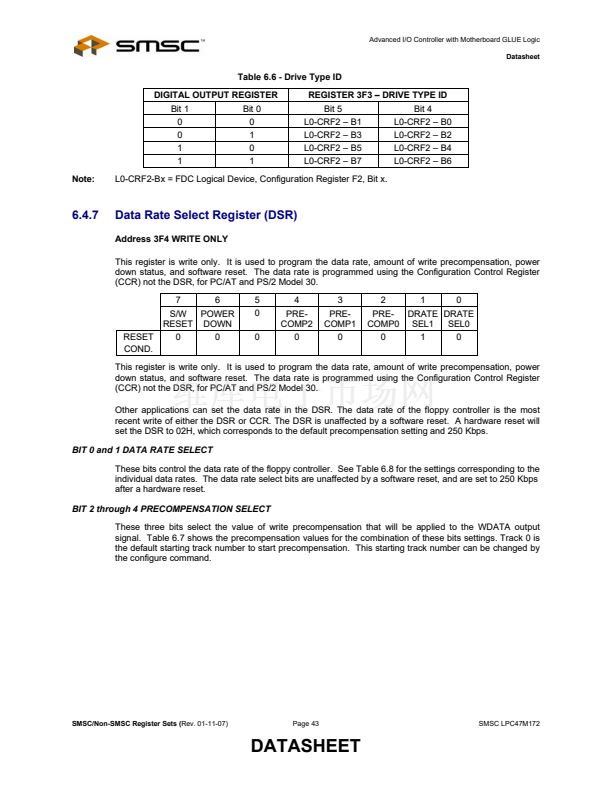

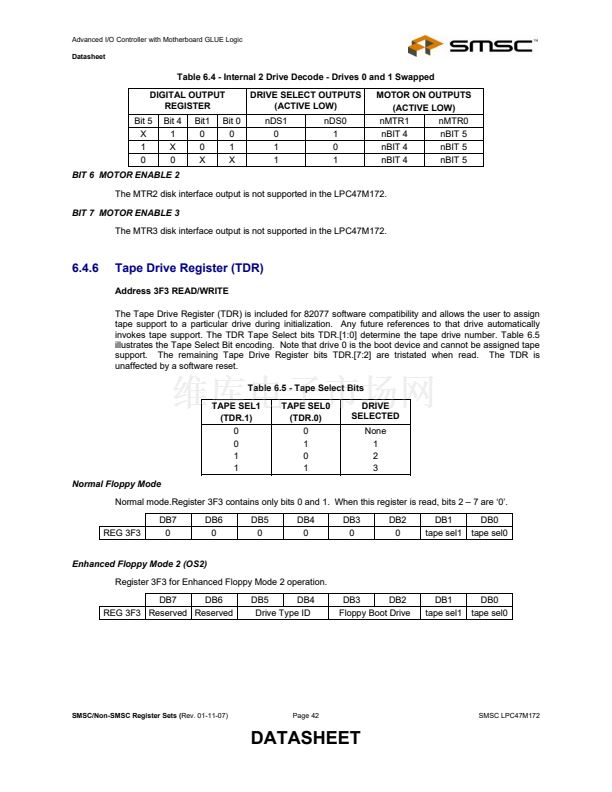

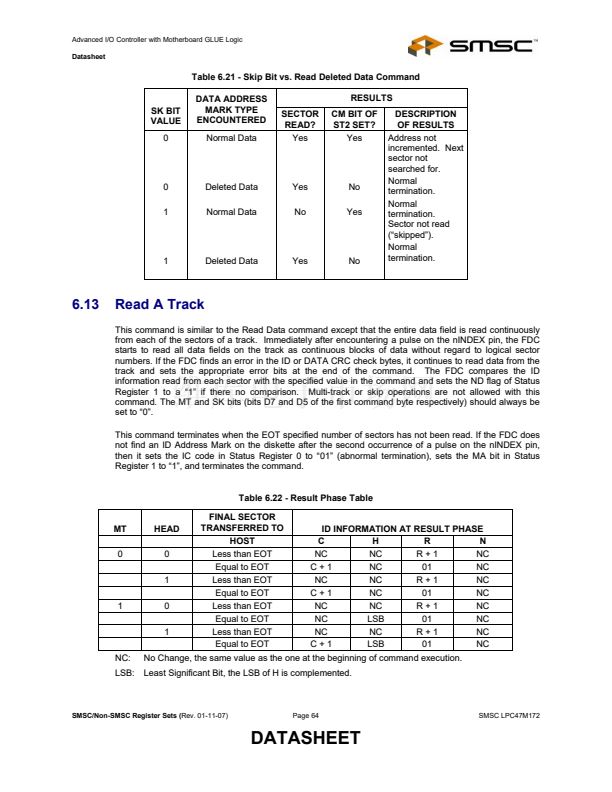

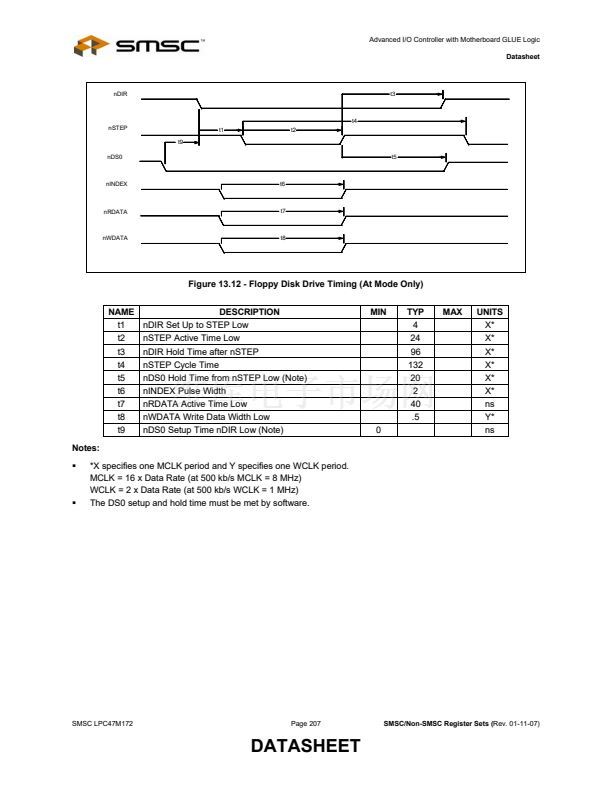

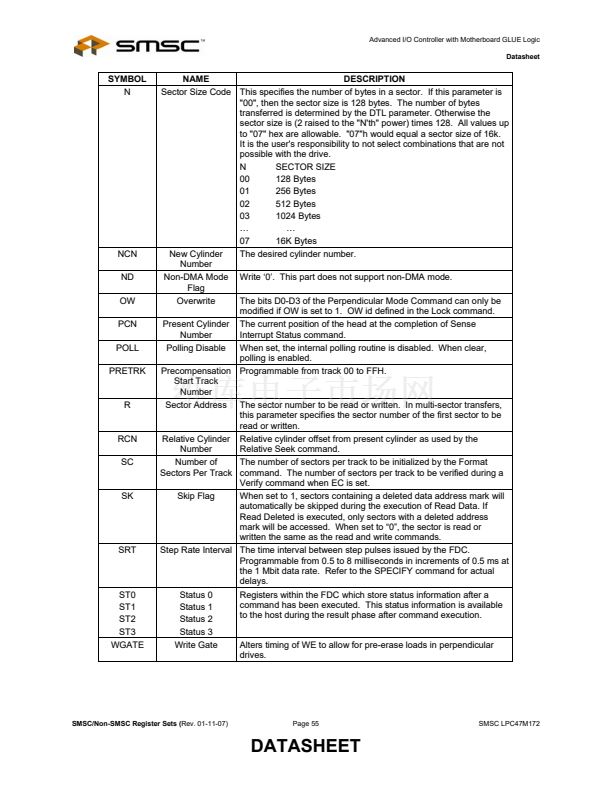

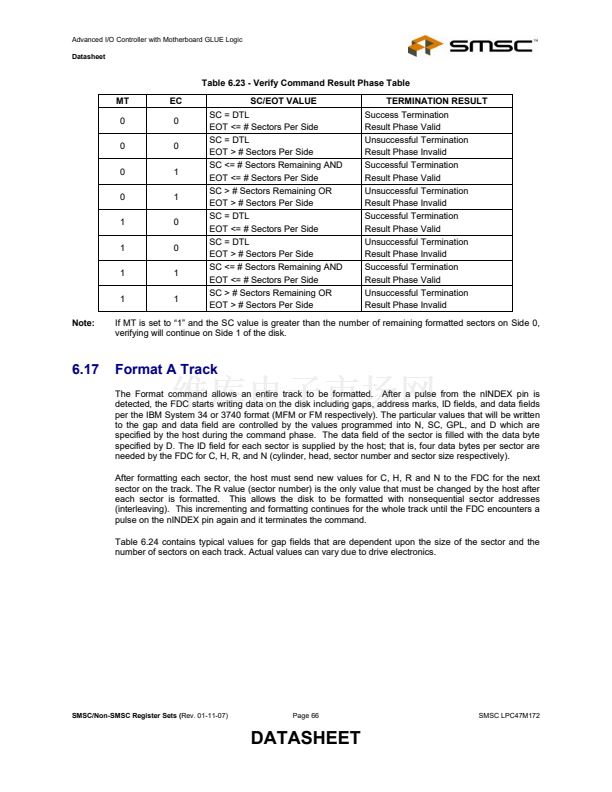

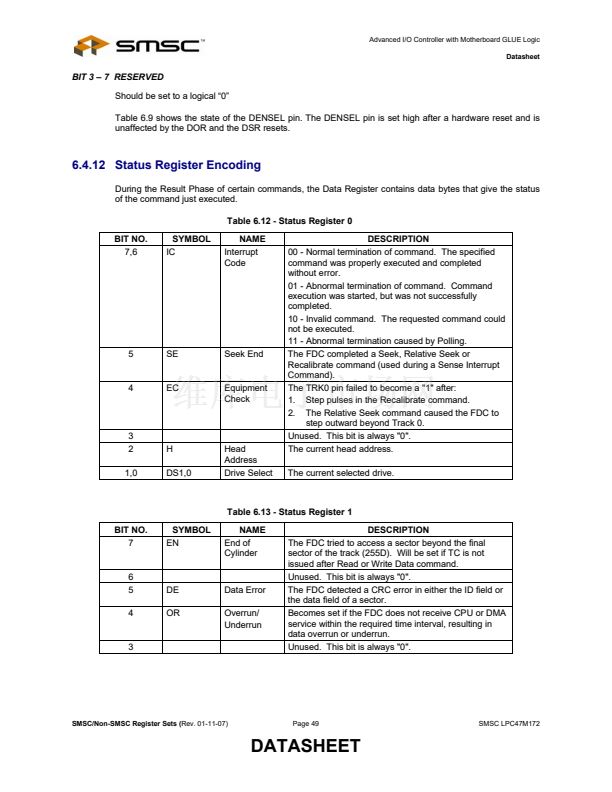

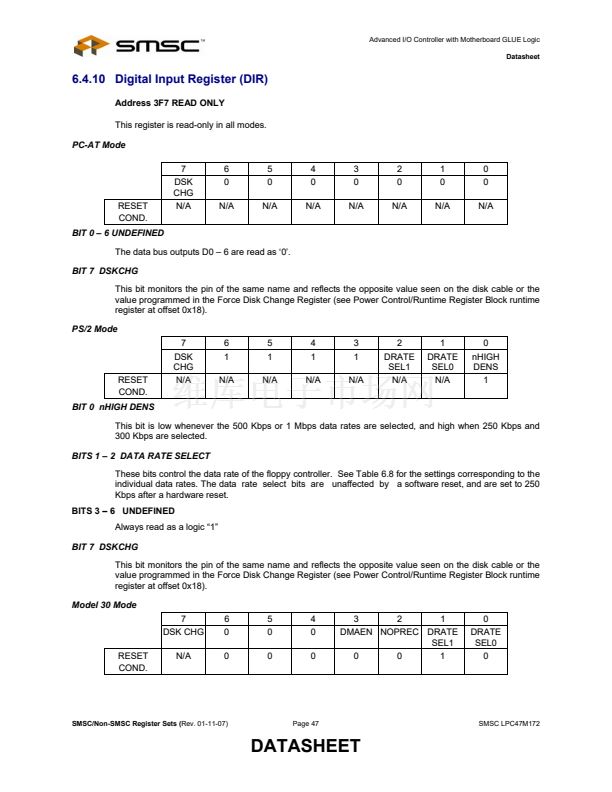

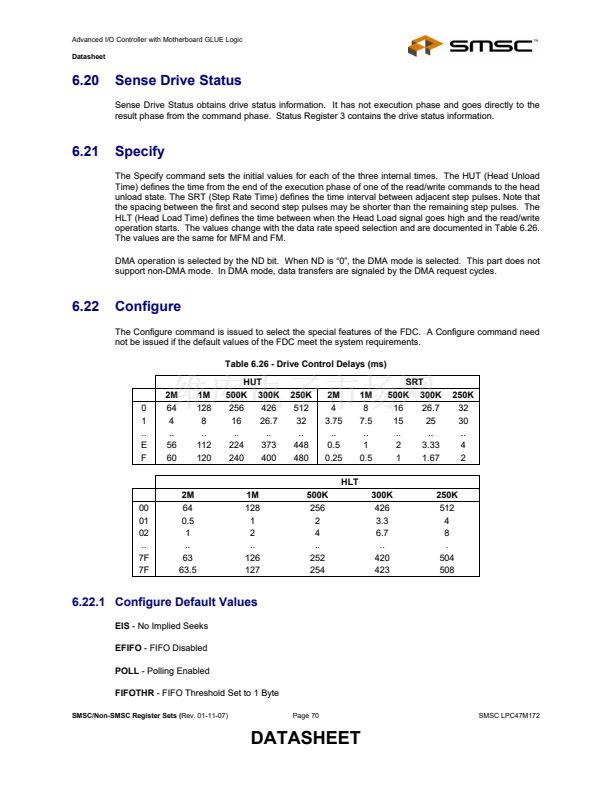

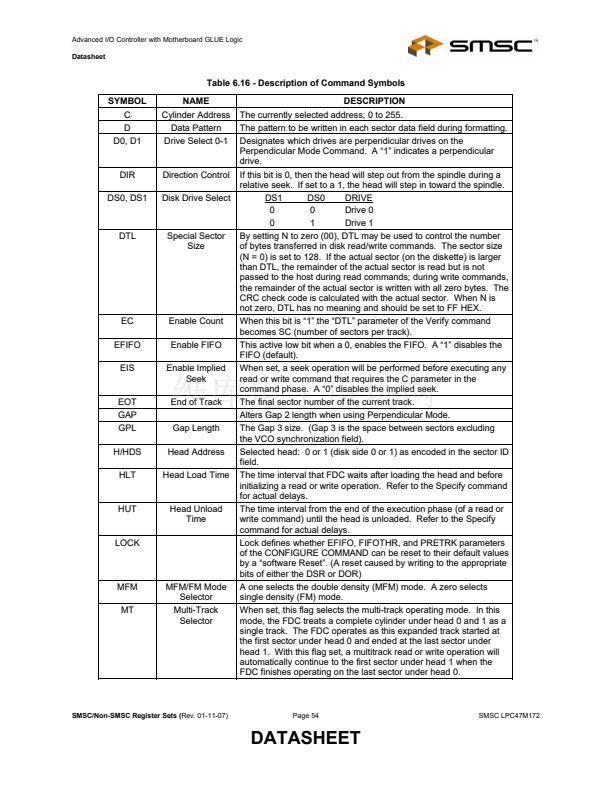

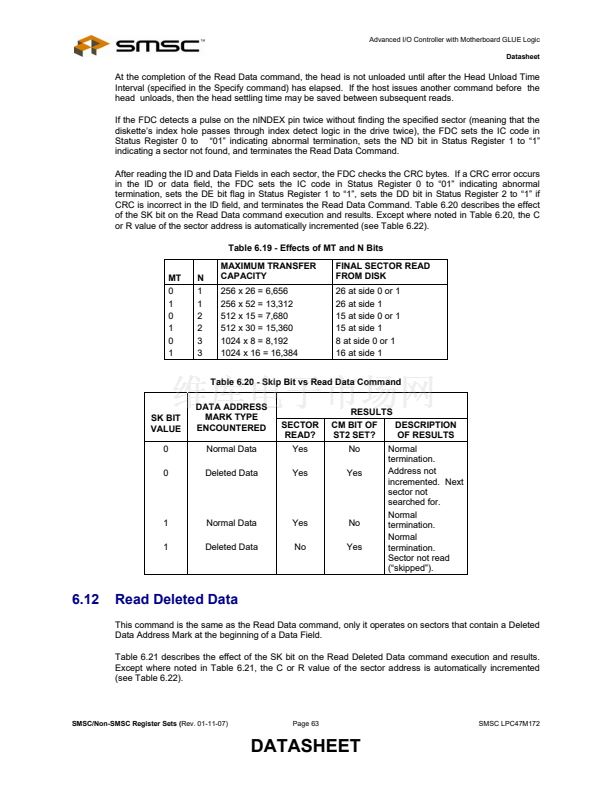

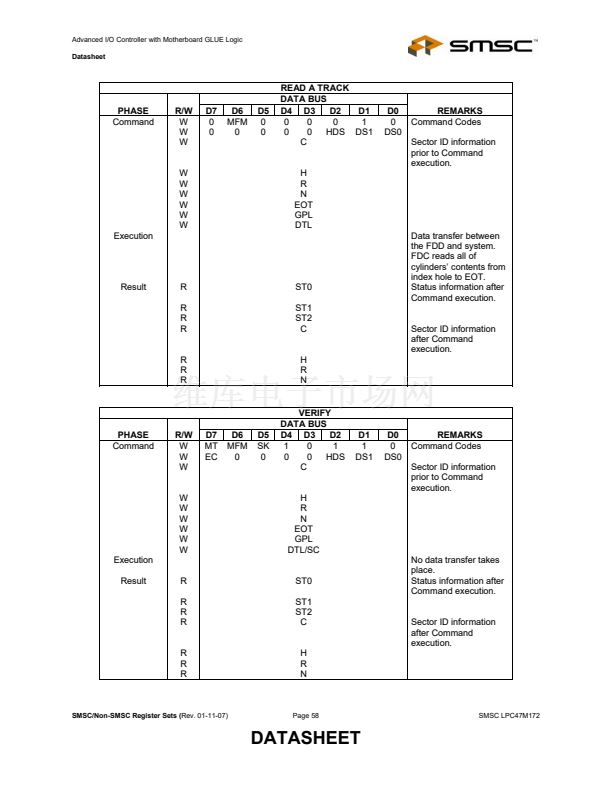

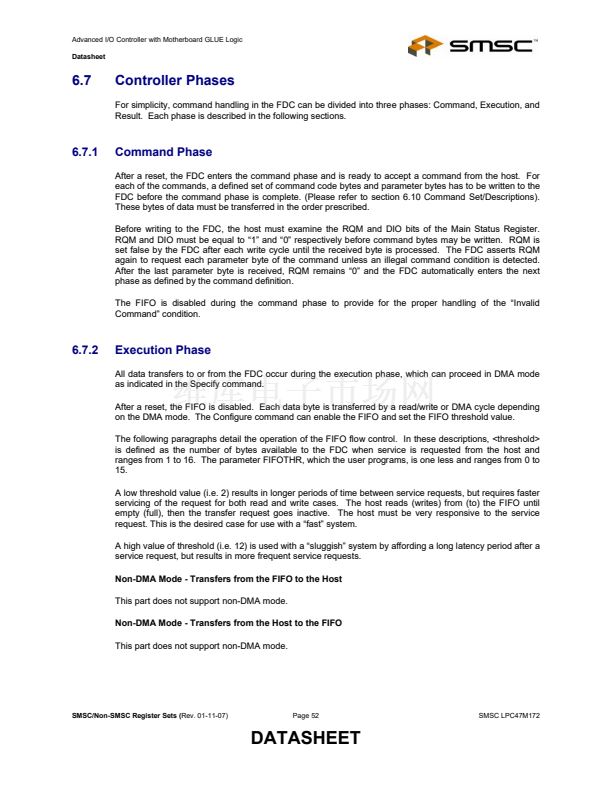

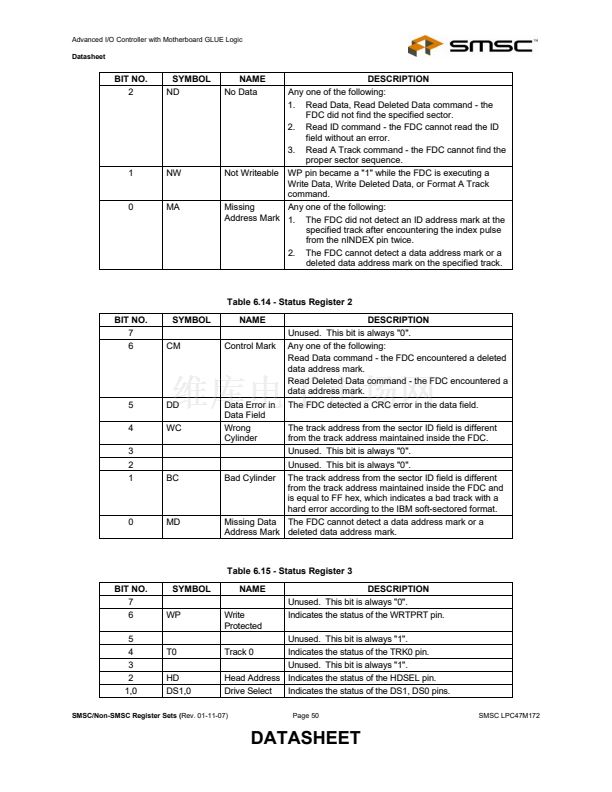

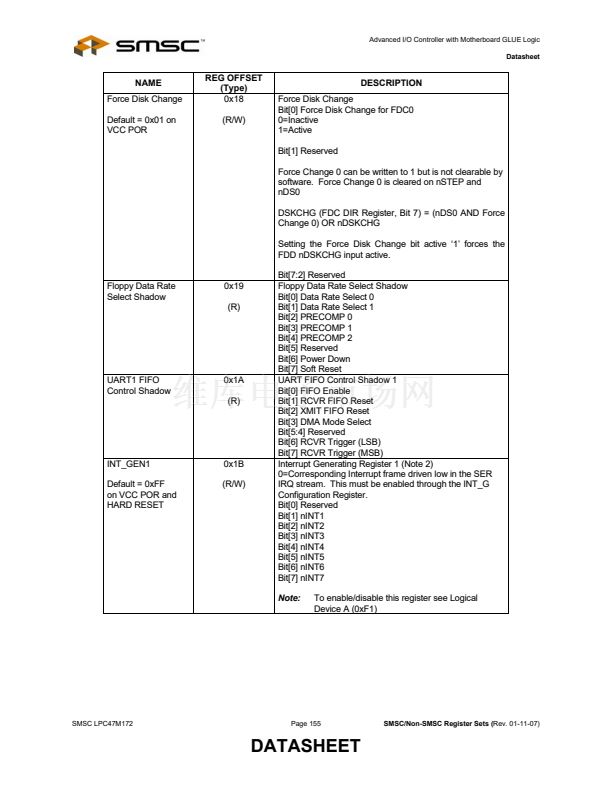

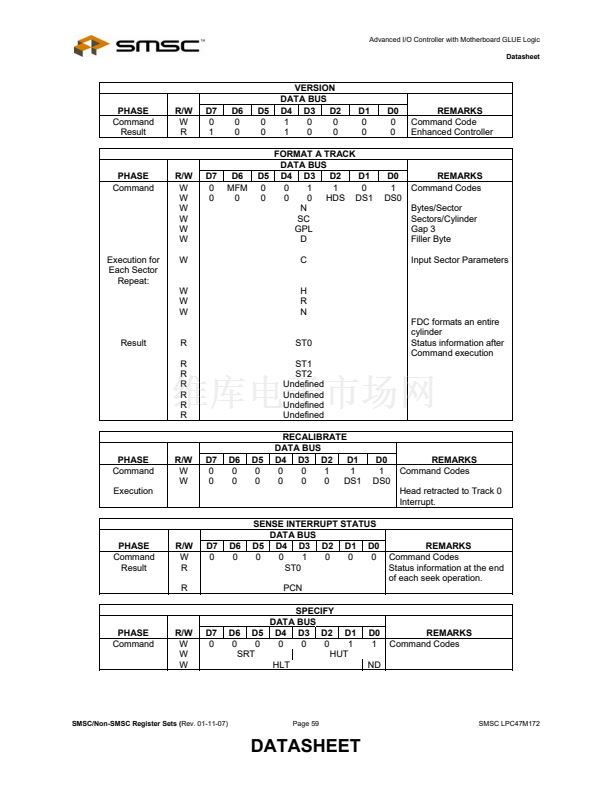

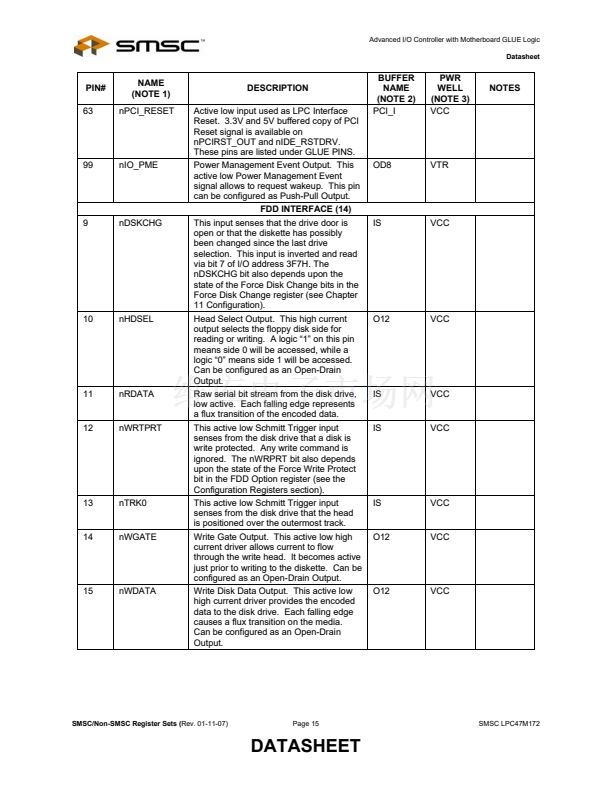

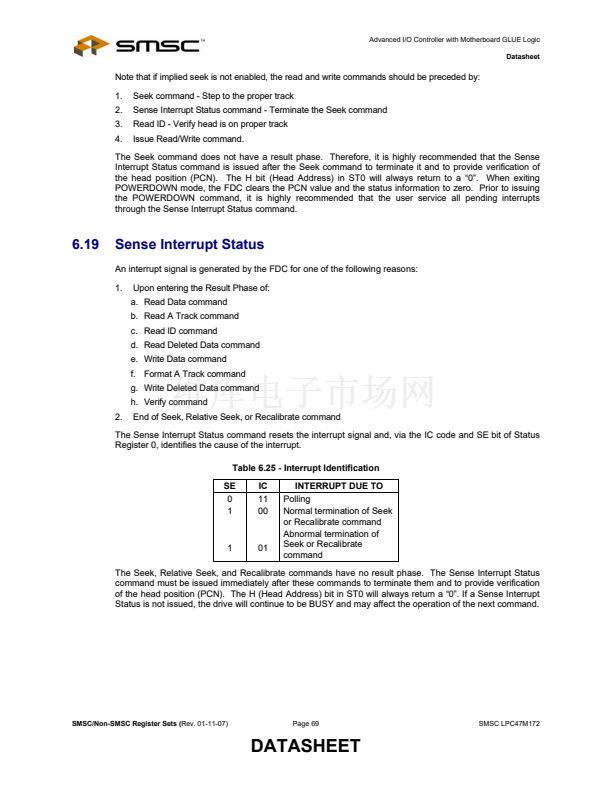

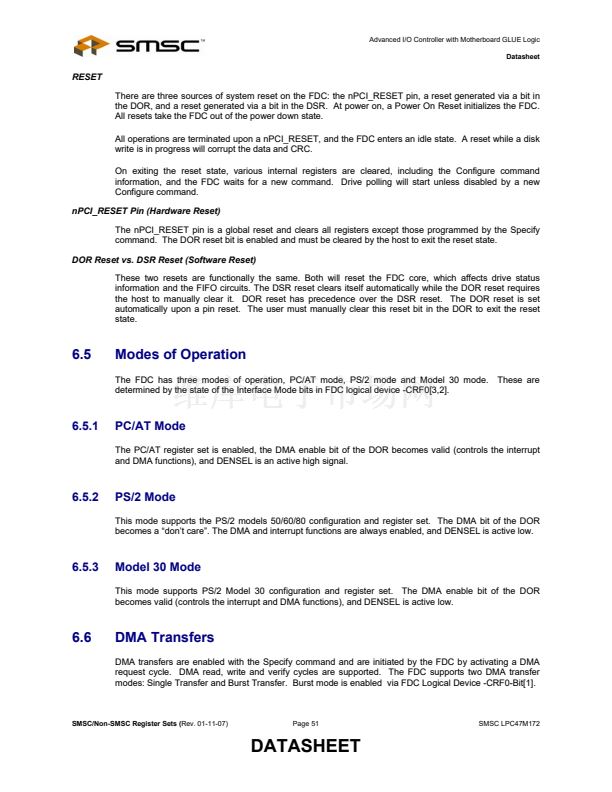

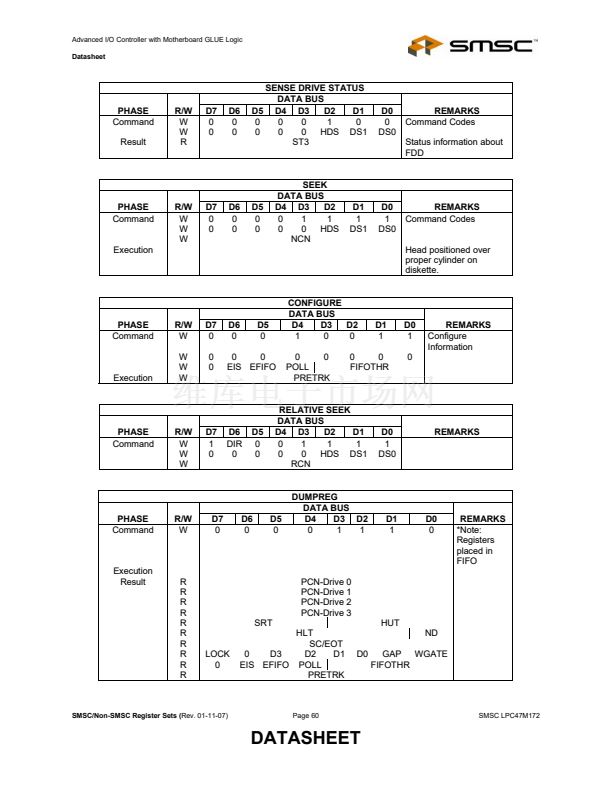

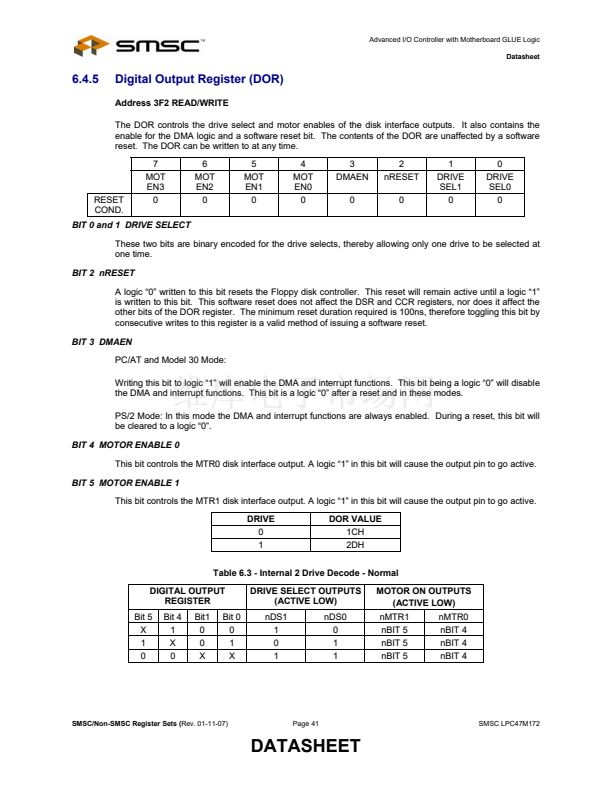

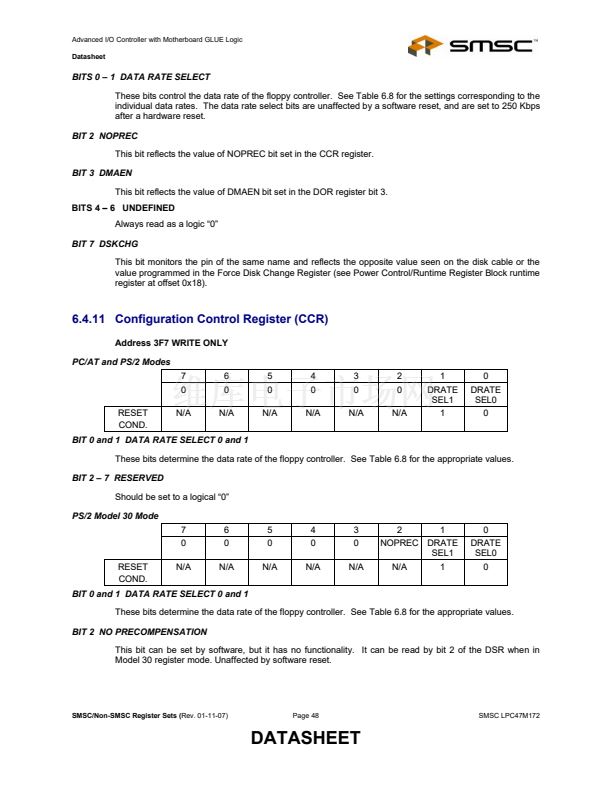

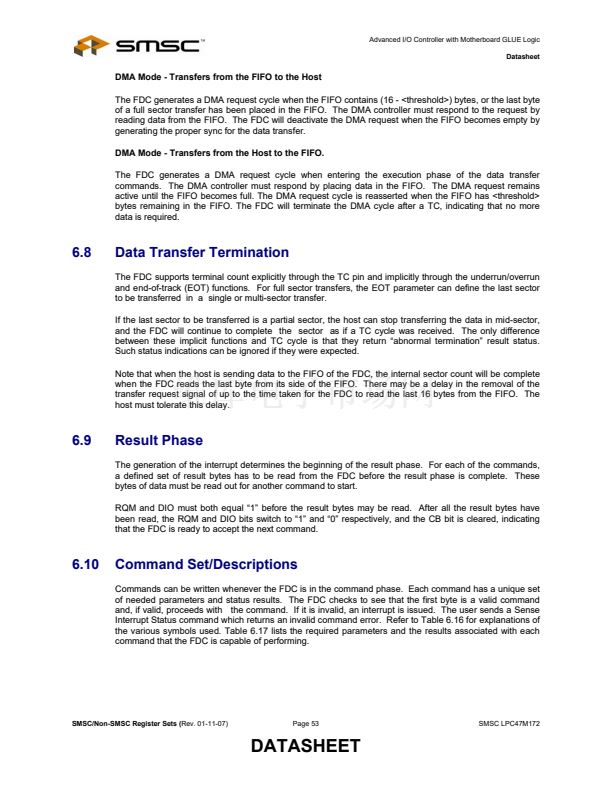

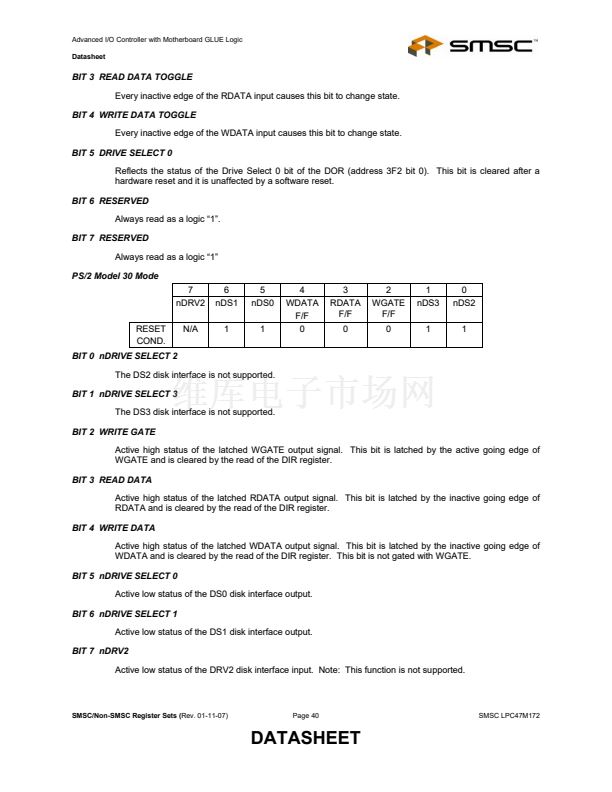

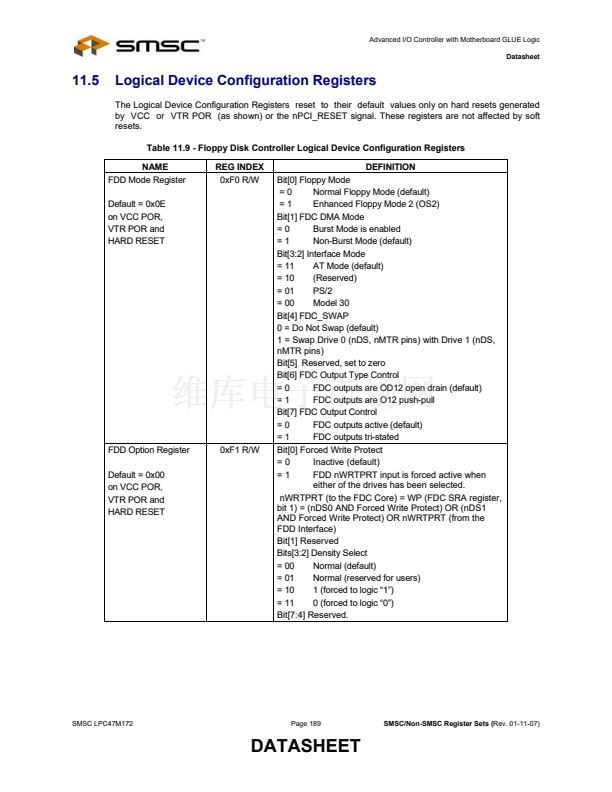

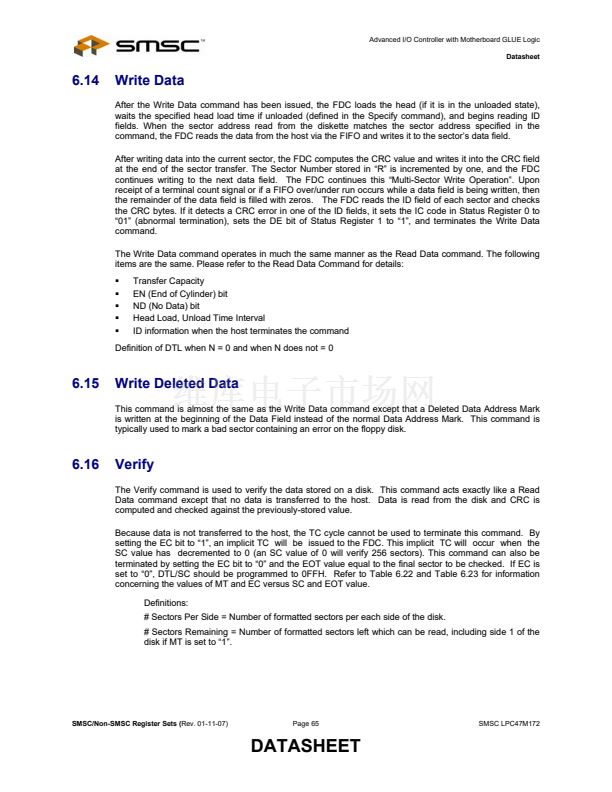

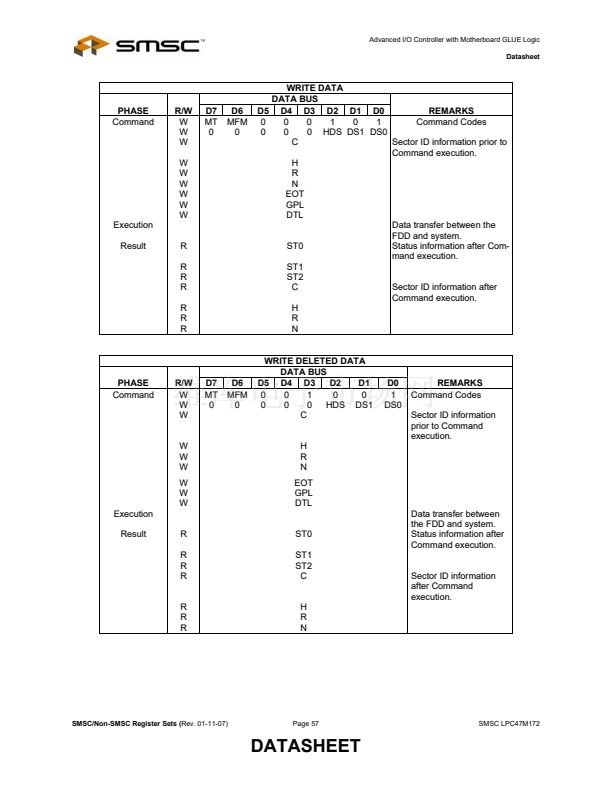

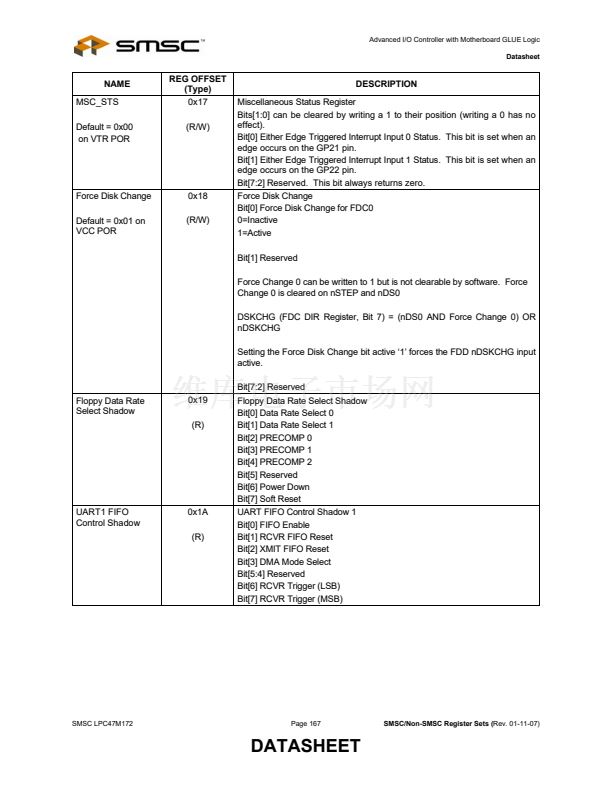

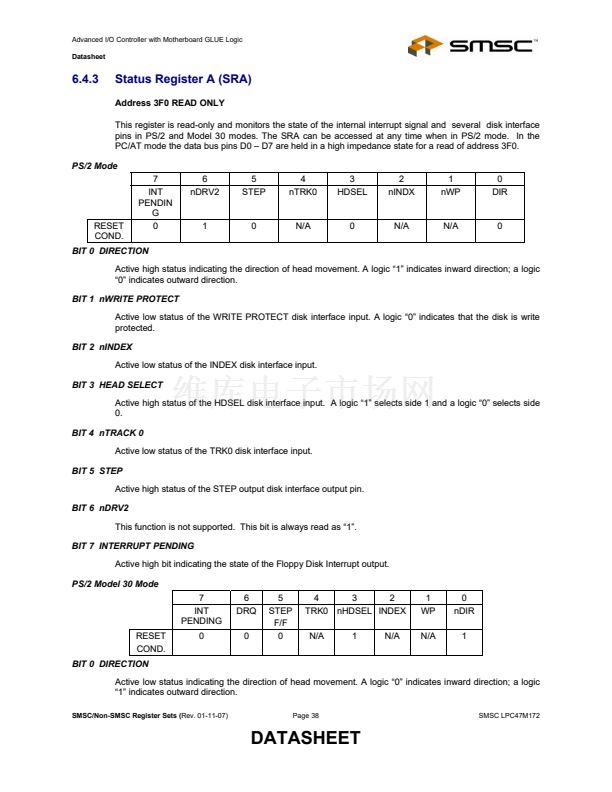

2.88MB Super I/O Floppy Disk Controller

鈭?/div>

Licensed CMOS 765B Floppy Disk Controller

鈭?/div>

Software and Register Compatible with SMSC's

Proprietary 82077AA Compatible Core

鈭?/div>

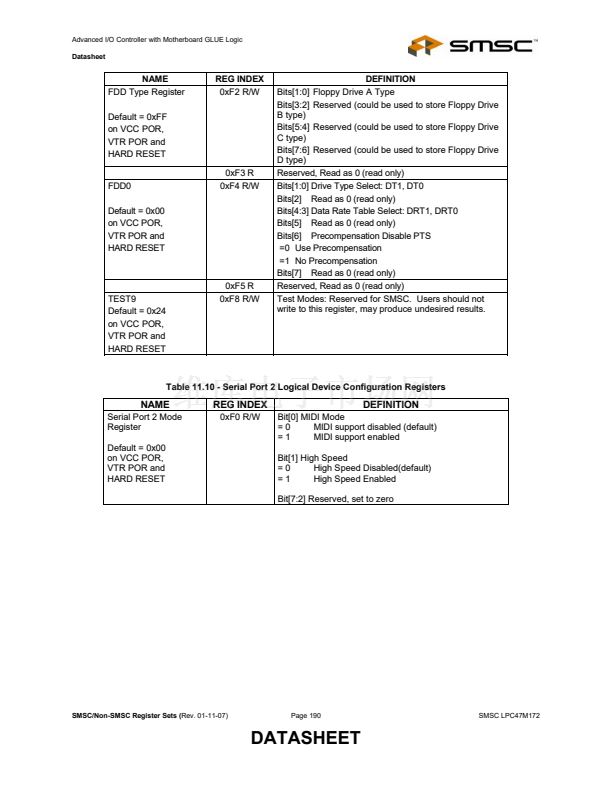

Supports One Floppy Drive

鈭?/div>

Configurable Open Drain/Push-Pull Output Drivers

鈭?/div>

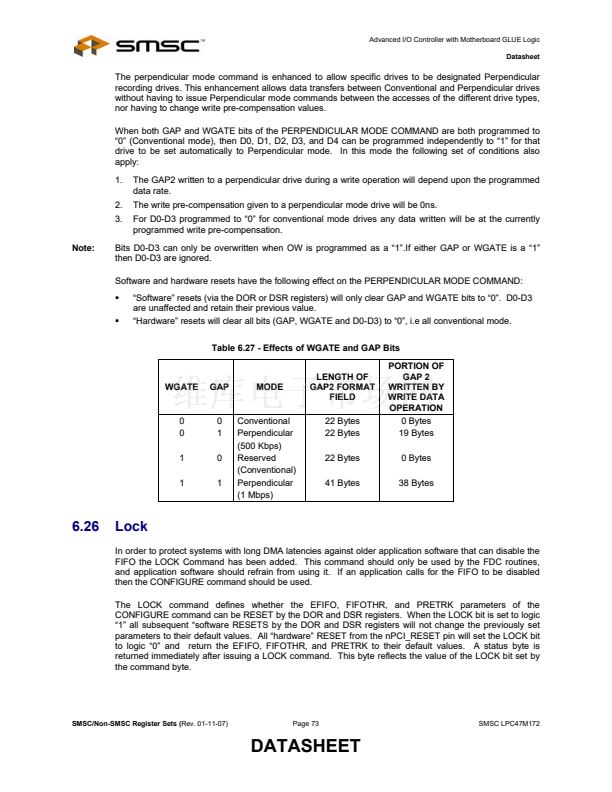

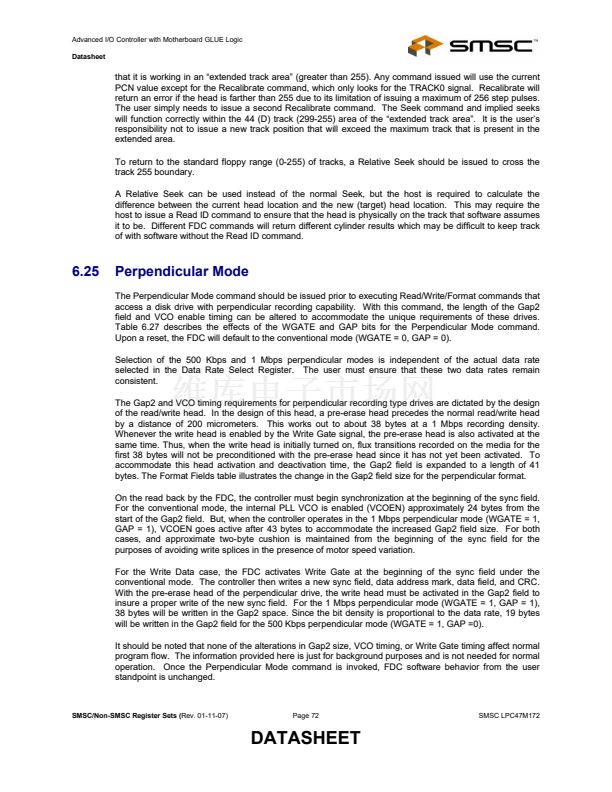

Supports Vertical Recording Format

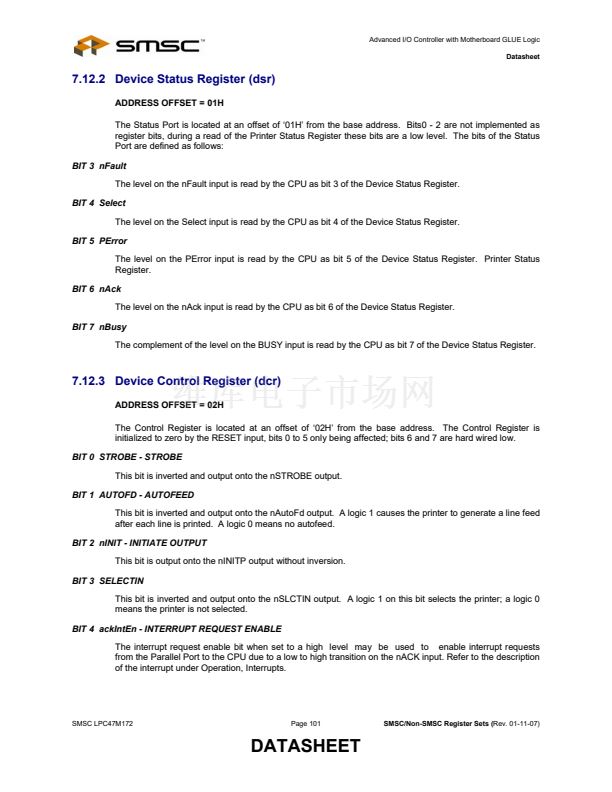

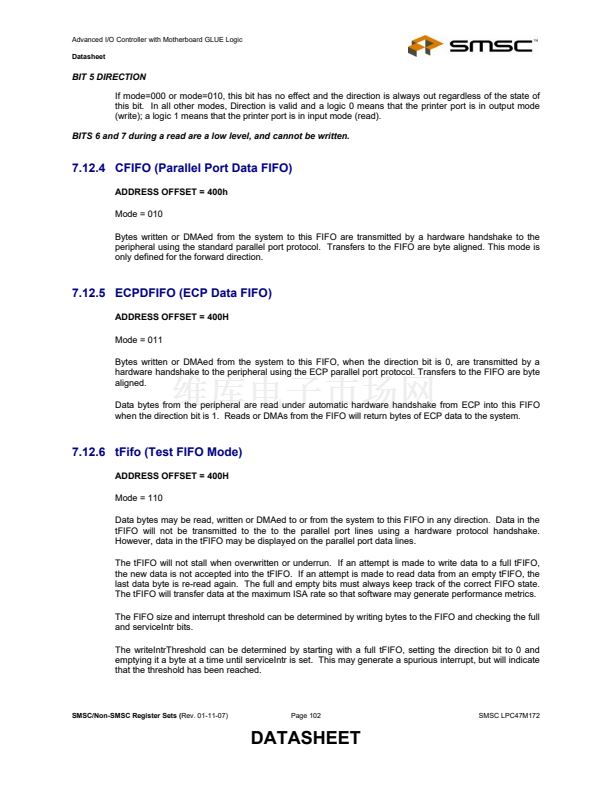

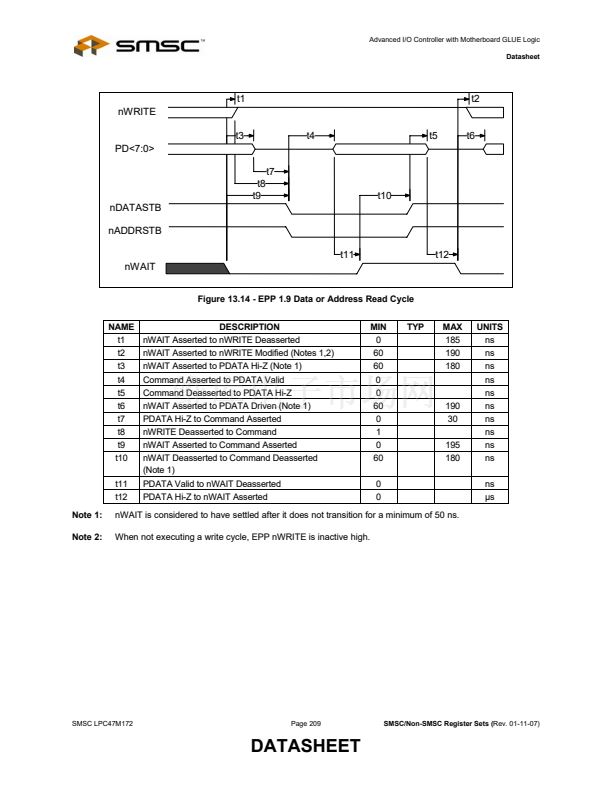

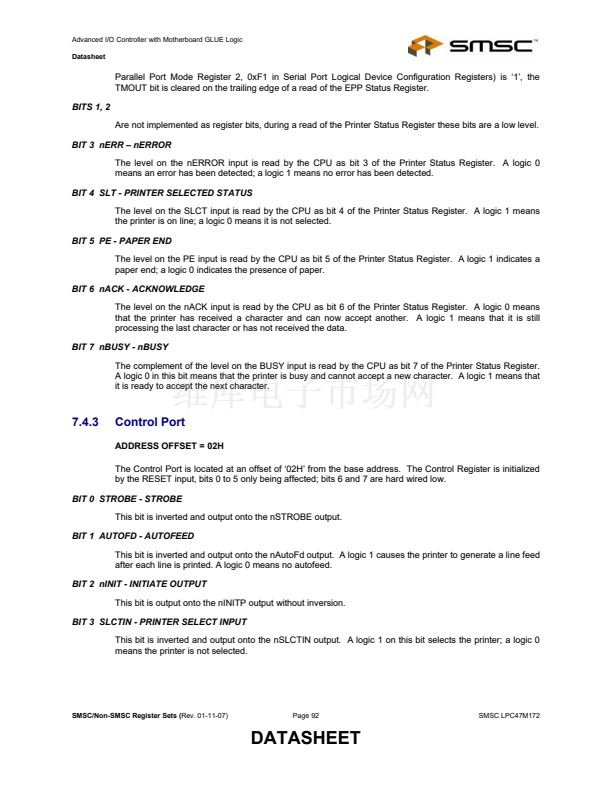

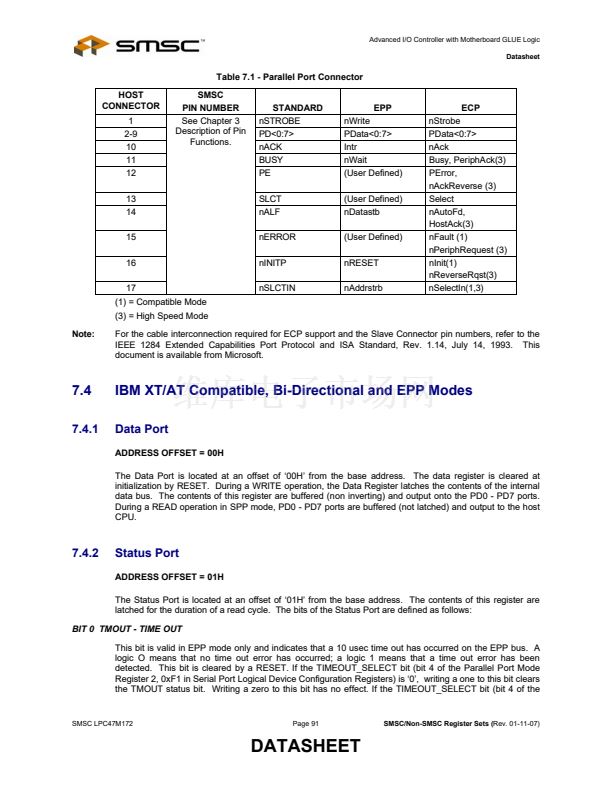

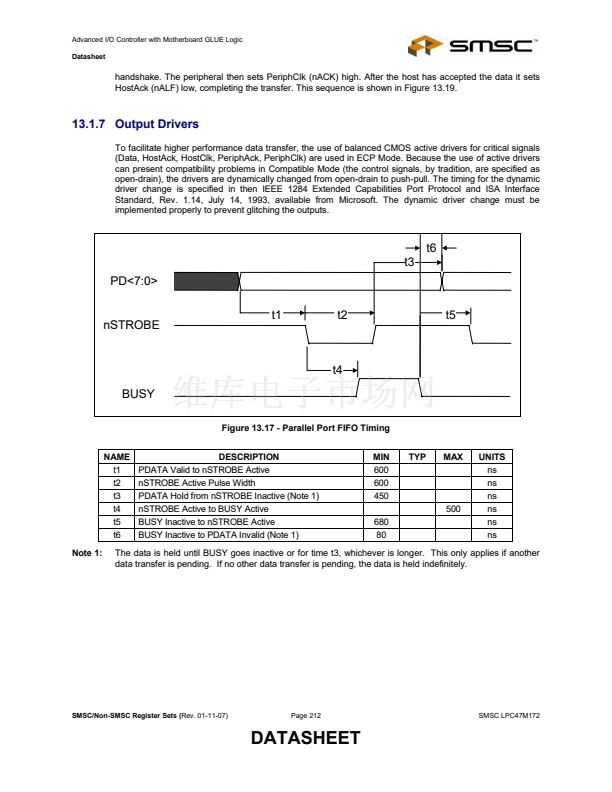

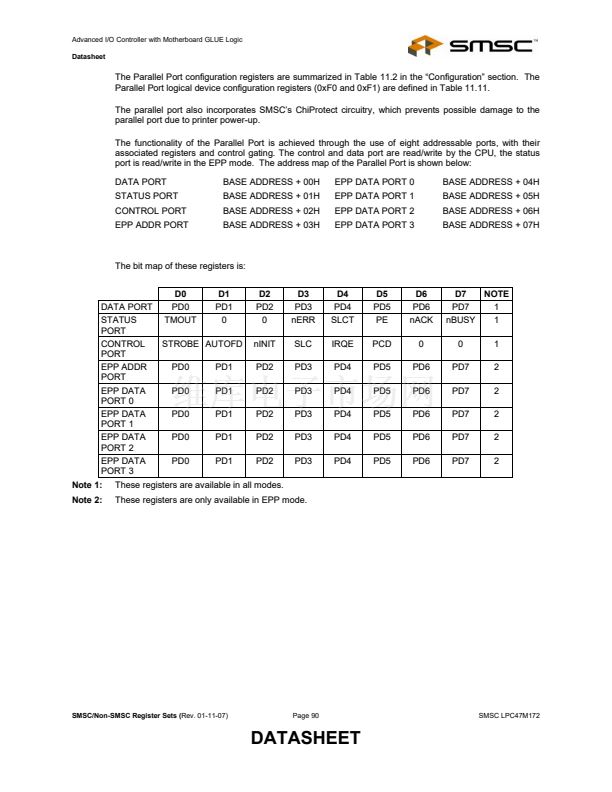

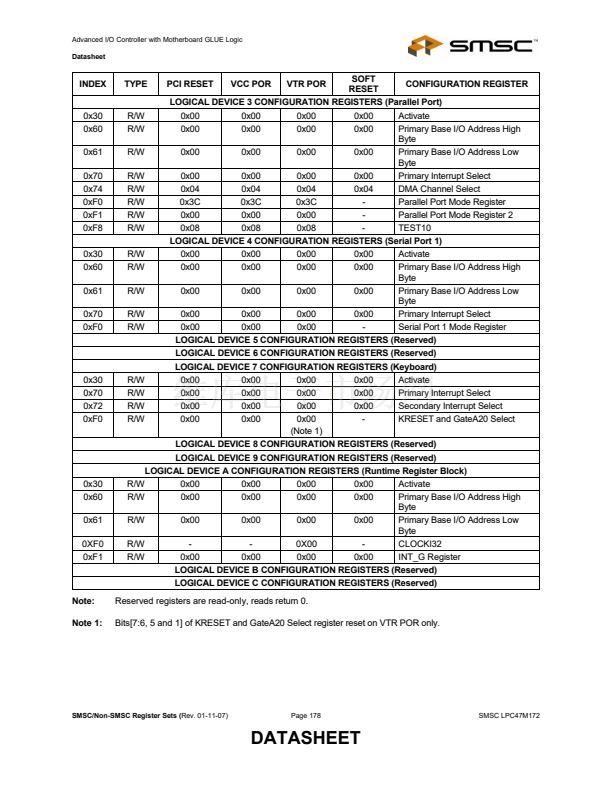

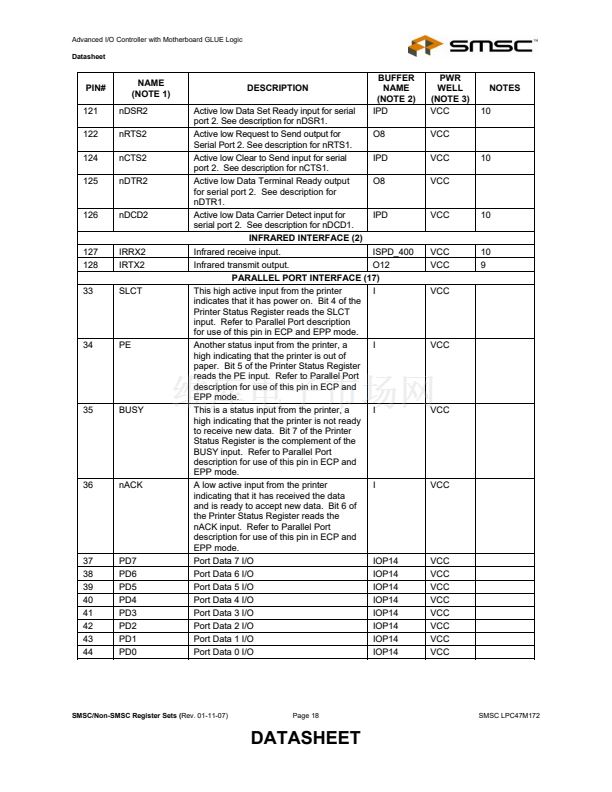

Multi-Mode Parallel Port with ChiProtect

鈭?/div>

Standard Mode IBM PC/XT PC/AT, and PS/2

Compatible Bi-directional Parallel Port

鈭?/div>

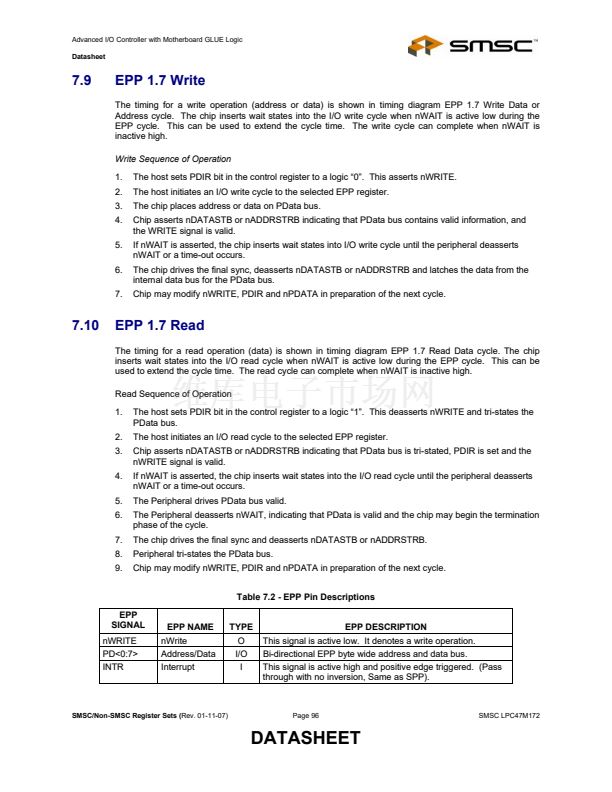

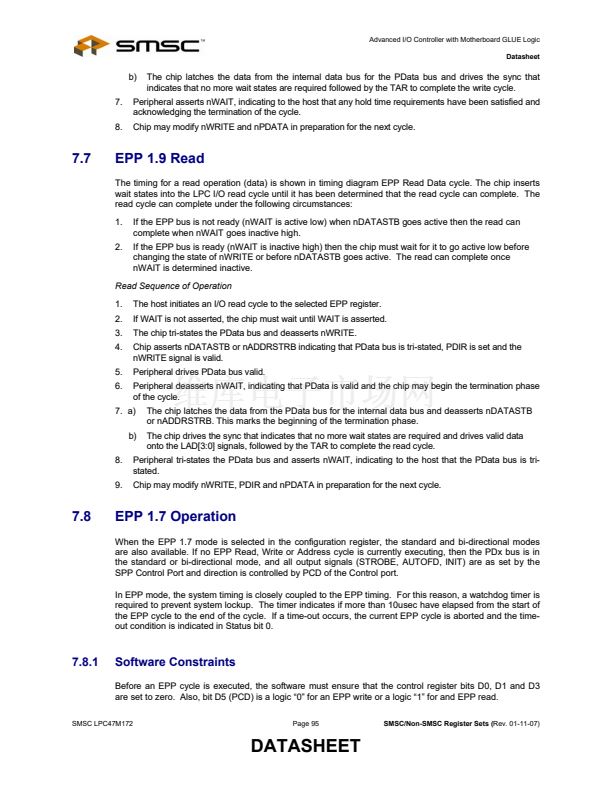

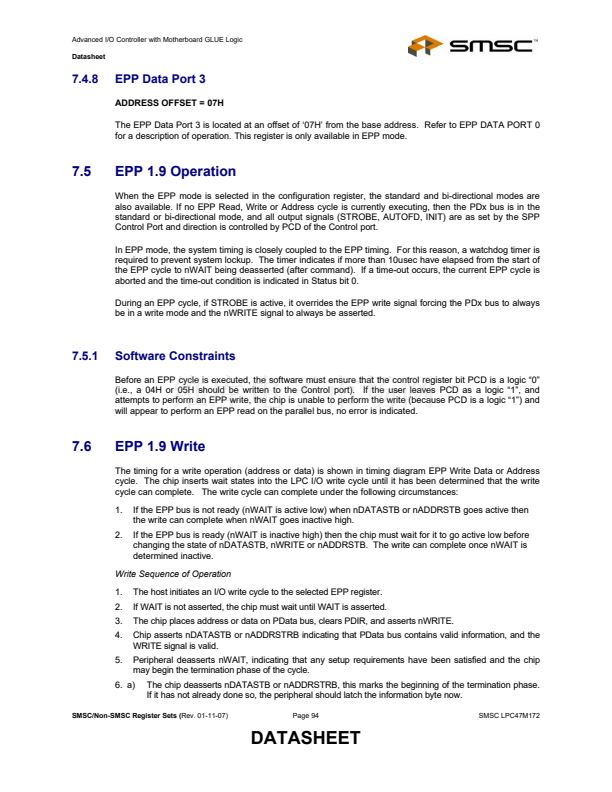

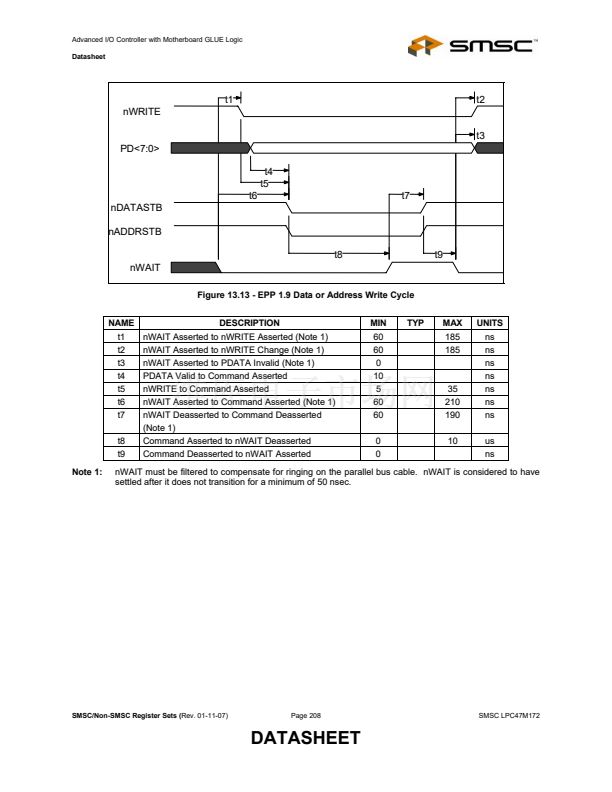

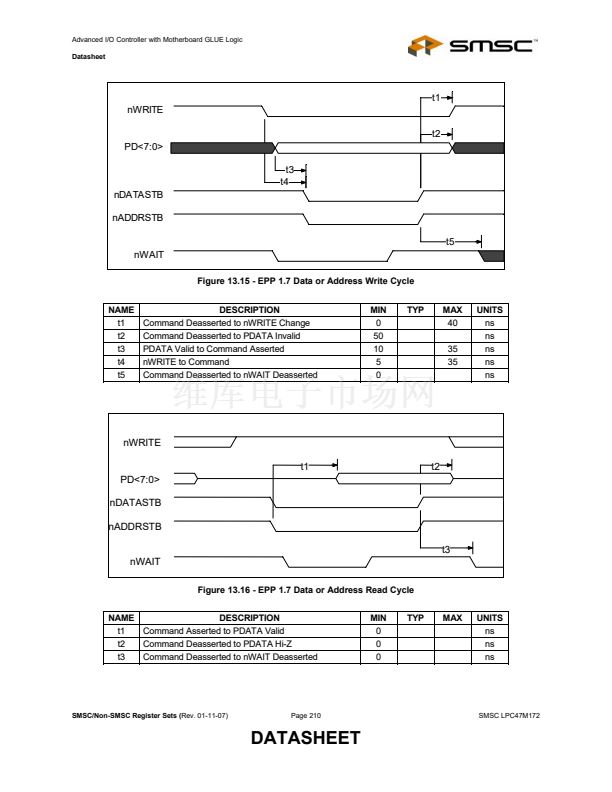

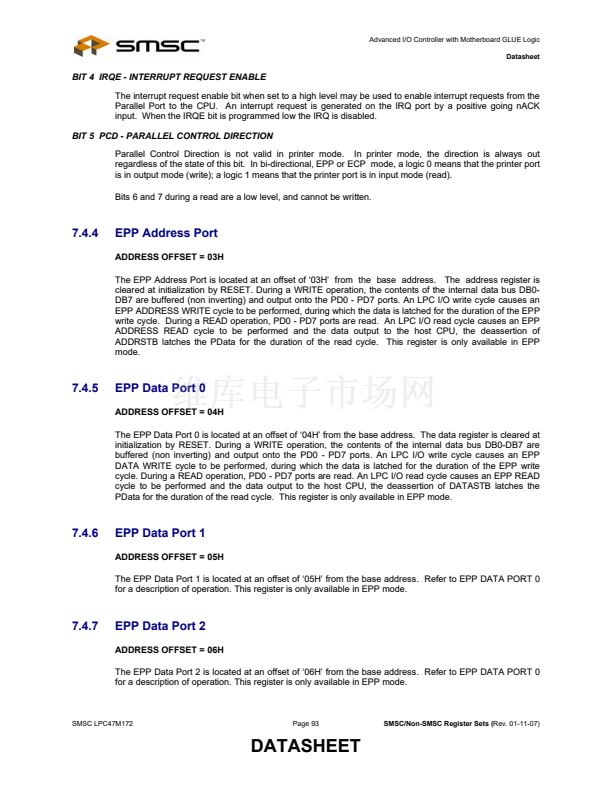

Enhanced Parallel Port (EPP) Compatible - EPP 1.7

and EPP 1.9 (IEEE 1284 Compliant)

鈭?/div>

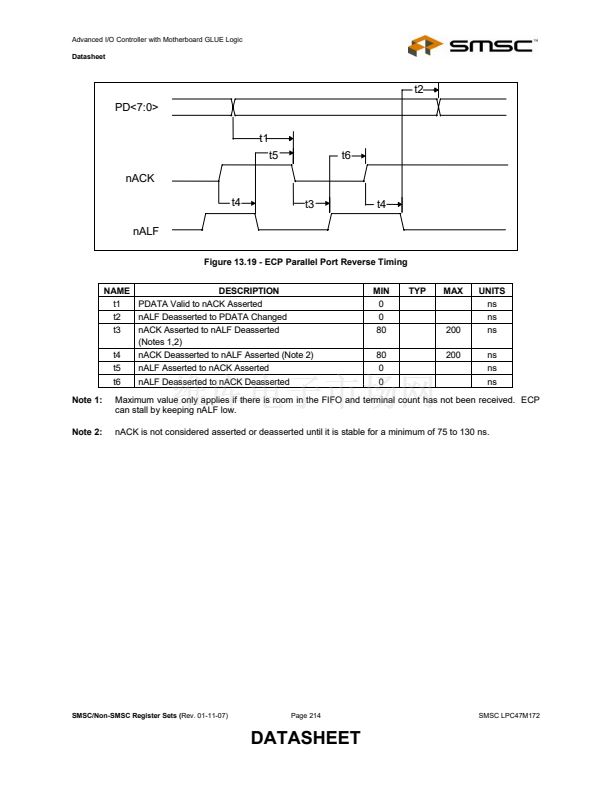

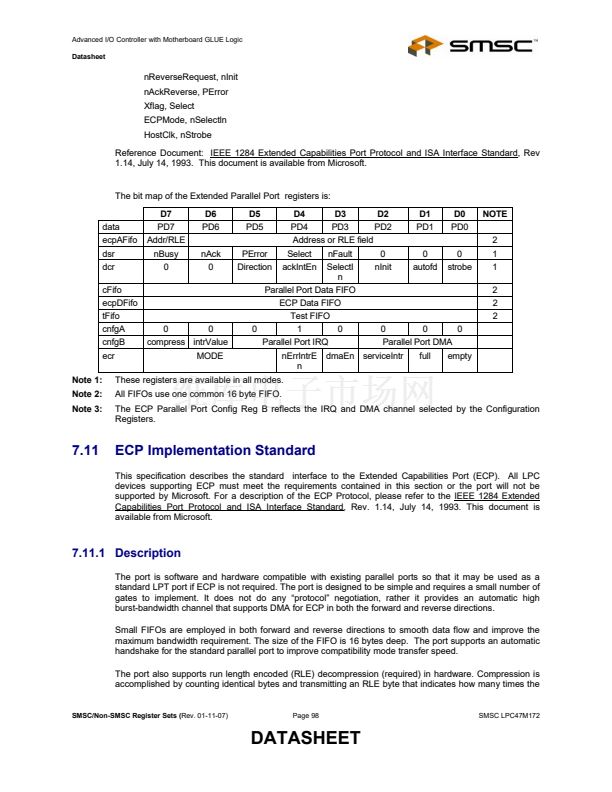

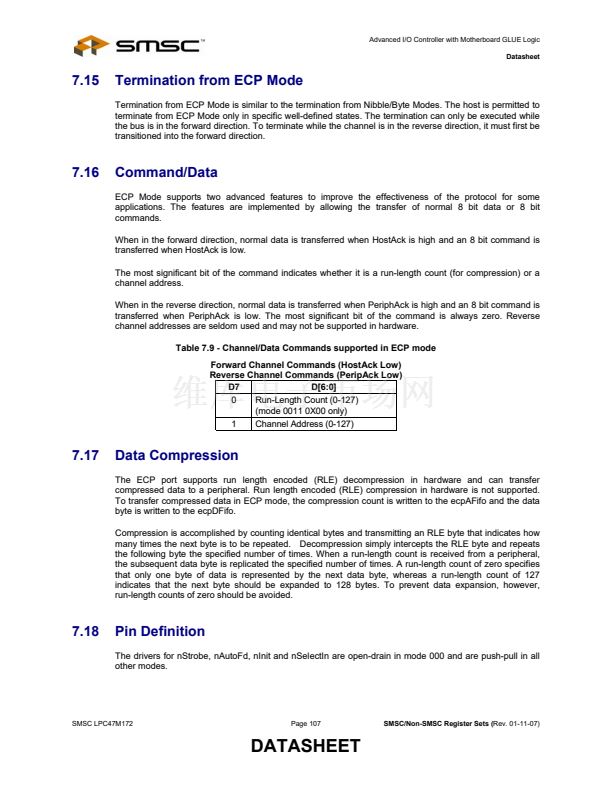

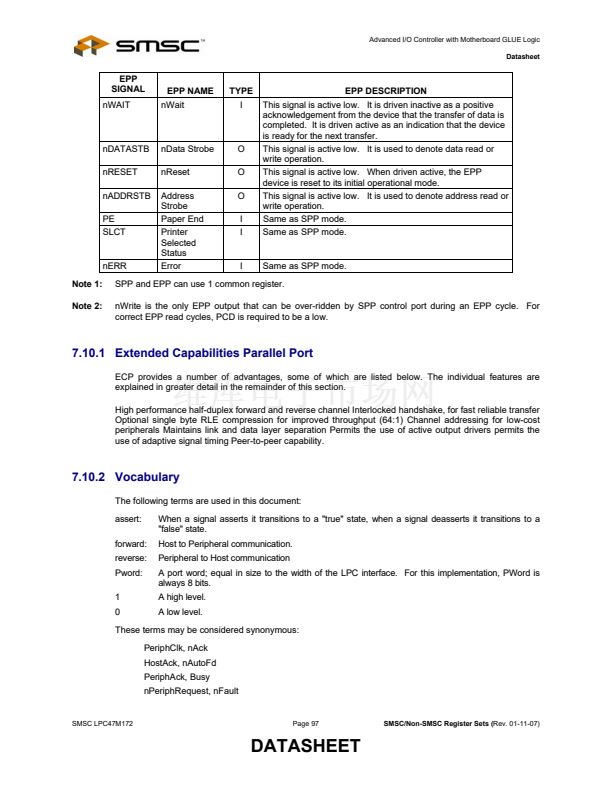

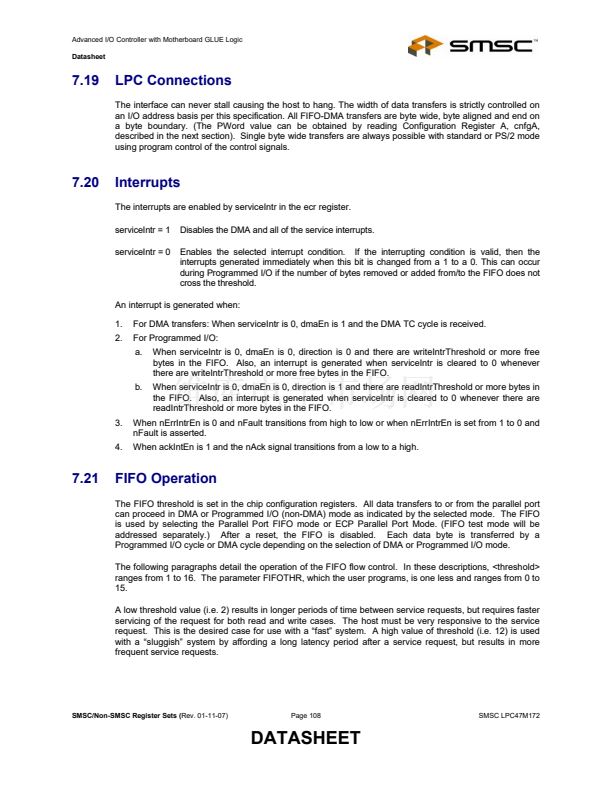

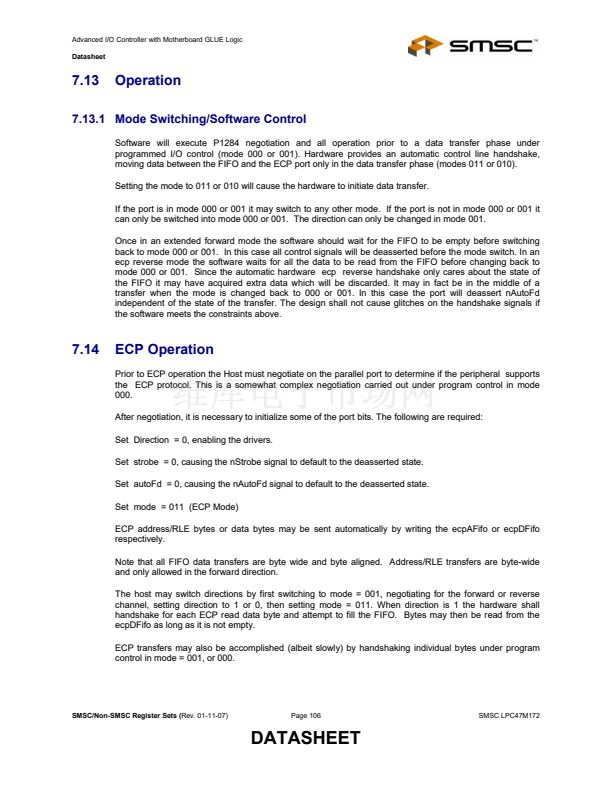

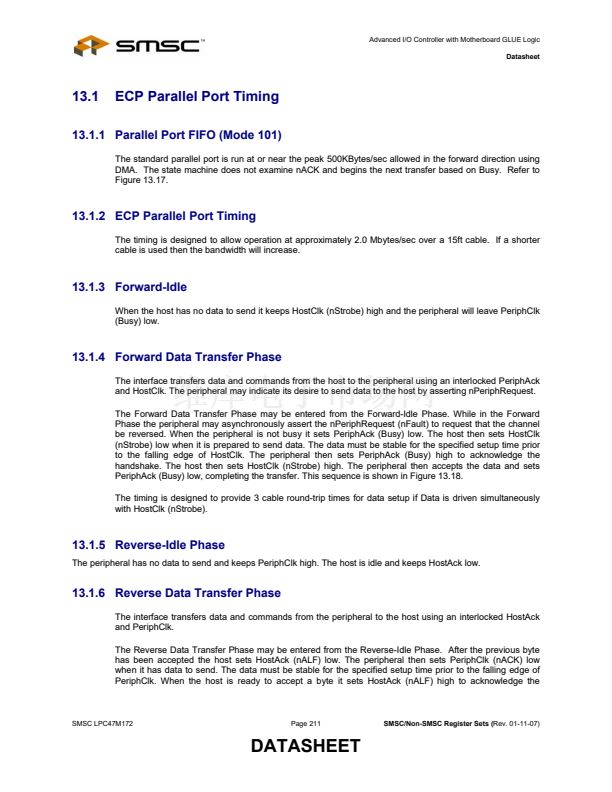

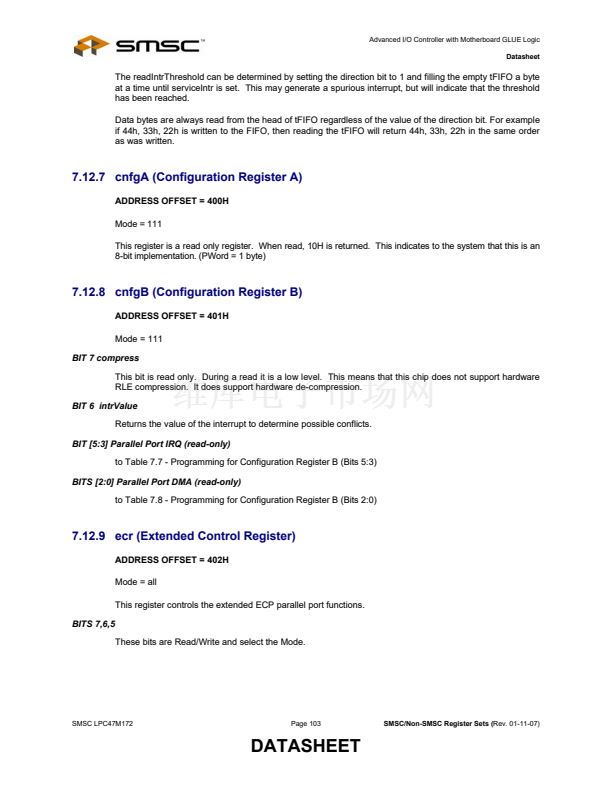

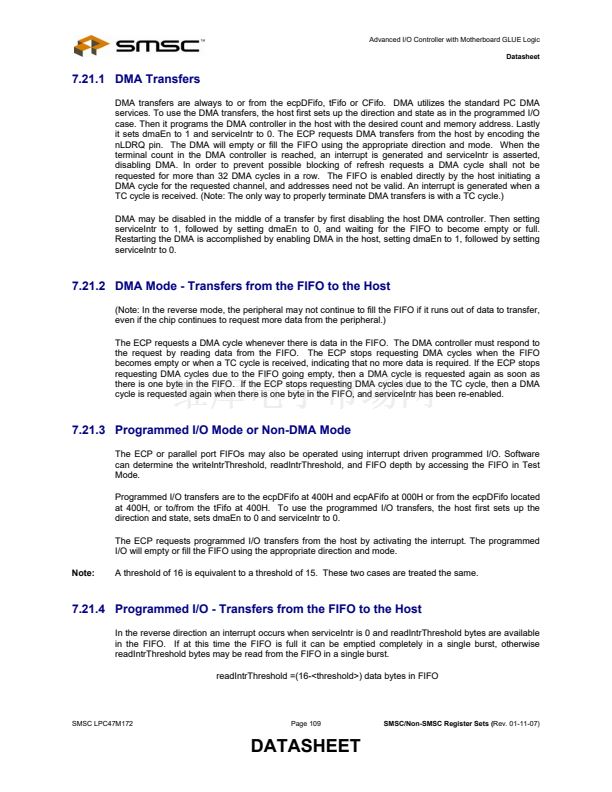

IEEE 1284 Compliant Enhanced Capabilities Port

(ECP)

鈭?/div>

ChiProtect Circuitry for Protection

鈭?/div>

960 Address, Up to 15 IRQ and Three DMA Options

16-Byte Data FIFO

鈭?/div>

100% IBM Compatibility

鈭?/div>

Detects All Overrun and Underrun Conditions

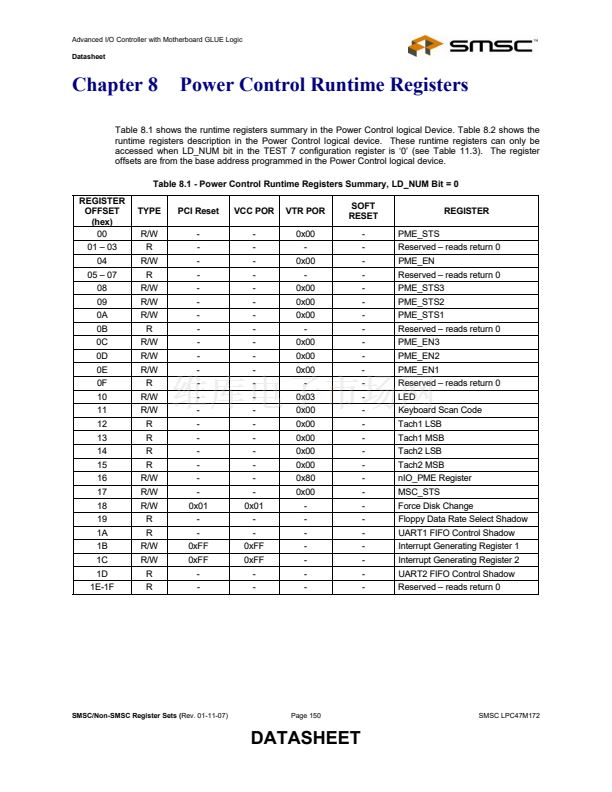

Sophisticated Power Control Circuitry (PCC)

Including Multiple Powerdown Modes for

Reduced Power Consumption

鈭?/div>

DMA Enable Logic

鈭?/div>

Data Rate and Drive Control Registers

480 Address, Up to Eight IRQ and Three DMA

Options

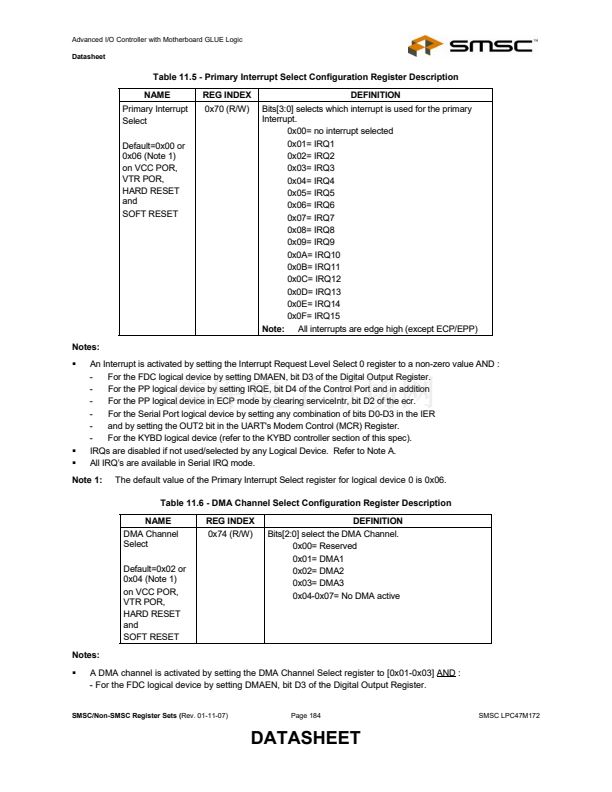

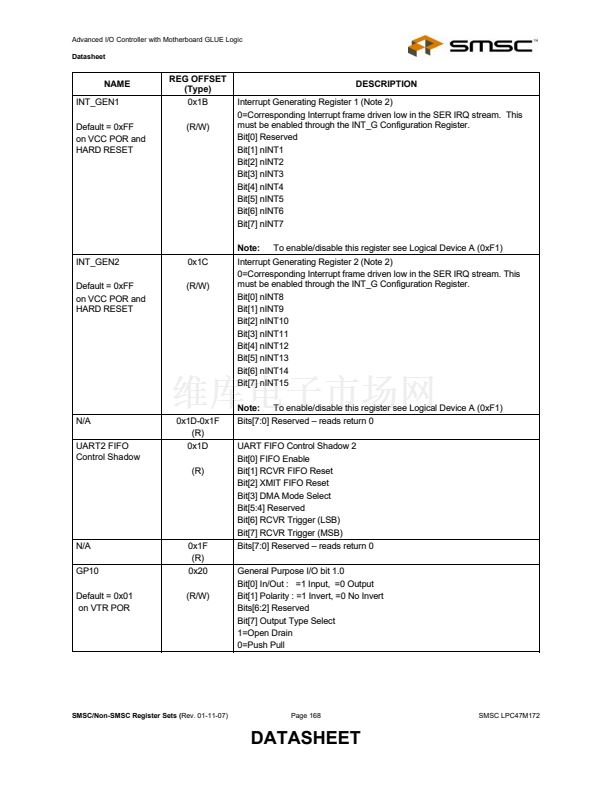

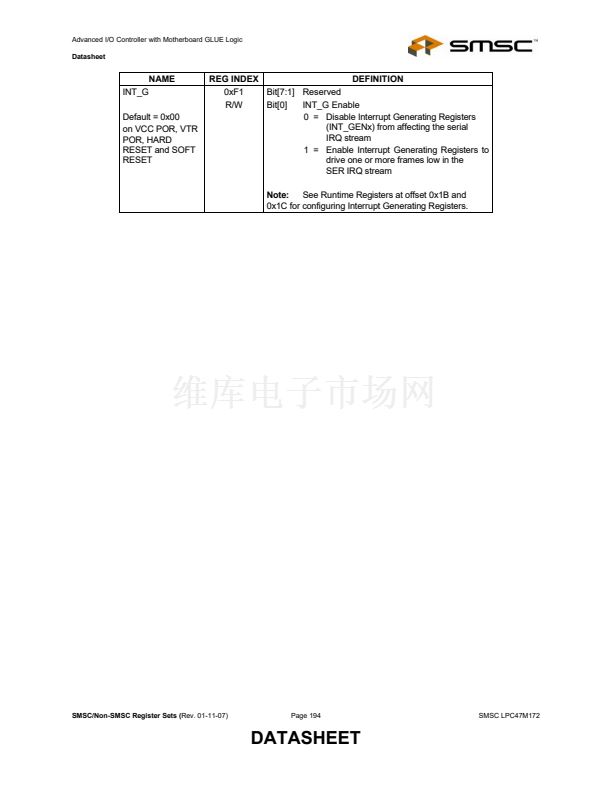

Interrupt Generating Registers

鈭?/div>

Registers Generate IRQ1 鈥?IRQ15 on Serial IRQ

Interface.

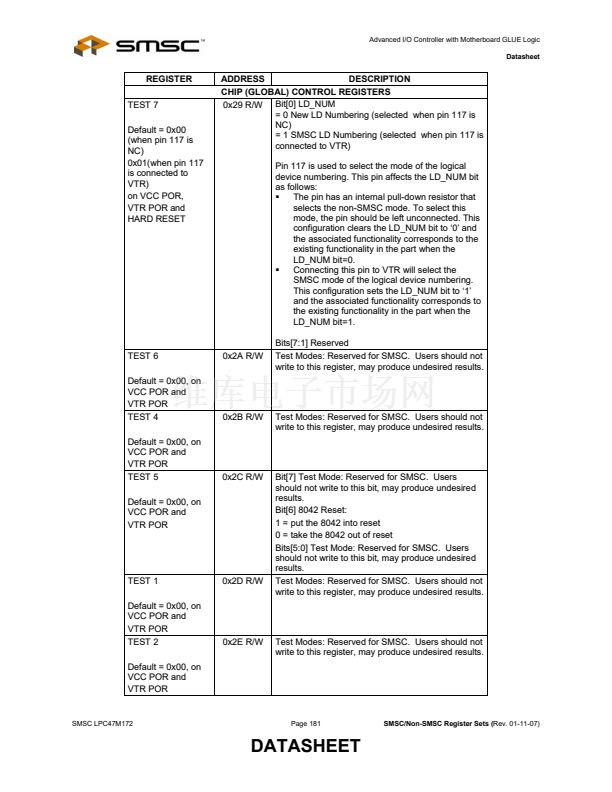

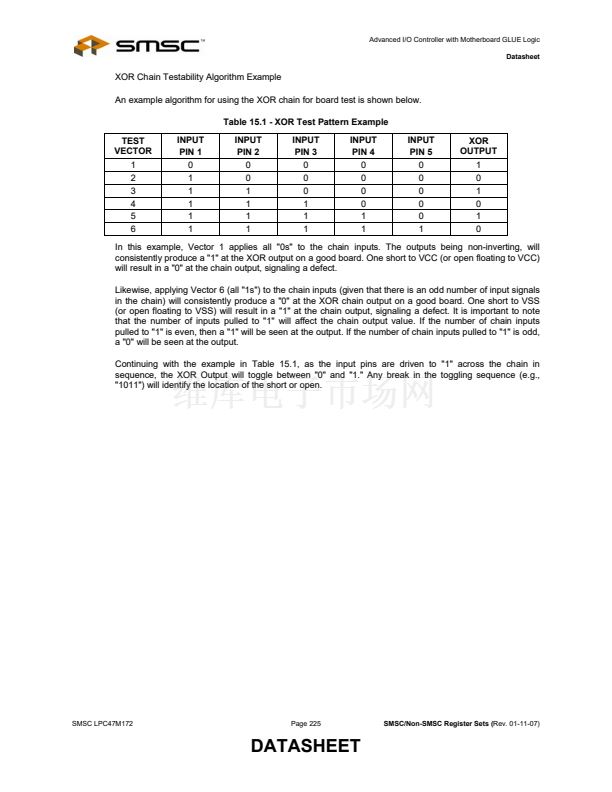

XOR-Chain Board Test

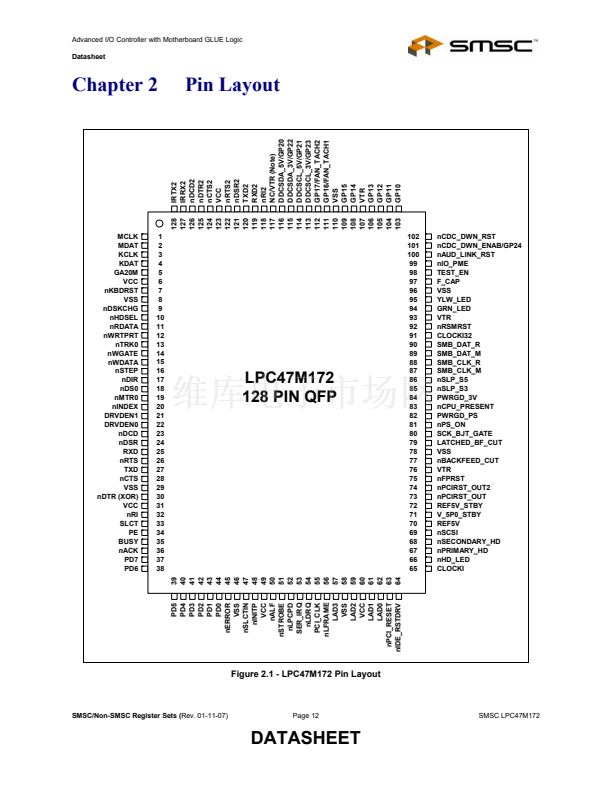

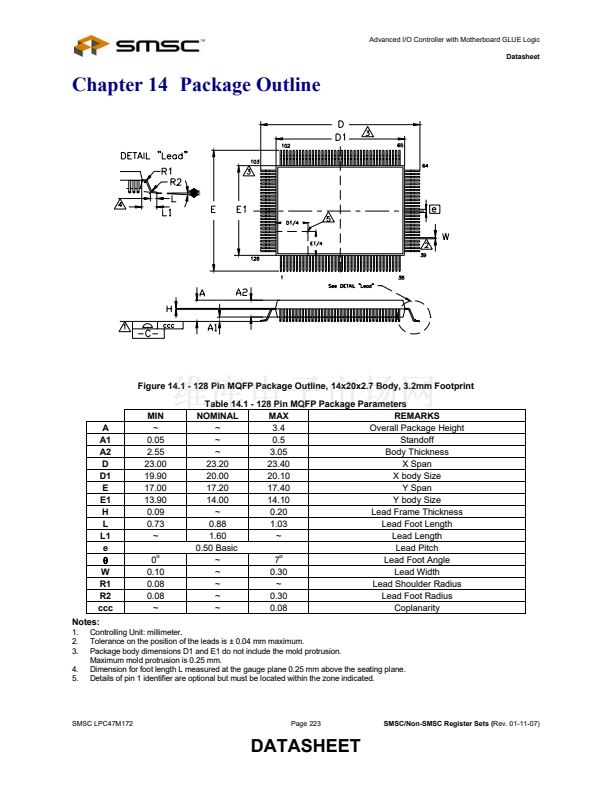

128 Pin MQFP Lead-free RoHS Compliant

Package, 3.2 mm Footprint

SMSC LPC47M172

SMSC/Non-SMSC Register Sets (Rev.

01-11-07)

DATASHEET
