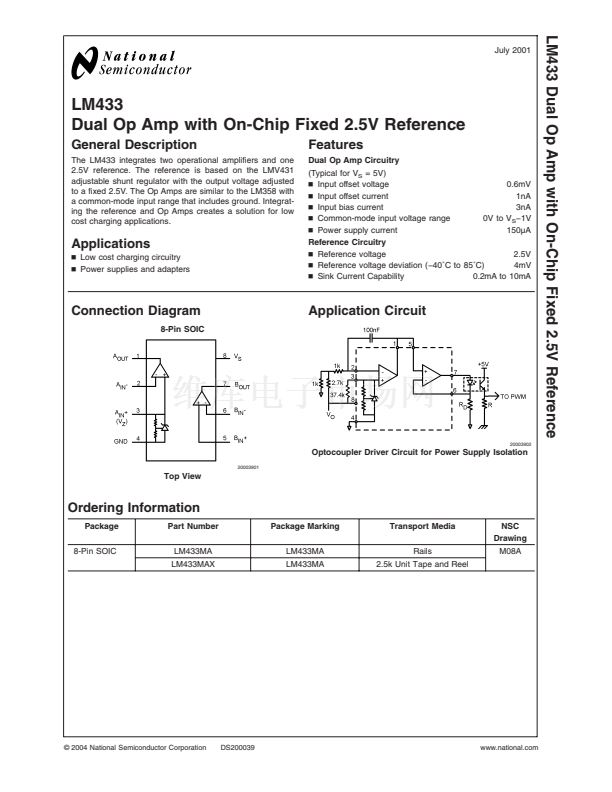

LM433 Dual Op Amp with On-Chip Fixed 2.5V Reference
July 2001
LM433
Dual Op Amp with On-Chip Fixed 2.5V Reference
General Description
The LM433 integrates two operational amplifiers and one
2.5V reference. The reference is based on the LMV431
adjustable shunt regulator with the output voltage adjusted
to a fixed 2.5V. The Op Amps are similar to the LM358 with
a common-mode input range that includes ground. Integrat-
ing the reference and Op Amps creates a solution for low
cost charging applications.
Features
Dual Op Amp Circuitry
(Typical for V
S
= 5V)
n
Input offset voltage
n
Input offset current
n
Input bias current
n
Common-mode input voltage range
n
Power supply current
0.6mV
1nA
3nA
0V to V
S
鈭?V
150碌A(chǔ)
Applications
n
Low cost charging circuitry
n
Power supplies and adapters
Reference Circuitry
n
Reference voltage
2.5V
n
Reference voltage deviation (鈭?0藲C to 85藲C)
4mV
n
Sink Current Capability
0.2mA to 10mA

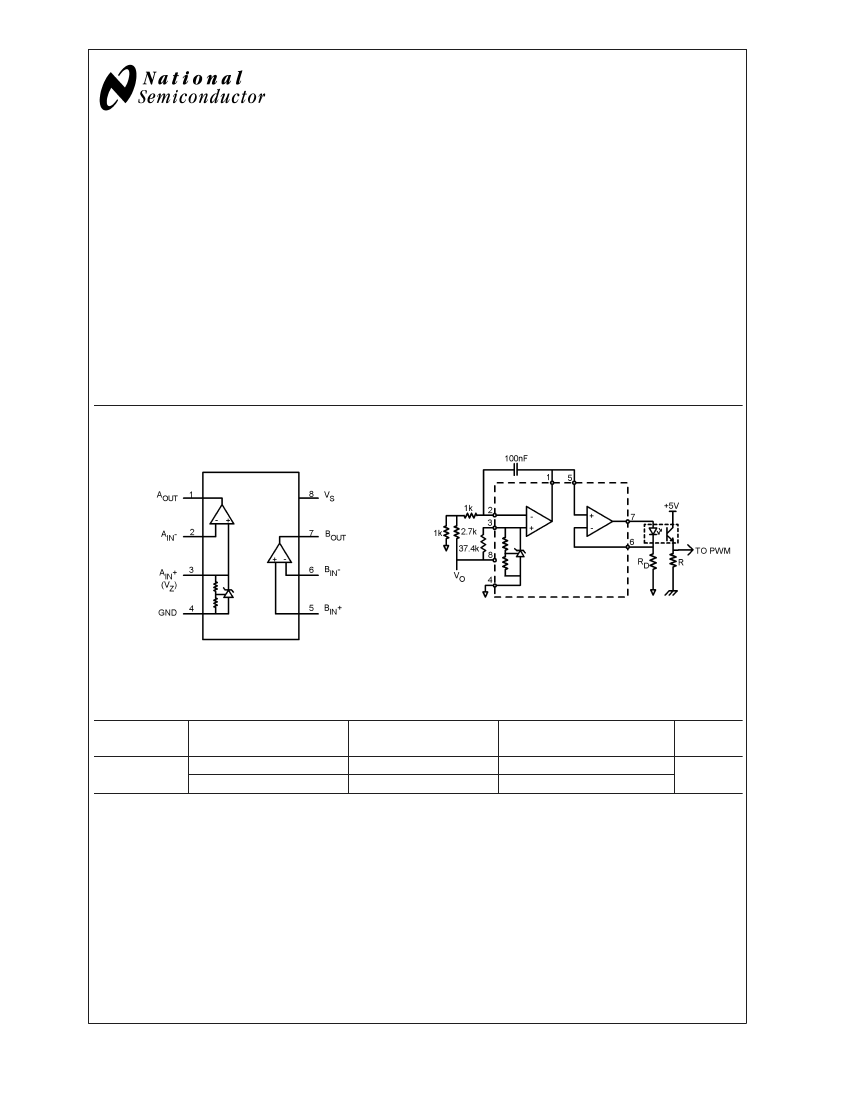

Connection Diagram
8-Pin SOIC
Application Circuit
20003902
Optocoupler Driver Circuit for Power Supply Isolation
20003901
Top View
Ordering Information
Package
8-Pin SOIC
Part Number
LM433MA
LM433MAX
Package Marking
LM433MA
LM433MA
Transport Media
Rails
2.5k Unit Tape and Reel

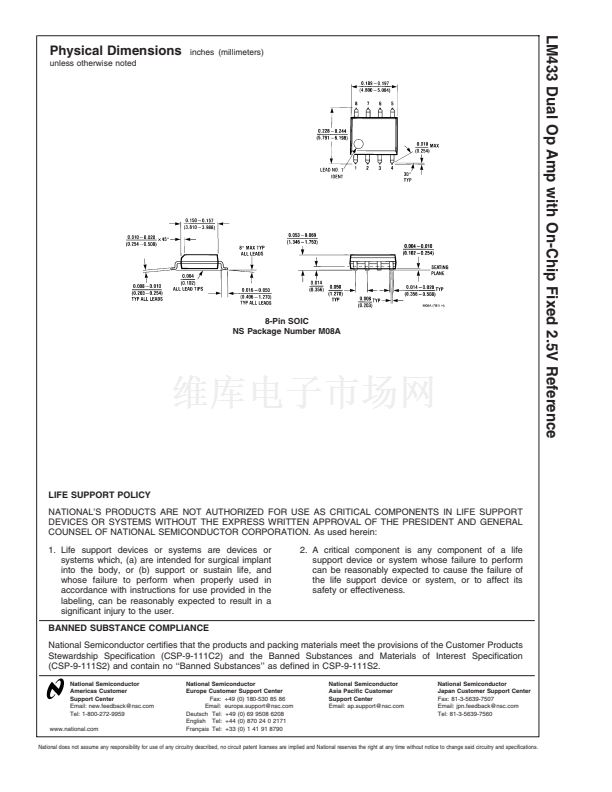

NSC
Drawing
M08A
漏 2004 National Semiconductor Corporation
DS200039
www.national.com
