LM3Z2V4T1G Datasheet

  • LM3Z2V4T1G

  • Leshan Radio Company [Zener Voltage Regulators]

  • LRC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

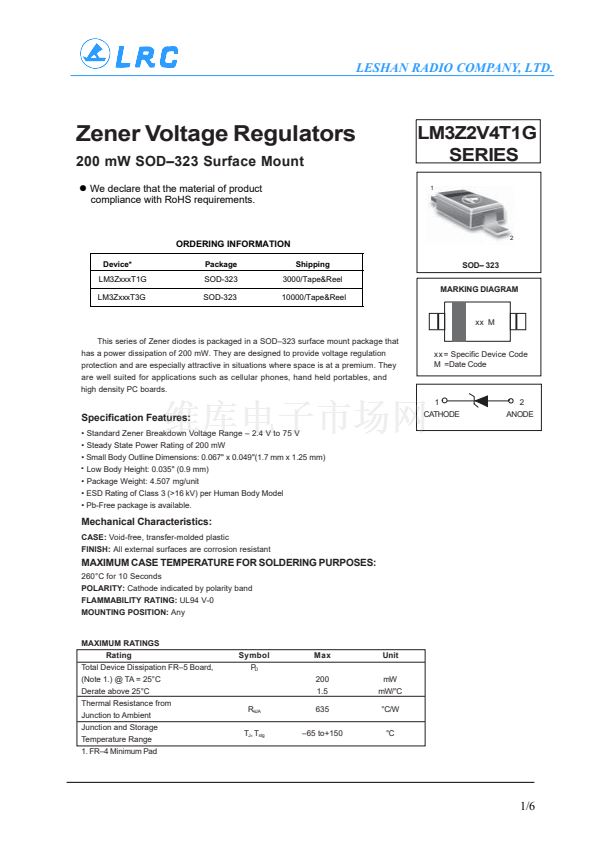

LESHAN RADIO COMPANY, LTD.
Zener Voltage Regulators
200 mW SOD鈥?23 Surface Mount
We declare that the material of product
compliance with RoHS requirements.
LM3Z2V4T1G
SERIES
1
ORDERING INFORMATION
Device*
LM3ZxxxT1G
LM3ZxxxT3G
Package
SOD-323
SOD-323
Shipping
3000/Tape&Reel
2
SOD鈥?323
MARKING DIAGRAM
10000/Tape&Reel
xx M
This series of Zener diodes is packaged in a SOD鈥?23 surface mount package that
has a power dissipation of 200 mW. They are designed to provide voltage regulation
protection and are especially attractive in situations where space is at a premium. They
are well suited for applications such as cellular phones, hand held portables, and
high density PC boards.
x x = Specific Device Code
M =Date Code
Specification Features:
鈥?Standard Zener Breakdown Voltage Range 鈥?2.4 V to 75 V
鈥?Steady State Power Rating of 200 mW
鈥?Small Body Outline Dimensions: 0.067" x 0.049"(1.7 mm x 1.25 mm)
鈥?Package Weight: 4.507 mg/unit
鈥?ESD Rating of Class 3 (>16 kV) per Human Body Model
鈥?Pb-Free package is available.
1
CATHODE
2
ANODE
.
Low Body Height: 0.035" (0.9 mm)
Mechanical Characteristics:
CASE:
Void-free, transfer-molded plastic
FINISH:
All external surfaces are corrosion resistant
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260擄C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL94 V-0
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Total Device Dissipation FR鈥? Board,
(Note 1.) @ TA = 25擄C
Derate above 25擄C
Thermal Resistance from
Junction to Ambient
Junction and Storage
Temperature Range
1. FR鈥? Minimum Pad
Symbol
P
D
Max
200
1.5
Unit
mW
mW/擄C
擄C/W
擄C
R
胃JA
T
J
, T
stg
635
鈥?5 to+150
1/6
