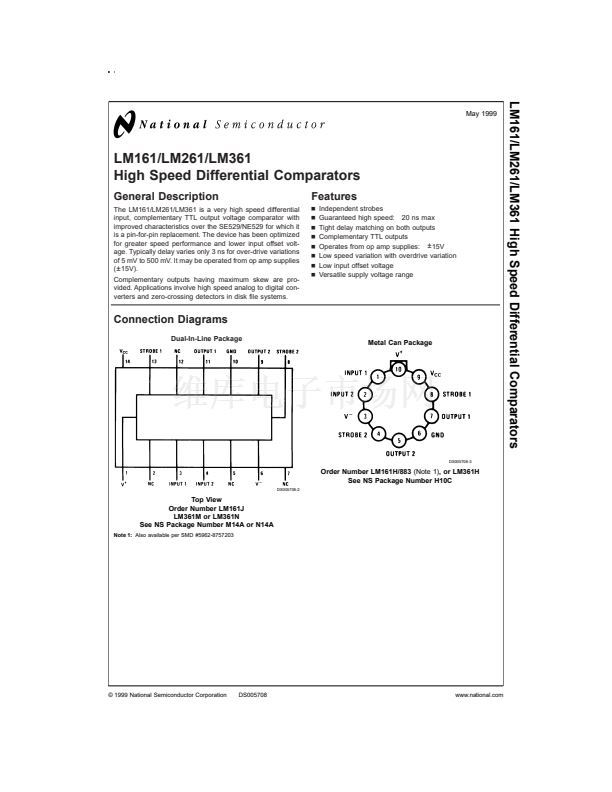

LM161/LM261/LM361 High Speed Differential Comparators
May 1999
LM161/LM261/LM361
High Speed Differential Comparators
General Description
The LM161/LM261/LM361 is a very high speed differential
input, complementary TTL output voltage comparator with
improved characteristics over the SE529/NE529 for which it
is a pin-for-pin replacement. The device has been optimized
for greater speed performance and lower input offset volt-
age. Typically delay varies only 3 ns for over-drive variations
of 5 mV to 500 mV. It may be operated from op amp supplies
(
鹵
15V).
Complementary outputs having maximum skew are pro-
vided. Applications involve high speed analog to digital con-
verters and zero-crossing detectors in disk file systems.
Features
n
n
n
n
n
n
n
n
Independent strobes
Guaranteed high speed: 20 ns max
Tight delay matching on both outputs
Complementary TTL outputs
Operates from op amp supplies:
鹵
15V
Low speed variation with overdrive variation
Low input offset voltage
Versatile supply voltage range
Connection Diagrams
Dual-In-Line Package
Metal Can Package
DS005708-3
Order Number LM161H/883
(Note 1),
or LM361H
See NS Package Number H10C
DS005708-2
Top View
Order Number LM161J
LM361M or LM361N
See NS Package Number M14A or N14A
Note 1:
Also available per SMD
#5962-8757203
漏 1999 National Semiconductor Corporation
DS005708
www.national.com

LM361H PDF文件相關型號

LM361M

LM361H 產品屬性

  • National Semiconductor (TI)

  • 2 Channels

  • Analog Comparators

  • Differential

  • 5 mV

  • 20 mA at 5.25 V

  • 600 mW

  • + 70 C

  • Through Hole

  • TO-100

  • Bulk

  • 0 C

  • 500

  • 5.25 V

  • 4.75 V
