LM224PT Datasheet

  • LM224PT

  • STMicroelectronics [Low Power Quad Operational Amplifiers]

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

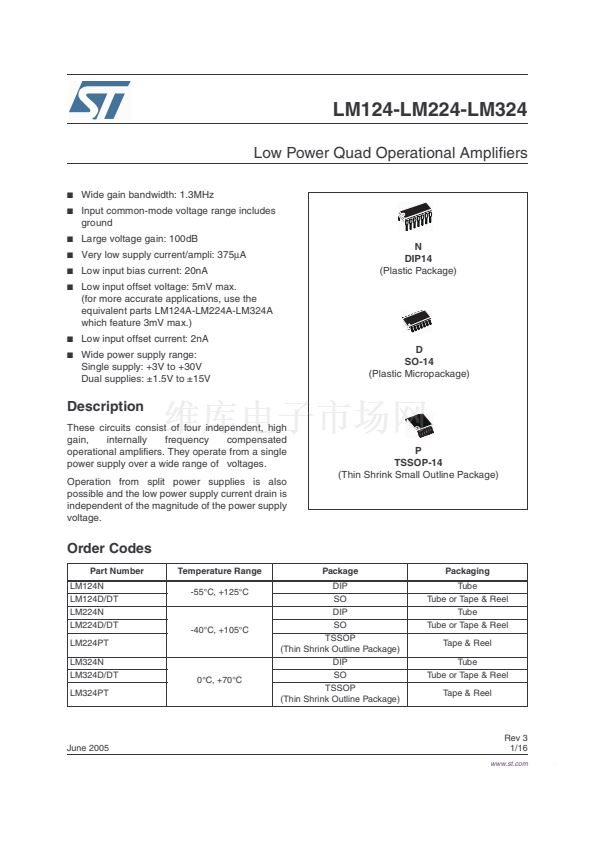

LM124-LM224-LM324
Low Power Quad Operational Amplifiers
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
Wide gain bandwidth: 1.3MHz
Input common-mode voltage range includes
ground
Large voltage gain: 100dB
Very low supply current/ampli: 375碌A(chǔ)
Low input bias current: 20nA
Low input offset voltage: 5mV max.
(for more accurate applications, use the
equivalent parts LM124A-LM224A-LM324A
which feature 3mV max.)
Low input offset current: 2nA
Wide power supply range:
Single supply: +3V to +30V
Dual supplies: 鹵1.5V to 鹵15V
D
SO-14
(Plastic Micropackage)
N
DIP14
(Plastic Package)
鈻?/div>
鈻?/div>
Description
These circuits consist of four independent, high
gain,
internally
frequency
compensated
operational amplifiers. They operate from a single
power supply over a wide range of voltages.
Operation from split power supplies is also
possible and the low power supply current drain is
independent of the magnitude of the power supply
voltage.
P
TSSOP-14
(Thin Shrink Small Outline Package)
Order Codes
Part Number
LM124N
LM124D/DT
LM224N
LM224D/DT
LM224PT
LM324N
LM324D/DT
LM324PT
Temperature Range
-55擄C, +125擄C
Package
DIP
SO
DIP
SO
TSSOP
(Thin Shrink Outline Package)
DIP
SO
TSSOP
(Thin Shrink Outline Package)
Packaging
Tube
Tube or Tape & Reel
Tube
Tube or Tape & Reel
Tape & Reel
Tube
Tube or Tape & Reel
Tape & Reel
-40擄C, +105擄C
0擄C, +70擄C
June 2005
Rev 3
1/16
www.st.com
16

LM224PT PDF文件相關型號

LM324PT

LM224PT 產品屬性

  • LM224 View All Specifications

  • 1

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 通用

  • 4

  • -

  • 0.4 V/µs

  • 1.3MHz

  • -

  • 20nA

  • 2000µV

  • 1.5mA

  • 70mA

  • 3 V ~ 30 V，±1.5 V ~ 15 V

  • -40°C ~ 105°C

  • 表面貼裝

  • 14-TSSOP（0.173"，4.40mm 寬）

  • 14-TSSOP

  • Digi-Reel®

  • 497-1548-6
