LM119D Datasheet

  • LM119D

  • STMicroelectronics [HIGH SPEED DUAL COMPARATORS]

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

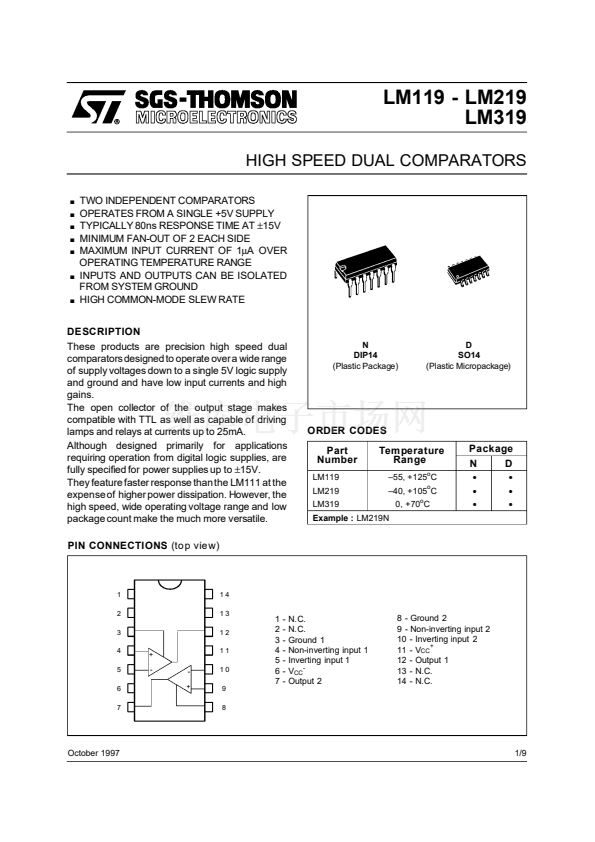

LM119 - LM219
LM319
HIGH SPEED DUAL COMPARATORS
.
.
.
.
.
.
.
TWO INDEPENDENT COMPARATORS
OPERATES FROM A SINGLE +5V SUPPLY
TYPICALLY 80ns RESPONSE TIME AT
鹵15V
MINIMUM FAN-OUT OF 2 EACH SIDE
MAXIMUM INPUT CURRENT OF 1碌A(chǔ) OVER
OPERATING TEMPERATURE RANGE
INPUTS AND OUTPUTS CAN BE ISOLATED
FROM SYSTEM GROUND
HIGH COMMON-MODE SLEW RATE
DESCRIPTION
These products are precision high speed dual
comparators designed to operate over a wide range
of supply voltages down to a single 5V logic supply
and ground and have low input currents and high
gains.
The open collector of the output stage makes
compatible with TTL as well as capable of driving
lamps and relays at currents up to 25mA.
Although designed primarily for applications
requiring operation from digital logic supplies, are
fully specified for power supplies up to
鹵15V.
They feature faster response than the LM111 at the
expense of higher power dissipation. However, the
high speed, wide operating voltage range and low
package count make the much more versatile.
PIN CONNECTIONS
(top view)
N
DIP14
(Plastic Package)
D
SO14
(Plastic Micropackage)
ORDER CODES
Part
Number
LM119
LM219
LM319
Example :
LM219N
Temperature
Range
鈥?5, +125 C
鈥?0, +105 C
0, +70 C
o
o
o
Package
N
D
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1
2
3
4
5
6
7
+
14
13
12
11
-
-
+
10
9
8
1
2
3
4
5
6
7
- N.C.
- N.C.
- Ground 1
- Non-inverting input 1
- Inverting input 1
- V
CC-
- Output 2
8 - Ground 2
9 - Non-inverting input 2
10 - Inverting input 2
+
11 - V
CC
12 - Output 1
13 - N.C.
14 - N.C.
October 1997
1/9
