Installation

Instructions

LC700

LC750

Patient Care Unit with

Standard Laminate or

Optional Terreon廬

Lavatory Top

Table of Contents

WARNING

Before beginning installation, all supply,

drain and waste piping to the unit must

be completed according to the rough-ins

received prior to receiving the unit. If

you have not received rough-ins, contact

your Bradley representative.

All mounting hardware provided is

essential for proper anchoring. Bradley

Corporation cannot assume any

responsibility for personal injury or

damage to equipment due to an

improperly installed unit.

Flush all water supply lines before

beginning installation.

This installation manual covers all

instructions for the LC700 or LC750

series including those with Terreon廬 Lav

tops. Omit any steps that do not apply to

the model you are installing.

Figures shown in this manual illustrate a

right-hand model. A left-hand model

would be opposite to what is shown.

Product warranties may be found under

鈥淧roduct Information鈥?on our web site at

www.bradleycorp.com.

Pre-Installation Information . . . . . . . . . . . . . . . .2

Installation Instructions

Unpacking the Patient Care Unit . . . . . . . . . .3

Installing the Anchors . . . . . . . . . . . . . . . . . . .4

Water Closet and Waste Connections . . . . . . .5

Installing the Inline Backflow Preventer . . . .6

Installing the Cabinet . . . . . . . . . . . . . . . . . . .6

Installing the Terreon廬 Lav Top . . . . . . . . . . .6

Installing the Faucet and Water Supply . . . . .7

Completing Connections . . . . . . . . . . . . . . . . .8

Installing the Cabinet Floor and Back Panel .8

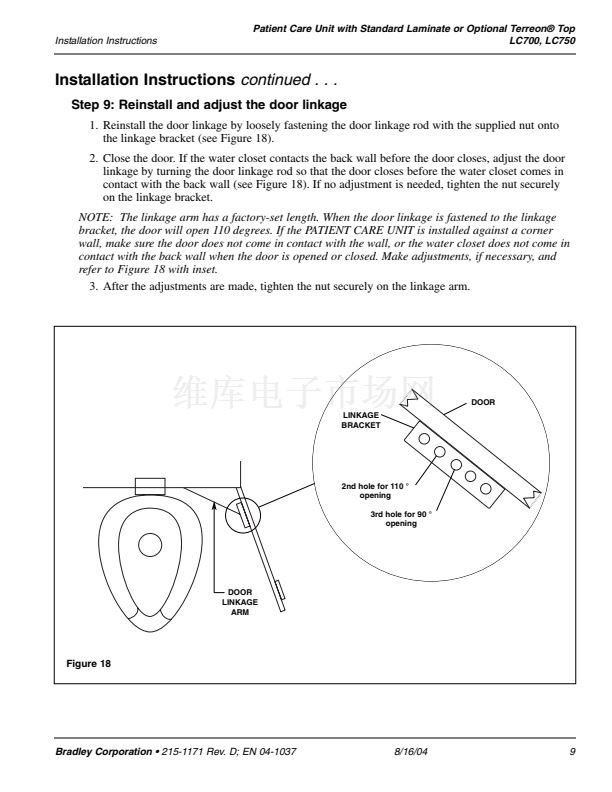

Installing the Door Linkage . . . . . . . . . . . . . .9

Cleaning and Maintenance . . . . . . . . . . . . . . . .10

215-1171 Rev. D; EN 04-1037

漏 2003 Bradley Corporation

Page 1 of 10 8/16/04

P.O. Box 309, Menomonee Falls, WI 53052-0309

Phone: 1-800-BRADLEY FAX: (262) 251-5817

http://www.bradleycorp.com

next
