KSR251G Datasheet

  • KSR251G

  • ITT Industries [Subminiature Tact Switch for SMT]

  • 68.07KB

  • ITT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

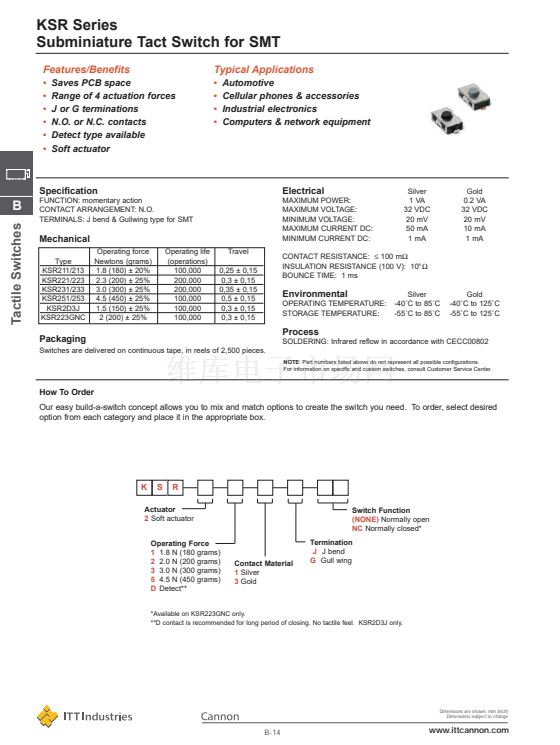

KSR Series
Subminiature Tact Switch for SMT
Features/Benefits
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Saves PCB space
Range of 4 actuation forces
J or G terminations
N.O. or N.C. contacts
Detect type available
Soft actuator
Typical Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Automotive
Cellular phones & accessories
Industrial electronics
Computers & network equipment
Specification
Electrical
MAXIMUM POWER:
MAXIMUM VOLTAGE:
MINIMUM VOLTAGE:
MAXIMUM CURRENT DC:
MINIMUM CURRENT DC:
Travel
0,25
鹵
0,15
0,3
鹵
0,15
0,35
鹵
0,15
0,5
鹵
0,15
0,3
鹵
0,15
0,3
鹵
0,15
B
Tactile Switches
FUNCTION: momentary action
CONTACT ARRANGEMENT: N.O.
TERMINALS: J bend & Gullwing type for SMT
Mechanical
Type
KSR211/213
KSR221/223
KSR231/233
KSR251/253
KSR2D3J
KSR223GNC
Operating force
Newtons (grams)
1.8 (180)
鹵
20%
2.3 (200)
鹵
25%
3.0 (300)
鹵
25%
4.5 (450)
鹵
25%
1.5 (150)
鹵
25%
2 (200)
鹵
25%
Operating life
(operations)
100,000
200,000
200,000
100,000
100,000
100,000
Silver
1 VA
32 VDC
20 mV
50 mA
1 mA
Gold
0.2 VA
32 VDC
20 mV
10 mA
1 mA
CONTACT RESISTANCE:
鈮?/div>
100 m鈩?/div>
INSULATION RESISTANCE (100 V): 10
9
鈩?/div>
BOUNCE TIME: 1 ms
Environmental
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
Silver
-40藲C to 85藲C
-55藲C to 85藲C
Gold
-40藲C to 125藲C
-55藲C to 125藲C
Packaging
Switches are delivered on continuous tape, in reels of 2,500 pieces.
Process
SOLDERING: Infrared reflow in accordance with CECC00802
NOTE:
Part numbers listed above do not represent all possible configurations.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired
option from each category and place it in the appropriate box.
K
S
R
Switch Function
(NONE)
Normally open
NC
Normally closed*

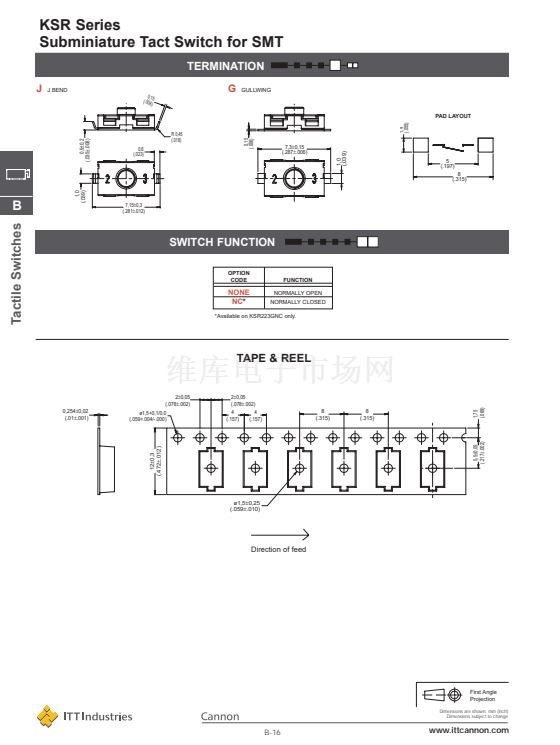

Termination
J
J bend
G
Gull wing
Actuator
2
Soft actuator
Operating Force
1
1.8 N (180 grams)
2
2.0 N (200 grams)
3
3.0 N (300 grams)
5
4.5 N (450 grams)
D
Detect**
Contact Material
1
Silver
3
Gold
*Available on KSR223GNC only.
**D contact is recommended for long period of closing. No tactile feel. KSR2D3J only.
Dimensions are shown: mm (inch)
Dimensions subject to change
B-14
www.ittcannon.com

KSR251G 產品屬性

  • 1

  • 開關

  • 觸摸

  • KSR

  • SPST-NO

  • 關-瞬時

  • 0.05A @ 32VDC

  • 標準

  • 表面貼裝

  • 2.50mm

  • 頂部觸動

  • 鷗翼型

  • 6.00mm x 3.80mm

  • 不發光

  • -

  • -

  • 450gf

  • IP50 - 防塵

  • -

  • Digi-Reel?

  • 橡膠

  • 0.50mm

  • 100,000 次循環

  • -40°C ~ 85°C

  • 401-1520-6
