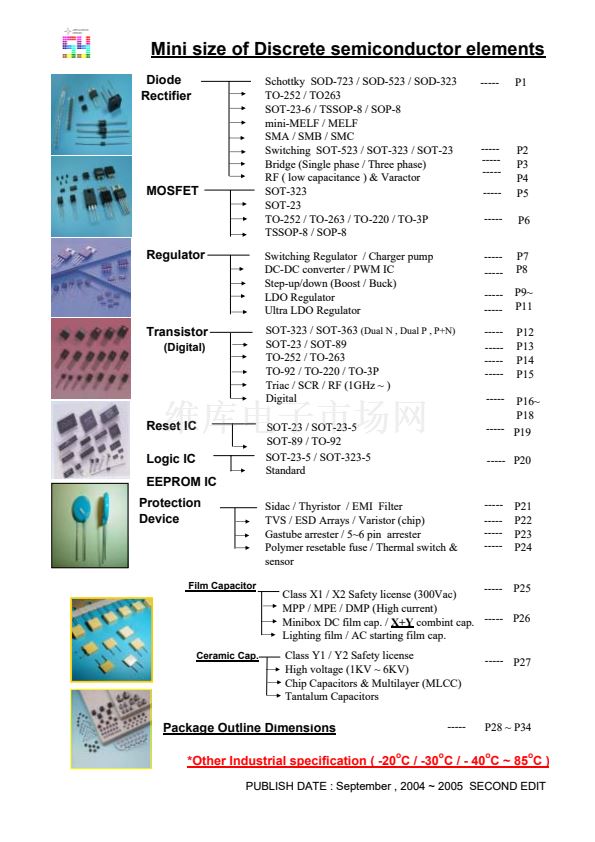

Mini size of Discrete semiconductor elements

Diode

Rectifier

Schottky SOD-723 / SOD-523 / SOD-323

TO-252 / TO263

SOT-23-6 / TSSOP-8 / SOP-8

mini-MELF / MELF

SMA / SMB / SMC

Switching SOT-523 / SOT-323 / SOT-23

Bridge (Single phase / Three phase)

RF ( low capacitance ) & Varactor

SOT-323

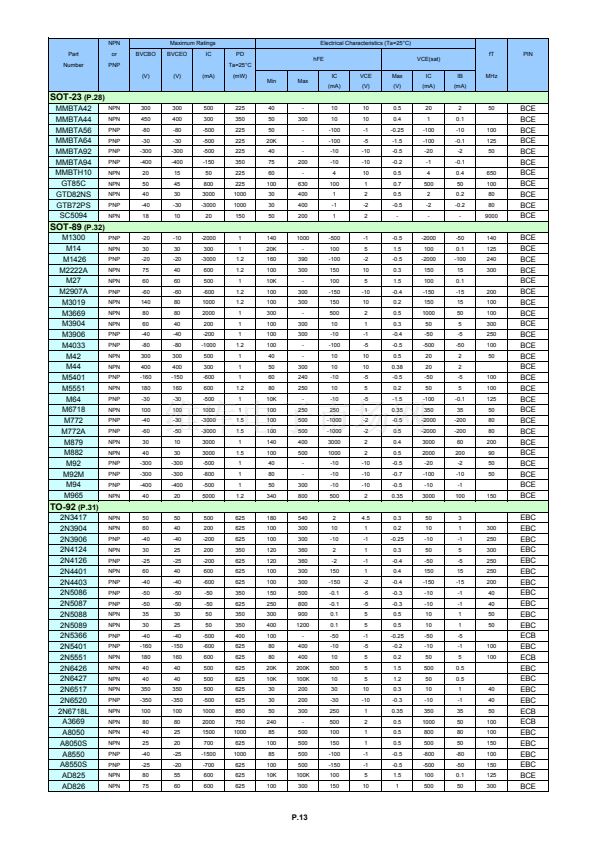

SOT-23

TO-252 / TO-263 / TO-220 / TO-3P

TSSOP-8 / SOP-8

Switching Regulator / Charger pump

DC-DC converter / PWM IC

Step-up/down (Boost / Buck)

LDO Regulator

Ultra LDO Regulator

SOT-323 / SOT-363

(Dual N , Dual P , P+N)

SOT-23 / SOT-89

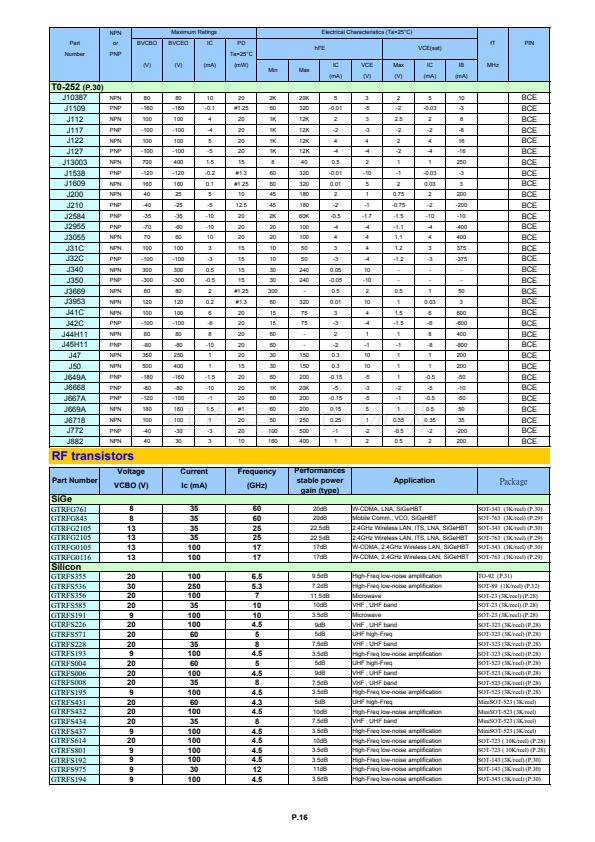

TO-252 / TO-263

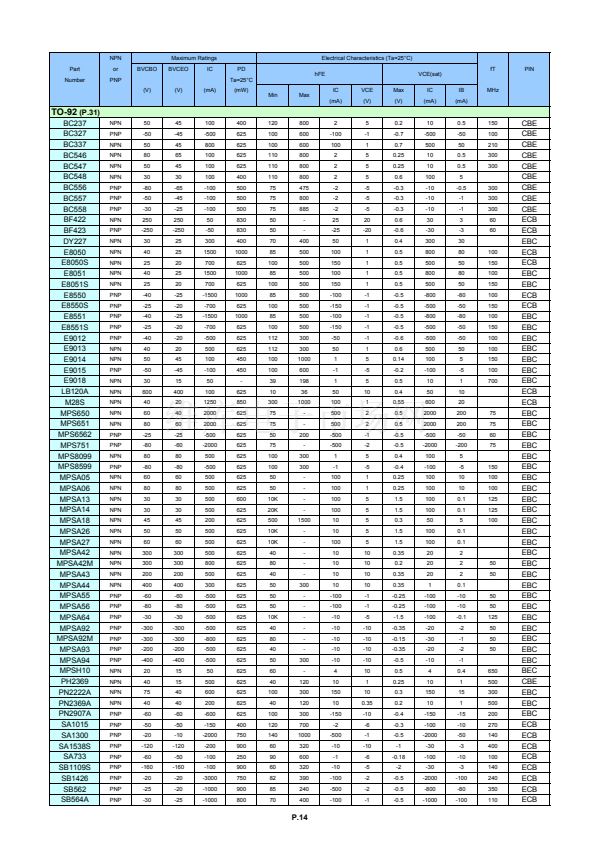

TO-92 / TO-220 / TO-3P

Triac / SCR / RF (1GHz ~ )

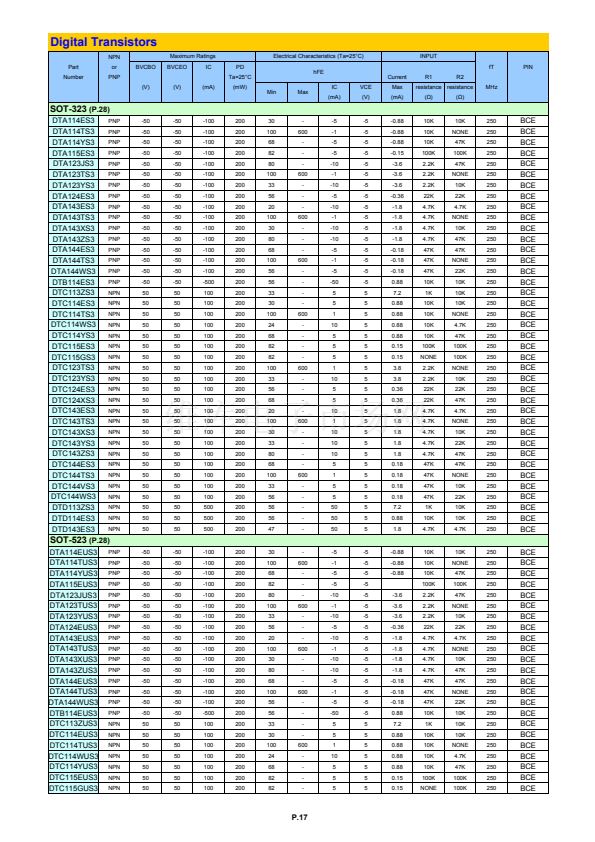

Digital

SOT-23 / SOT-23-5

SOT-89 / TO-92

SOT-23-5 / SOT-323-5

Standard

Sidac / Thyristor / EMI Filter

TVS / ESD Arrays / Varistor (chip)

Gastube arrester / 5~6 pin arrester

Polymer resetable fuse / Thermal switch &

sensor

-----

P1

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

MOSFET

P2

P3

P4

P5

P6

P7

P8

P9~

P11

P12

P13

P14

P15

P16~

P18

Regulator

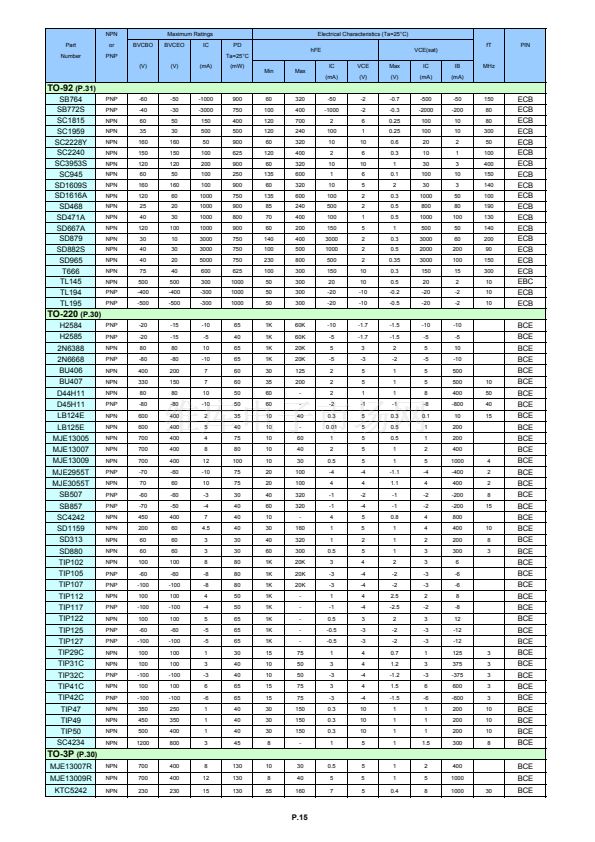

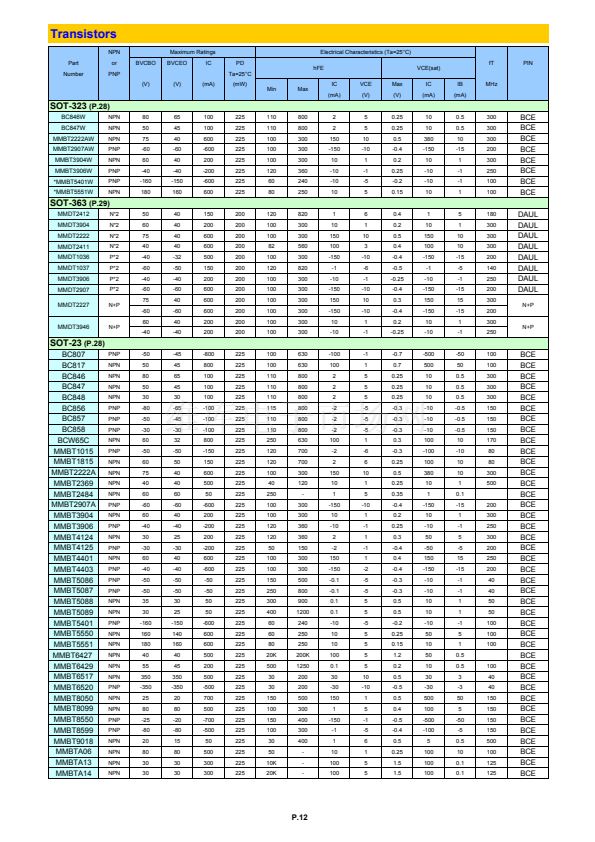

Transistor

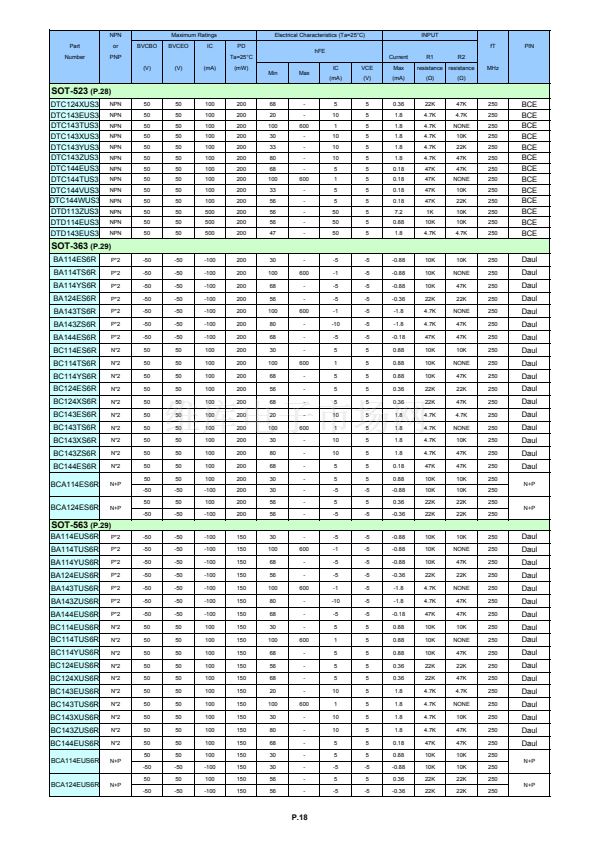

(Digital)

Reset IC

Logic IC

EEPROM IC

Protection

Device

----- P19

----- P20

-----

-----

-----

-----

P21

P22

P23

P24

Film Capacitor

----- P25

Class X1 / X2 Safety license (300Vac)

MPP / MPE / DMP (High current)

Minibox DC film cap. /

X+Y

combint cap. ----- P26

Lighting film / AC starting film cap.

Class Y1 / Y2 Safety license

High voltage (1KV ~ 6KV)

Chip Capacitors & Multilayer (MLCC)

Tantalum Capacitors

-----

----- P27

Ceramic Cap.

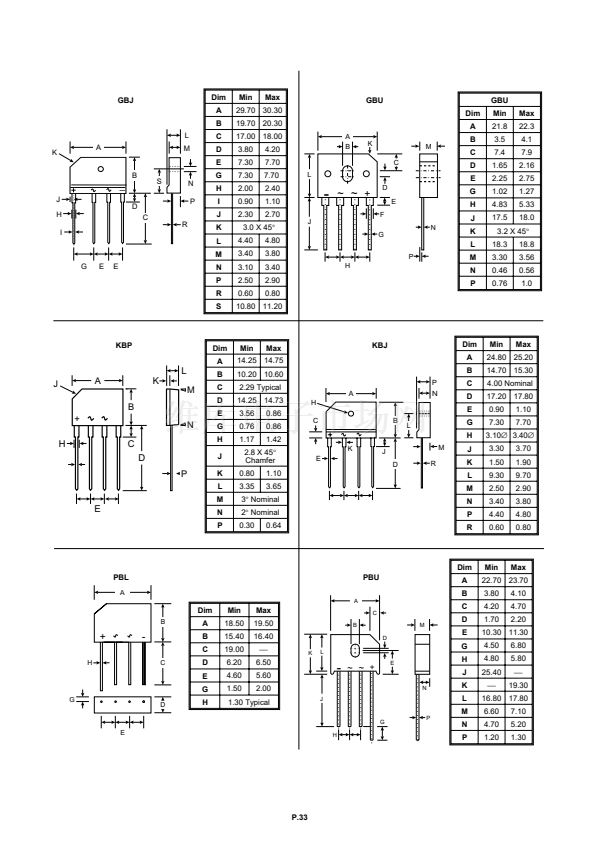

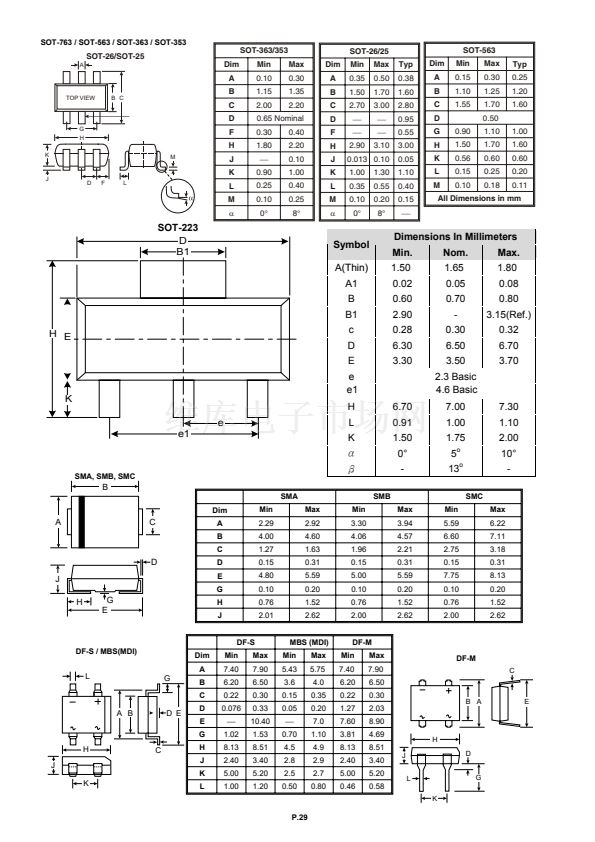

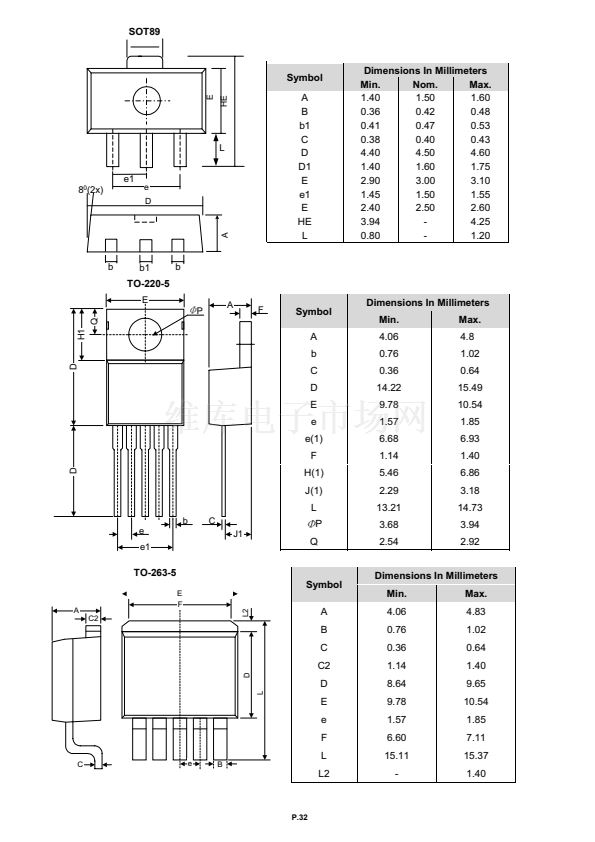

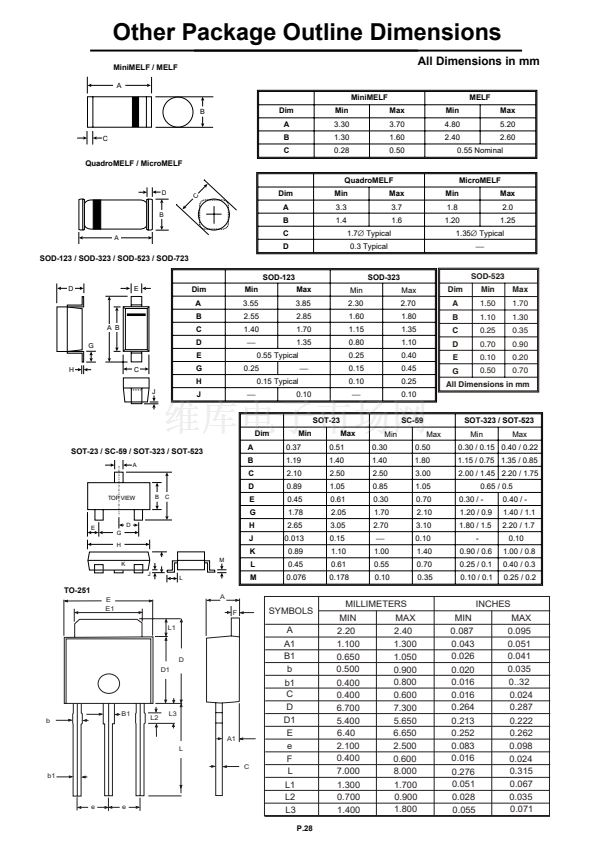

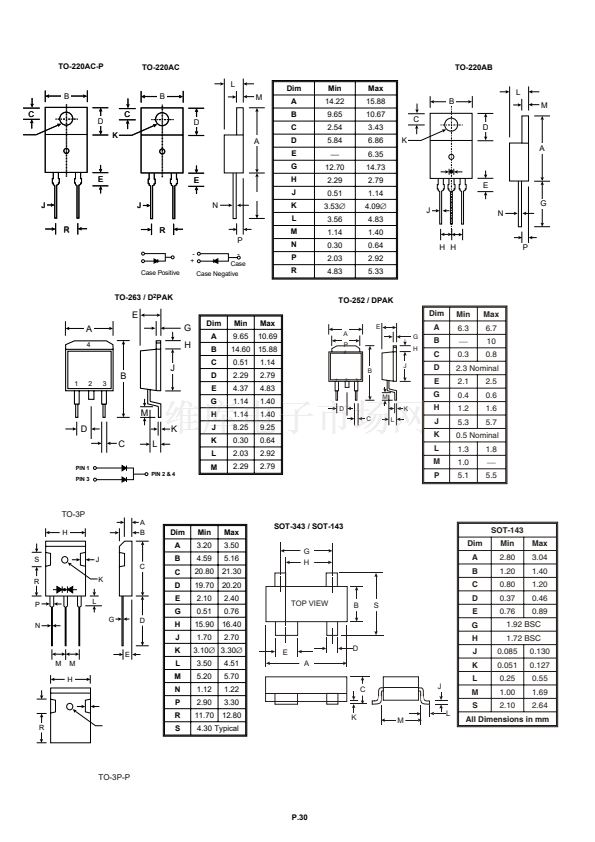

Package Outline Dimensions

P28 ~ P34

*Other Industrial specification ( -20

o

C / -30

o

C / - 40

o

C ~ 85

o

C )

PUBLISH DATE : September , 2004 ~ 2005 SECOND EDIT
