IDT54/74FCT827AT/BT/CT/DT, IDT54/74FCT2827AT/BT/CT
HIGH-PERFORMANCE CMOS BUFFERS
MILITARY AND COMMERCIAL TEMPERATURE RANGES
FAST CMOS 10-BIT
BUFFERS
Integrated Device Technology, Inc.
IDT54/74FCT827AT/BT/CT/DT
IDT54/74FCT2827AT/BT/CT
FEATURES:
鈥?Common features:
鈥?Low input and output leakage
鈮?碌A
(max.)
鈥?CMOS power levels
鈥?True TTL input and output compatibility
鈥?V
OH
= 3.3V (typ.)
鈥?V
OL
= 0.3V (typ.)
鈥?Meets or exceeds JEDEC standard 18 specifications
鈥?Product available in Radiation Tolerant and Radiation
Enhanced versions
鈥?Military product compliant to MIL-STD-883, Class B
and DESC listed (dual marked)
鈥?Available in DIP, SOIC, SSOP, QSOP, CERPACK
and LCC packages
鈥?Features for FCT827T:
鈥?A, B, C and D speed grades
鈥?High drive outputs (-15mA I
OH
, 48mA I
OL
)
鈥?Features for FCT2827T:
鈥?A, B and C speed grades
鈥?Resistor outputs (-15mA I
OH
, 12mA I
OL
Com.)
(-12mA I
OH
, 12mA I
OL
Mil.)
鈥?Reduced system switching noise
DESCRIPTION:
The FCT827T is built using an advanced dual metal CMOS
technology.
The FCT827T/FCT2827T 10-bit bus drivers provide high-
performance bus interface buffering for wide data/address
paths or buses carrying parity. The 10-bit buffers have NAND-
ed output enables for maximum control flexibility.
All of the FCT827T high-performance interface family are
designed for high-capacitance load drive capability, while
providing low-capacitance bus loading at both inputs and
outputs. All inputs have clamp diodes to ground and all outputs
are designed for low-capacitance bus loading in high-imped-
ance state.
The FCT2827T has balanced output drive with current
limiting resistors. This offers low ground bounce, minimal
undershoot and controlled output fall times-reducing the need
for external series terminating resistors. FCT2827T parts are
plug-in replacements for FCT827T parts.

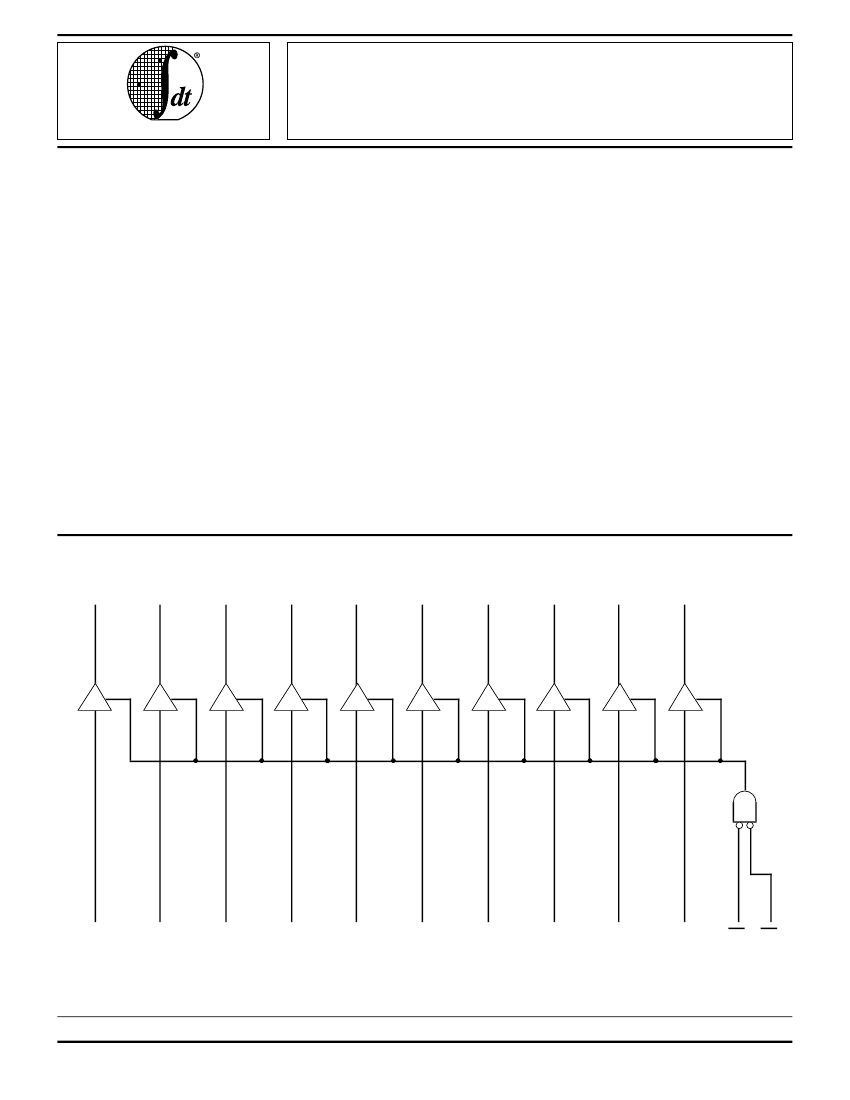

FUNCTIONAL BLOCK DIAGRAM
Y
0
Y
1
Y
2
Y
3
Y
4
Y
5
Y
6
Y
7
Y
8
Y
9
D
0
D
1
D
2
D
3
D
4
D
5
D
6
D
7
D
8
D
9
OE
1
OE
2
2573 drw 01
