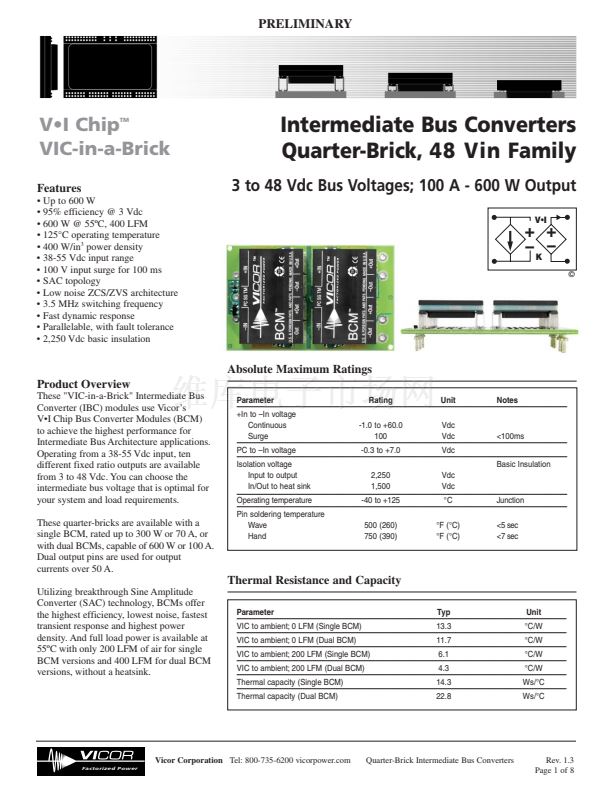

I048C320T030P1 Datasheet

  • I048C320T030P1

  • Intermediate Bus Converters Quarter-Brick, 48 Vin Family

  • 312.77KB

  • 8頁

  • VICOR   VICOR

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

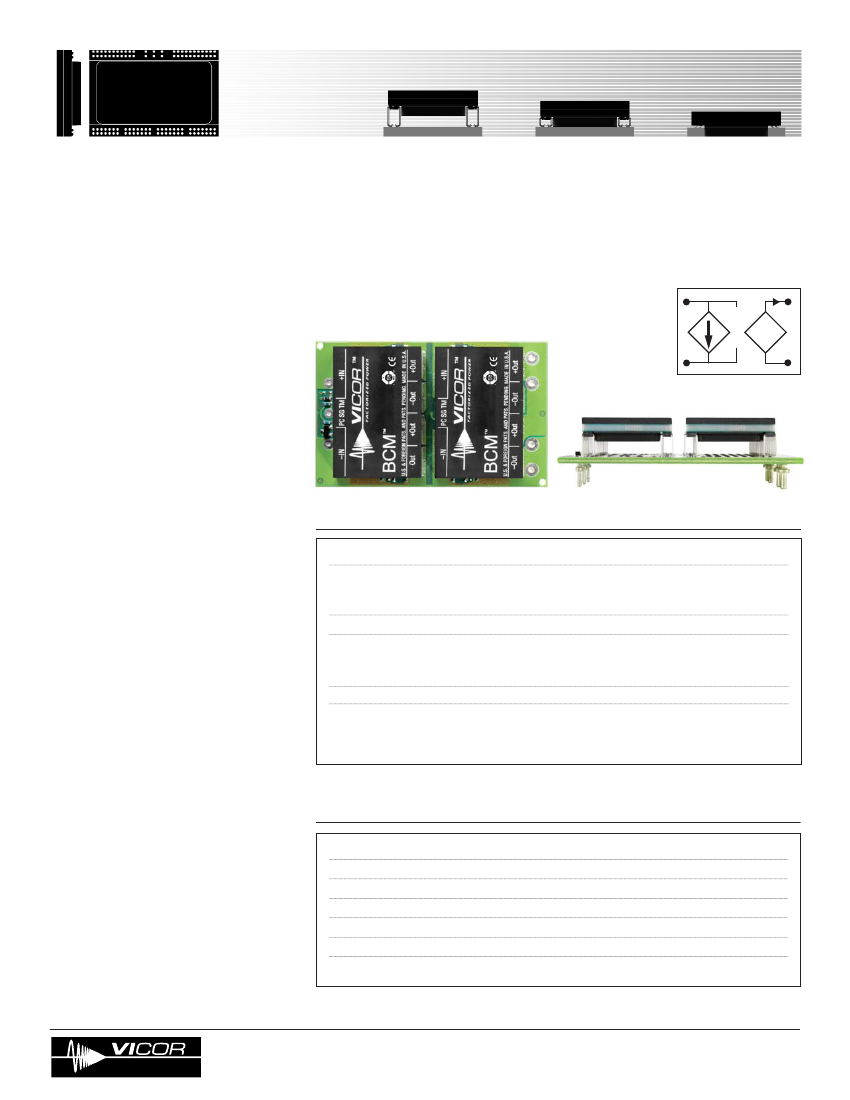

PRELIMINARY
45
V鈥 Chip
VIC-in-a-Brick
TM
Intermediate Bus Converters
Quarter-Brick, 48 Vin Family
3 to 48 Vdc Bus Voltages; 100 A - 600 W Output
V鈥
Features
鈥?Up to 600 W
鈥?95% efficiency @ 3 Vdc
鈥?600 W @ 55潞C, 400 LFM
鈥?125擄C operating temperature
鈥?400 W/in
3
power density
鈥?38-55 Vdc input range
鈥?100 V input surge for 100 ms
鈥?SAC topology
鈥?Low noise ZCS/ZVS architecture
鈥?3.5 MHz switching frequency
鈥?Fast dynamic response
鈥?Parallelable, with fault tolerance
鈥?2,250 Vdc basic insulation
+ +
鈥?/div>
K
鈥?/div>
漏
Absolute Maximum Ratings
Product Overview
These "VIC-in-a-Brick" Intermediate Bus
Converter (IBC) modules use Vicor鈥檚
V鈥 Chip Bus Converter Modules (BCM)
to achieve the highest performance for
Intermediate Bus Architecture applications.
Operating from a 38-55 Vdc input, ten
different fixed ratio outputs are available
from 3 to 48 Vdc. You can choose the
intermediate bus voltage that is optimal for
your system and load requirements.
These quarter-bricks are available with a
single BCM, rated up to 300 W or 70 A, or
with dual BCMs, capable of 600 W or 100 A.
Dual output pins are used for output
currents over 50 A.
Utilizing breakthrough Sine Amplitude
Converter (SAC) technology, BCMs offer
the highest efficiency, lowest noise, fastest
transient response and highest power
density. And full load power is available at
55潞C with only 200 LFM of air for single
BCM versions and 400 LFM for dual BCM
versions, without a heatsink.
Parameter
+In to 鈥揑n voltage
Continuous
Surge
PC to 鈥揑n voltage
Isolation voltage
Input to output
In/Out to heat sink
Operating temperature
Pin soldering temperature
Wave
Hand
Rating
-1.0 to +60.0
100
-0.3 to +7.0
2,250
1,500
-40 to +125
500 (260)
750 (390)
Unit
Vdc
Vdc
Vdc
Basic Insulation
Vdc
Vdc
擄C
擄F (擄C)
擄F (擄C)
Junction
<5 sec
<7 sec
Notes
<100ms
Thermal Resistance and Capacity
Parameter
VIC to ambient; 0 LFM (Single BCM)
VIC to ambient; 0 LFM (Dual BCM)
VIC to ambient; 200 LFM (Single BCM)
VIC to ambient; 200 LFM (Dual BCM)
Thermal capacity (Single BCM)
Thermal capacity (Dual BCM)
Typ
13.3
11.7
6.1
4.3
14.3
22.8
Unit
擄C/W
擄C/W
擄C/W
擄C/W
Ws/擄C
Ws/擄C
Vicor Corporation
Tel: 800-735-6200 vicorpower.com
Factorized Power
Quarter-Brick Intermediate Bus Converters
Rev. 1.3
Page 1 of 8
