FPF2500 Datasheet

  • FPF2500

  • IntelliMAX? Advanced Load Management Products

  • 13頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

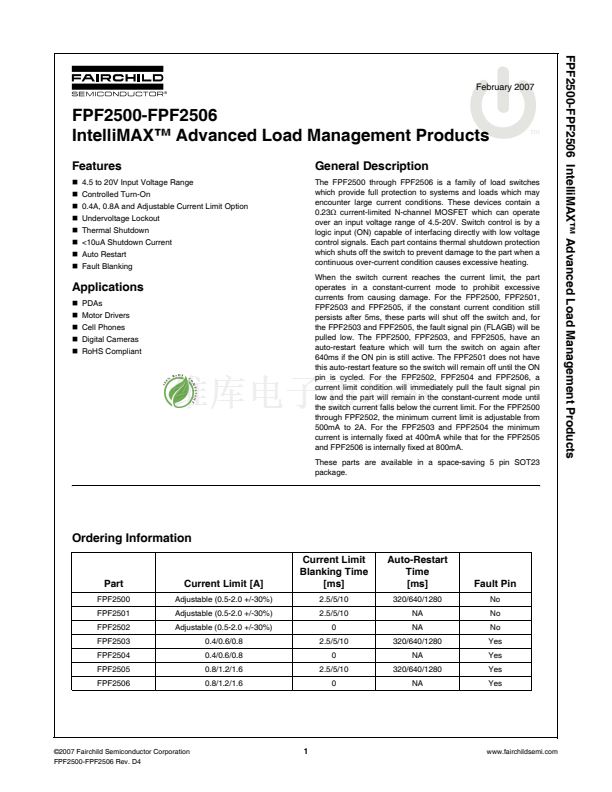

FPF2500-FPF2506 IntelliMAX鈩?Advanced Load Management Products
February 2007
FPF2500-FPF2506
IntelliMAX鈩?Advanced Load Management Products

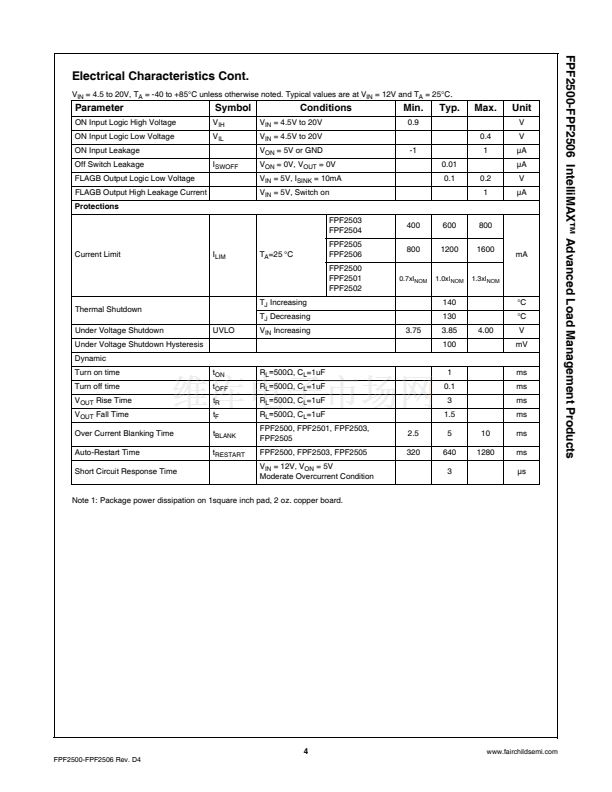

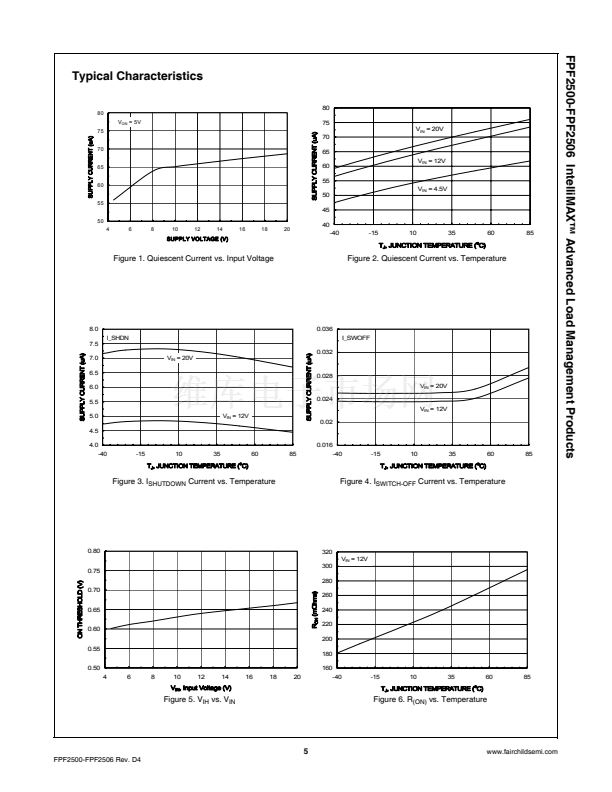

Features
4.5 to 20V Input Voltage Range
Controlled Turn-On
0.4A, 0.8A and Adjustable Current Limit Option
Undervoltage Lockout
Thermal Shutdown
<10uA Shutdown Current
Auto Restart
Fault Blanking
tm

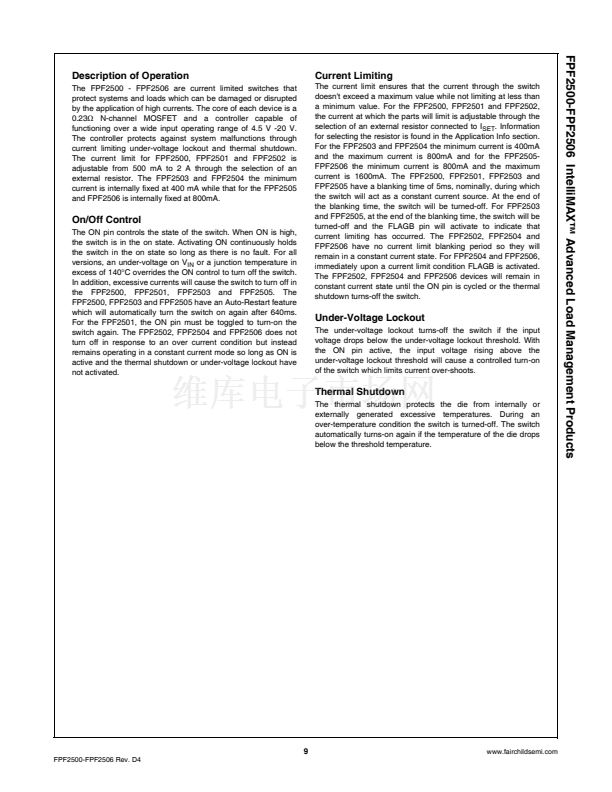

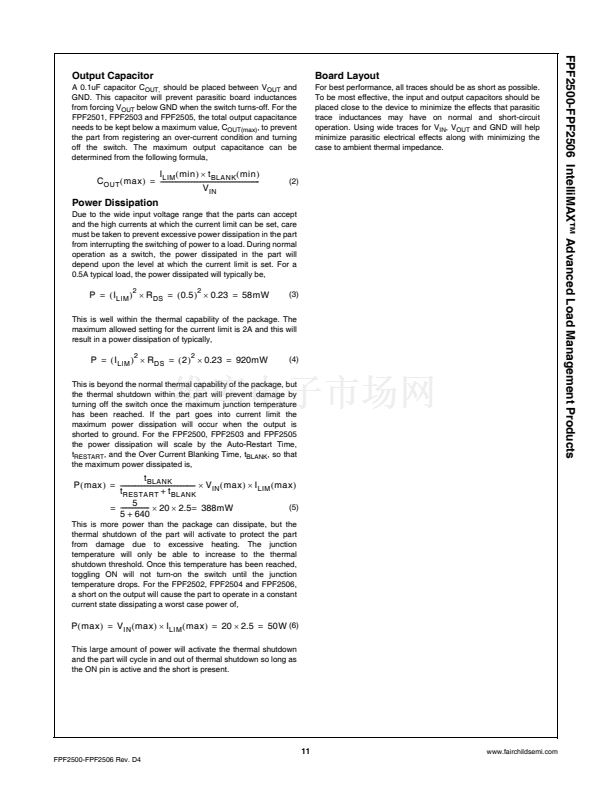

General Description

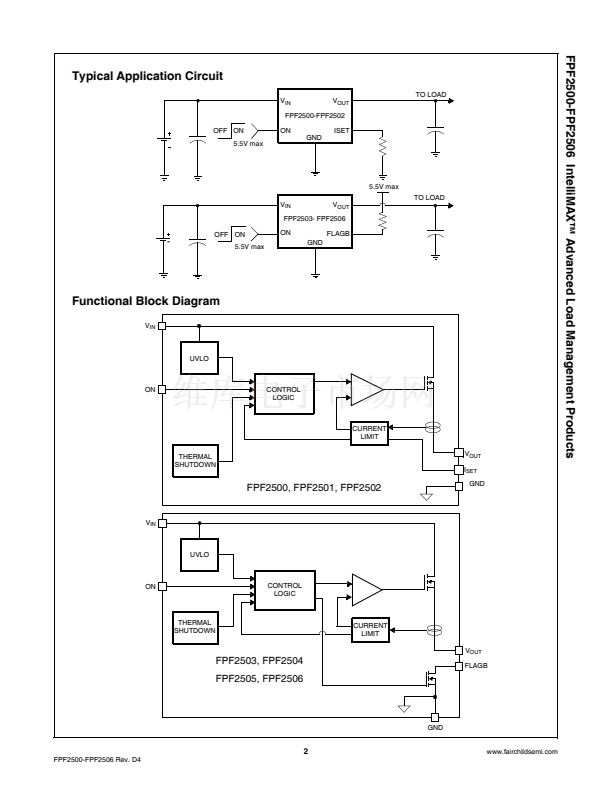

The FPF2500 through FPF2506 is a family of load switches
which provide full protection to systems and loads which may
encounter large current conditions. These devices contain a
0.23鈩?current-limited N-channel MOSFET which can operate
over an input voltage range of 4.5-20V. Switch control is by a
logic input (ON) capable of interfacing directly with low voltage
control signals. Each part contains thermal shutdown protection
which shuts off the switch to prevent damage to the part when a
continuous over-current condition causes excessive heating.
When the switch current reaches the current limit, the part
operates in a constant-current mode to prohibit excessive
currents from causing damage. For the FPF2500, FPF2501,
FPF2503 and FPF2505, if the constant current condition still
persists after 5ms, these parts will shut off the switch and, for
the FPF2503 and FPF2505, the fault signal pin (FLAGB) will be
pulled low. The FPF2500, FPF2503, and FPF2505, have an
auto-restart feature which will turn the switch on again after
640ms if the ON pin is still active. The FPF2501 does not have
this auto-restart feature so the switch will remain off until the ON
pin is cycled. For the FPF2502, FPF2504 and FPF2506, a
current limit condition will immediately pull the fault signal pin
low and the part will remain in the constant-current mode until

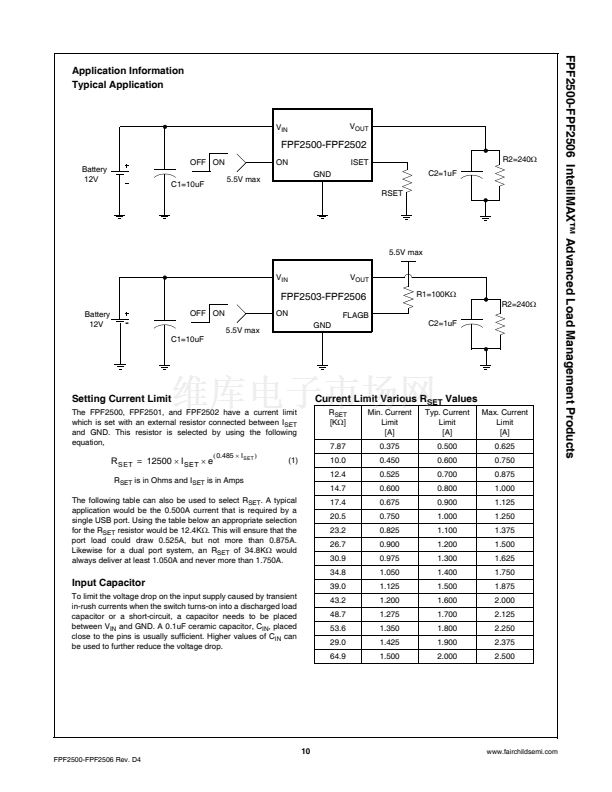

the switch current falls below the current limit. For the FPF2500
through FPF2502, the minimum current limit is adjustable from
500mA to 2A. For the FPF2503 and FPF2504 the minimum
current is internally fixed at 400mA while that for the FPF2505
and FPF2506 is internally fixed at 800mA.

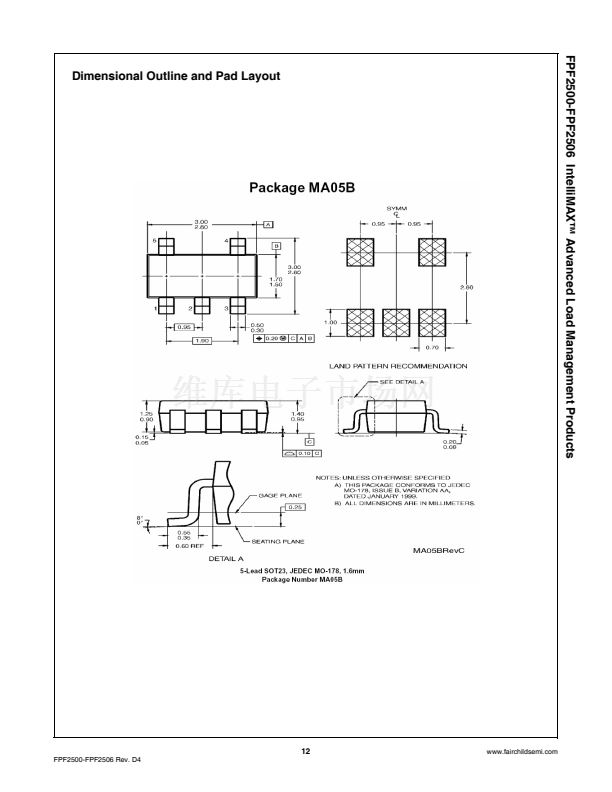

These parts are available in a space-saving 5 pin SOT23
package.
Applications
PDAs
Motor Drivers
Cell Phones
Digital Cameras
RoHS Compliant
Ordering Information
Current Limit
Blanking Time
[ms]
2.5/5/10
2.5/5/10
0
2.5/5/10
0
2.5/5/10
0
Part
FPF2500
FPF2501
FPF2502
FPF2503
FPF2504
FPF2505
FPF2506
Current Limit [A]
Adjustable (0.5-2.0 +/-30%)
Adjustable (0.5-2.0 +/-30%)
Adjustable (0.5-2.0 +/-30%)
0.4/0.6/0.8
0.4/0.6/0.8
0.8/1.2/1.6
0.8/1.2/1.6
Auto-Restart
Time
[ms]
320/640/1280
NA
NA
320/640/1280
NA
320/640/1280
NA
Fault Pin
No
No
No
Yes
Yes
Yes
Yes
漏2007 Fairchild Semiconductor Corporation
FPF2500-FPF2506 Rev. D4
1
www.fairchildsemi.com

FPF2500 PDF文件相關型號

FPF2501,FPF2502,FPF2505,FPF2506

FPF2500 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 電源分配開關

  • IntelliMax™

  • 高端開關

  • 1

  • 320 毫歐

  • 是

  • 可調

  • 4.5 V ~ 20 V

  • -40°C ~ 85°C

  • 表面貼裝

  • SC-74A，SOT-753

  • SOT-23-5

  • 帶卷 (TR)

  • FPF2500TR
