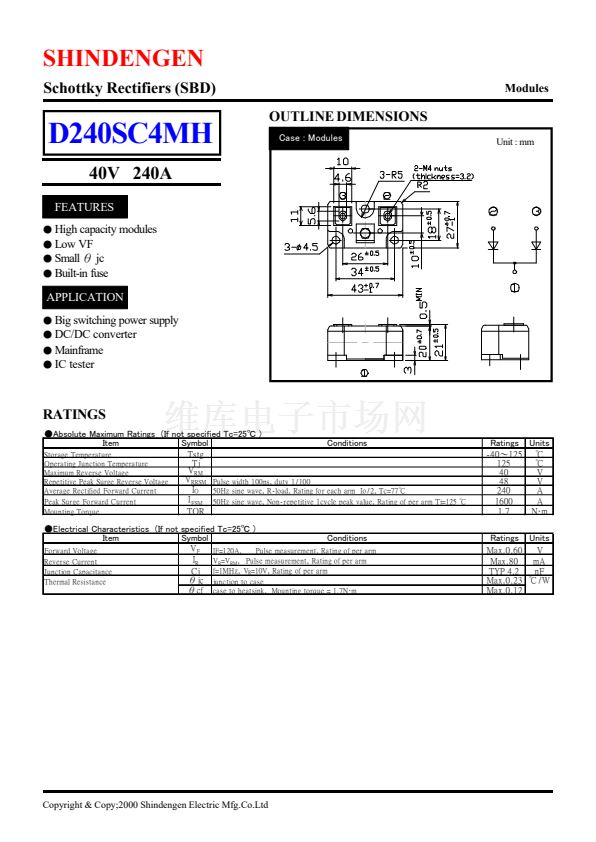

SHINDENGEN
Schottky Rectifiers (SBD)
Modules
D240SC4MH
40V 240A
FEATURES
鈼?/div>
High capacity modules
鈼?/div>
Low VF
鈼?/div>
Small
胃
jc
鈼?/div>
Built-in fuse
OUTLINE DIMENSIONS
Case : Modules
Unit : mm
APPLICATION
鈼?/div>
Big switching power supply
鈼?/div>
DC/DC converter
鈼?/div>
Mainframe
鈼?/div>
IC tester
RATINGS
鈼廇bsolute Maximum Ratings鈥?not specified Tc=25鈩冿級
(If
Item
Symbol
Conditions
Storage Temperature
Tstg
Tj
Operating Junction Temperature
V
RM
Maximum Reverse Voltage
V
RRSM
Pulse width 100ns, duty 1/100
Repetitive Peak Surge Reverse Voltage
I
O
Average Rectified Forward Current
50Hz sine wave, R-load, Rating for each arm Io/2, Tc=77鈩?/div>
I
FSM
50Hz sine wave, Non-repetitive 1cycle peak value, Rating of per arm Tj=125 鈩?/div>
Peak Surge Forward Current
Mounting Torque
TOR
鈼廍lectrical Characteristics鈥?not specified Tc=25鈩冿級
(If
Item
Symbol
Conditions
V
F
I
F
=120A,
Forward Voltage
Pulse measurement, Rating of per arm
I
R
V
R
=V
RM
, Pulse measurement, Rating of per arm
Reverse Current
Cj
f=1MHz, V
R
=10V, Rating of per arm
Junction Capacitance
胃jc
junction to case
Thermal Resistance
胃cf
case to heatsink, Mounting torque = 1.7N錕?frac12;錕絤
Ratings Units
-40鈭?25 鈩?/div>
125
鈩?/div>
40
V
48
V
240
A
1600
A
1.7
N錕?frac12;錕絤
Ratings Units
Max.0.60
V
Max.80
mA
TYP 4.2
nF
Max.0.23 鈩?W
Max.0.12
