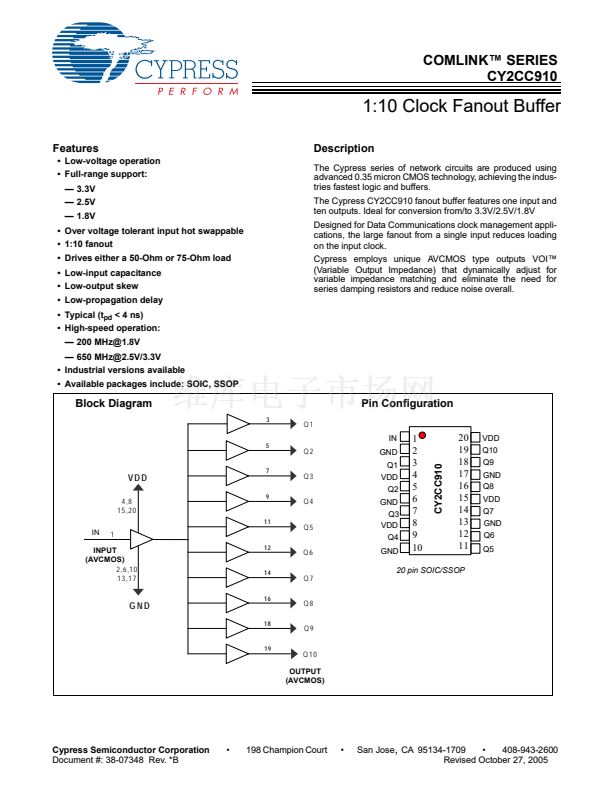

COMLINK鈩?SERIES
CY2CC910
1:10 Clock Fanout Buffer
Features
鈥?Low-voltage operation
鈥?Full-range support:
鈥?3.3V
鈥?2.5V
鈥?1.8V
鈥?Over voltage tolerant input hot swappable
鈥?1:10 fanout
鈥?Drives either a 50-Ohm or 75-Ohm load
鈥?Low-input capacitance
鈥?Low-output skew
鈥?Low-propagation delay
鈥?Typical (t
pd
< 4 ns)
鈥?High-speed operation:
鈥?200 MHz@1.8V
鈥?650 MHz@2.5V/3.3V
鈥?Industrial versions available
鈥?Available packages include: SOIC, SSOP
Description
The Cypress series of network circuits are produced using
advanced 0.35 micron CMOS technology, achieving the indus-
tries fastest logic and buffers.
The Cypress CY2CC910 fanout buffer features one input and
ten outputs. Ideal for conversion from/to 3.3V/2.5V/1.8V
Designed for Data Communications clock management appli-
cations, the large fanout from a single input reduces loading
on the input clock.
Cypress employs unique AVCMOS type outputs VOI鈩?/div>
(Variable Output Impedance) that dynamically adjust for
variable impedance matching and eliminate the need for
series damping resistors and reduce noise overall.
Block Diagram
3
Pin Configuration
Q1
5
IN
Q2
Q3
Q4
Q5
Q6
Q7
Q8
Q9
Q 10
OUTPUT
(AVCMOS)
GND
Q1
VDD
Q2
GND
Q3
VDD
Q4
GND
VDD
4 ,8
1 5 ,2 0
IN
1
7
9
11
INPUT
(AVCMOS)
2 ,6 ,1 0
1 3 ,1 7
12
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VDD
Q10
Q9
GND
Q8
VDD
Q7
GND
Q6
Q5
14
20 pin SOIC/SSOP
GND
16
18
19
Cypress Semiconductor Corporation
Document #: 38-07348 Rev. *B
鈥?/div>
198 Champion Court
鈥?/div>
San Jose
,
CA 95134-1709
鈥?/div>
408-943-2600
Revised October 27, 2005
