CXE15-48S2V5 Datasheet

  • CXE15-48S2V5

  • High Efficiency DC/DC Converters

  • ARTESYN

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

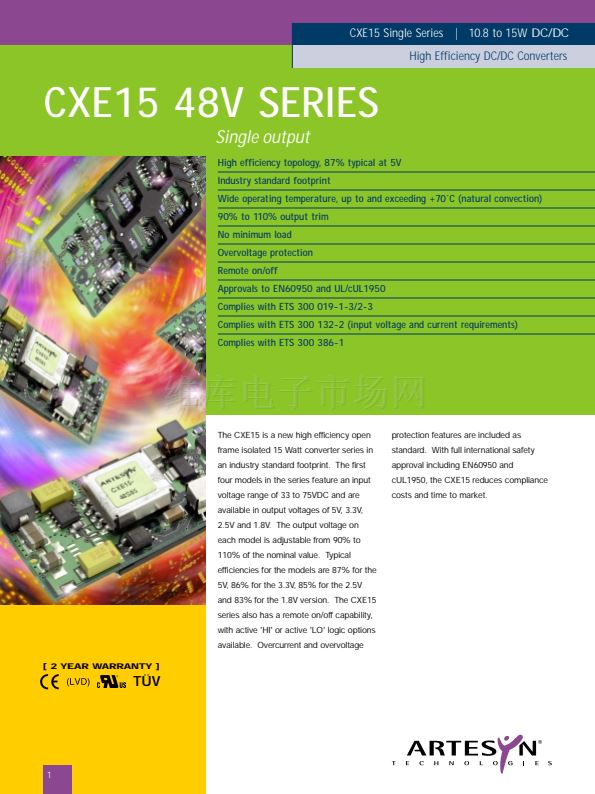

CXE15 Single Series | 10.8 to 15W DC/DC
High Efficiency DC/DC Converters
CXE15 48V SERIES
Single output
High efficiency topology, 87% typical at 5V
Industry standard footprint
Wide operating temperature, up to and exceeding +70藲C (natural convection)
90% to 110% output trim
No minimum load
Overvoltage protection
Remote on/off
Approvals to EN60950 and UL/cUL1950
Complies with ETS 300 019-1-3/2-3
Complies with ETS 300 132-2 (input voltage and current requirements)
Complies with ETS 300 386-1
The CXE15 is a new high efficiency open
frame isolated 15 Watt converter series in
an industry standard footprint. The first
four models in the series feature an input
voltage range of 33 to 75VDC and are
available in output voltages of 5V, 3.3V,
2.5V and 1.8V. The output voltage on
each model is adjustable from 90% to
110% of the nominal value. Typical
efficiencies for the models are 87% for the
5V, 86% for the 3.3V, 85% for the 2.5V
and 83% for the 1.8V version. The CXE15
series also has a remote on/off capability,
with active 'HI' or active 'LO' logic options
available. Overcurrent and overvoltage
[ 2 YEAR WARRANTY ]
protection features are included as
standard. With full international safety
approval including EN60950 and
cUL1950, the CXE15 reduces compliance
costs and time to market.
T脺V
1

CXE15-48S2V5 產品屬性

  • 300

  • 電源 - 板載

  • DC DC Converters

  • CXE15

  • 隔離

  • 1

  • 33V

  • 75V

  • 2.5V

  • -

  • -

  • 6A

  • 15W

  • 1.5kV（1500V）

  • -

  • 通孔

  • 6-DIP 模塊

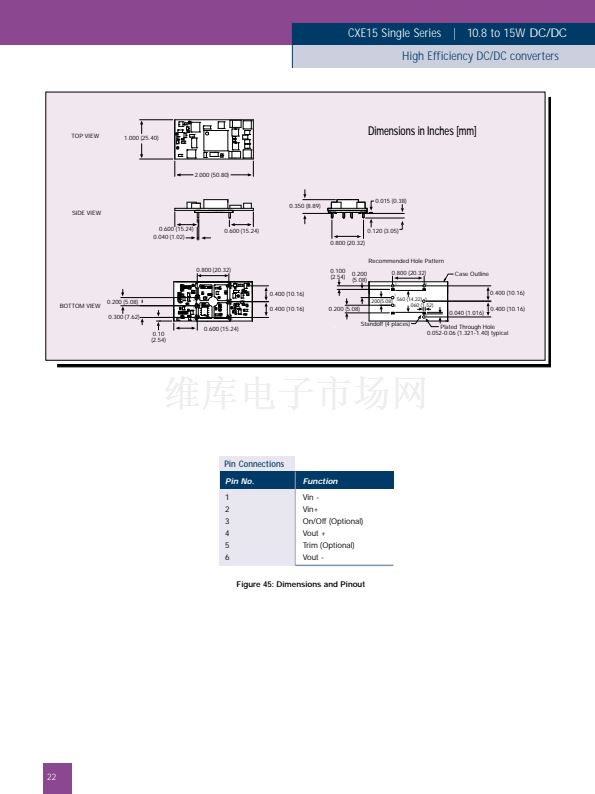

  • 2.00" L x 1.00" W x 0.35" H（50.8mm x 25.4mm x 8.9mm）

  • 散裝

  • -40°C ~ 65°C

  • 85%

  • 15W

  • 393-1024
